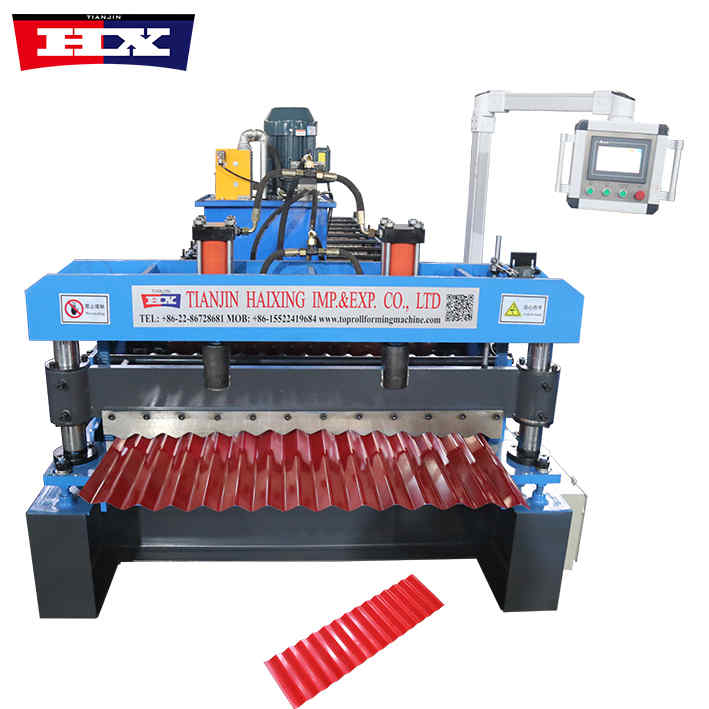

Corrugated Making Machine
Corrugated Making Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin

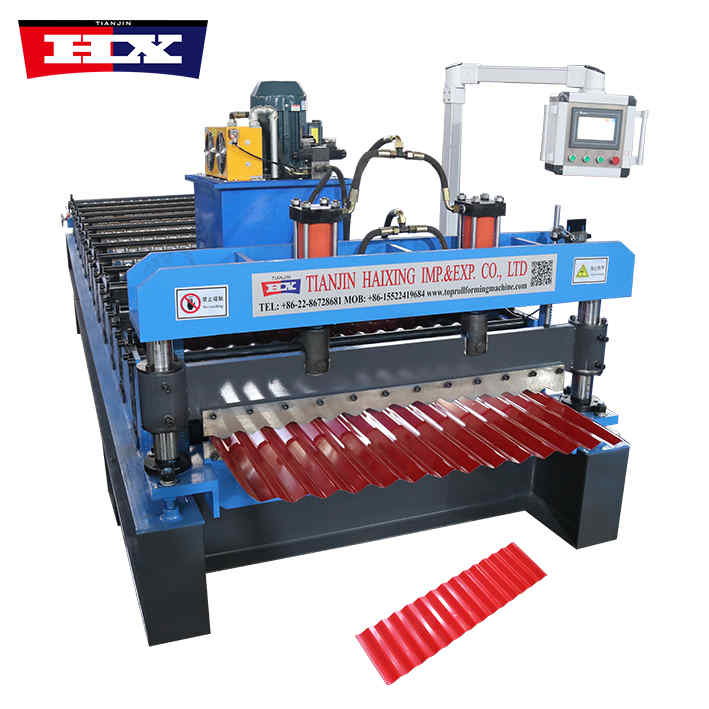

Corrugated Making Machine

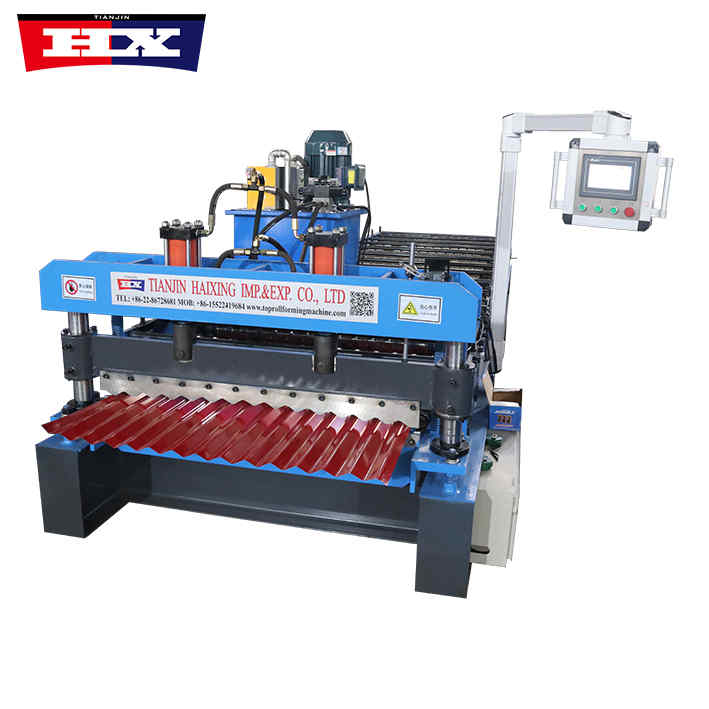

Corrugated Making Machine
The working principle of the corrugated making machine mainly involves transmitting pressure to the oil cylinder through the hydraulic system, pushing the upper and lower molds to close, and pressing and forming the metal sheet. During the pressing process, the machine adopts a digital control system, which can realize automatic control and adjustment, improving production efficiency and product quality.

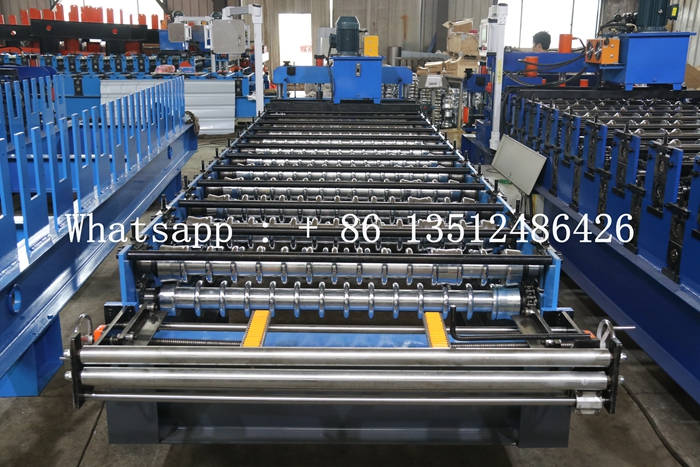

Corrugated Making Machine
Specification
No. |
Number |
Corrugated Making Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |

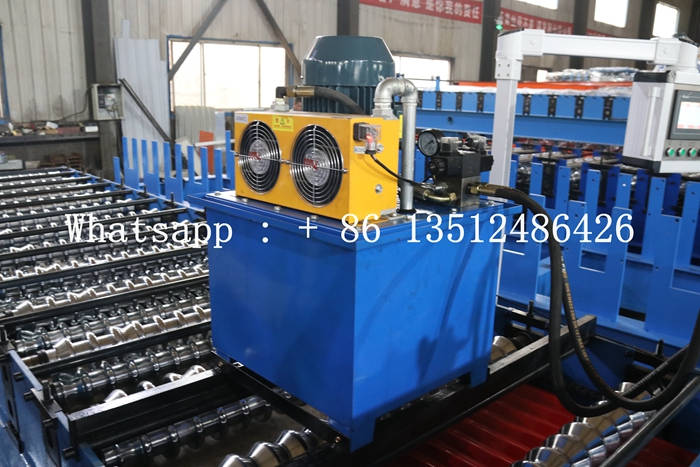

| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 13 |
| 19. | Size | 6500mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
How To Operate
1. Machine debugging
1). Turn on the power of the machine and check whether all parts are normal.
2). Configure a regulating valve to control the hydraulic oil flow rate.
3). Stabilize the machine speed to ensure smooth operation during plate pressing.
4). Collect appearance and other parameter information, turn on the adjustment gear, and conduct debugging.
2. Plate positioning
1). Define the size and length of the plate and cut it.
2). Set the plate length and number of layers on the tile press.
3). Position the plate and adjust the angle of the inclined plate.
4). Set the pressing force of the tile press and test the board in advance.
3. Suppression operation
1). Store board size and length.
2). Place the board on the tile press and adjust the position carefully.
3). Start pressing to gradually deform the plate according to the preset shape.
4). Wait for the machine operation to complete and check whether the plate meets the requirements.
5). Take out the board, clean up the remaining material, and repeat the above steps.
