Curving Machine
Curving Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 25 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Port : Tianjin

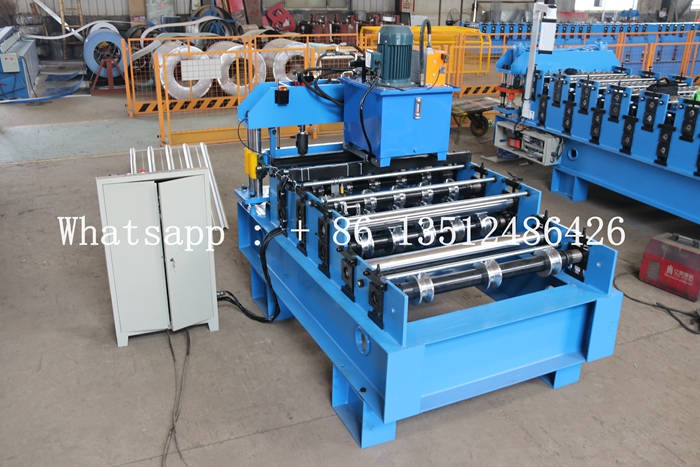

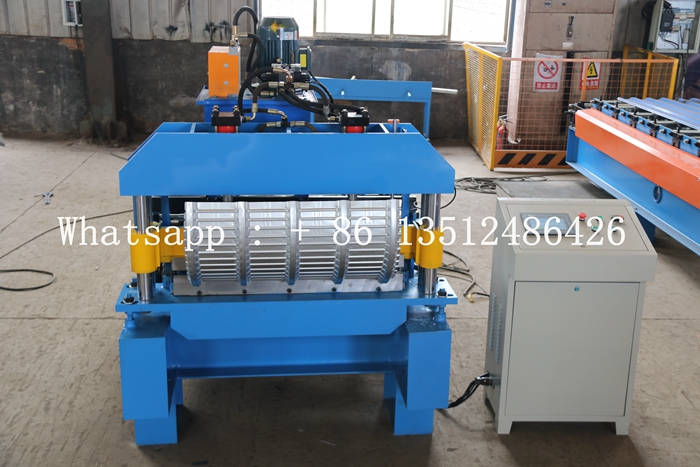

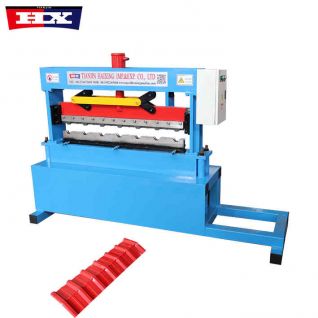

Curving Machine
Curving Machine

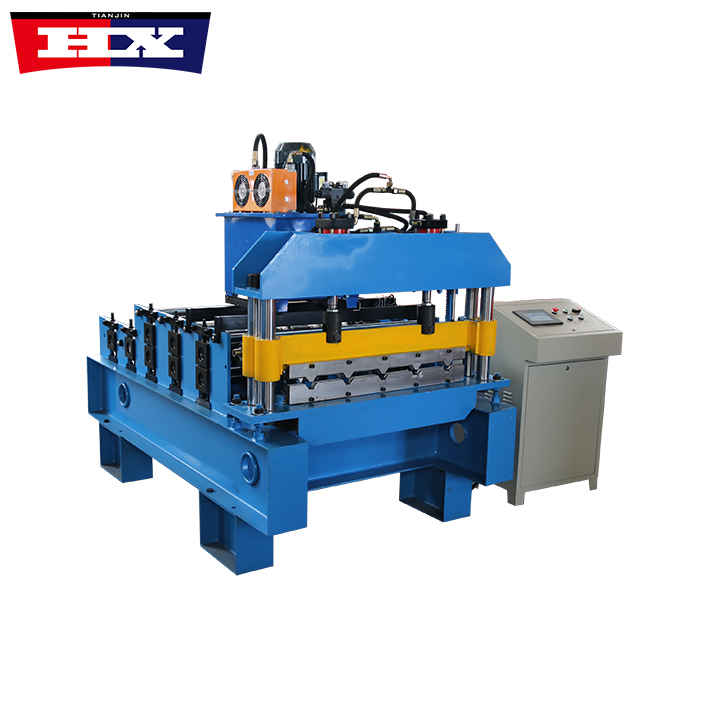

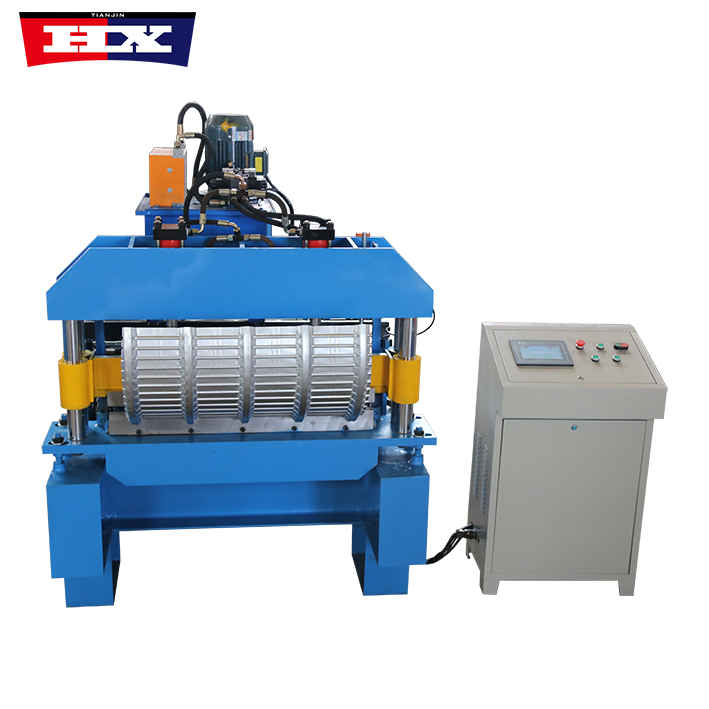

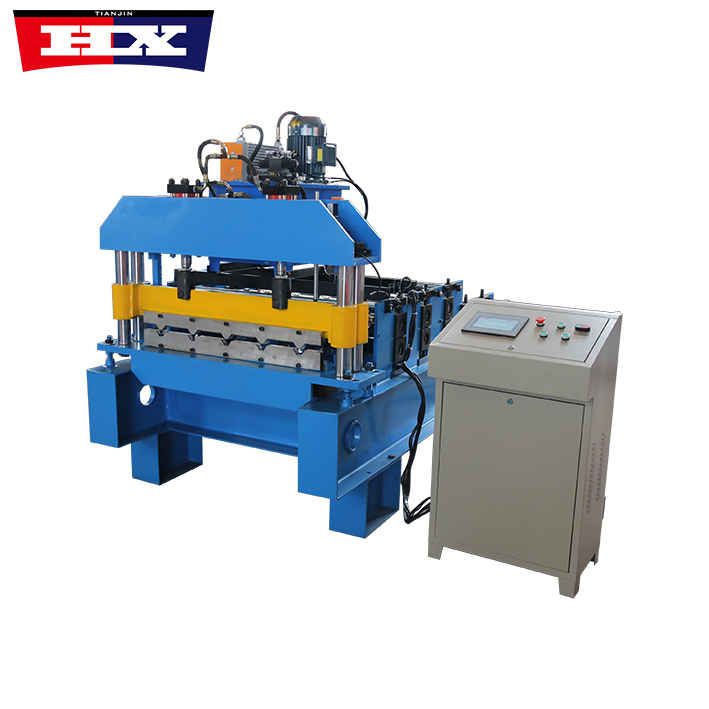

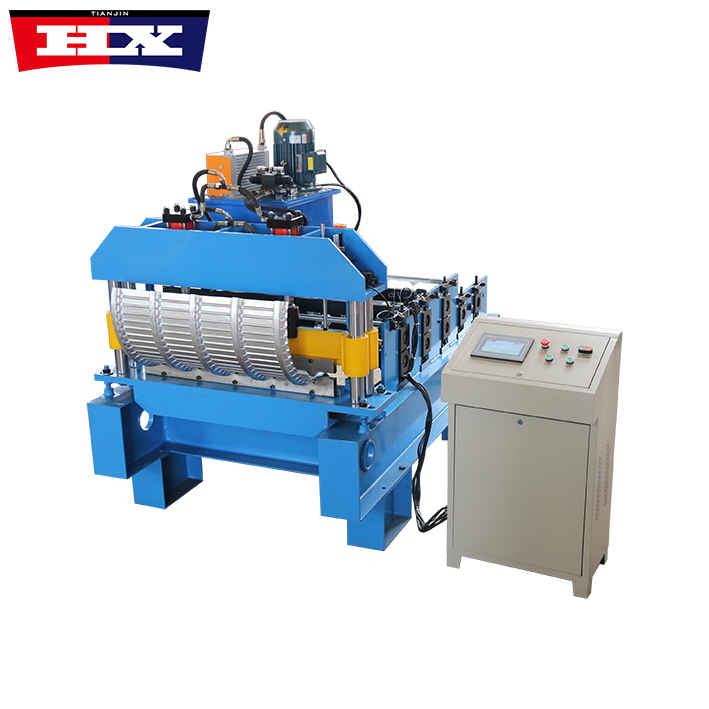

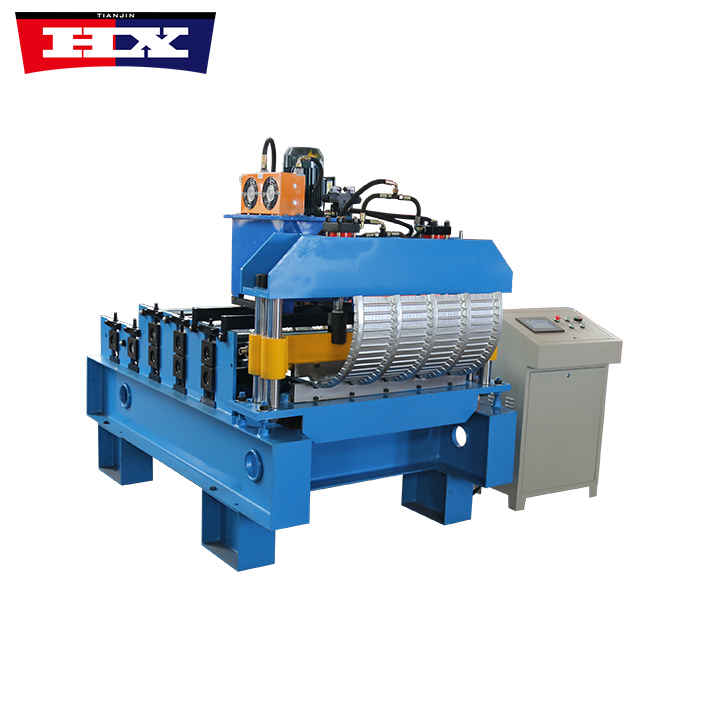

The curving machine is a machine used to process lightweight steel structures and can be widely used in the production of industrial buildings, aviation hangars and civil buildings.
Curving machine has the characteristics of light weight, high strength, large load-bearing capacity and good earthquake resistance, and is widely used in the field of multi-high-rise steel structure buildings. There are no beams or sandalwood, and the space is tall and open. It can be divided and combined at will, making it easy to use.
1. Light weight, strong steel, good elasticity and excellent earthquake resistance.
2. Mechanical lock seams make it airtight, saving time and improving efficiency.
3. The force-bearing method is reasonable, the reserve is safe, and it can withstand large wind loads and earthquake forces.
4. Various design styles and strong adaptability, whether it is a bustling neighborhood or a remote town, it is economical, beautiful and practical.
Specification
No. |
Number |
Curving Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 3kw |
| 6. | Pump station | 3kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 3-5m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 5 |
| 19. | Size | 1800mm*1500mm*1600mm |
| 20. | Weight | 1200kg |
Advantages
1. The curving machine is an efficient and precise steel structure processing equipment that can quickly process steel plates, greatly improving work efficiency while ensuring quality.
2. The curving machine has the characteristics of fast bending speed, high precision, low noise and long service life. It is an ideal steel structure processing equipment.
3. The curving machine is able to process according to customer requirements, with high flexibility and strong applicability.
4. The curving machine can quickly bend and process steel plates. It is a steel structure processing equipment with high precision and simple operation.
