IBR Roll Forming Machine
IBR Roll Forming Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin

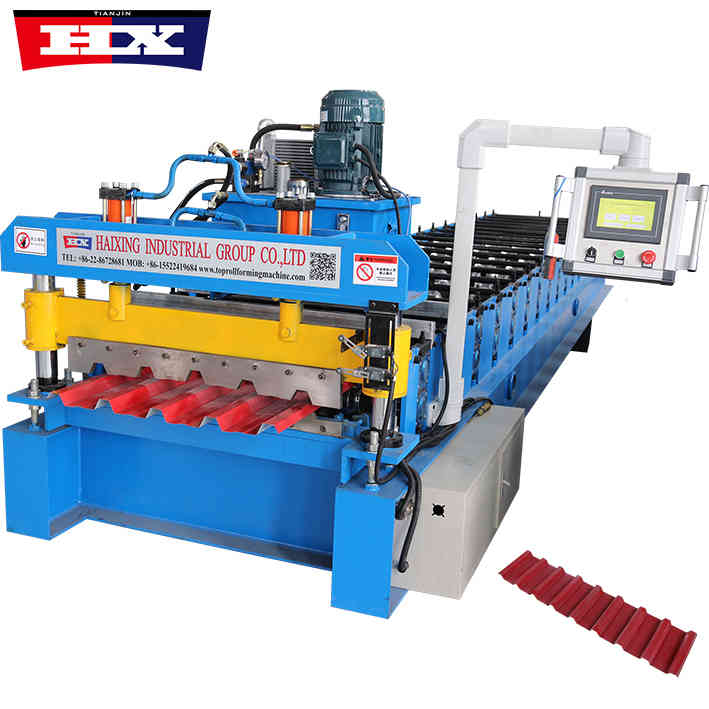

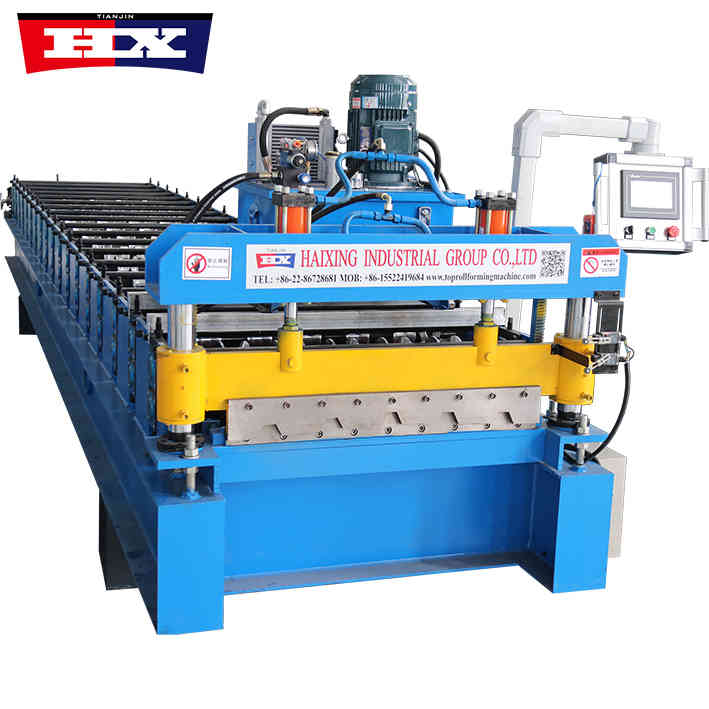

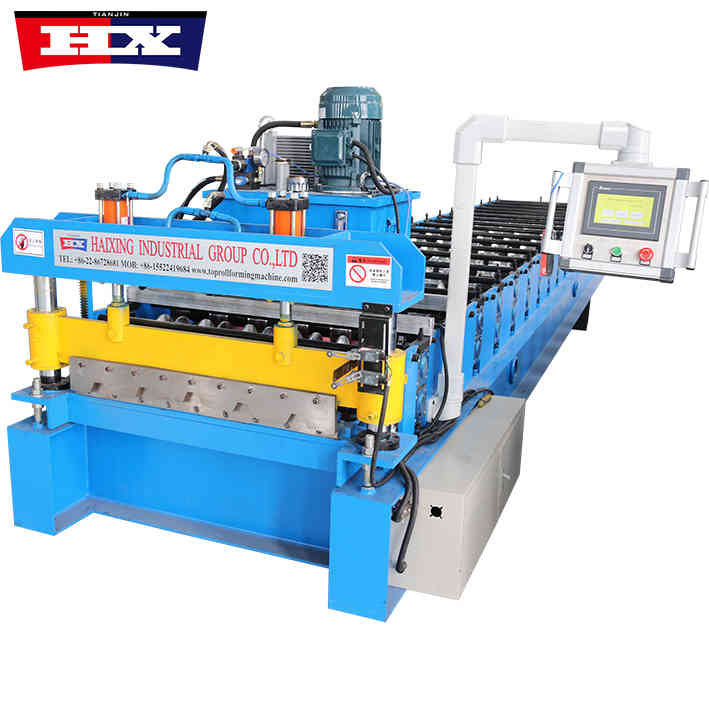

IBR Roll Forming Machine
1. High efficiency: The IBR roll forming machine adopts advanced transmission system and servo control technology, which greatly increases the speed of tile pressing and significantly enhances production efficiency.
2. High precision: This IBR roll forming machine has a high-precision control system and high-quality molds, which can ensure the accuracy and stability of the pressed tiles and meet users' high requirements for product quality.
3. Good stability: The design of the IBR roll forming machine fully considers the stability and durability of the structure, allowing the equipment to maintain stable performance during long-term operation.
4. Easy to operate: The IBR roll forming machine adopts a humanized operating interface and control system, making the operation simpler and easier, and reducing the skill requirements for operators.
IBR roll forming machine is popular in Africa.

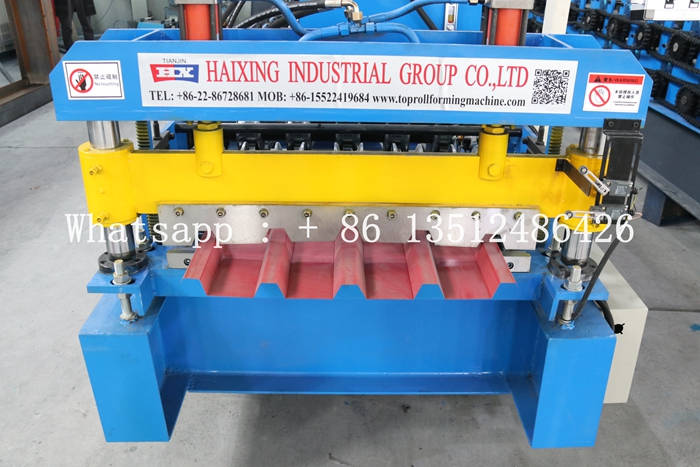

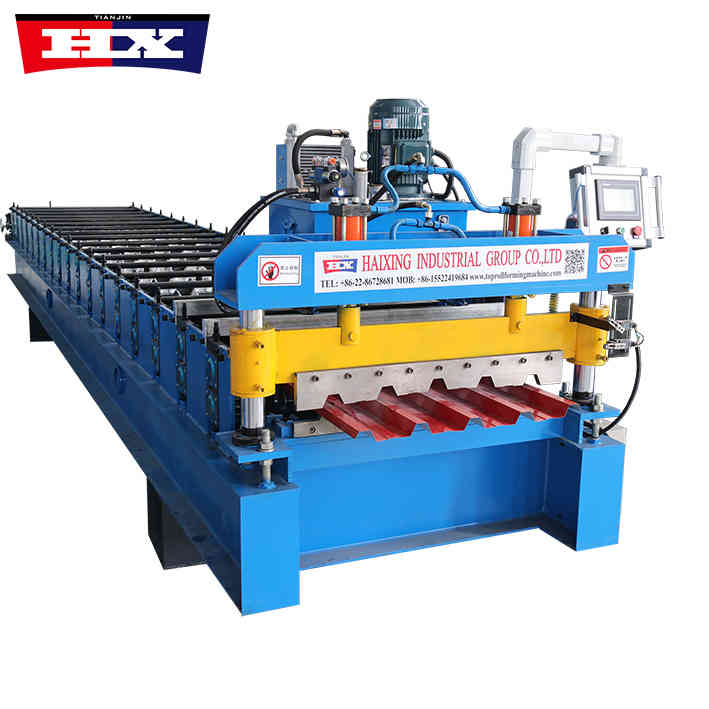

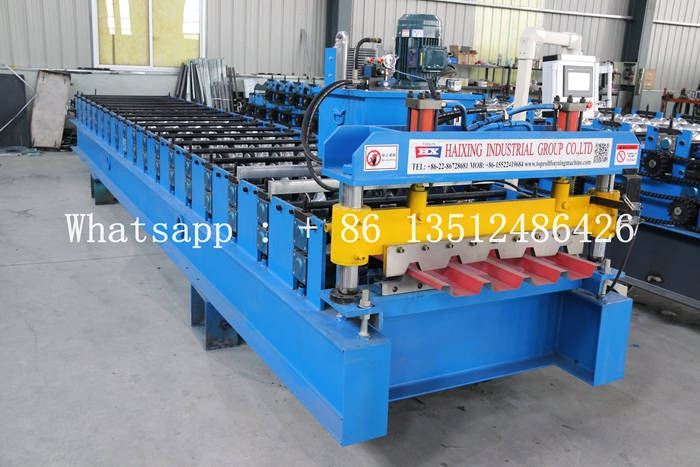

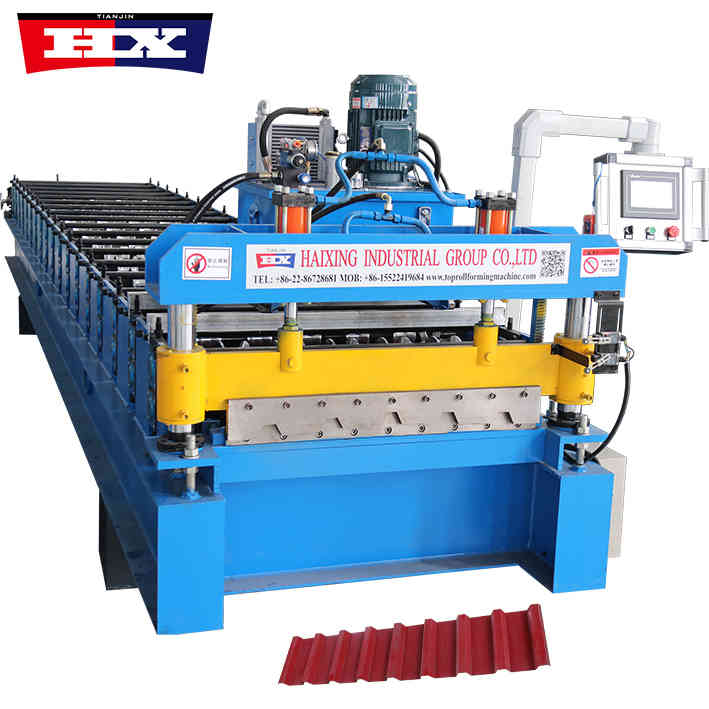

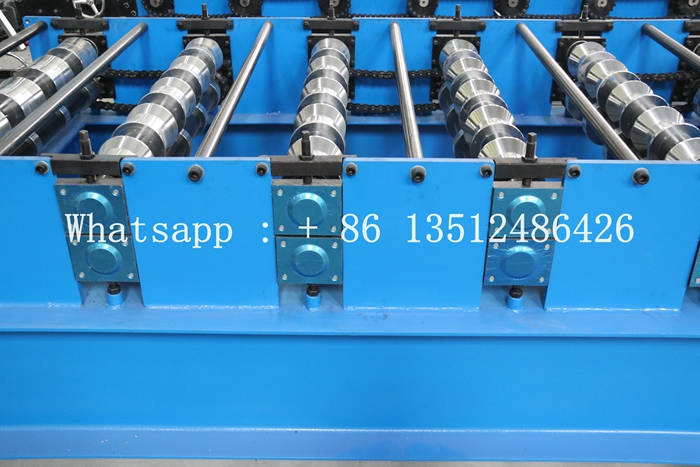

IBR Roll Forming Machine
Specification
No. |
Number |
IBR Roll Forming Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 18 |
| 19. | Size | 9000mm*1500mm*1600mm |
| 20. | Weight | 5000kg |

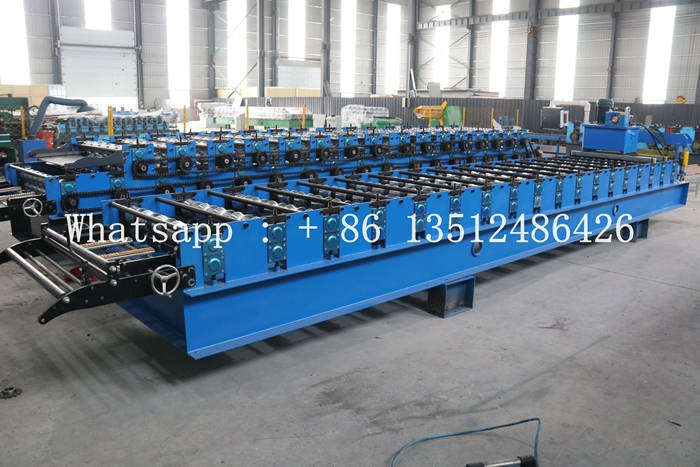

Working Principle
The IBR roll forming machine is mainly composed of transmission system, tile press device, control system and other parts. When working, the transmission system drives the tile pressing device to move up and down to press the metal sheet into the required trapezoidal tiles. The control system is responsible for monitoring the operating status of the equipment and ensuring the accuracy and stability of the tile pressing process.
Application
The IBR roll forming machine is widely used in construction, industry and other fields.
1. In the construction field, it is mainly used to produce various corrugated tiles, such as color steel tiles, glazed tiles, etc., to provide beautiful and practical decoration for the roofs and walls of buildings.
2. In the industrial field, this equipment can be used to produce various metal sheet forming processes, such as ventilation ducts, storage tank shells, etc.
