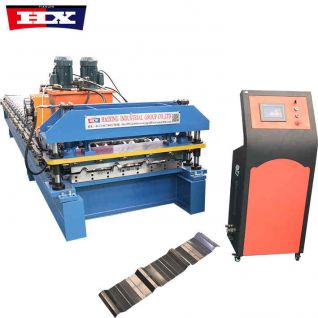

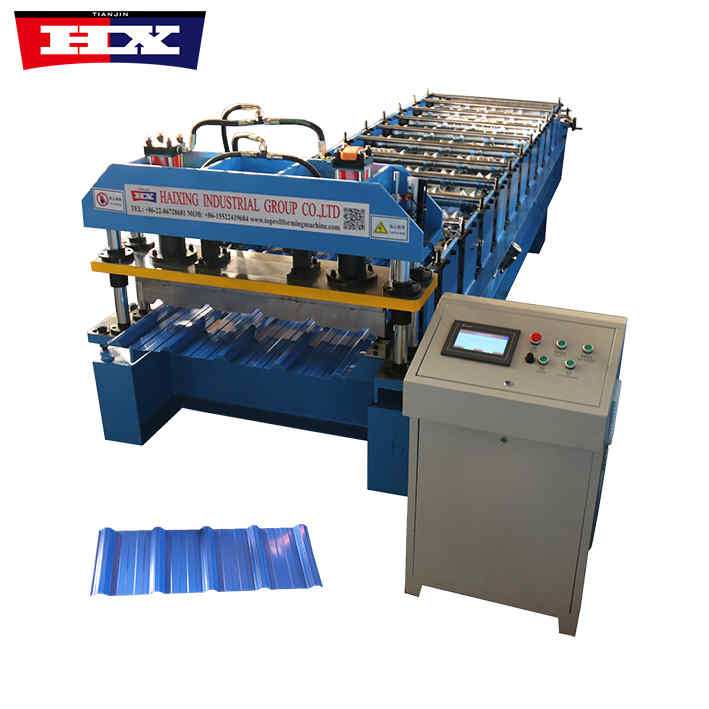

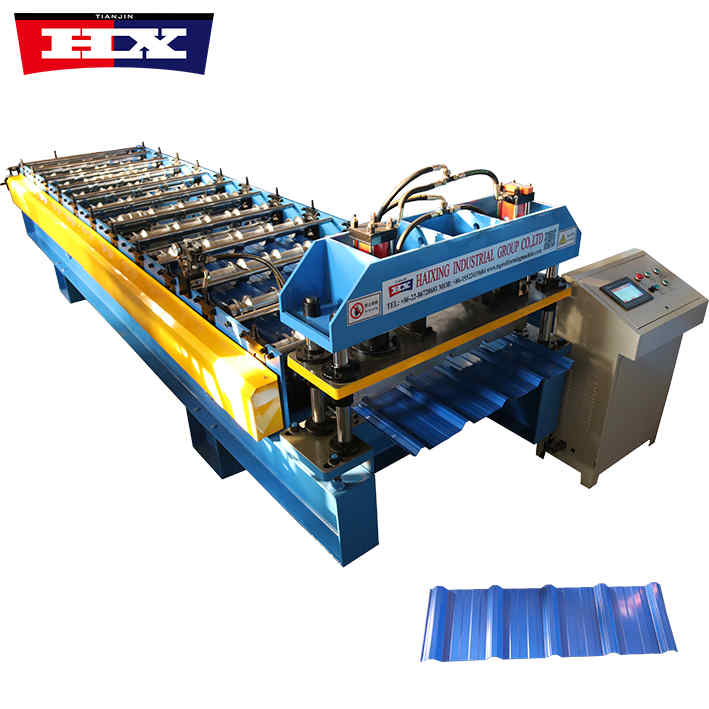

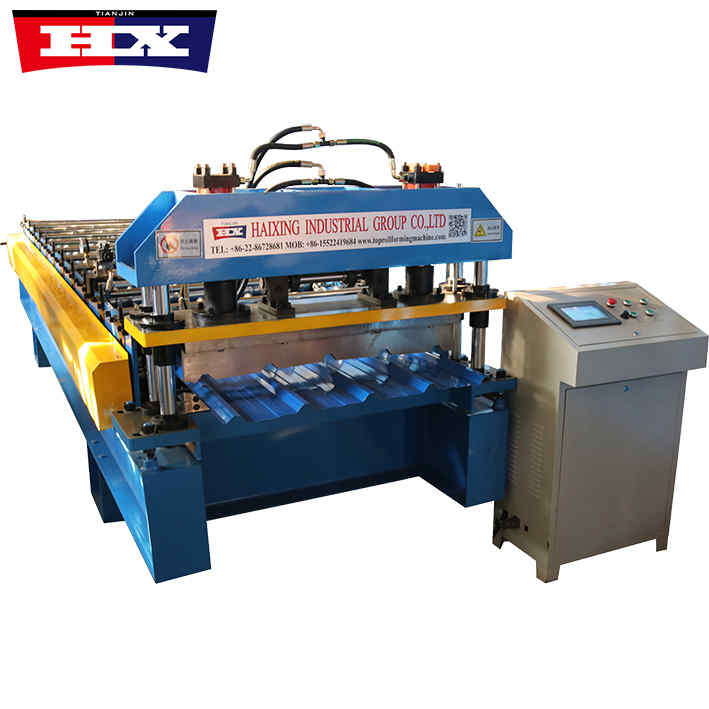

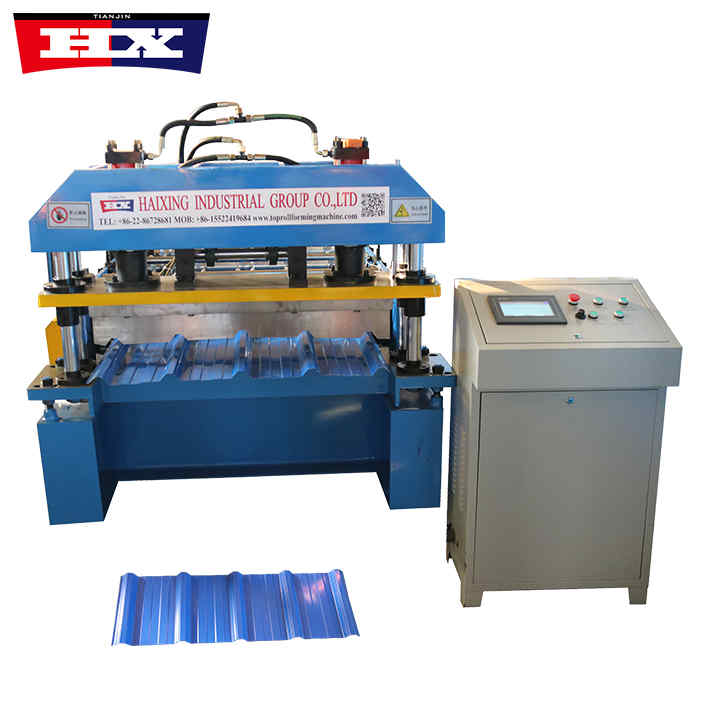

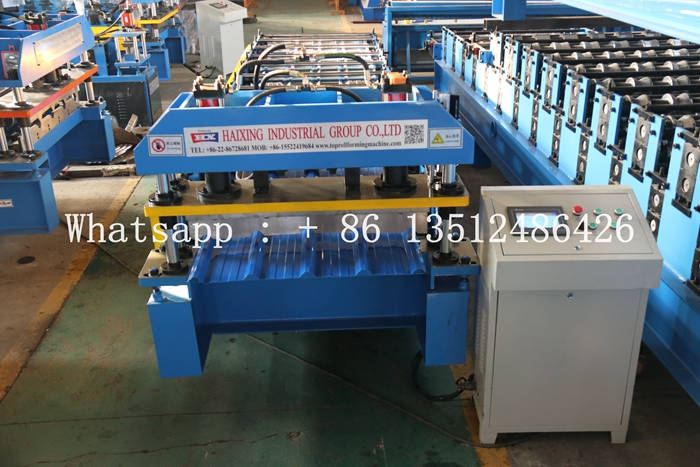

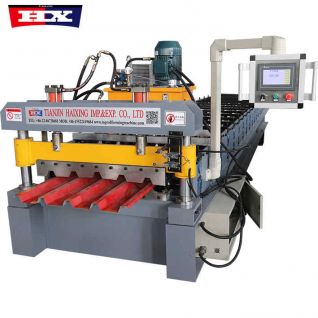

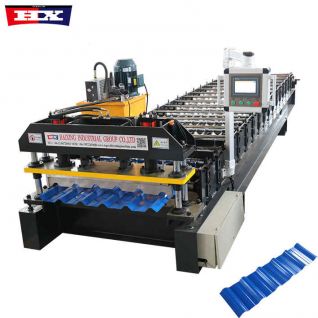

Trapezoidal Metal Roof Forming Machine
Metal Roof Forming Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin
Trapezoidal Metal Roof Forming Machine
Trapezoidal Metal Roof Forming Machine

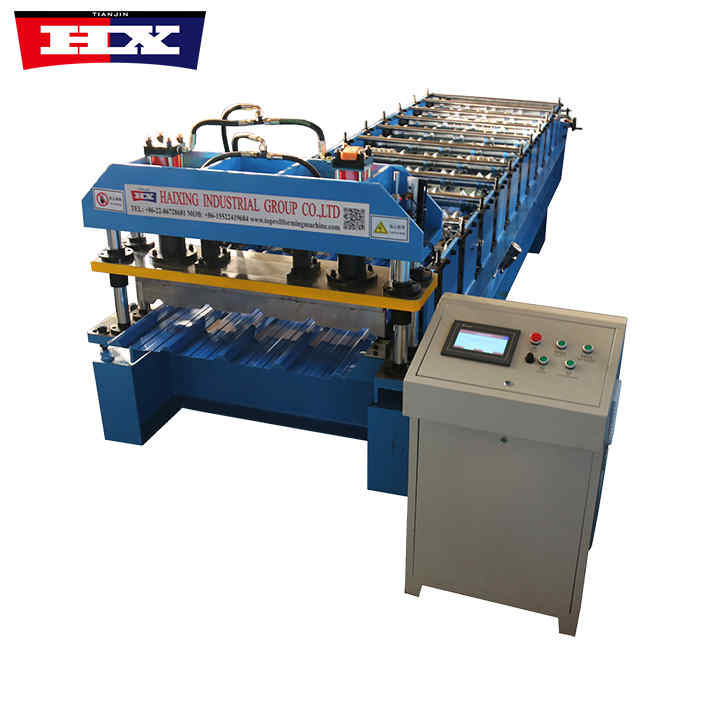

The trapezoidal metal roof forming machine is mainly composed of the body, transmission system, tile press system, cutting system, electrical control system and other parts.
1. The fuselage is welded with high-strength steel, which has the characteristics of stable structure and strong earthquake resistance.
2. The transmission system consists of motor, reducer, sprocket, etc., which can provide stable and efficient transmission effect.

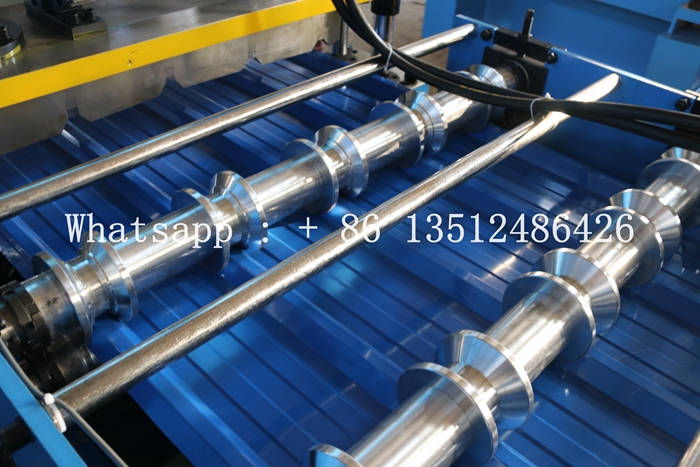

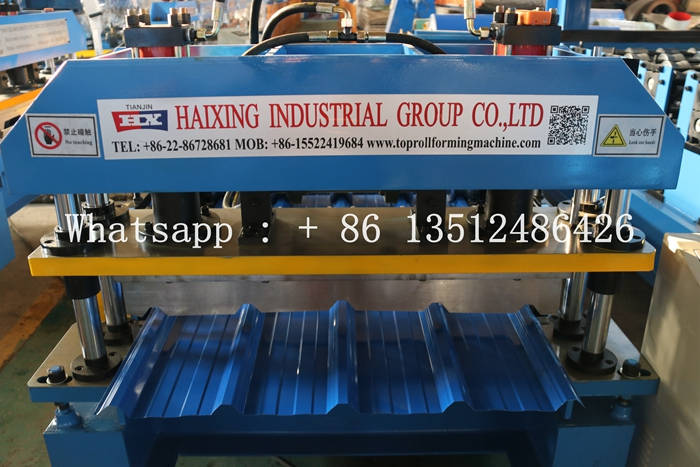

3. The tile pressing system includes an upper pressing roller, a lower pressing roller, a forming mold, etc. Through the synergy of the upper and lower pressing rollers, the metal sheet is pressed into corrugated sheets of the required shape.
4. The cutting system consists of blades, knife holders, cylinders, etc., which can achieve precise cutting functions.

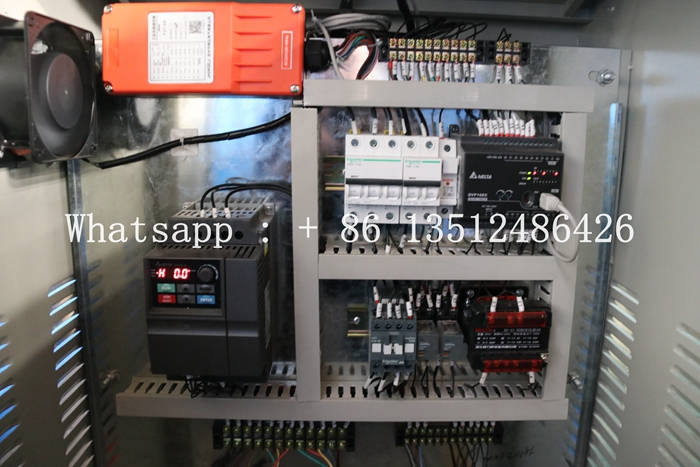

5. The electrical control system is responsible for the overall control of the equipment, including starting, stopping, speed regulation, counting and other functions.
Trapezoidal Metal Roof Forming Machine
Specification
No. |
Number |
Trapezoidal Metal Roof Forming Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 11 |
| 19. | Size | 6000mm*1500mm*1600mm |
| 20. | Weight | 4000kg |
Working Principle
1. First, the metal sheet is fed into the equipment, and driven by the transmission system, the metal sheet enters the tile pressing system.
2. In the tile pressing system, the upper and lower pressing rollers work together to press the metal sheet into corrugated sheets of the required shape.
3. Next, the cutting system accurately cuts the pressed corrugations to meet the requirements of different lengths.
4. Finally, the finished corrugated sheets are discharged through the discharge port to complete the entire processing process.
Application

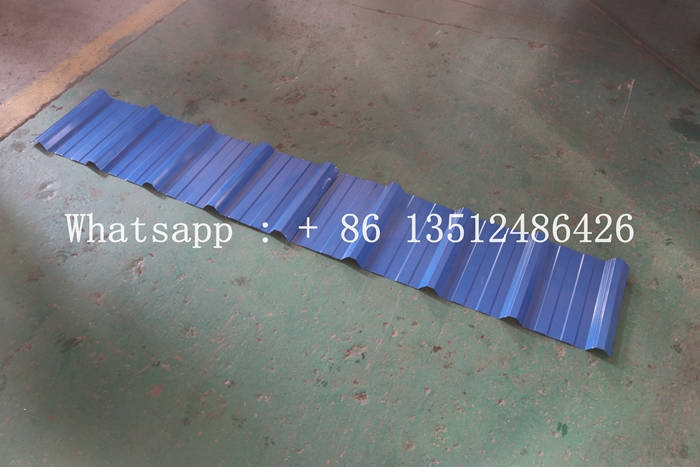

1. Construction field: The trapezoidal metal roof forming machine can be used to produce trapezoidal sheets of various shapes and specifications, such as roof panels, wall panels, etc., and is widely used in industrial plants, warehouses, cold storages, residential buildings and other construction fields.
2. Decorative field: The trapezoidal sheets produced by the trapezoidal metal roof forming machine have good decorative effects and can be used for indoor and outdoor walls, ceilings, partitions and other decorative projects to enhance the beauty and practicality of the overall space.
3. Transportation field: The trapezoidal sheets produced by the trapezoidal metal roof forming machine can also be used in transportation facilities, such as highway guardrails, railway soundproof walls, etc., with good durability and stability.
4. Home appliance field: The trapezoidal metal roof forming machine can also be used to produce shells and parts for home appliances, such as refrigerators, air conditioners, washing machines, etc. It has good anti-rust and anti-corrosion properties.
