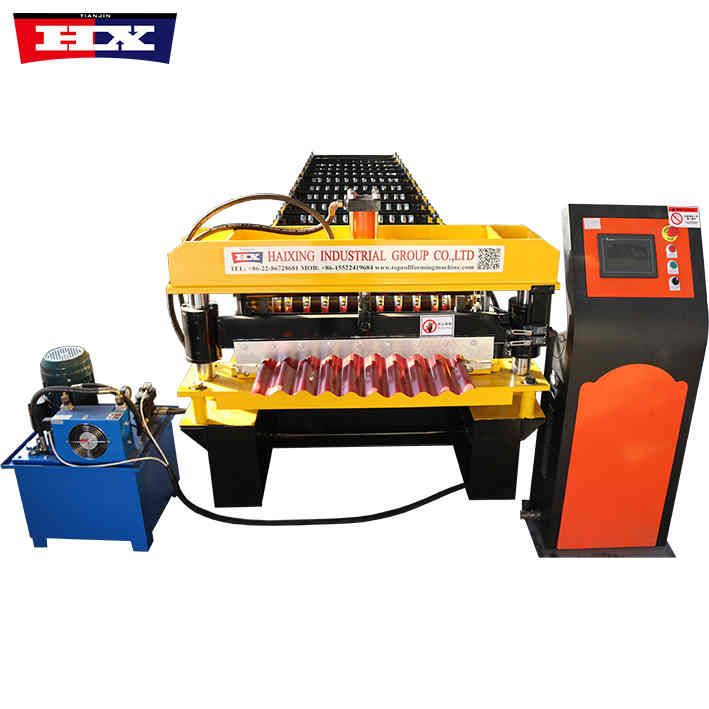

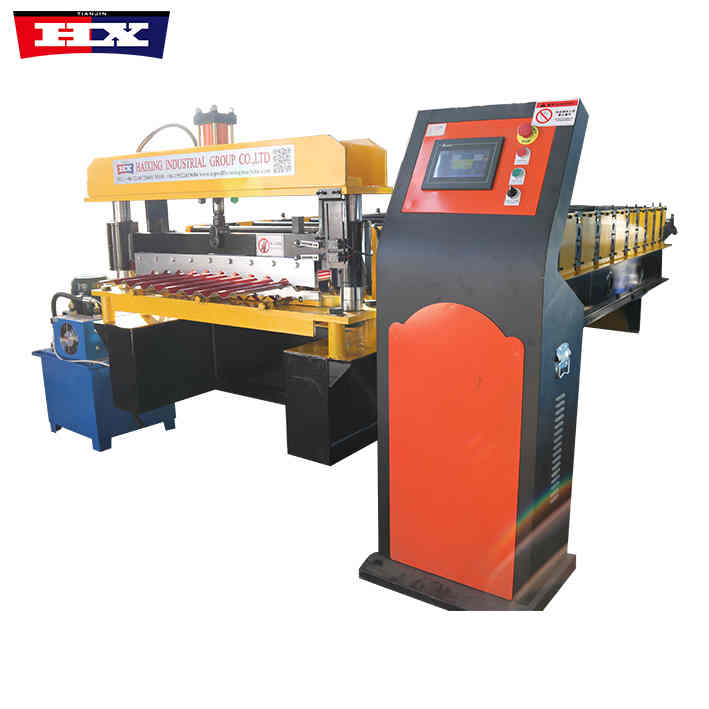

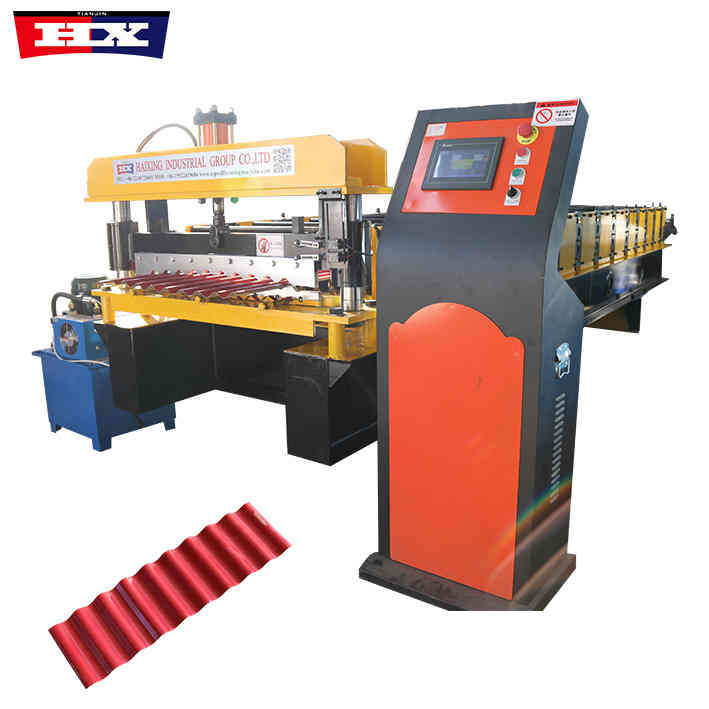

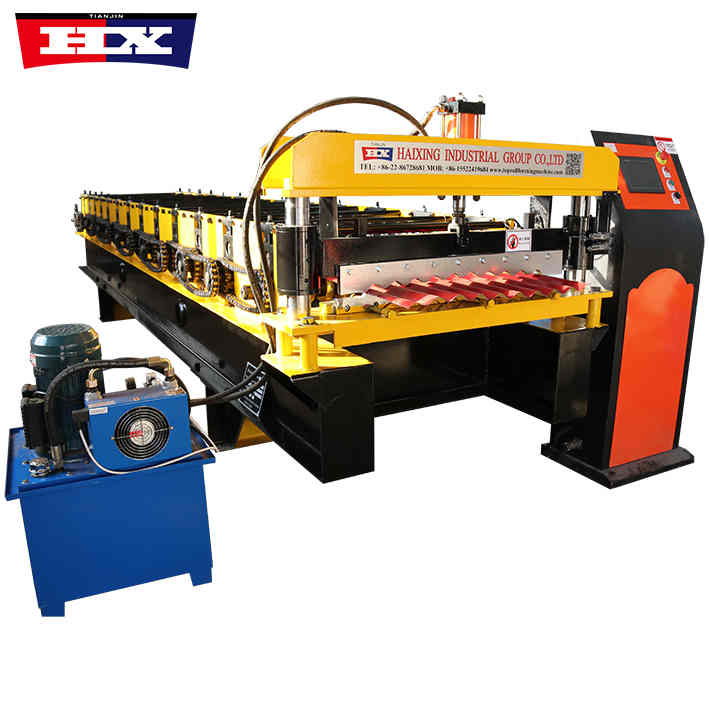

Roof Making Machine
Roof Making Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin

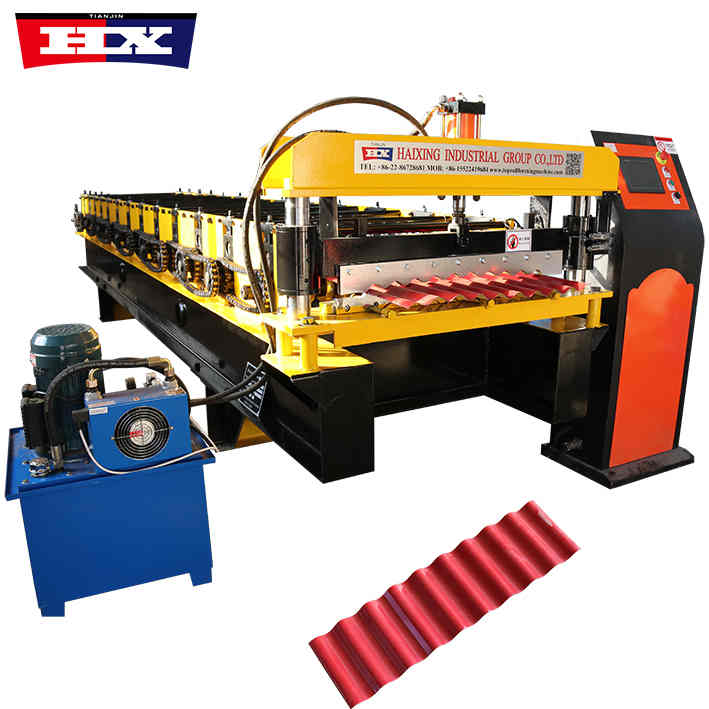

Roof Making Machine
Roof Making Machine

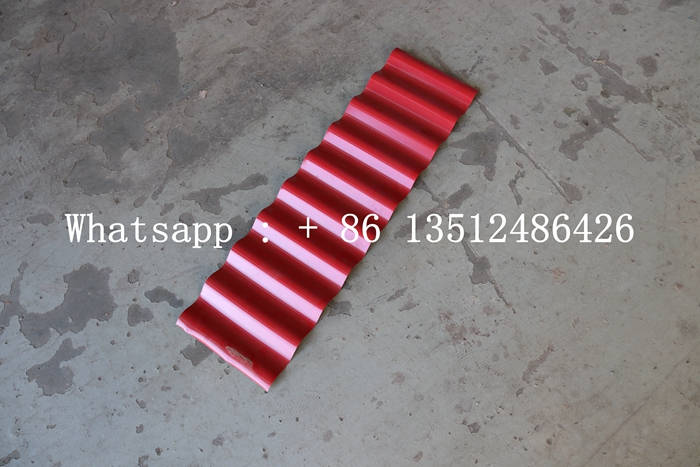

Roof making machine mainly used to produce corrugated profiled tiles. This equipment adopts advanced technology and structural design, has the characteristics of high efficiency, stability and easy operation, and has become one of the indispensable and important equipment in the field of modern construction.

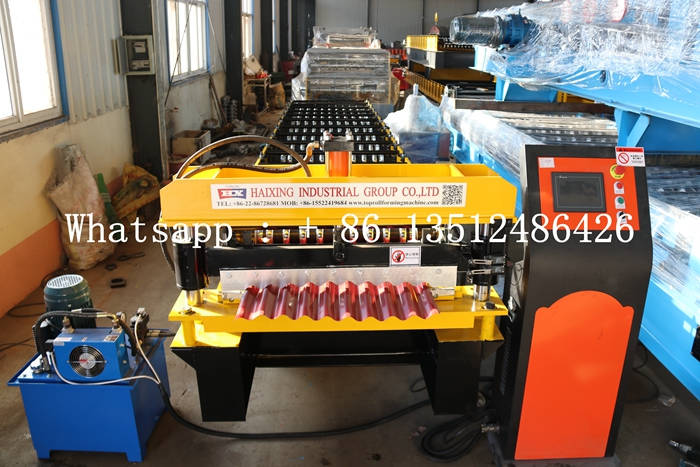

Roof Making Machine
Specification
No. |
Number |
Roof Making Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 13 |
| 19. | Size | 6500mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
Advantages
1. Improve production efficiency: The roof making machine adopts an automated control system, which can achieve rapid and continuous production, greatly improving production efficiency.
2. Improve product quality: The roof making machine has high precision and stability, which can ensure product consistency and quality stability.
3. Reduce labor costs: The roof making machine can realize automated production, reducing reliance on manual operations and reducing labor costs.
4. Broaden application areas: The roof making machine is suitable for the forming and processing of a variety of metal sheets and can meet the needs of different industries.
