Roofing Corrugated Sheet Machine
Roofing Corrugated Sheet Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin

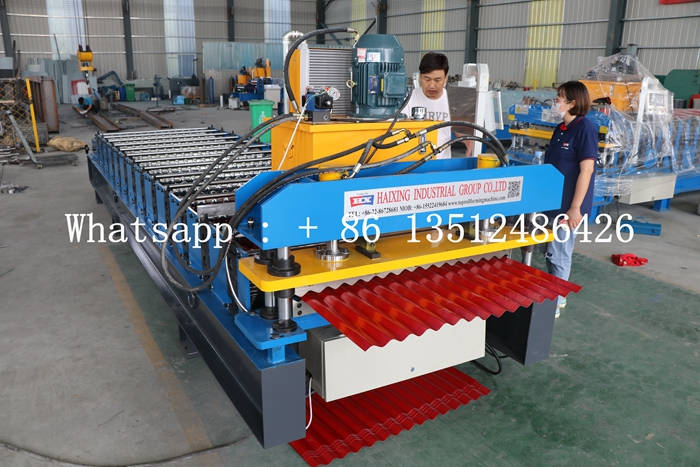

Roofing Corrugated Sheet Machine
Roofing Corrugated Sheet Machine

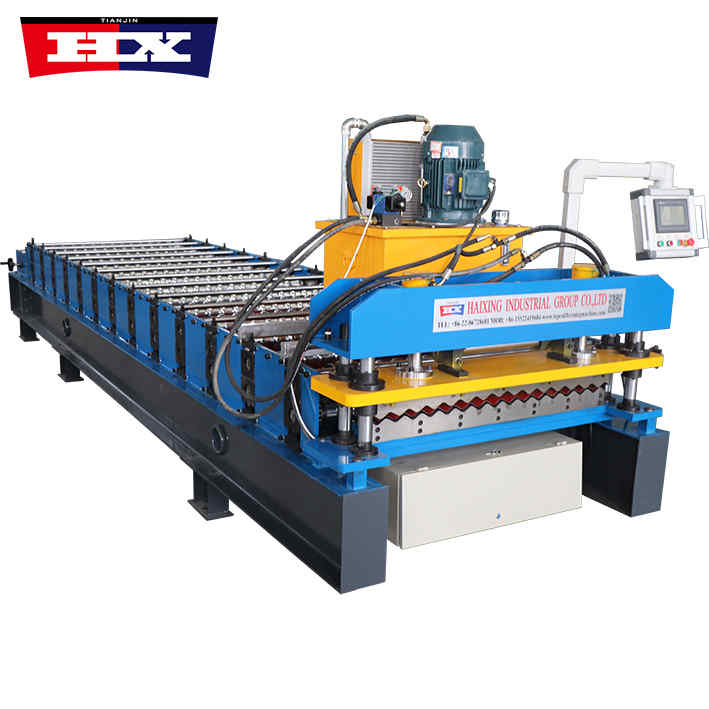

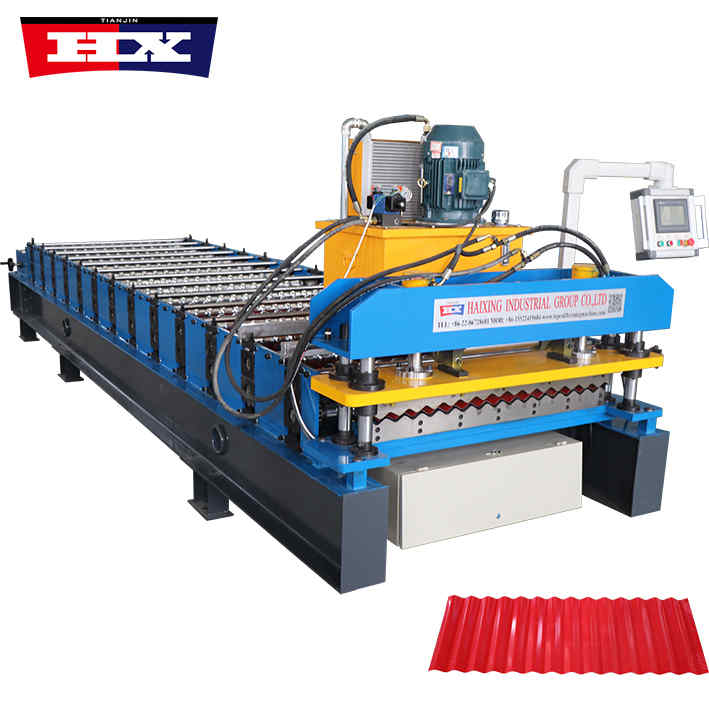

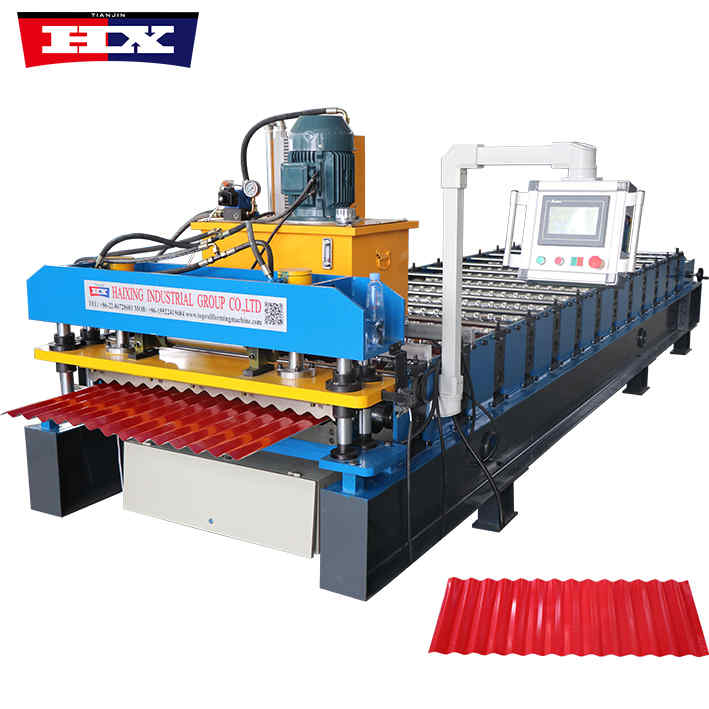

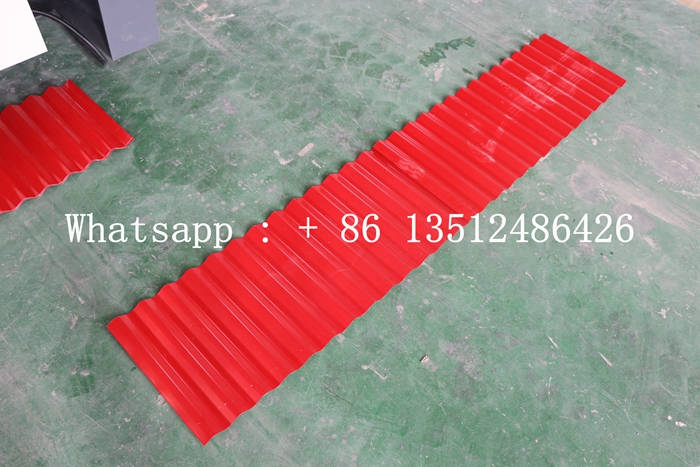

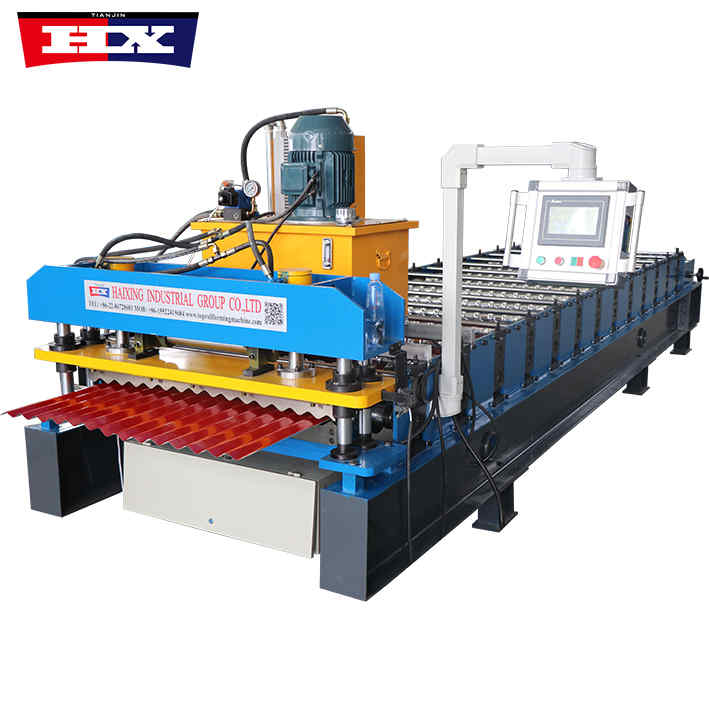

The roofing corrugated sheet machine is an efficient and precise metal processing equipment that is widely used in construction, decoration, transportation, home appliances and other fields. Its main function is to press metal sheets into corrugated sheets of various shapes to meet the needs of metal corrugated sheets in different fields.

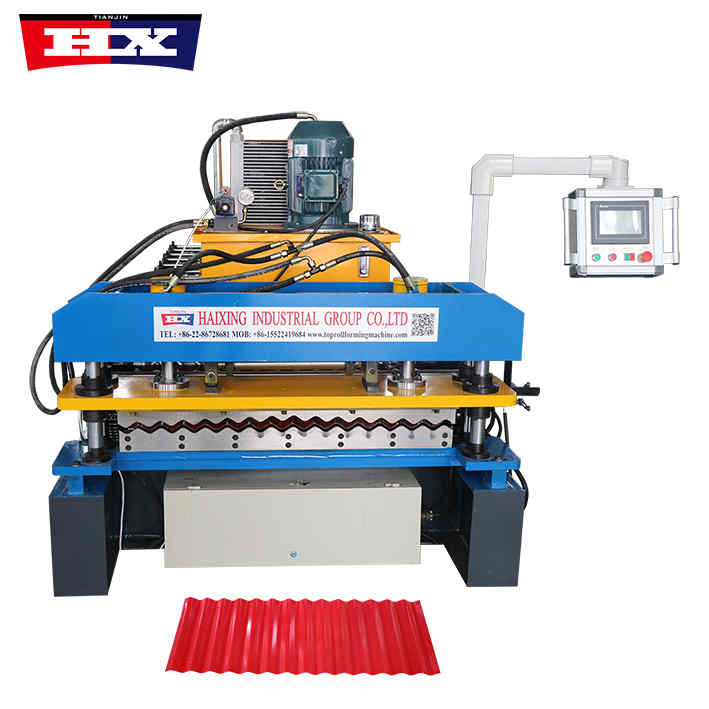

Roofing Corrugated Sheet Machine
Specification
No. |
Number |
Roofing Corrugated Sheet Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |

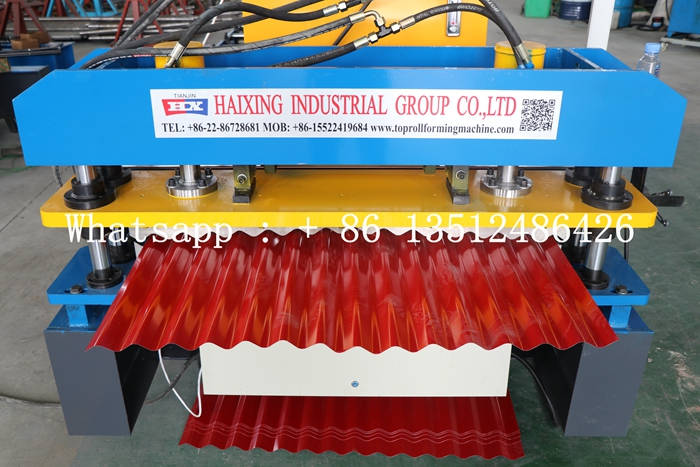

| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |

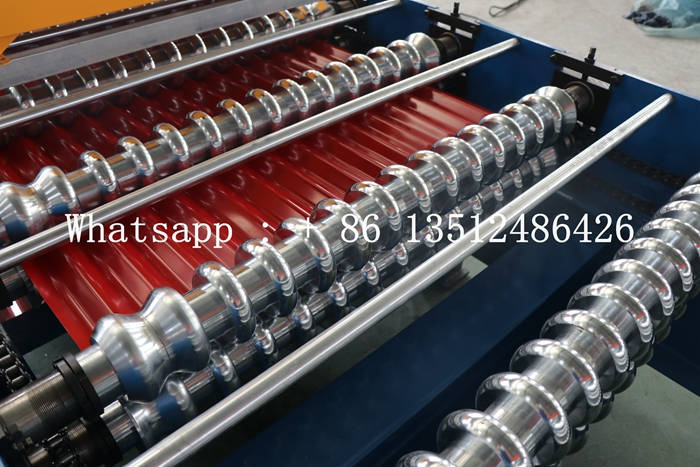

| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 13 |
| 19. | Size | 6500mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
Advantages
1. Efficiency: The roofing corrugated sheet machine uses advanced mechanical principles to quickly process metal sheets, maximize work efficiency, significantly save manufacturing costs, and provide a faster and more labor-saving solution for the construction industry.
2. Stability: The roofing corrugated sheet machine is made of high-strength materials, which can maintain stability during the working process, effectively prevent irregular tiles and deformation of tiles caused by problems with the machine itself, and has long-term stability work performance.
3. Diversity: The mold of the roofing corrugated sheet machine is replaceable and can produce metal tiles of different shapes such as arcs, etc., providing the construction industry with more diversified and diversified choices, and satisfying different customers and different needs. Requirements for building needs.
4. Aesthetics: The roofing corrugated sheet machine produced by the metal tile press are rich in color, with a variety of colors to choose from, and have a beautiful and elegant appearance, providing the construction industry with more beautiful and high-quality building materials.
