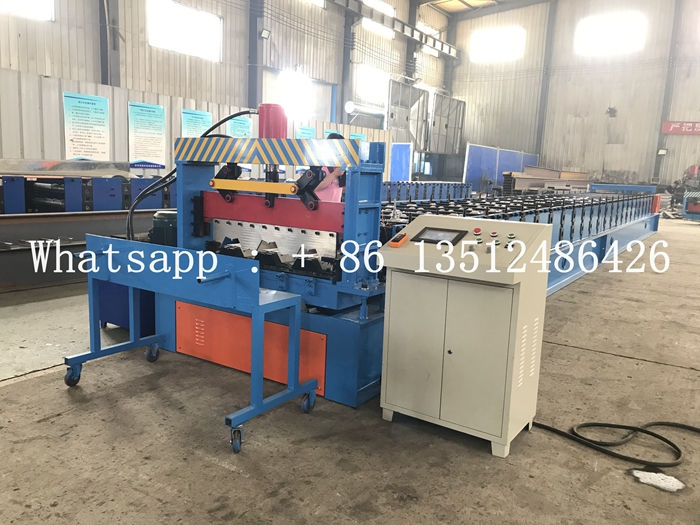

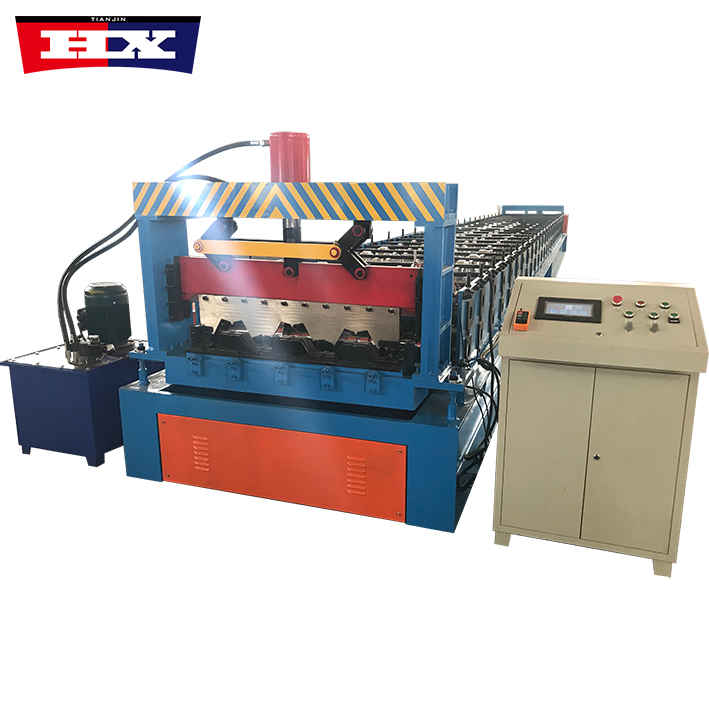

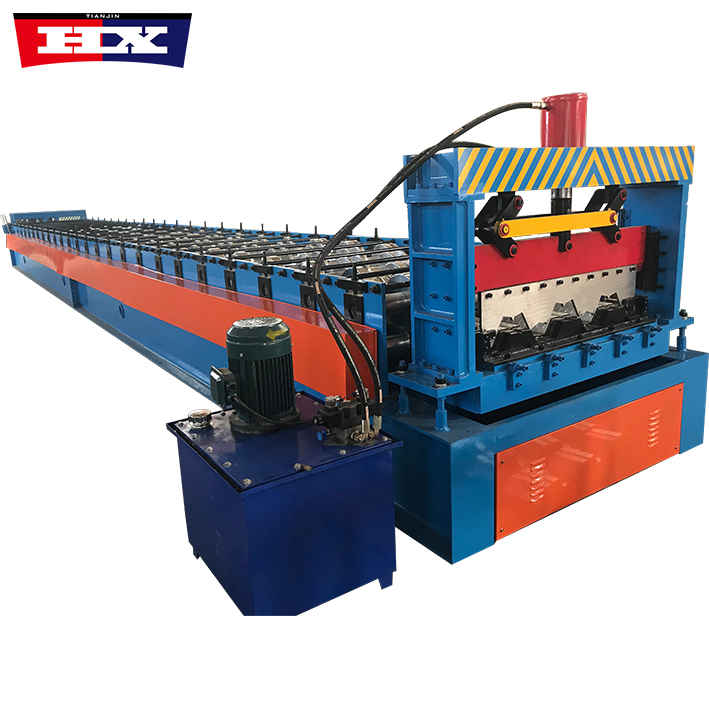

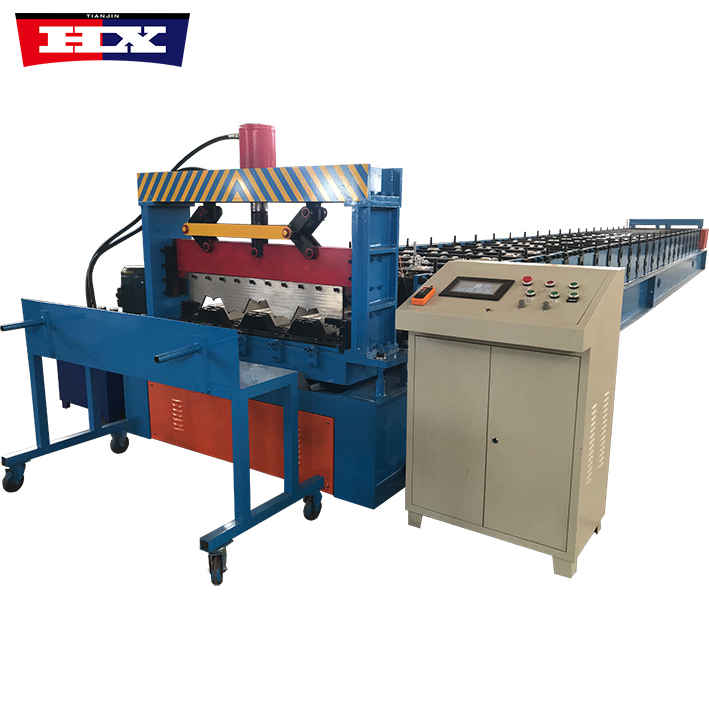

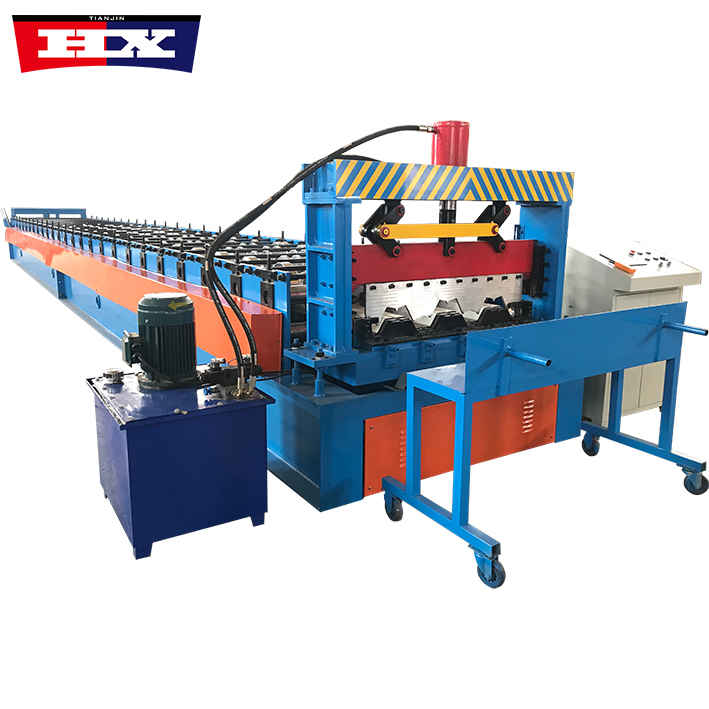

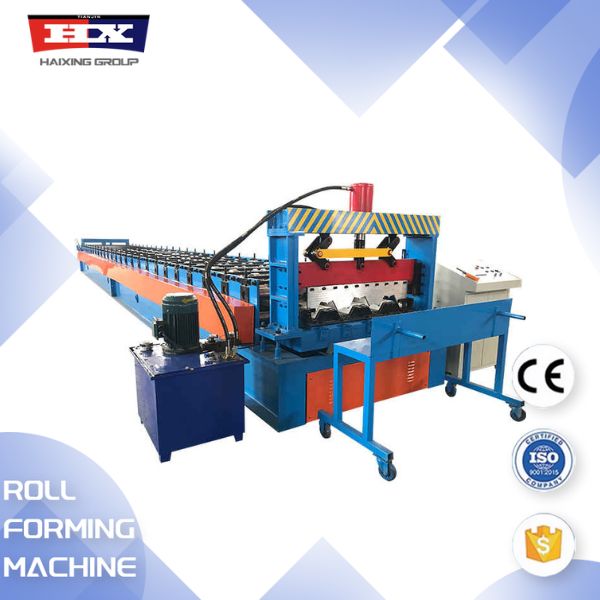

Steel Sheet Floor Forming Machine
Steel Sheet Floor Forming Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.8-1.5mm
Produce Speed : 10-15m/min
Port : Tianjin

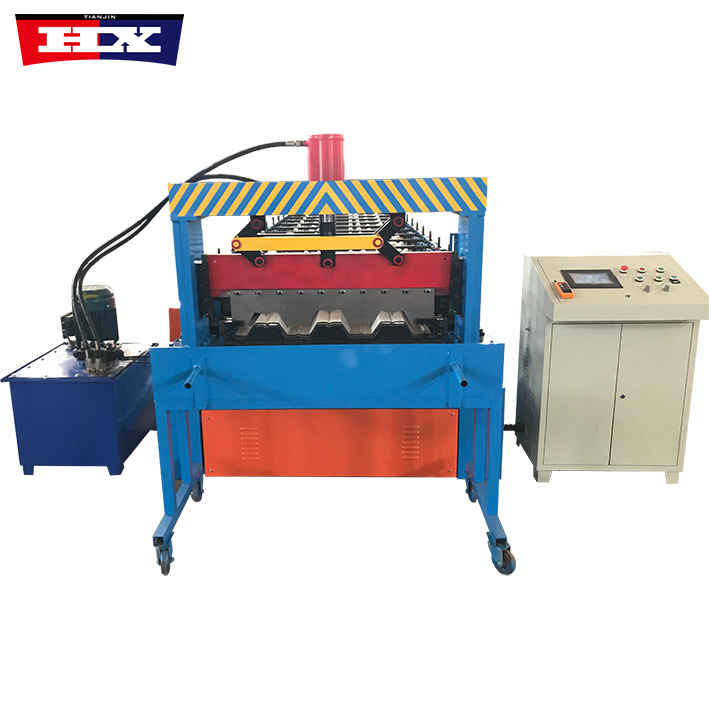

Steel Sheet Floor Forming Machine

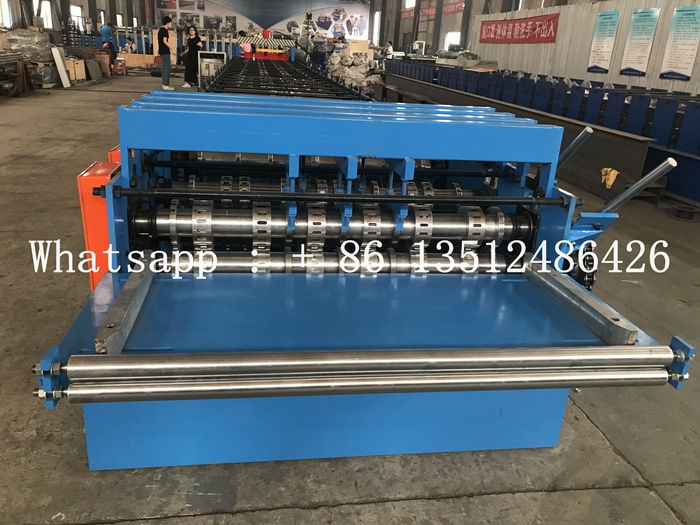

Steel Sheet Floor Forming Machine
1. Floor decking saves a lot of labor and reduces workload in transportation, stacking and installation.
2. Save a large number of temporary formwork, omit all or part of the formwork support, reduce the amount of concrete, and reduce the load of the structure.
3. The floor deck gives full play to the excellent tensile strength and ductility of steel and the excellent compressive strength and high stiffness of concrete.
4. It is convenient to lay communication, electricity, heating and other pipelines, and can lay insulation, sound insulation, thermal insulation, vibration isolation and other materials to improve floor performance.
Steel Sheet Floor Forming Machine
Specification
No. |
Number |
Steel Sheet Floor Forming Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 450H Beam |
| 4 | Middel side | 18/20mm |
| 5. | Main motor | 15kw*2 |

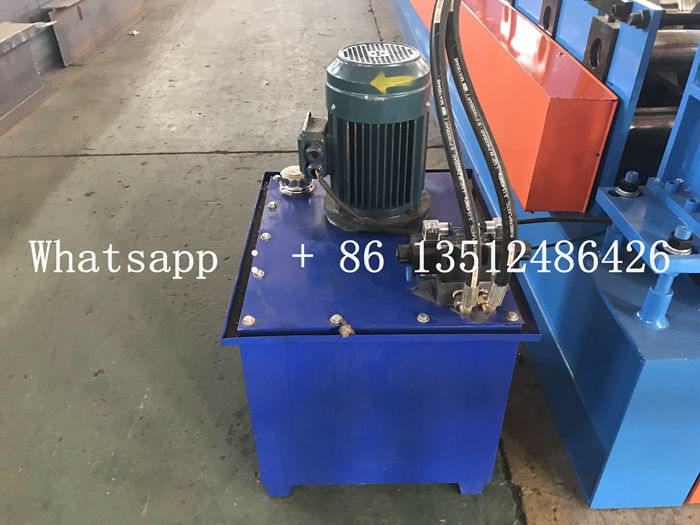

| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1.5/2 inches |
| 10. | Shaft material | Cr12MoV |

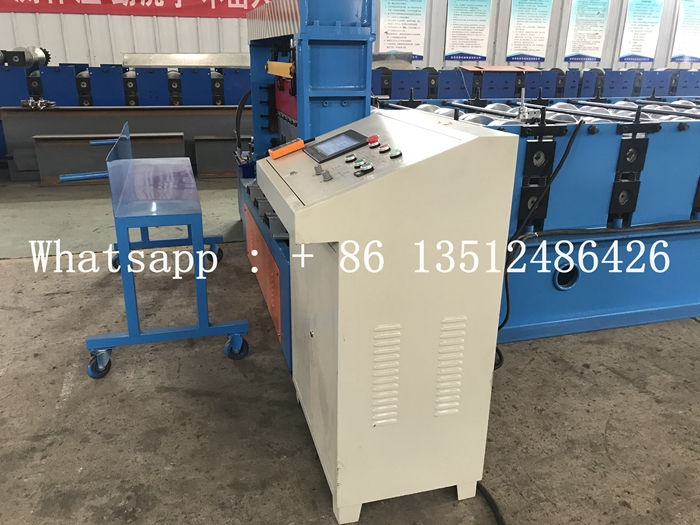

| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |

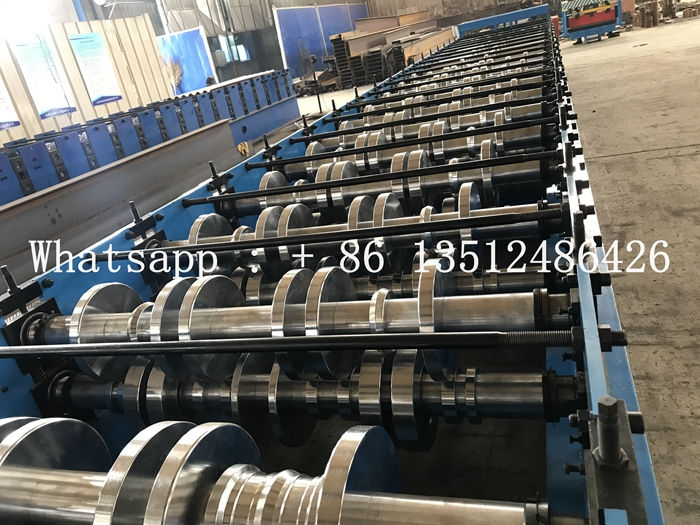

| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ85mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.8-1.5mm |
| 18. | Rows | 26 |
| 19. | Size | 12500mm*1800mm*2000mm |
| 20. | Weight | 13500kg |
Advantages
1. Light weight and easy to operate: The floor deck is relatively light in weight and easy to carry and operate. This can also reduce labor and time costs during the installation process.
2. High strength and good stability: The floor decking is made of high-strength materials, which can greatly improve the stability of the entire floor and ensure the safety and stability of the overall building.
3. Good sound insulation performance: The floor decking can effectively insulate sound and avoid the transmission of noise, thus allowing people living in the building to have a quieter and more comfortable living environment.
4. Strong fire-proof performance: The floor decking is made of fire-proof materials, so it has good fire-proof performance and can provide people with more protection under special circumstances.
5. Beautiful and economical: The surface design of the floor decking is very beautiful, and its installation cost is much lower than traditional building materials, further creating an economical and beautiful building environment.
Features
1. The design of floor decking can make better use of building space and improve space utilization efficiency.
2. Environmentally friendly materials and technologies are used in the production and construction of floor decking, which meets environmental protection requirements and also has certain energy-saving effects.
3. In modern buildings, the appearance designs of floor decking boards are becoming more and more diversified. Color coatings and other treatments can be carried out according to customer needs to improve the aesthetics of the building.
