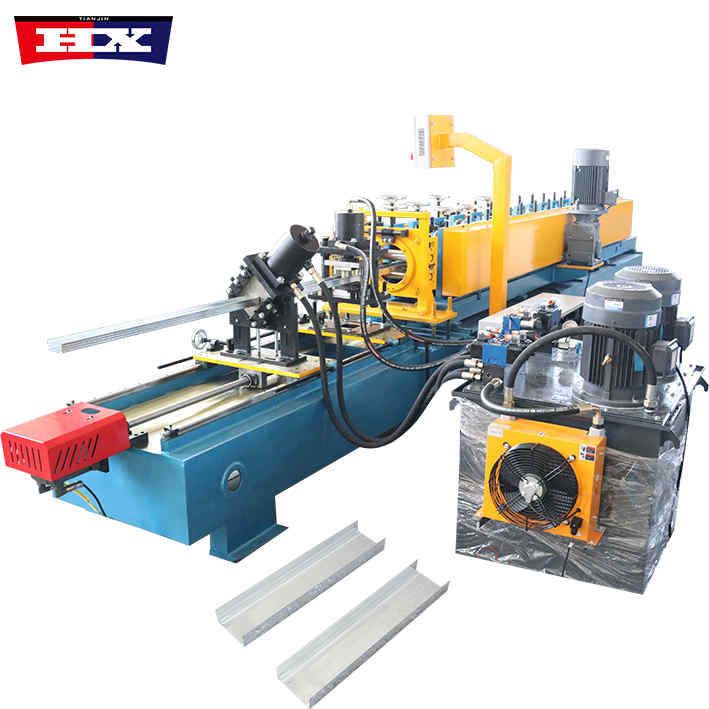

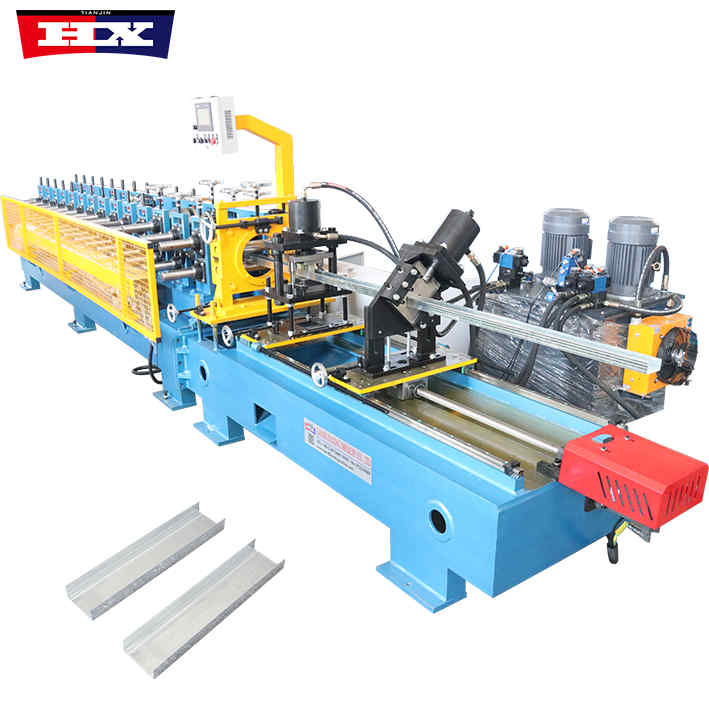

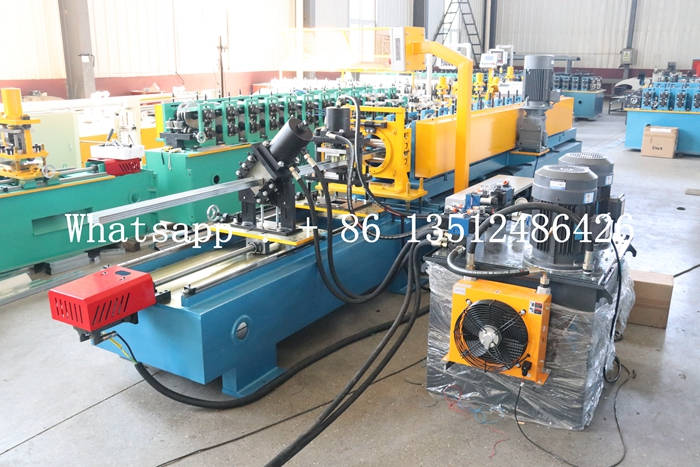

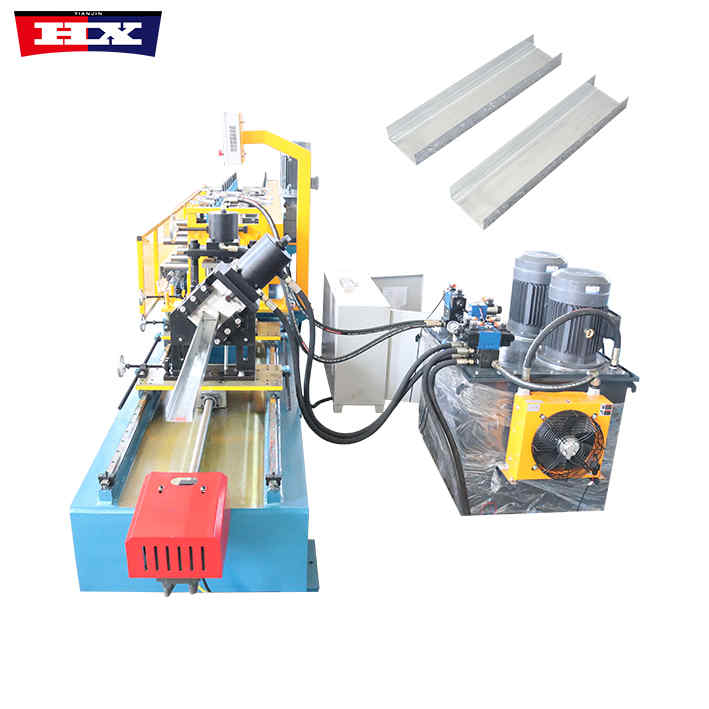

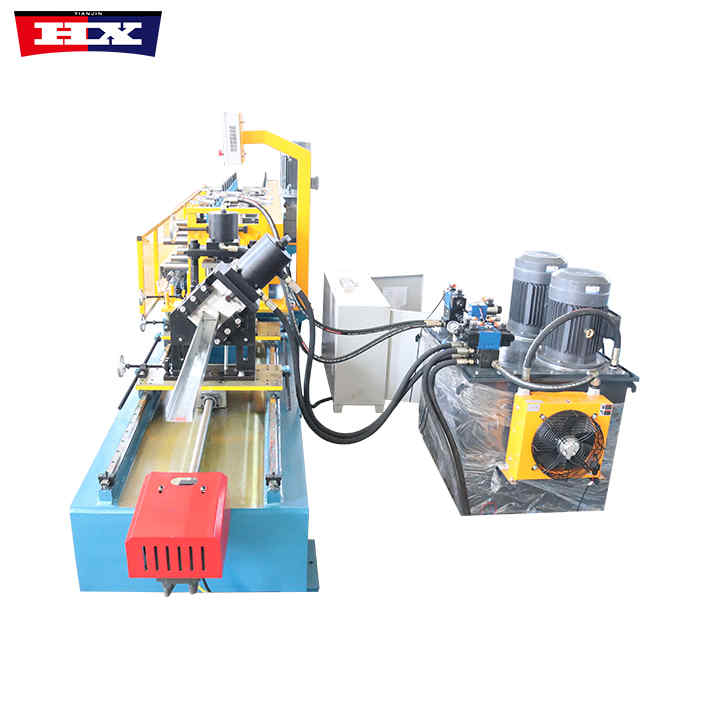

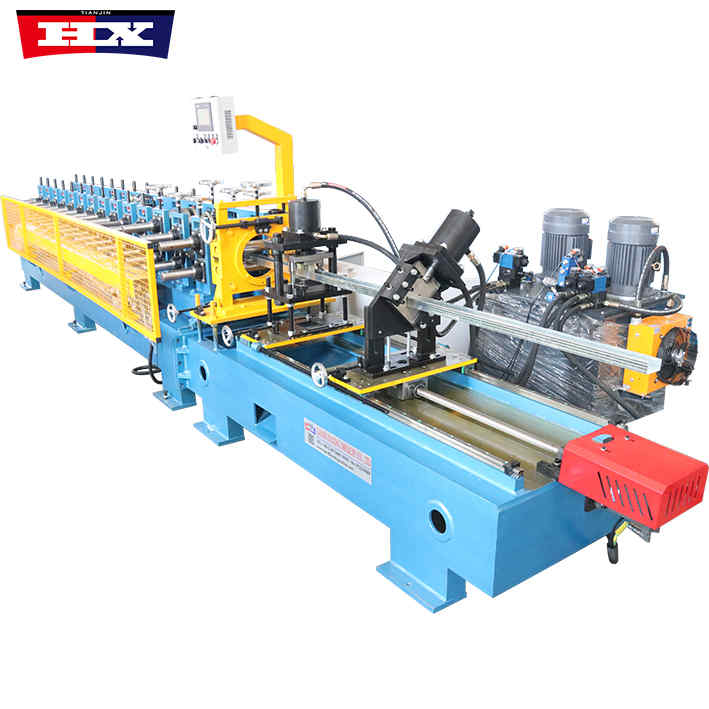

Stud And Track Roll Forming Machine
Stud And Track Roll Forming Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.4-1.2mm
Produce Speed : 45-60m/min
Port : Tianjin
Stud And Track Roll Forming Machine
Stud And Track Roll Forming Machine

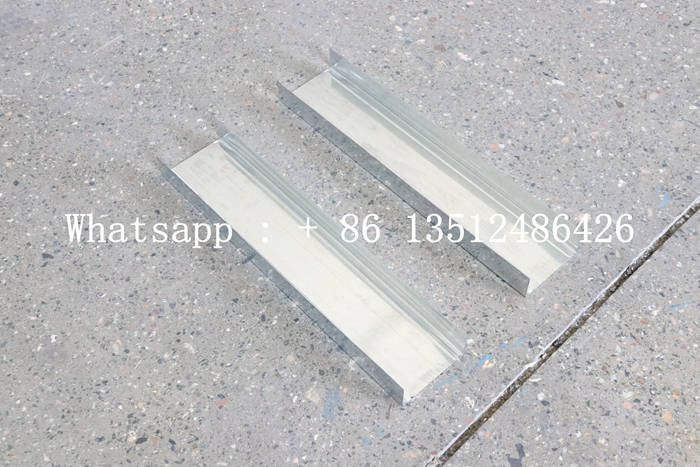

The stud and track roll forming machine uses strip steel as raw material and is formed by continuous cold rolling to produce complex cross-section profiles (products include: light steel keels, painted keels, cassette keels, various building profiles, steel structures, steel-lined door frame profiles, Highway guardrails, etc.)
1. The production scale is standard and accurate. We can also produce products according to any needs of our customers to meet the needs of the market. This production method has made the keel machine recognized in the market and expanded a large sales market. .
2. When the stud and track roll forming machine makes cold-formed profiles, the key is generally to select profiles based on strip steel.
3. The technical level of keel machines is also constantly improving with the progress of our country's times and the development of social science and technology.
Stud And Track Roll Forming Machine
Specification
No. |
Number |
Stud And Track Roll Forming Machine |
| 1. | Suitable to process |
Color alu zinc steel coils |
| 2. | Transfer method | Gear transmission |
| 3. | Base frame | Type 300 Channel Steel Frame Welding Panel thickness 2mm, Q235 iron plate material (gantry milling plane processing) |
| 4 | Main frame | Square steel frame |
| 5. | Dimensions | 7*1.2*1.6m |
| 6. | Board size |
Memorial arch, thickness 35 mm (double bearings on front and rear arches) |
| 7. | Weight | About 3.5t |
| 8. | Produce speed | 45-60m/min |

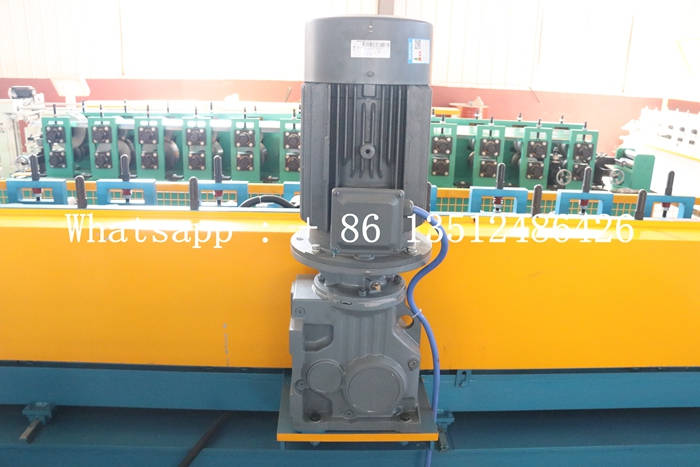

| 9. | Engine power | 5.5Kw, the motor includes a type K reducer |
| 10. | Pump station engine | 5.5kw |
| 11. | Thickness of plate | 0.4-1.2mm |

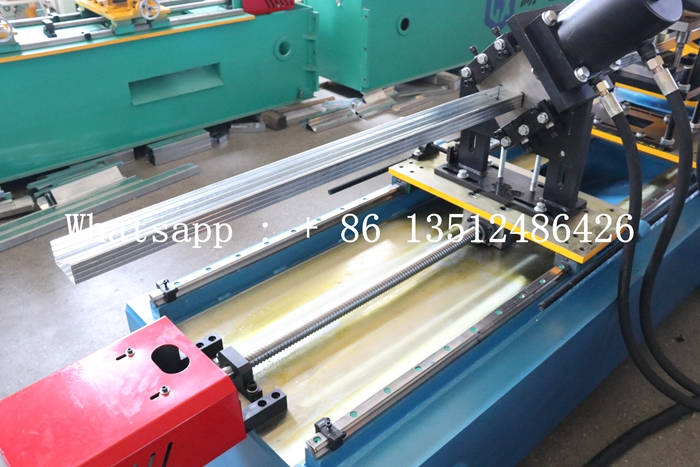

| 12. | Cutting shape | Servo track cutting system 2.3kw servo motor power Platform track cut 30×30, ball screw diameter 3mm |
| 13. | Roller diameter | Φ50mm |
| 14. | Spacer | Φ70mm |
| 15. | Control system | PLC control ( Delta ) |
| 16. | Touch screen | Delta |
| 17. | Rolling stock | Cr12 steel bearing |
| 18. | Rows | 14 |
| 19. | Length tolerance | ±2mm |
| 20. | Voltage |
380v 50hz 3p or as customers ' requirement |
Application
1. In the construction field, light steel frame machine can be used to manufacture light steel keels, such as ceiling keels, wall keels, etc., which improves the quality and life of the building.
2. In the manufacturing field, light steel frame machine can be used to manufacture various metal products, such as auto parts, kitchen supplies, etc., greatly improving production efficiency and quality.
Advantages
1. Efficient: It is driven by a hydraulic system, which greatly improves production efficiency and reduces labor costs.
2. Precision: Using molds for stamping can produce high-precision and high-quality keel products.
3. Energy saving: The hydraulic system can completely recycle hydraulic energy to achieve energy saving effects.
