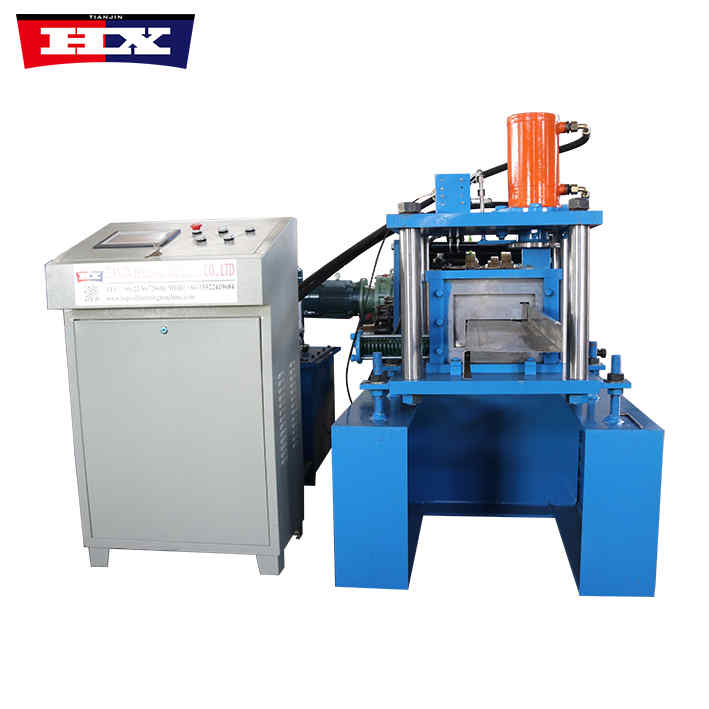

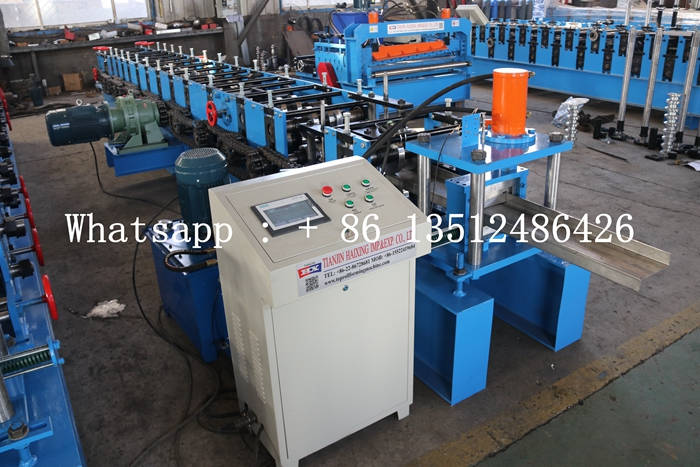

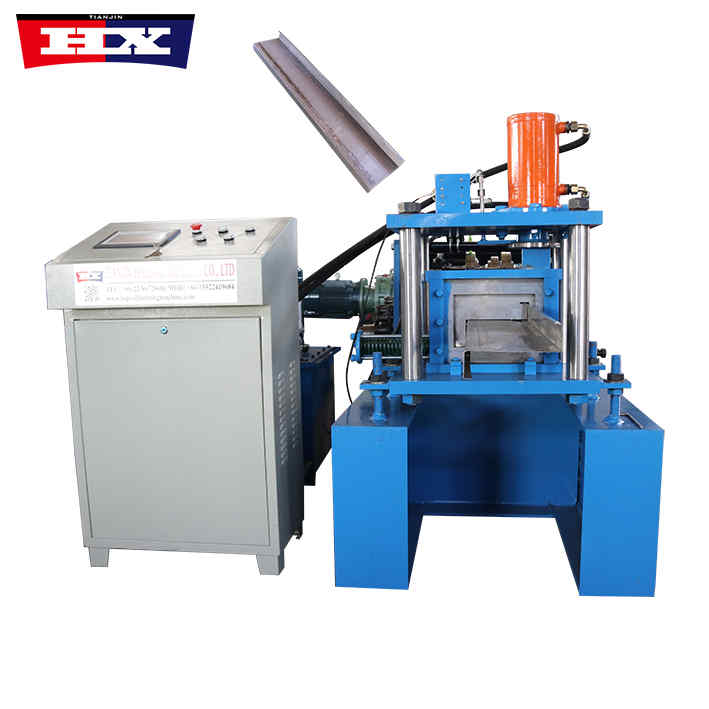

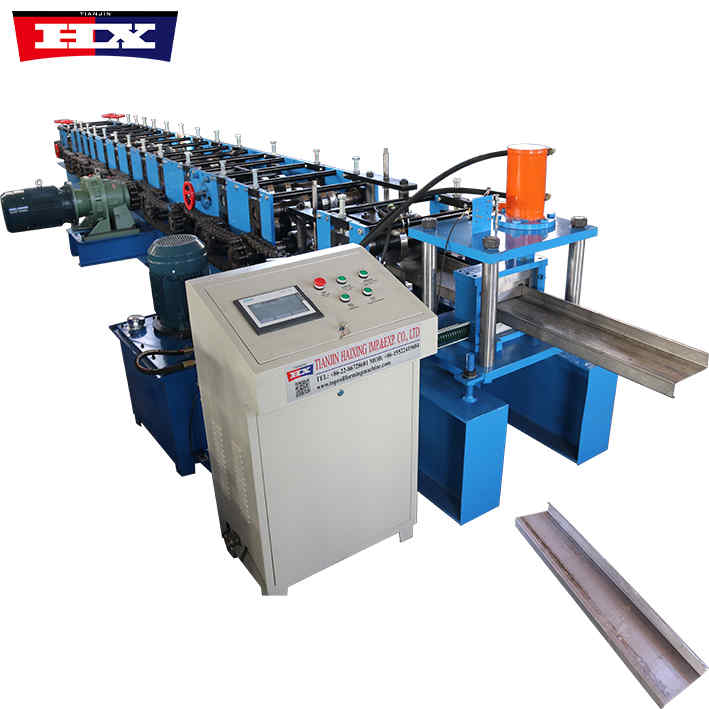

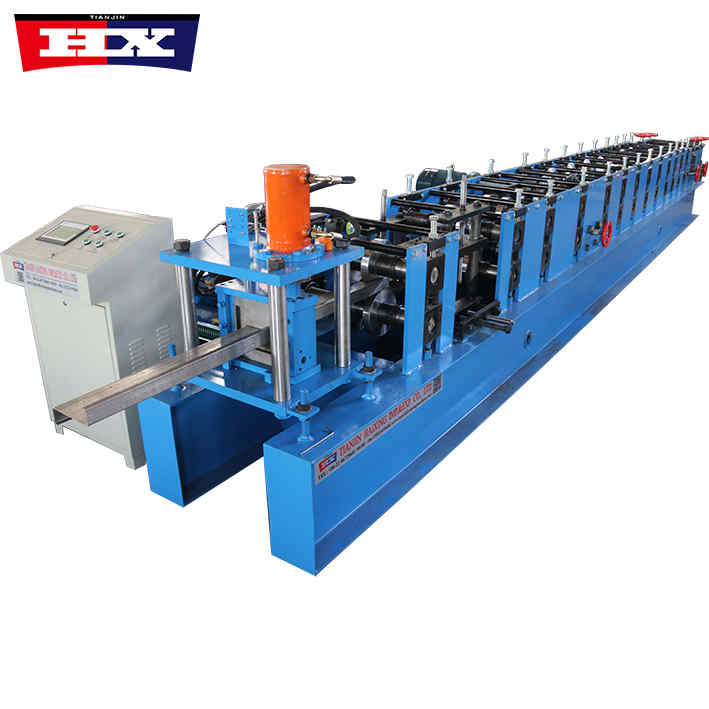

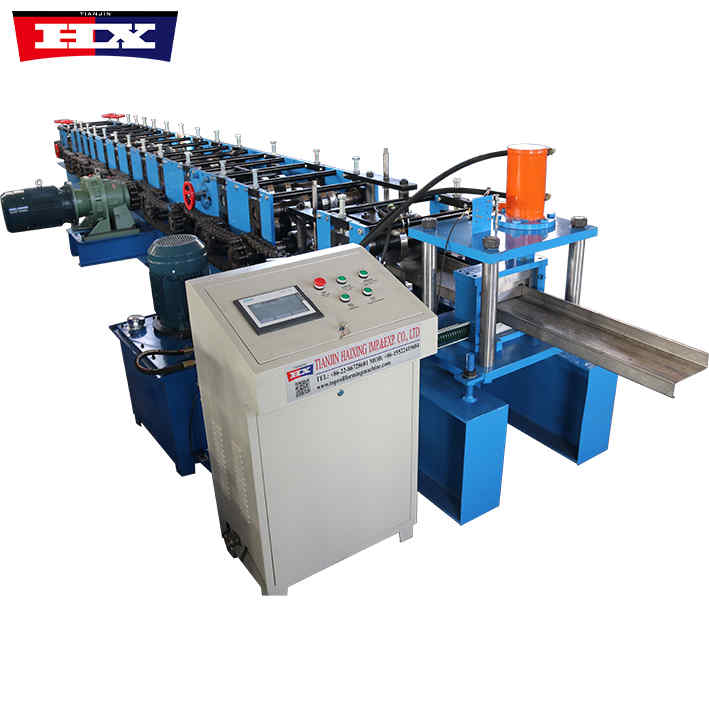

Z Purlin Making Machine
Z Purlin Making Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 1.5-3mm
Produce Speed : 8-10m/min
Port : Tianjin
Z Purlin Making Machine
Z Purlin Making Machine

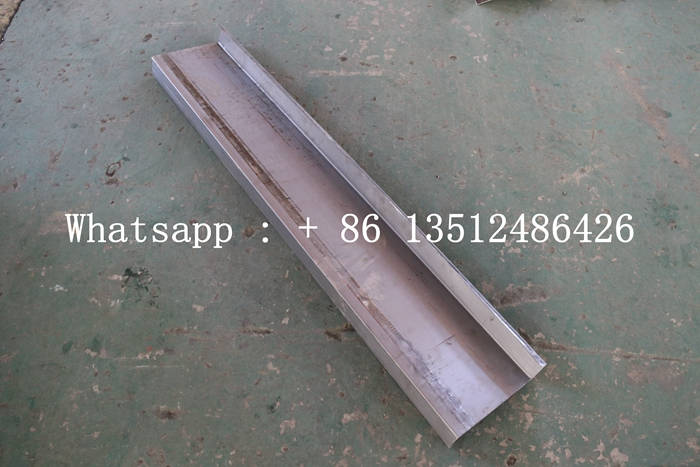

The finished Z-shaped steel rolled by the Z purlin roll forming machine price has good tensile, bending and compression properties, good flatness, fully automatic fixed-length shearing, automatic punching, high degree of automation, and quick and convenient installation.
The product can be used as the main stress-bearing structure of large and medium-sized industrial and civil buildings. Used in factories, warehouses, locomotive garages, aircraft hangars, exhibition halls, theaters, and sports venues.
Z Purlin Making Machine
Specification
No. |
Number |
Z Purlin Making Machine |
| 1. | Suitable to process |
PPGI/PPGL/GI/GL/Carbon |
| 2. | Side panel of machine | 22mm |
| 3. | Rolling materials | Gcr15 Steel Quenched treatment HRC 58-62℃ |
| 4 | Main structure | Square steel frame 450H steel |
| 5. | Dimensions | 8*1.5*1.7m |
| 6. | Materials of cutting blade |
Cr12,Quenched treatment HRC 58-62℃ |
| 7. | Weight | About 6.5t |
| 8. | Produce speed | 8-10m/min |
| 9. | Engine power | 11Kw |

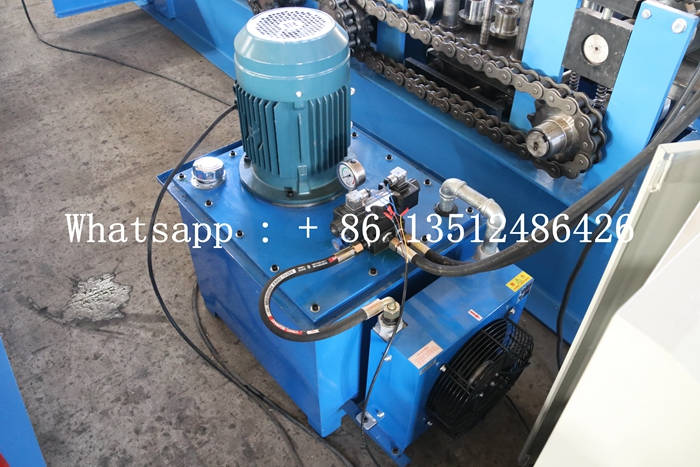

| 10. | Pump station engine | 4kw |
| 11. | Thickness of plate | 1.5-3mm |
| 12. | Cutting way | Grinding tool twisted |
| 13. | Control system | PLC control ( Delta ) |

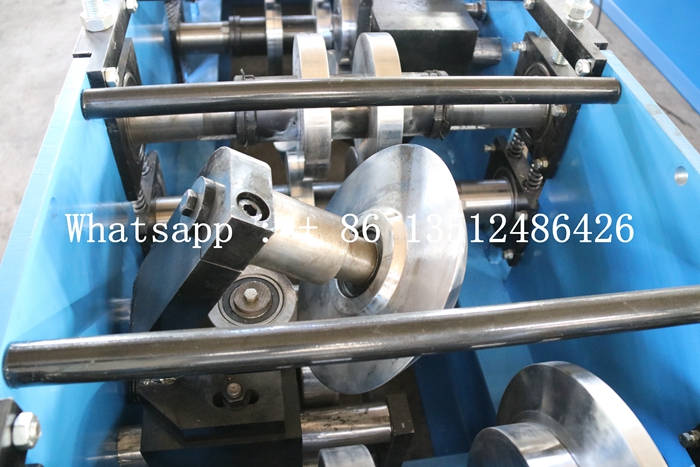

| 14. | Diameter of roller | Φ80mm |
| 15. | Drive method | Chain ( 2 inch ) |

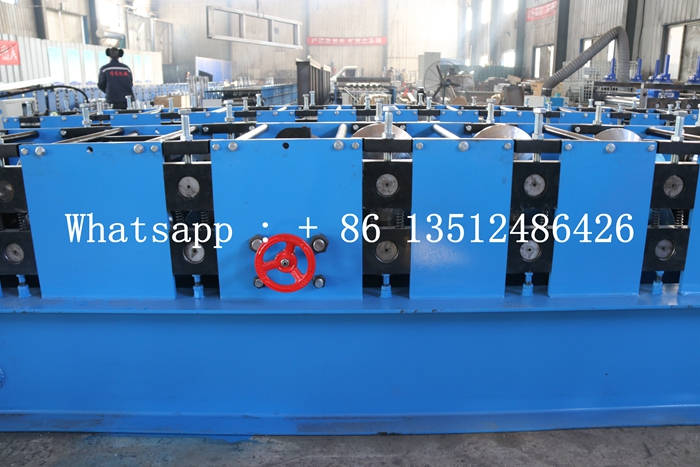

| 16. | Rows | 15 |
| 17. | Length tolerance | ±2mm |
| 18. | Voltage |
380v 50hz 3p or as customers ' requirement |
Advantages
1. It has the characteristics of high production efficiency and good production quality. The c purlin roll forming machine price has a high degree of automation and is simple and convenient to operate, which can greatly improve production efficiency and save labor costs.
2. The finished products of c purlin roll forming machine price are of reliable quality and can meet the high strength and durability requirements of purlins in engineering construction.
3. The c purlin roll forming machine price has a compact structure, small floor space, simple and convenient operation and maintenance, and a wide range of applications, which can meet the production needs of cement purlins of different specifications and models.
