5 Ton Hydraulic Decoiler
5 Ton Hydraulic Decoiler
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time:20 working days
Shipping Time : 40 days
Port : Tianjin
5 Ton Hydraulic Decoiler
5 Ton Hydraulic Decoiler

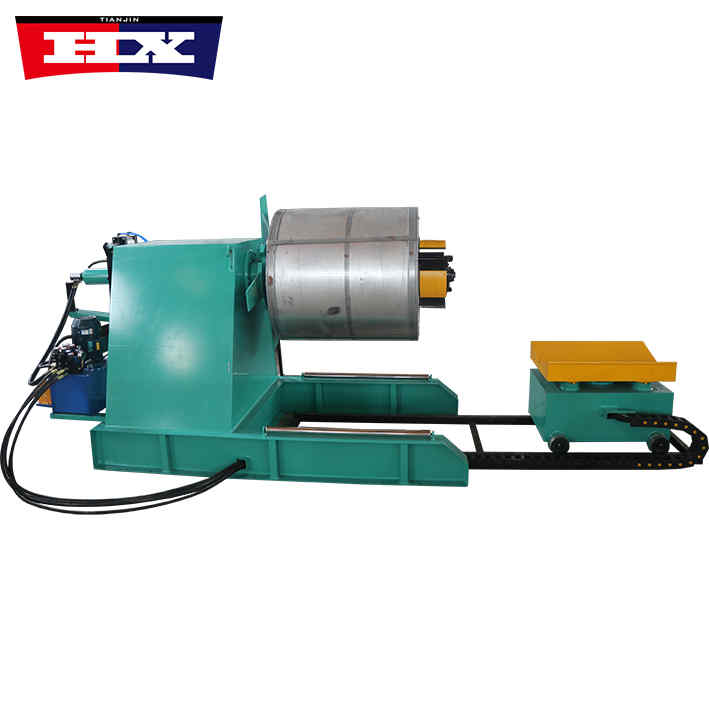

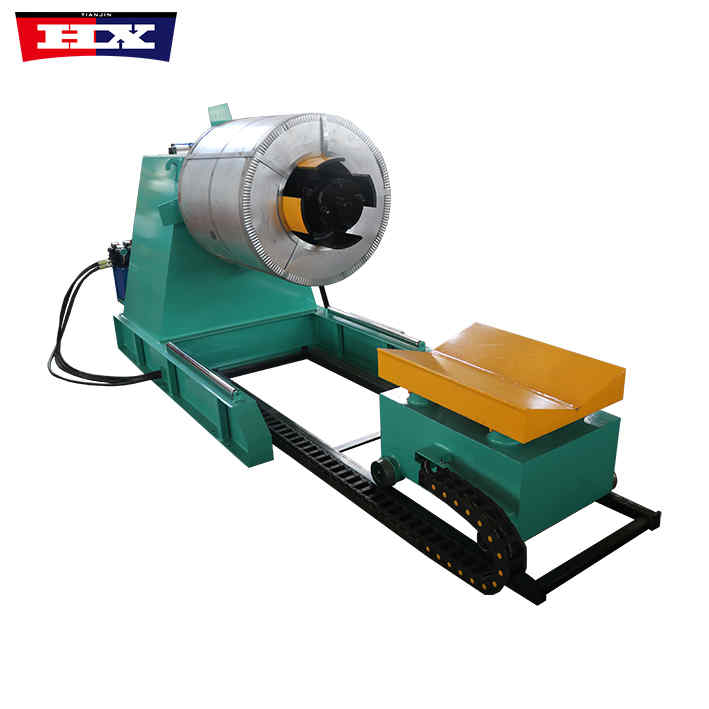

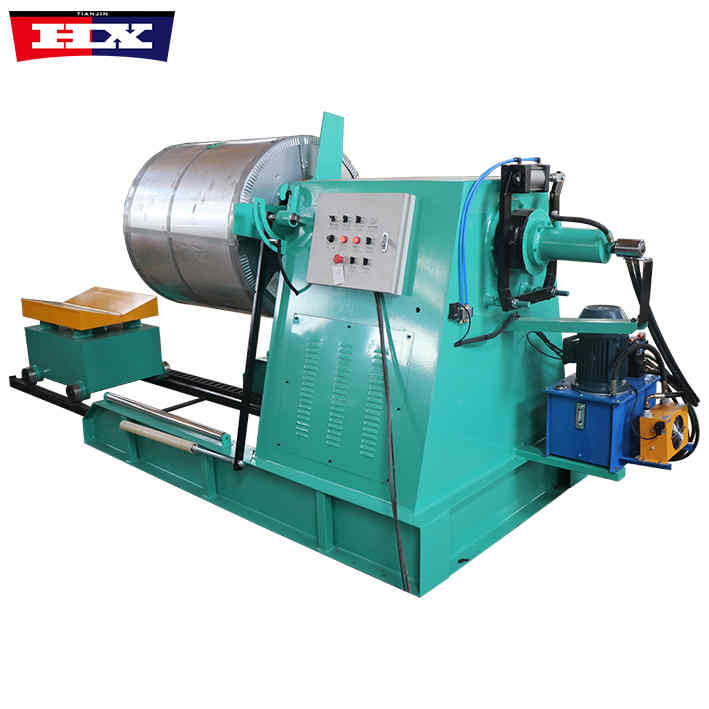

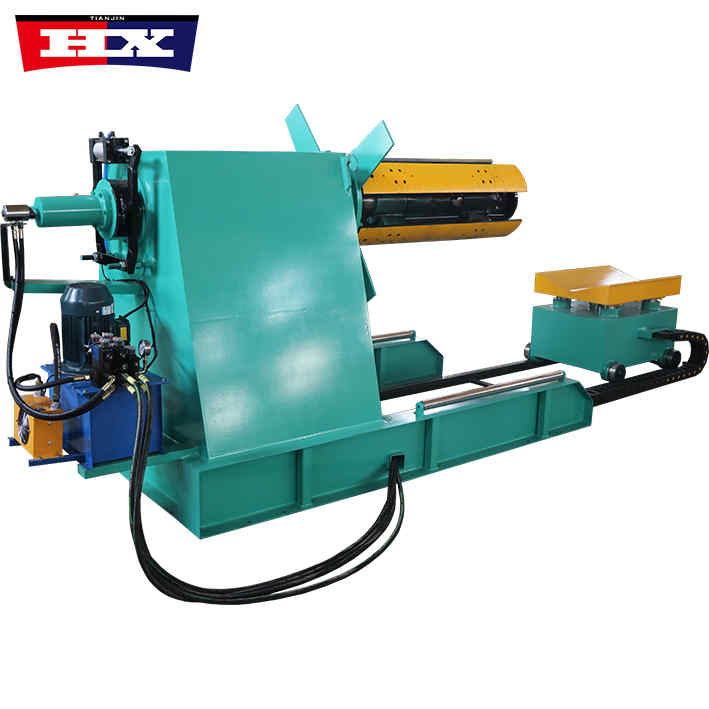

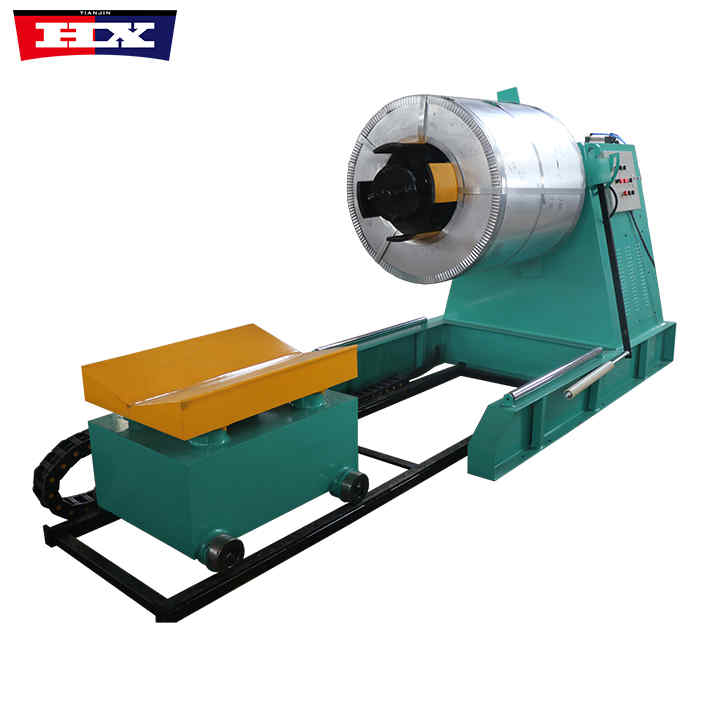

The 5 ton hydraulic decoiler is a mechanical device used to automatically unroll roll-shaped metal sheets. It is widely used in sheet processing, packaging, transportation and other fields.
Specification
No. |
Number |
5 Ton Hydraulic Decoiler |
| 1. |

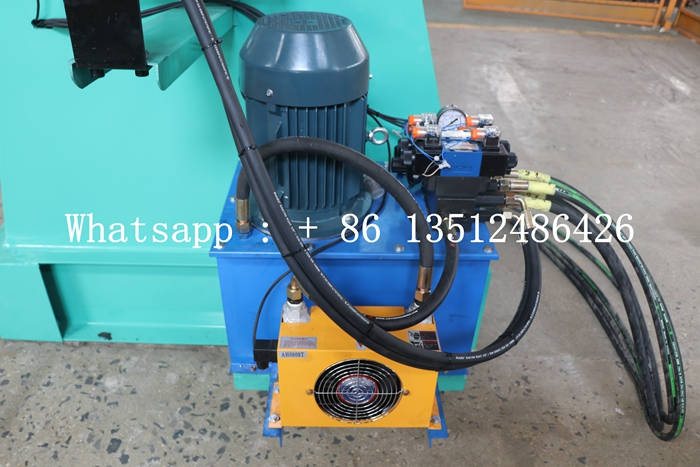

Hydraulic pump station |
4kw (Electromagnetic valves) |
| 2. | Main motor | 5.5kw |
| 3. | Main frame | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Main shaft | 203*55 seamless pipe |
| 7. | Coil inner diameter | 470-530±20mm |
| 8. | Cylinder | 1 Diameter 125mm |
| 9. |
Electrical control system |
Delta Inverter(7.5kw) Domestic Electronic Control System |
| 10. | Feeding width | 0-1500mm |
| 11. | Weight capacity | 5 tons |

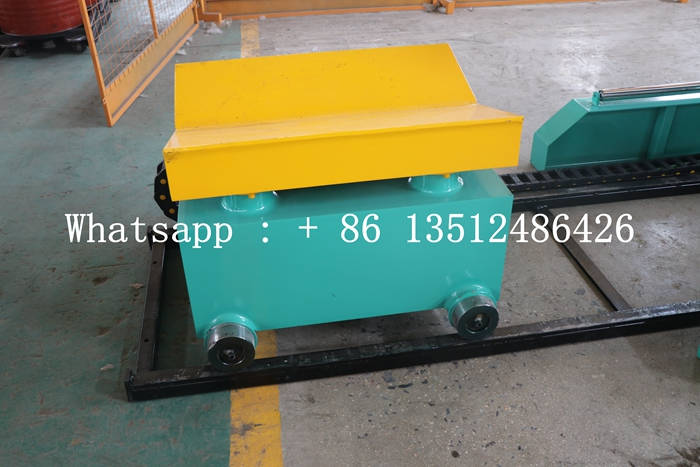

| 12. | Trolley |
Width : 1.1m Length : 0.9m |
| 13. | Trolley track |
Width : 1.15m Length : 2.5m |
| 14. | Trolley route |
High : 300mm Length : 2.5m |
| 15. | Trolley wight | 0.8 tons |
Advantages
1. High degree of automation: The decoiler machine steel is a fully automated equipment that can be started and stopped through contact control of the induction frame, which greatly improves production efficiency.
2. High unwinding accuracy: The decoiler machine steel adopts an electric control system, which can accurately control the tension and speed of the coil, ensuring the unwinding accuracy of the coil.
3. Easy to use: The decoiler machine steel has a simple structure and is easy to operate. You only need to put the coil material into the coil rack and turn on the power to automatically uncoil. No professional skills are required.
4. Wide range of applications: The decoiler machine steel can be used for unwinding many different types of coil materials, such as plastic film, paper, aluminum foil and other coil materials.
5. High safety: The decoiler machine steel adopts a variety of safety protection measures, such as safety shields, emergency stop buttons, etc., to ensure the safety of operators.
