Decoiler Machine Price
Decoiler Machine Price
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time:20 working days
Shipping Time : 40 days
Port : Tianjin
Decoiler Machine Price
Decoiler Machine Price

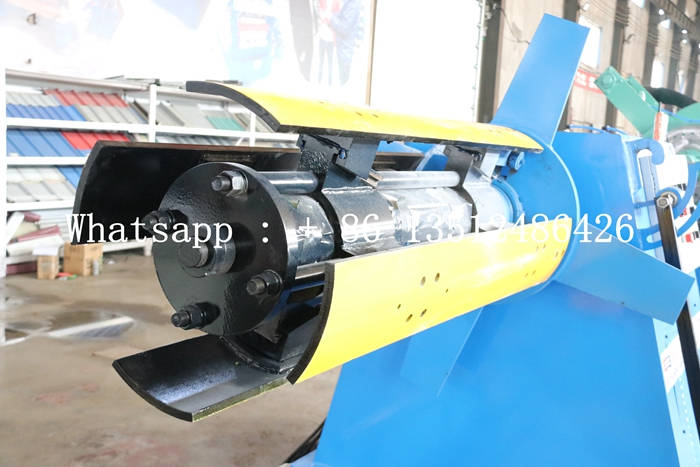

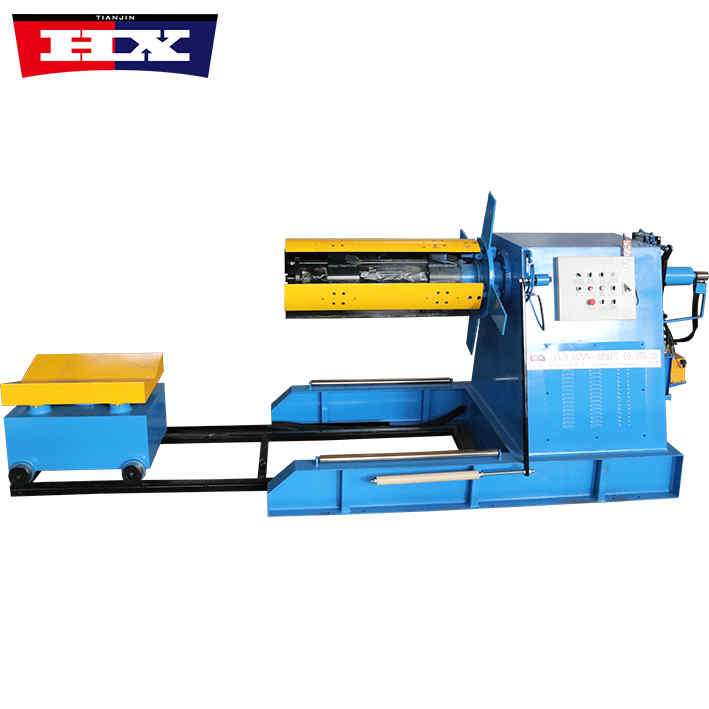

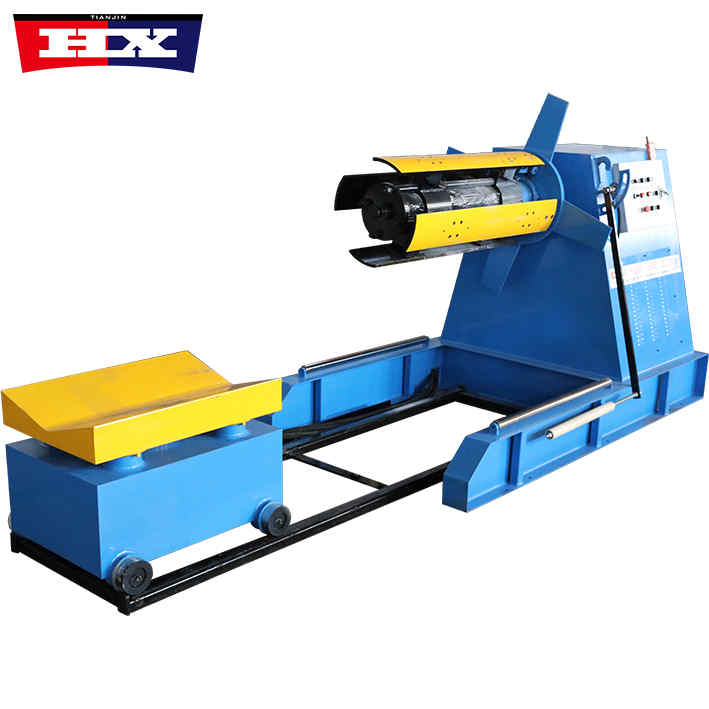

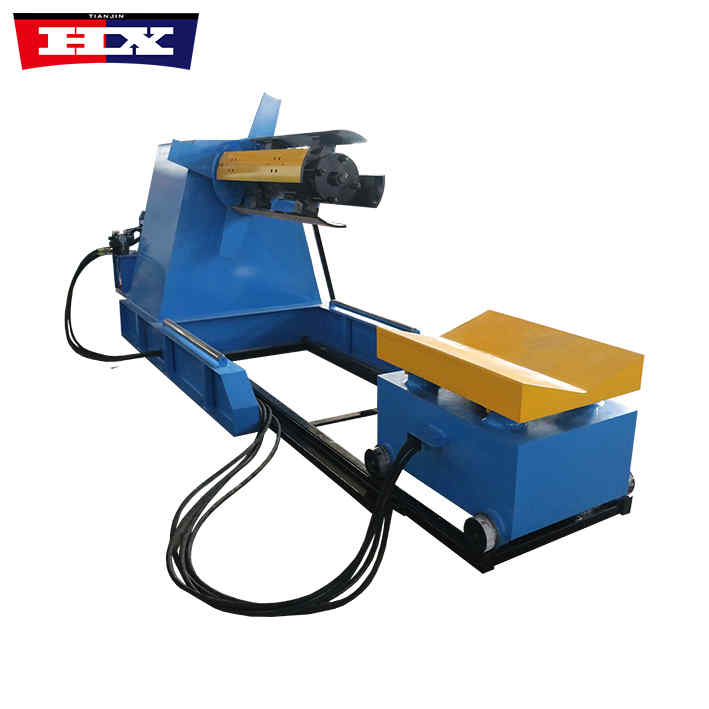

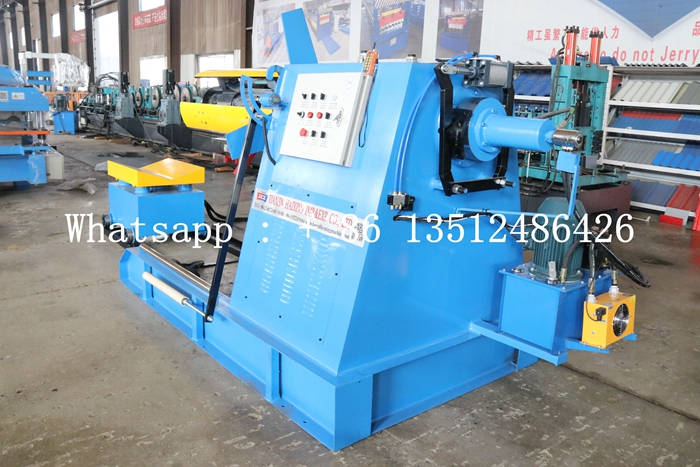

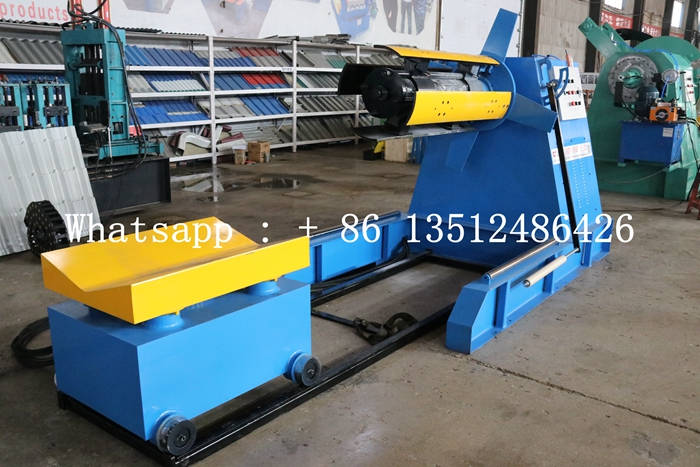

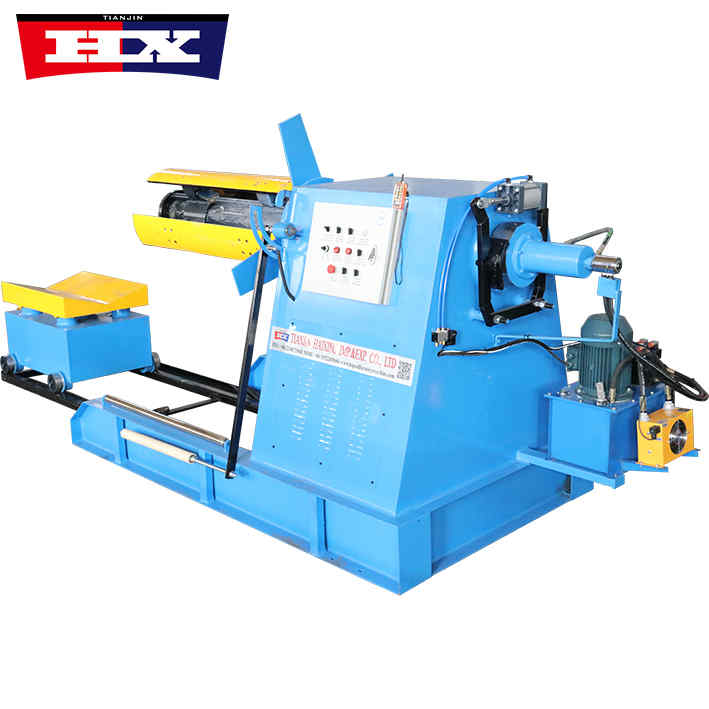

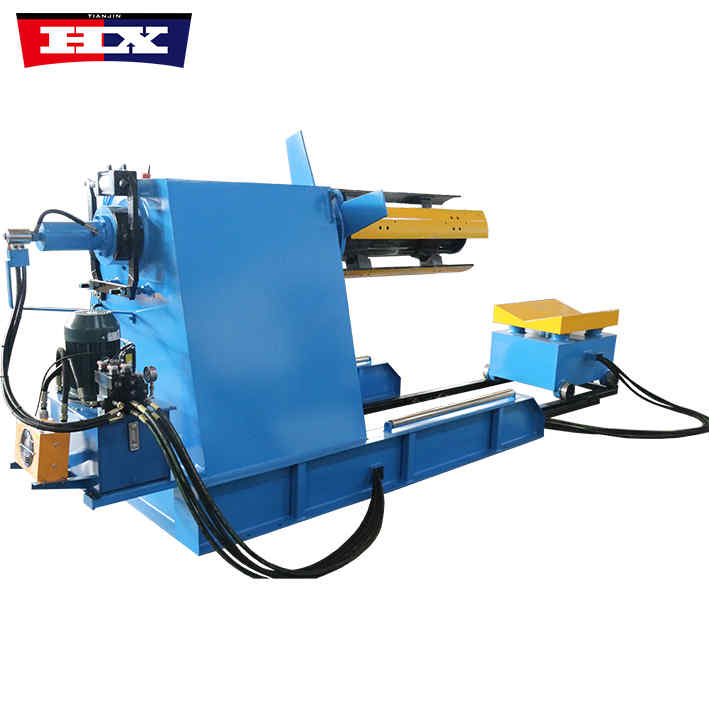

The decoiler machine price is mainly composed of coil support, material shaft, length-fixing device, feeding device, unloading device, drafting device, hydraulic control system and other components. Its working principle is to use the hydraulic system to push the bracket to move up and down, thereby controlling the unwinding and rewinding process of the raw material to achieve fixed-length cutting or winding.
After loading the raw materials into the roll support, tighten it through the material shaft, and then lift the roll support to the specified height through the hydraulic lifting device to align the roll with the feeding device. The uncoiler pulls the coiled material through the drafting device, and winds it smoothly on another reel through the unloading device. At the same time, the fixed-length device monitors the length of the coiled material in real time, and the coiling can be completed after cutting off the fixed length.
Specification
No. |
Number |
Decoiler Machine Price |
| 1. |
Hydraulic pump station |
4kw (Electromagnetic valves) |
| 2. | Main motor | 5.5kw |
| 3. | Main frame | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Main shaft | 203*55 seamless pipe |
| 7. | Coil inner diameter | 470-530±20mm |
| 8. | Cylinder | 1 Diameter 125mm |
| 9. |
Electrical control system |
Delta Inverter(7.5kw) Domestic Electronic Control System |
| 10. | Feeding width | 0-1500mm |
| 11. | Weight capacity | 5 tons |

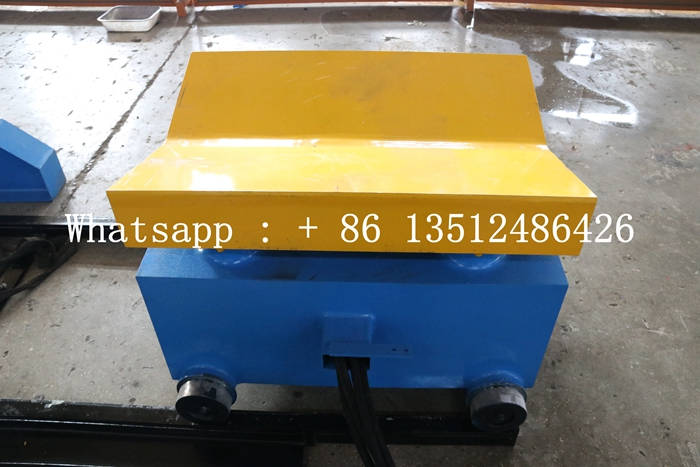

| 12. | Trolley |
Width : 1.1m Length : 0.9m |
| 13. | Trolley track |
Width : 1.15m Length : 2.5m |
| 14. | Trolley route |
High : 300mm Length : 2.5m |
| 15. | Trolley wight | 0.8 tons |
Operation
1. Confirm the unwinding direction: After determining the unwinding direction, adjust the direction and position of the unwinding roller.
2. Roll material installation: Install the roll material on the unwinding roller, pay attention to the direction and position of the roll material to avoid deviation.
3. Adjust the distance of the unwinding roller: adjust the distance of the unwinding roller according to the width and diameter of the coil material. The distance on both sides of the unwinding roller needs to be adjusted appropriately to ensure that the roll material does not slip or get stuck.
4. Confirm the hydraulic system: Confirm that the status of the hydraulic system is normal, check whether the hydraulic pipelines are correctly connected, confirm the status of the pressure gauge, pressure regulating valve and relief valve, etc.

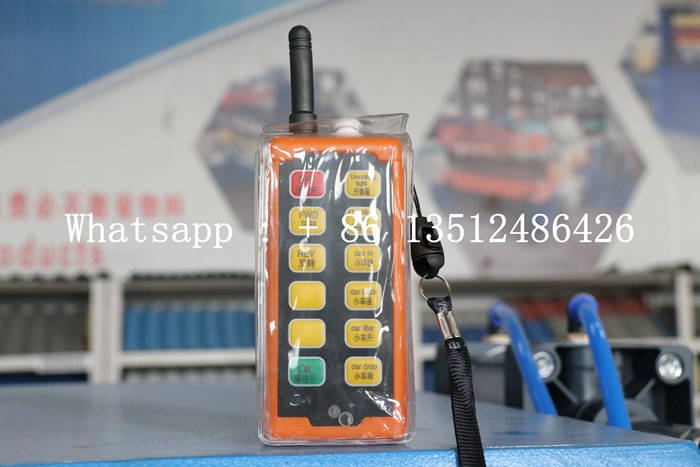

5. Start the hydraulic decoiler: Press the start button and control the hydraulic system through the joystick to run the decoiler.
6. Coil operation: When the coil starts running, check and adjust the position and tension of the coil in time to ensure smooth operation.
7. Shutdown operation: When it is necessary to stop the machine, first stop the movement of the coil material, turn off the hydraulic system, and then remove the coil material from the unwinding roller.
