C And Z Purlin Machine
C And Z Purlin Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 1.5-3mm
Produce Speed : 8-10m/min
Port : Tianjin
C And Z Purlin Machine
C And Z Purlin Machine

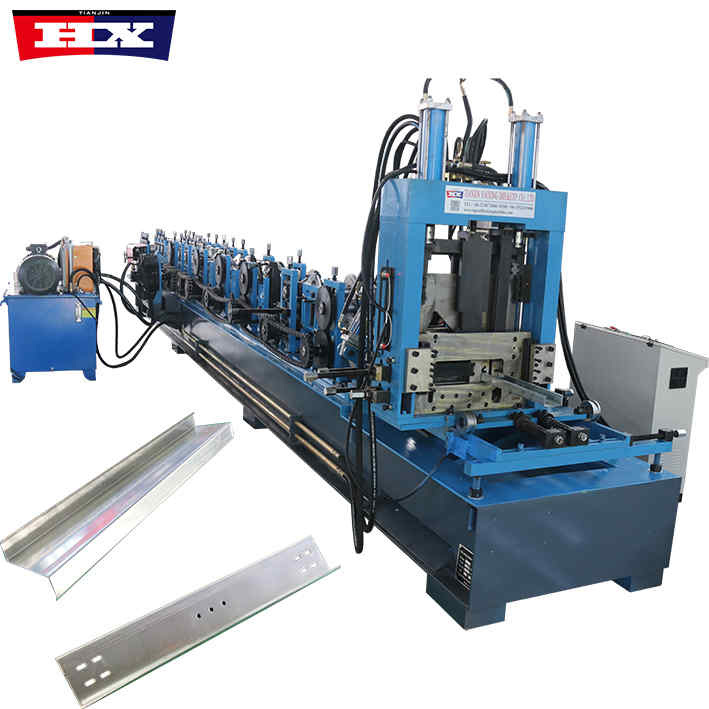

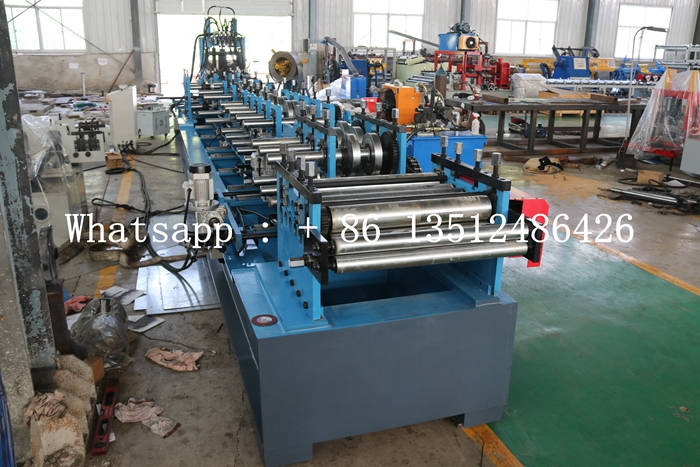

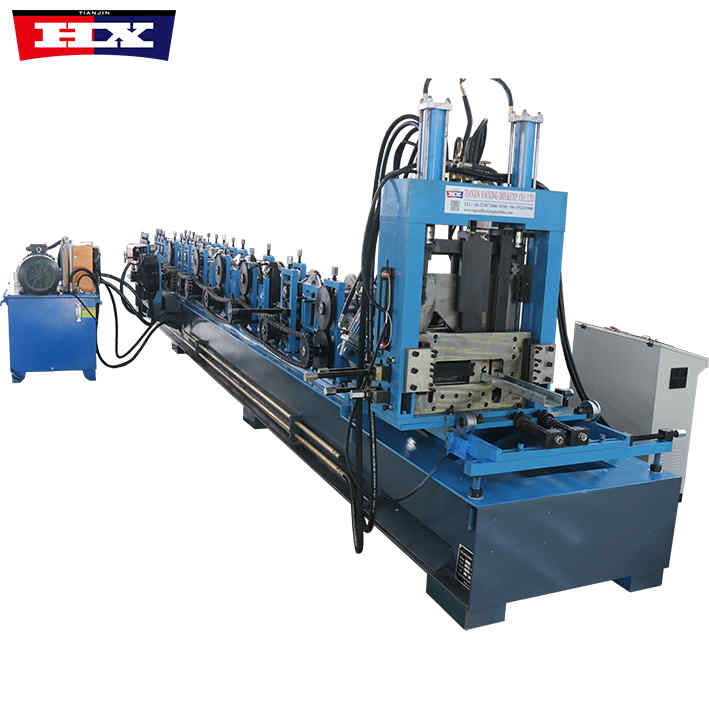

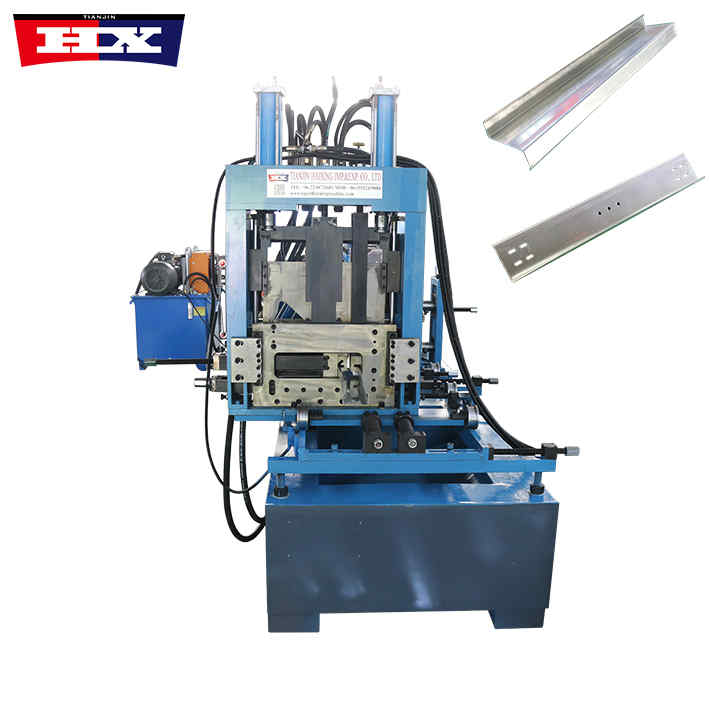

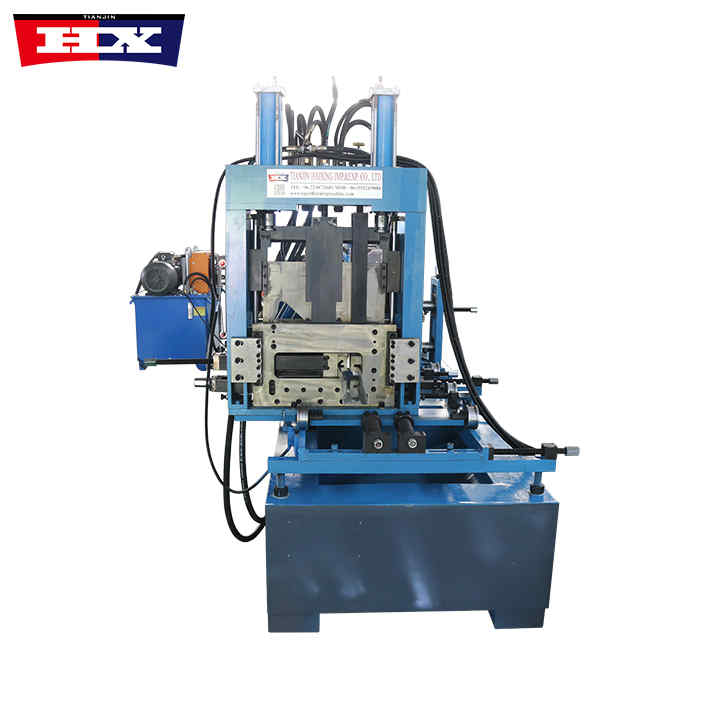

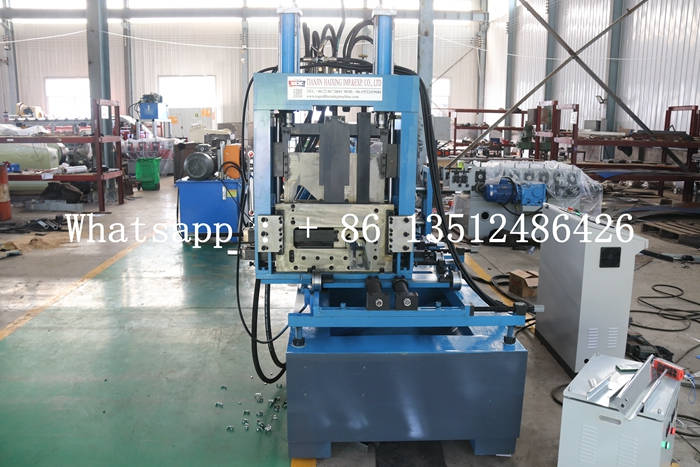

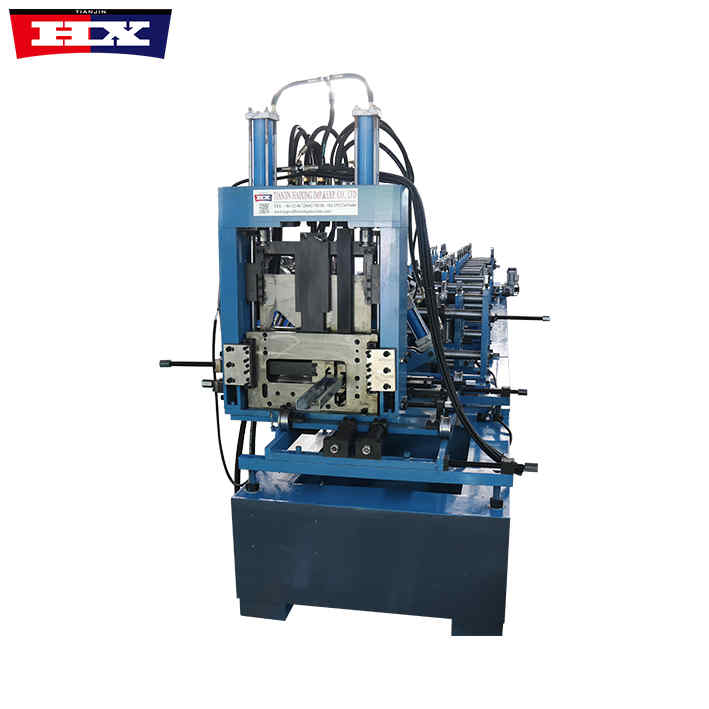

It is a tile press equipment that combines C purlin machine and Z purlin machine into one. It provides users with highly automated purlin production that can realize interchangeable production of C/Z purlins of various specifications in a short time through PLC computer control.
The production process of the fully automatic C and Z interchangeable purlin machine is completely automatically controlled. There is no need to replace the forming roller when changing specifications. This changes the history of using two different equipment, C and Z, to process two different types of C and Z purlins respectively, saving users money. Significant investment costs and site space.
C And Z Purlin Machine
Specification
No. |
Number |
C And Z Purlin Machine |
| 1. | Suitable to process |
PPGI/PPGL/GI/GL/Carbon |
| 2. | Side panel of machine | 22mm |
| 3. | Rolling materials | Gcr15 Steel Quenched treatment HRC 58-62℃ |
| 4 | Main structure | Square steel frame 450H steel |
| 5. | Dimensions | 9*1.5*1.7m |
| 6. | Materials of cutting blade |
Cr12,Quenched treatment HRC 58-62℃ |
| 7. | Weight | About 6.5t |
| 8. | Produce speed | 8-10m/min |
| 9. | Engine power | 11Kw |
| 10. | Pump station engine | 4kw |
| 11. | Thickness of plate | 1.5-3mm |

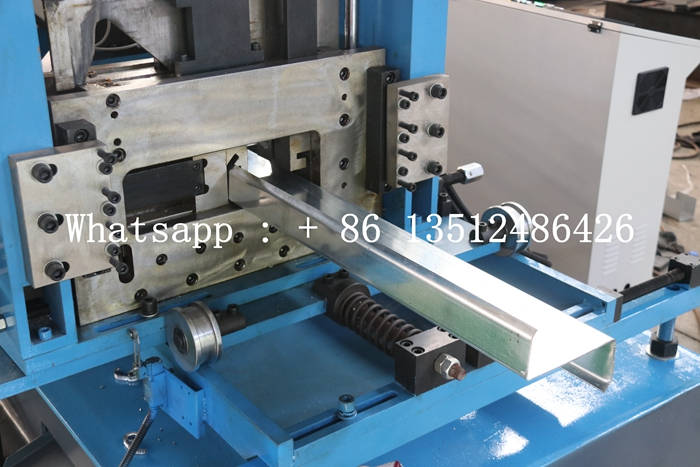

| 12. | Cutting way | Grinding tool twisted |

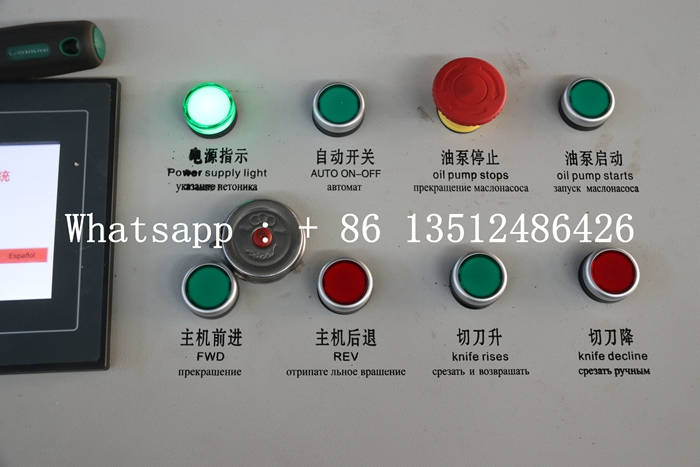

| 13. | Control system | PLC control ( Delta ) |
| 14. | Diameter of roller | Φ80mm |
| 15. | Drive method | Chain ( 2 inch ) |
| 16. | Rows | 16 |
| 17. | Length tolerance | ±2mm |
| 18. | Voltage |
380v 50hz 3p or as customers ' requirement |
Advantages

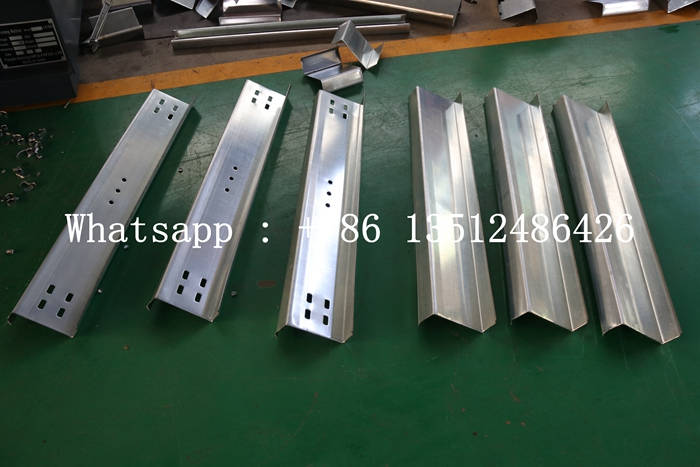

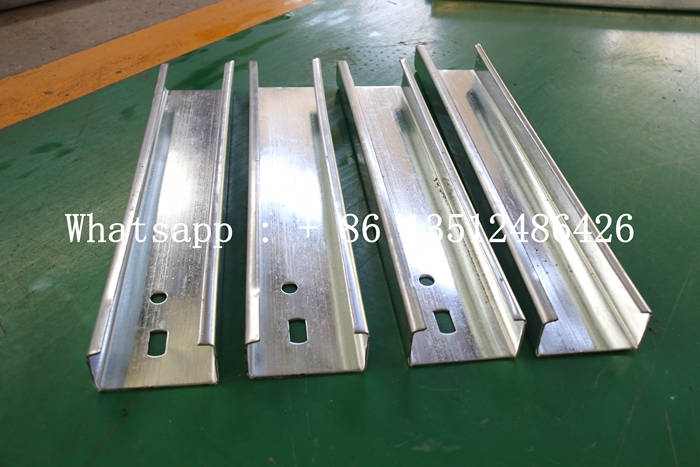

1. The CZ interchangeable purlin machine can produce two different types of purlins. Among them, the C-type purlins are very stable in texture and have excellent pressure resistance. Even if they bear heavy external force, the straightness of the purlins will not be affected. Degree; Z-shaped purlins not only have strong pressure resistance, but can also be constructed and installed in the opposite direction to adapt to different needs;
2. The drive of the CZ interchangeable purlin machine has also been improved. It is equipped with a frequency conversion control that is not available in general purlin machines. This control system can more accurately position the products in the production line. Specifically, it can not only control the production speed of the purlins , the specifications of the purlins can also be precisely controlled to ensure different precision requirements of the purlins;
3. The biggest feature of the CZ interchangeable purlin machine is that it can mix the manufacturing processes of C-type and Z-type purlins. It can produce purlins with both the advantages of C-type and Z-type according to the different needs of users, which can greatly reduce the number of customers. purchase cost;
4. The conversion between C-type purlins and Z-type purlins is also very convenient, and the production of purlins is highly efficient and fast.
