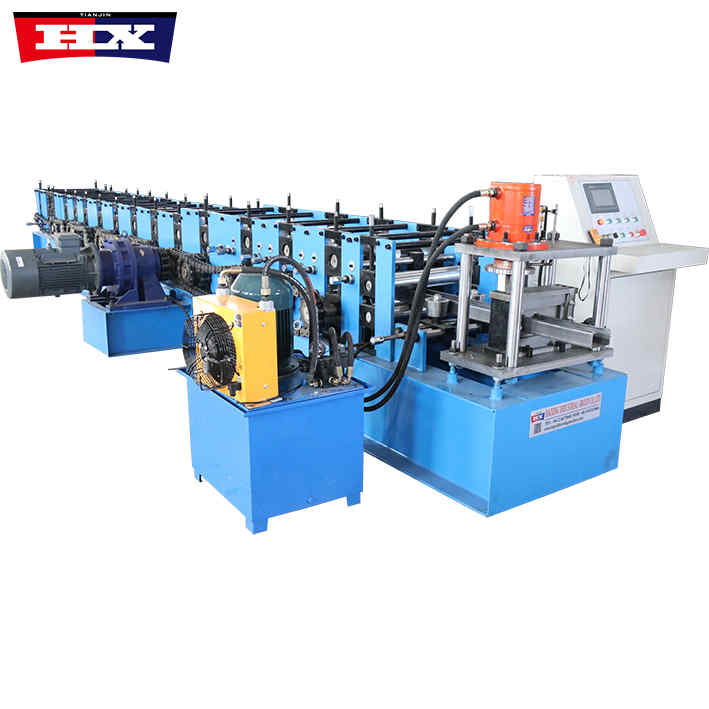

C Purlin Forming Machine
Product ID : HX-C
Product Attributes :
C Purlin Forming Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 1.5-3mm
Produce Speed : 8-10m/min
Port : Tianjin
Product Description

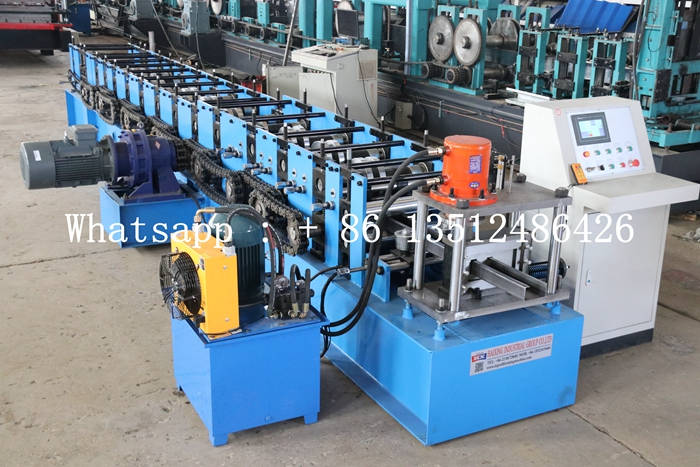

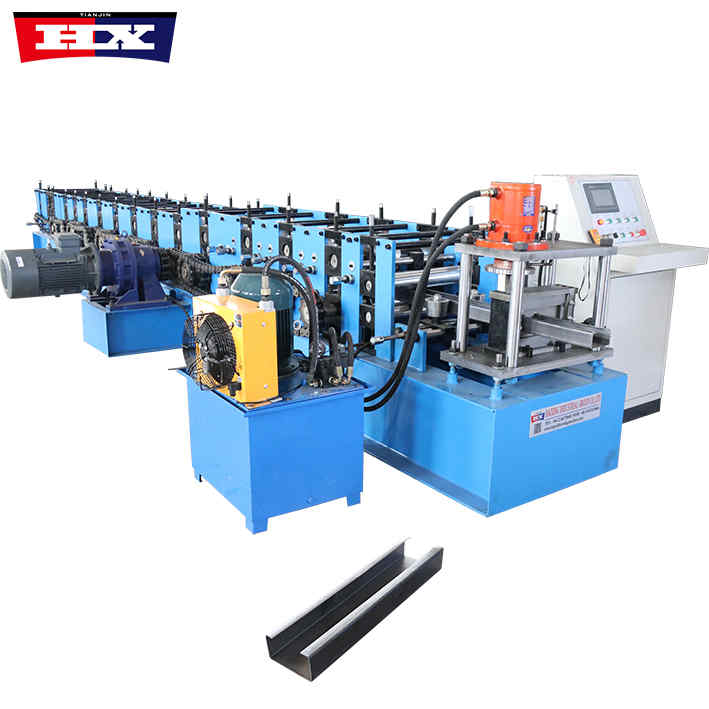

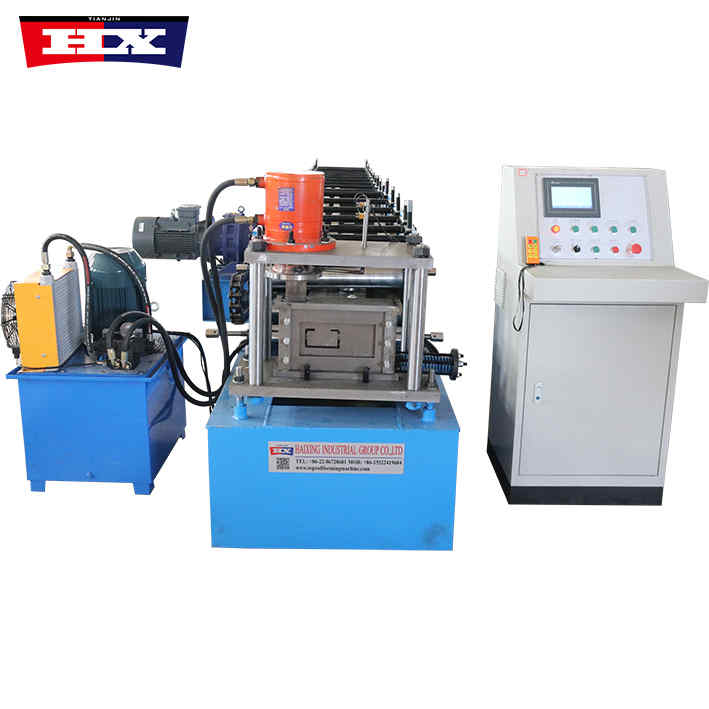

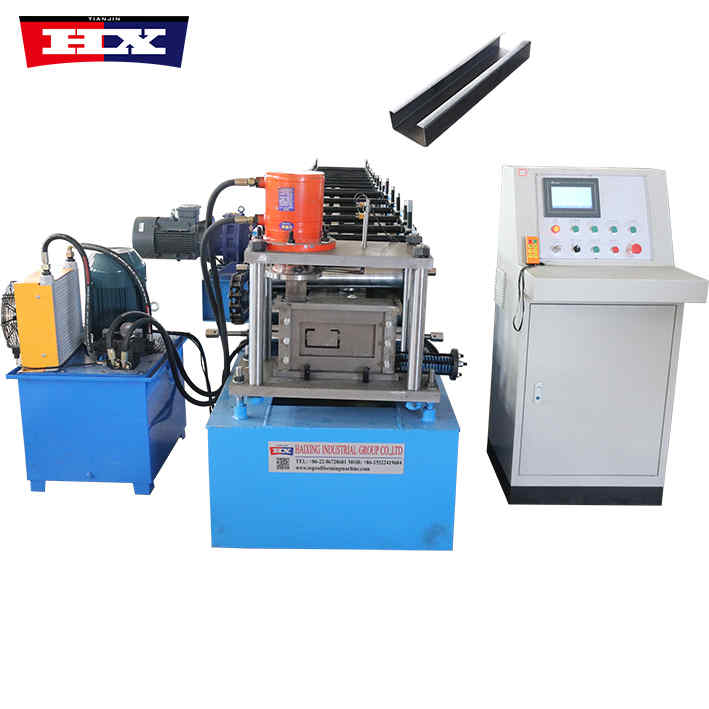

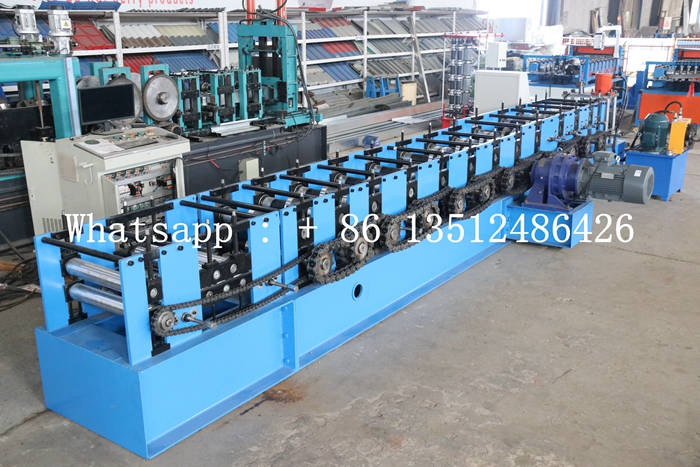

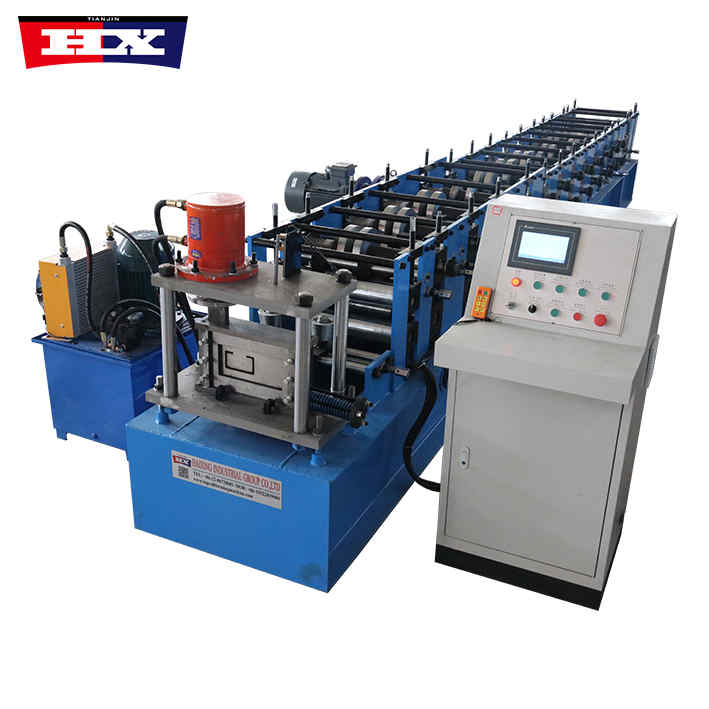

C Purlin Forming Machine
C Purlin Forming Machine
Specification
No. |
Number |
C Purlin Forming Machine |
| 1. | Suitable to process |
PPGI/PPGL/GI/GL/Carbon |
| 2. | Side panel of machine | 18mm |
| 3. | Rolling materials | Forged 45# steel with chrome plate |
| 4 | Main structure | Square steel frame 350H steel |
| 5. | Dimensions | 9*1.5*1.7m |
| 6. | Materials of cutting blade |
Cr12,Quenched treatment 58-62℃ |
| 7. | Weight | About 6.5t |
| 8. | Produce speed | 8-10m/min |
| 9. | Engine power | 7.5Kw |

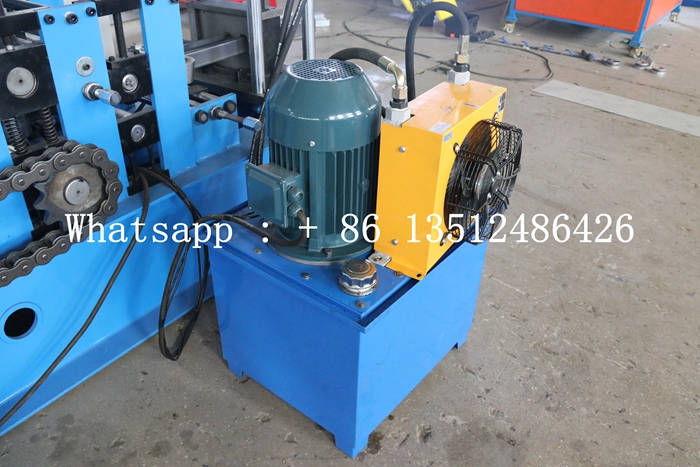

| 10. | Pump station engine | 5.5kw |
| 11. | Thickness of plate | 1.5-3mm |
| 12. | Cutting way | Grinding tool twisted |
| 13. | Control system | PLC control ( Delta ) |

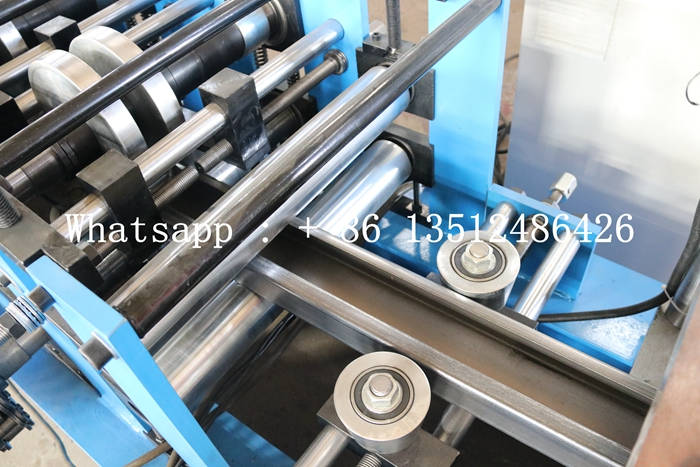

| 14. | Diameter of roller | Φ70mm |
| 15. | Drive method | Chain ( 2 inch ) |
| 16. | Rows | 16 |
| 17. | Length tolerance | ±2mm |
| 18. | Voltage |
380v 50hz 3p or as customers ' requirement |
