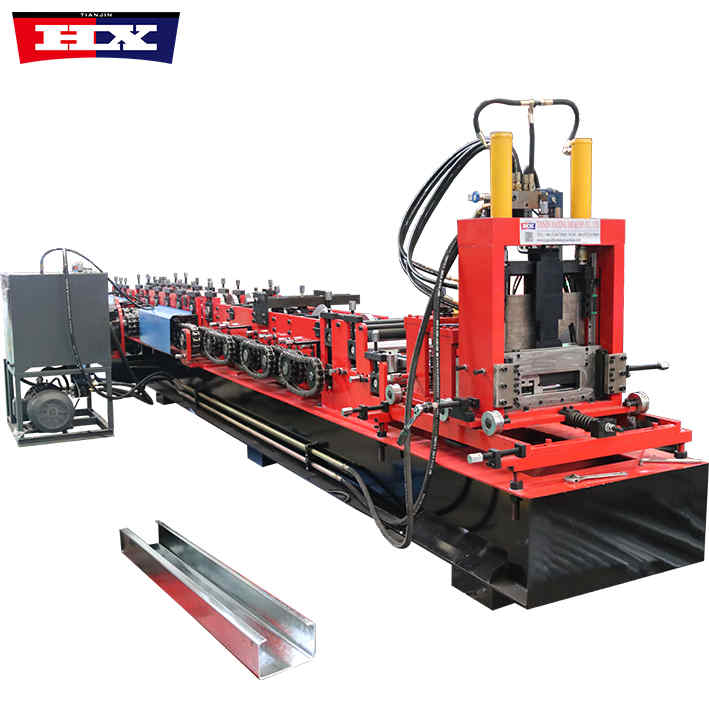

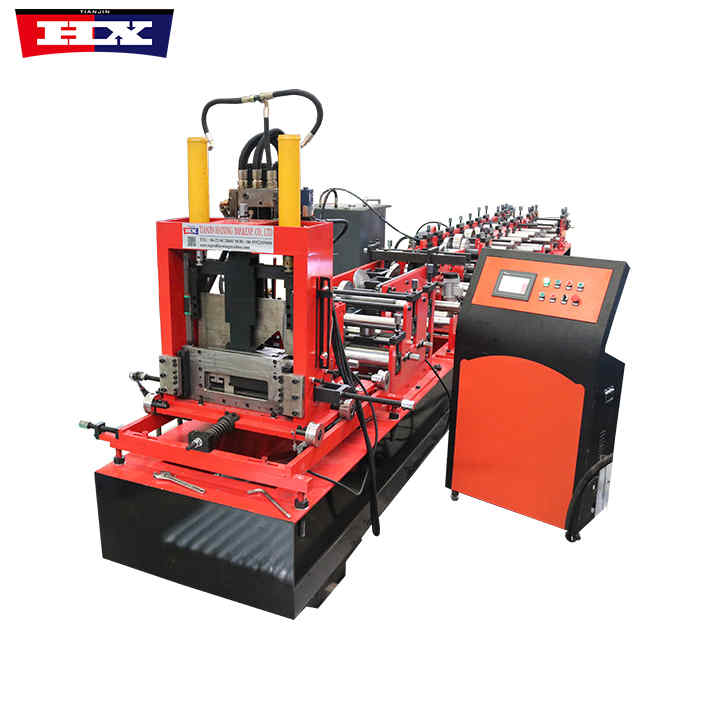

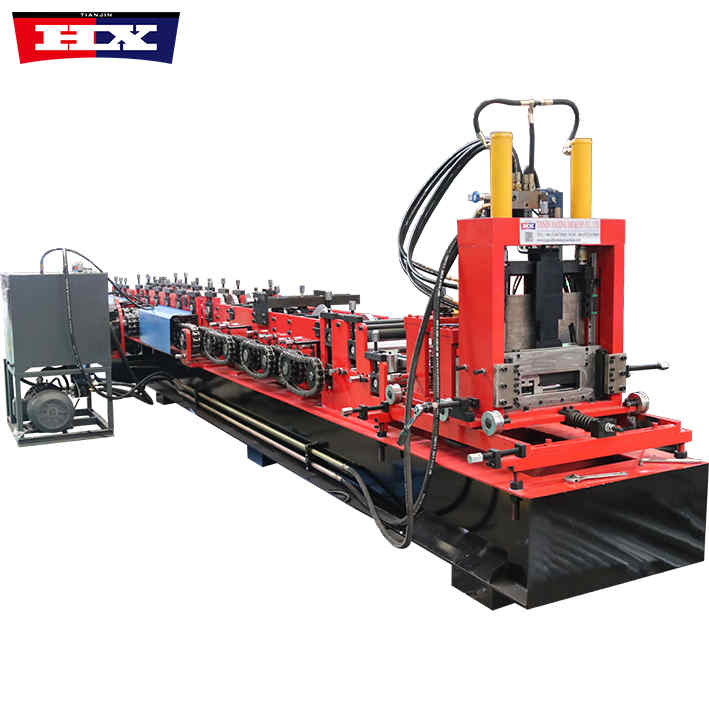

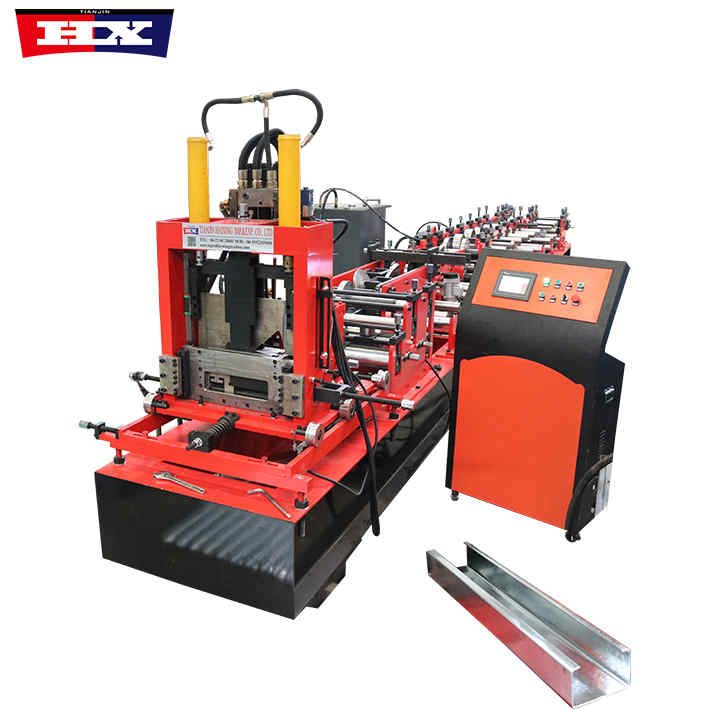

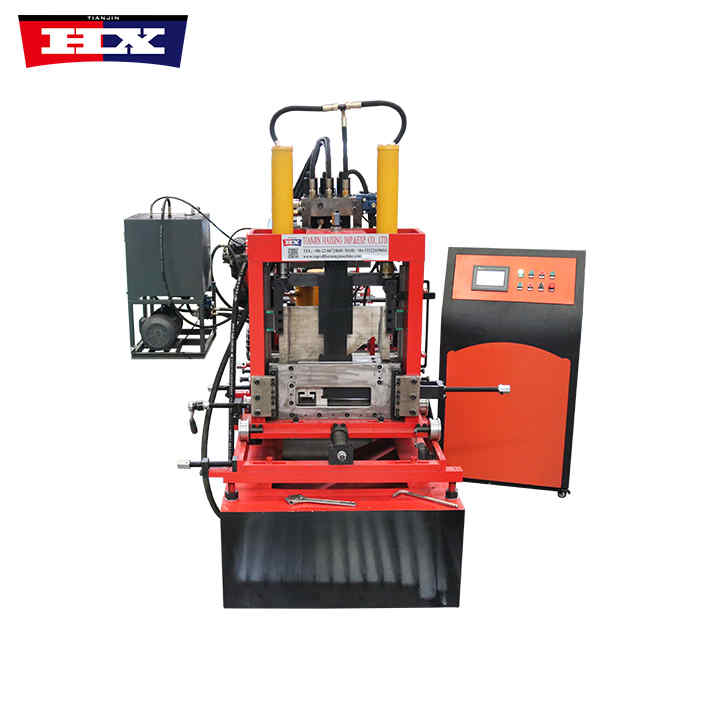

C Purlin Roll Former Machine
C Purlin Roll Former Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 1.5-3mm
Produce Speed : 8-10m/min
Port : Tianjin
C Purlin Roll Former Machine
C Purlin Machine
C purlin machine is an efficient and intelligent equipment, mainly used to produce steel structure purlins of various specifications. It is characterized by high efficiency, energy saving and environmental protection, providing a new production method for the construction industry.
The working principle of this c purlin machine is to process steel plates into purlins of various shapes and sizes through precision machining. There is no noise or pollution during the production process, and it can complete production tasks efficiently and improve production efficiency.
The advantages of c purlin machine include high efficiency, intelligence, environmental protection, energy saving, etc. It can greatly improve the production efficiency of the construction industry and reduce production costs while ensuring product quality and accuracy. In addition, the equipment has good stability and durability and can meet production needs in various complex environments.
C purlin machine have important application value in the modern construction industry. It can not only produce steel structure purlins of various specifications, but also perform various complex mechanical processing. It is widely used in bridges, highways, high-rise buildings and other fields, and has made important contributions to the development of the modern construction industry.

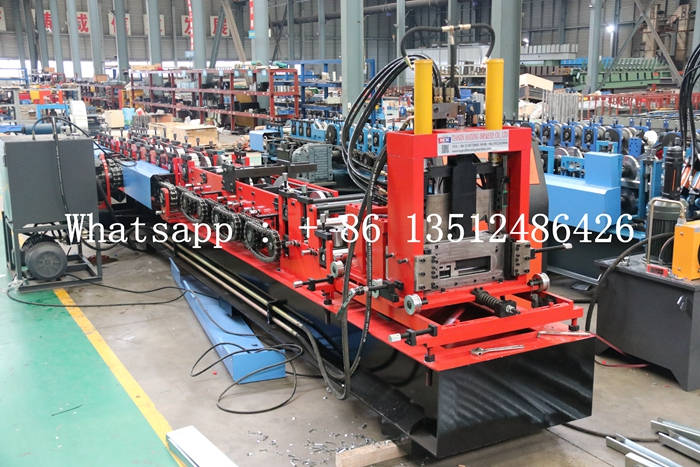

C Purlin Roll Former Machine
Specification
No. |
Number |
C Purlin Roll Former Machine |
| 1. | Suitable to process |
PPGI/PPGL/GI/GL/Carbon |
| 2. | Side panel of machine | 22mm |
| 3. | Rolling materials | Gcr15 Steel Quenched treatment HRC 58-62℃ |
| 4 | Main structure | Square steel frame 450H steel |
| 5. | Dimensions | 9*1.5*1.7m |
| 6. | Materials of cutting blade |
Cr12,Quenched treatment HRC 58-62℃ |
| 7. | Weight | About 6.5t |
| 8. | Produce speed | 8-10m/min |
| 9. | Engine power | 11Kw |
| 10. | Pump station engine | 4kw |
| 11. | Thickness of plate | 1.5-3mm |

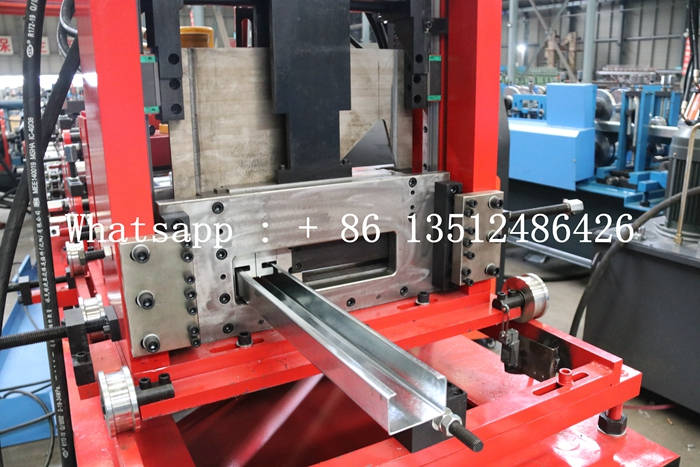

| 12. | Cutting way | Grinding tool twisted |

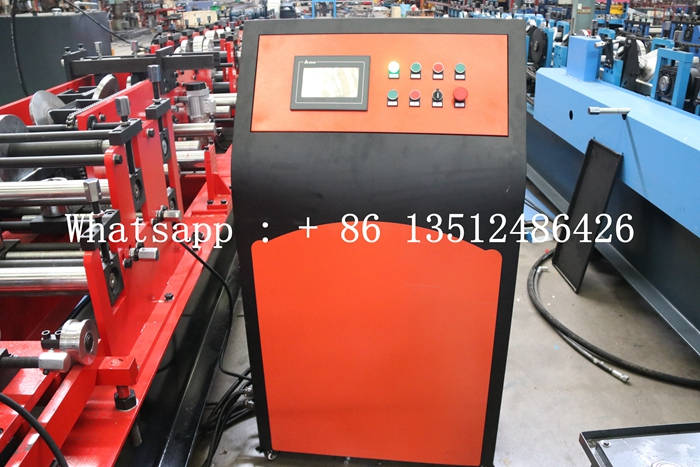

| 13. | Control system | PLC control ( Delta ) |

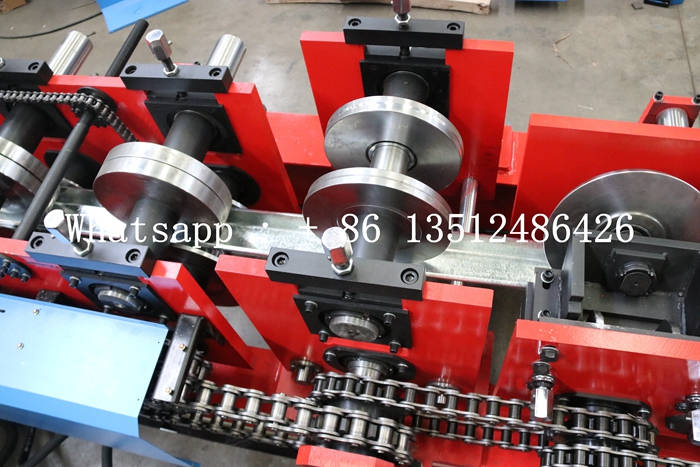

| 14. | Diameter of roller | Φ80mm |
| 15. | Drive method | Chain ( 2 inch ) |
| 16. | Rows | 16 |
| 17. | Length tolerance | ±2mm |
| 18. | Voltage |
380v 50hz 3p or as customers ' requirement |
Advantages
1. It has the characteristics of high production efficiency and good production quality. The c purlin machine has a high degree of automation and is simple and convenient to operate, which can greatly improve production efficiency and save labor costs.
2. The finished products of c purlin machine are of reliable quality and can meet the high strength and durability requirements of purlins in engineering construction.
3. The c purlin machine has a compact structure, small floor space, simple and convenient operation and maintenance, and a wide range of applications, which can meet the production needs of cement purlins of different specifications and models.
