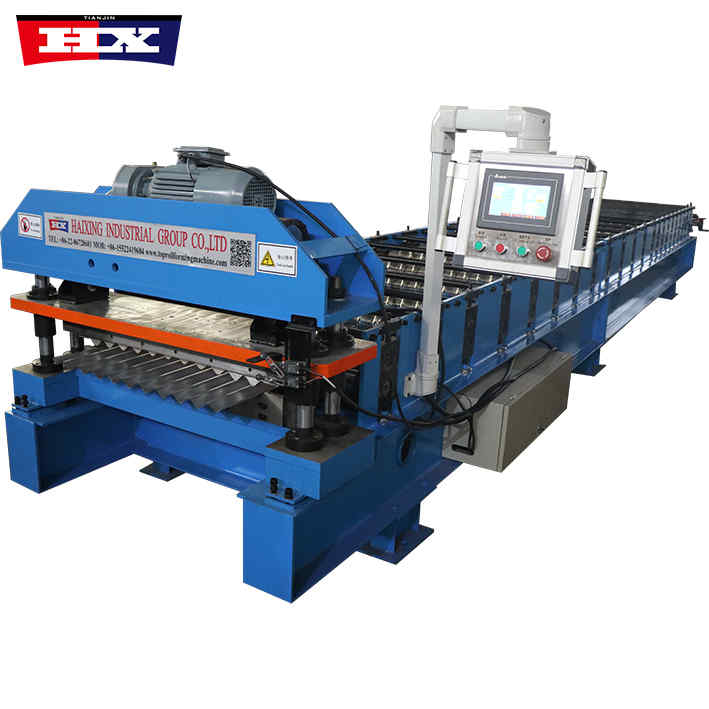

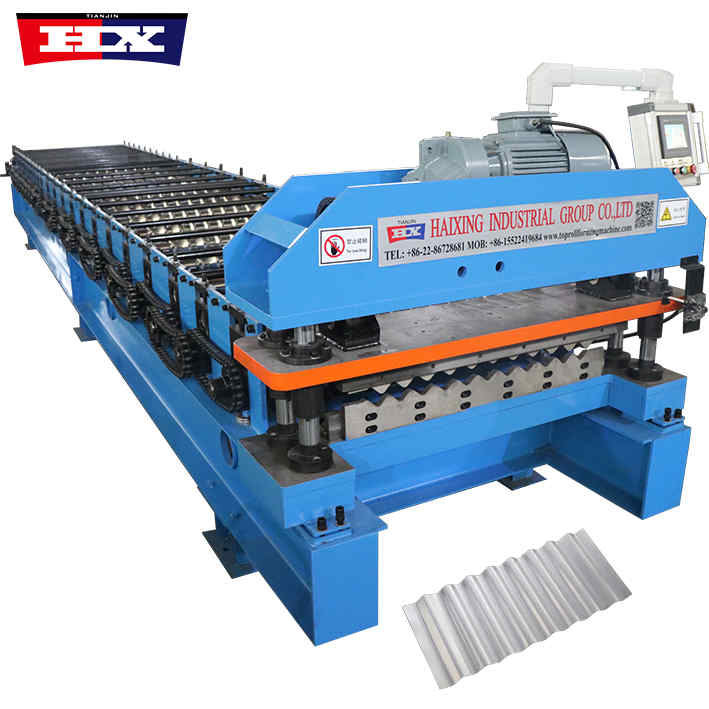

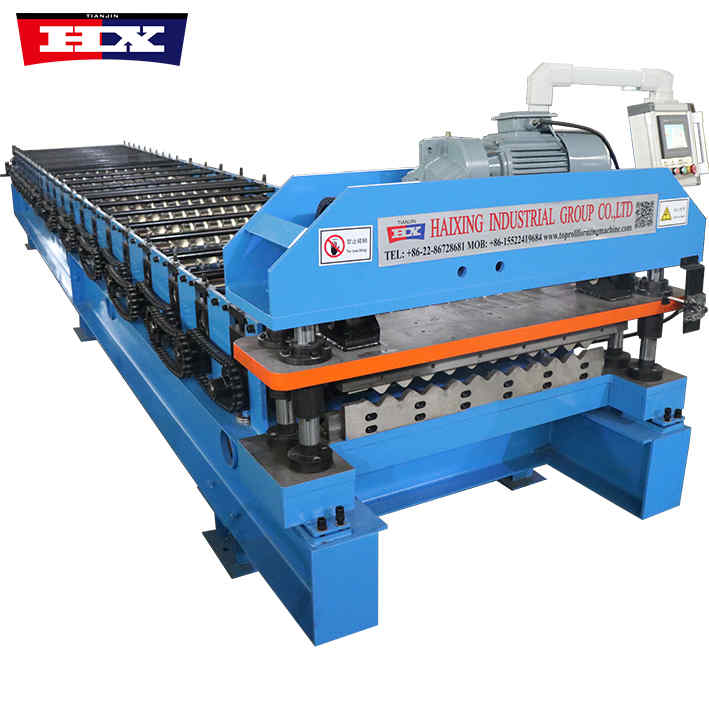

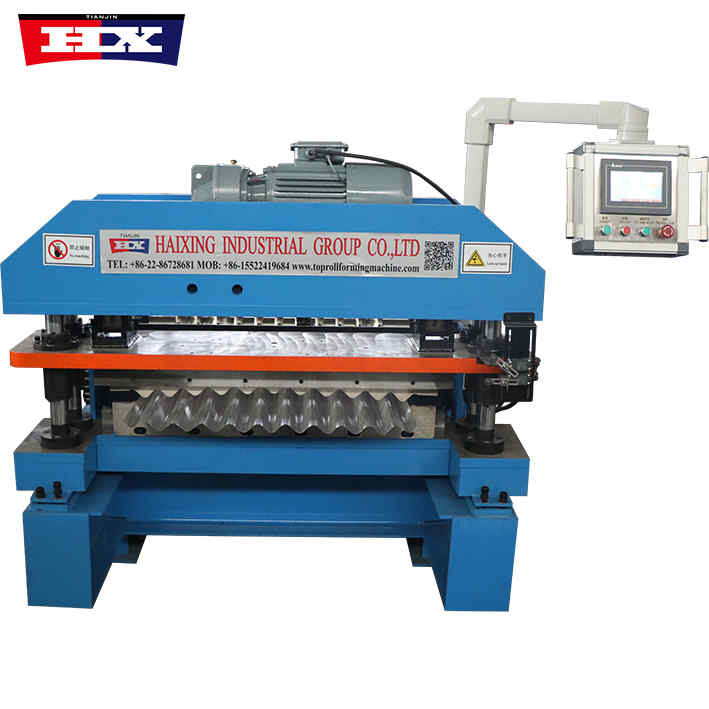

Corrugated Iron Roofing Sheet Making Machine
Corrugated Iron Roofing Sheet Making Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin

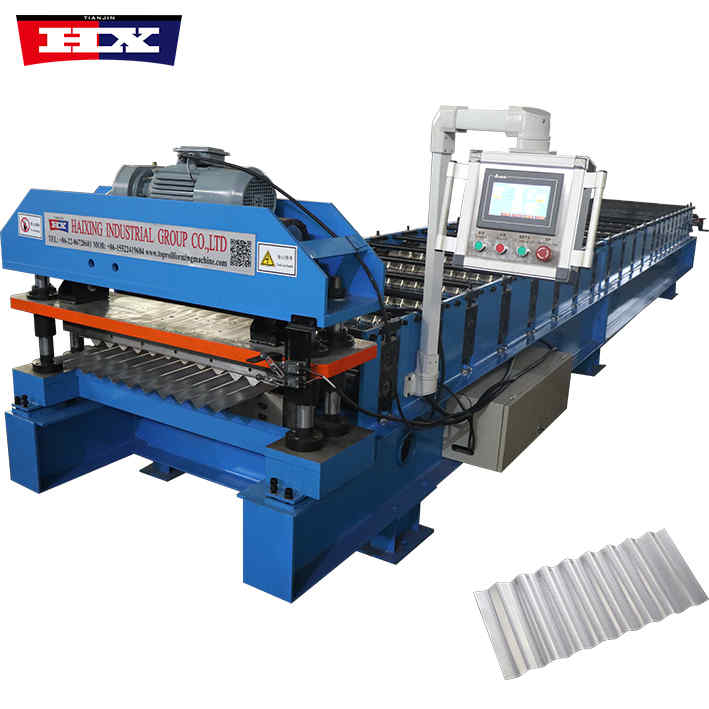

Corrugated Iron Roofing Sheet Making Machine
Corrugated Iron Roofing Sheet Making Machine
The corrugated iron roofing sheet making machine is a device that uses mechanical principles to quickly press metal sheets into tile shapes. Its main function is to process metal sheets into metal tiles for building roofs and walls, providing the construction industry with higher-quality, practical and beautiful building materials. At the same time, the corrugated iron roofing sheet making machine can also produce metal tiles of different shapes such as arc shapes according to different needs by replacing different press tile molds.
Corrugated Iron Roofing Sheet Making Machine
Specification
No. |
Number |
Corrugated Sheet Making Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 22 |
| 19. | Size | 10500mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
Advantages
1. Efficiency: The corrugated iron roofing sheet making machine uses advanced mechanical principles to quickly process metal sheets, maximize work efficiency, significantly save manufacturing costs, and provide a faster and more labor-saving solution for the construction industry.
2. Stability: The corrugated iron roofing sheet making machine is made of high-strength materials, which can maintain stability during the working process, effectively prevent irregular tiles and deformation of tiles caused by problems with the machine itself, and has long-term stability work performance.
3. Diversity: The mold of the corrugated iron roofing sheet making machine is replaceable and can produce metal tiles of different shapes such as arcs, etc., providing the construction industry with more diversified and diversified choices, and satisfying different customers and different needs. Requirements for building needs.
4. Aesthetics: The metal tiles produced by the corrugated iron roofing sheet making machine are rich in color, with a variety of colors to choose from, and have a beautiful and elegant appearance, providing the construction industry with more beautiful and high-quality building materials.
