Corrugated Roofing Machine
Corrugated Roofing Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin
Corrugated Roofing Machine
Corrugated Roofing Machine

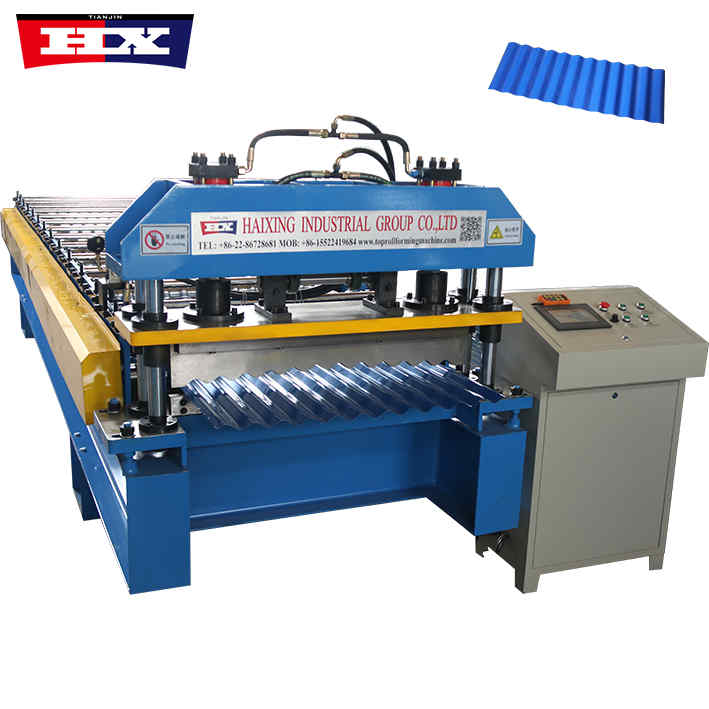

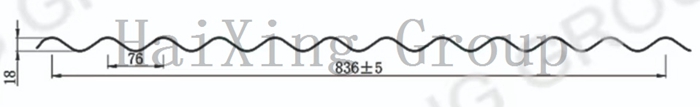

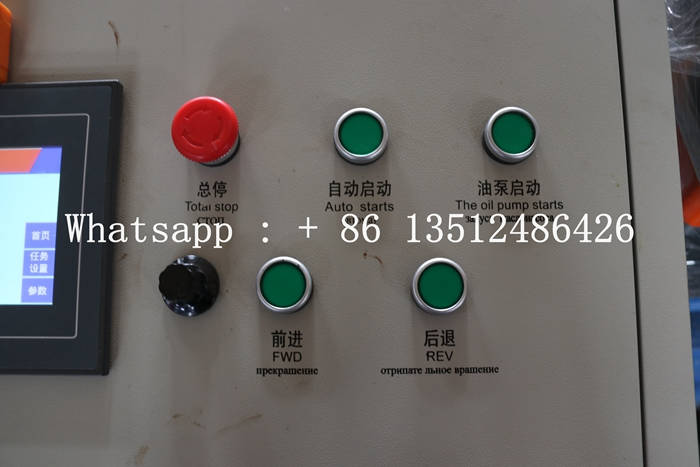

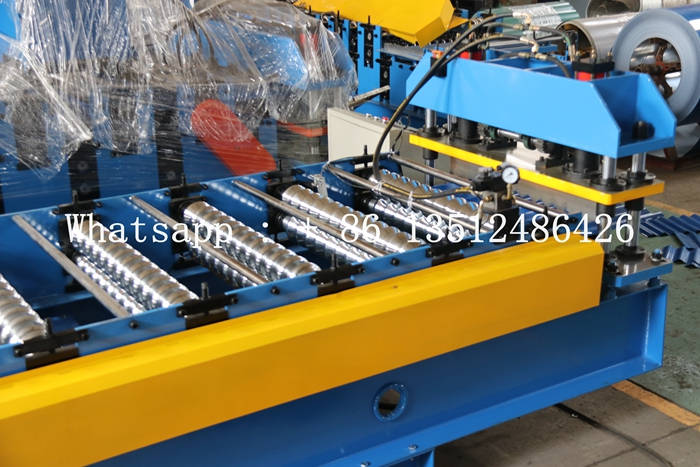

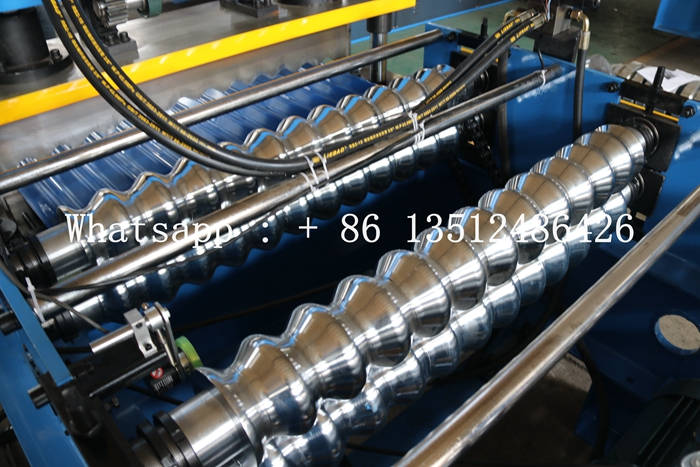

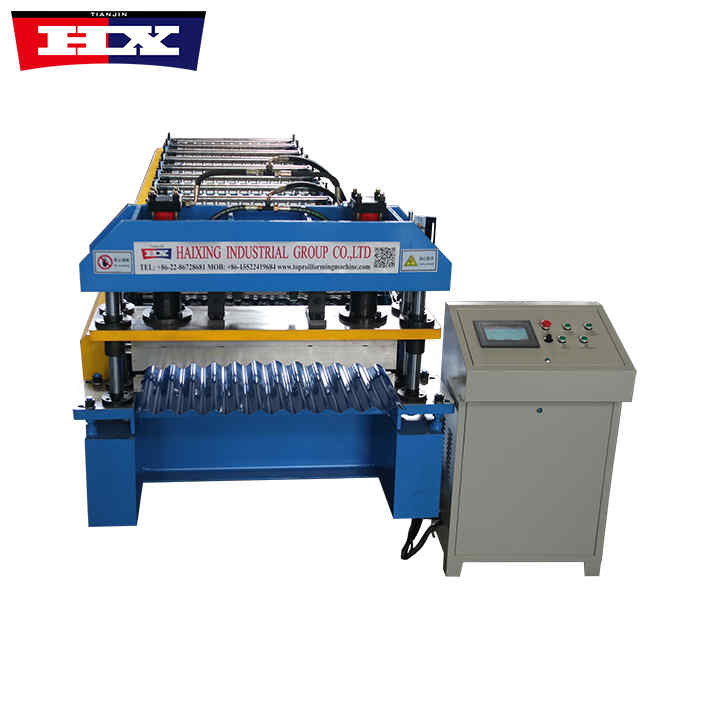

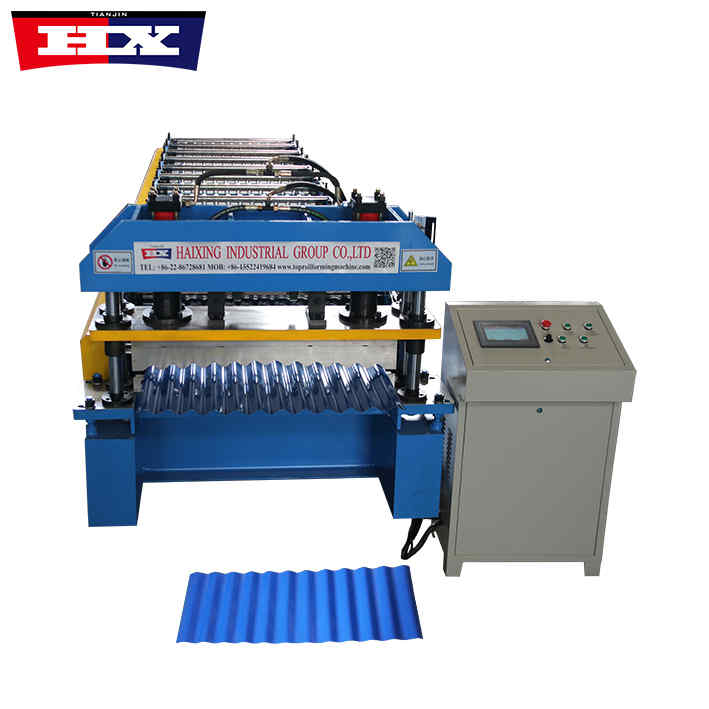

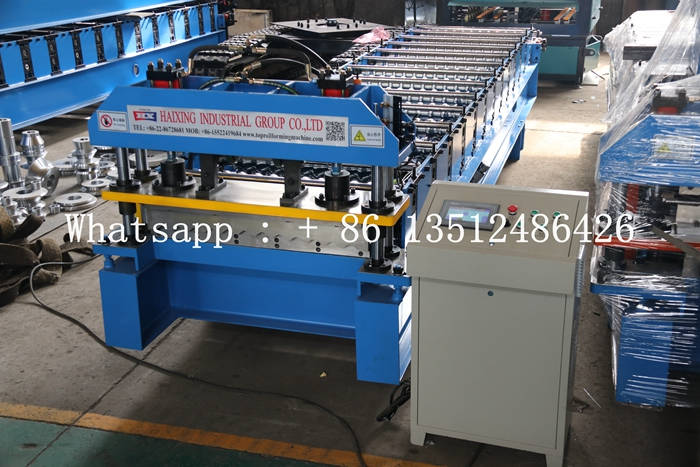

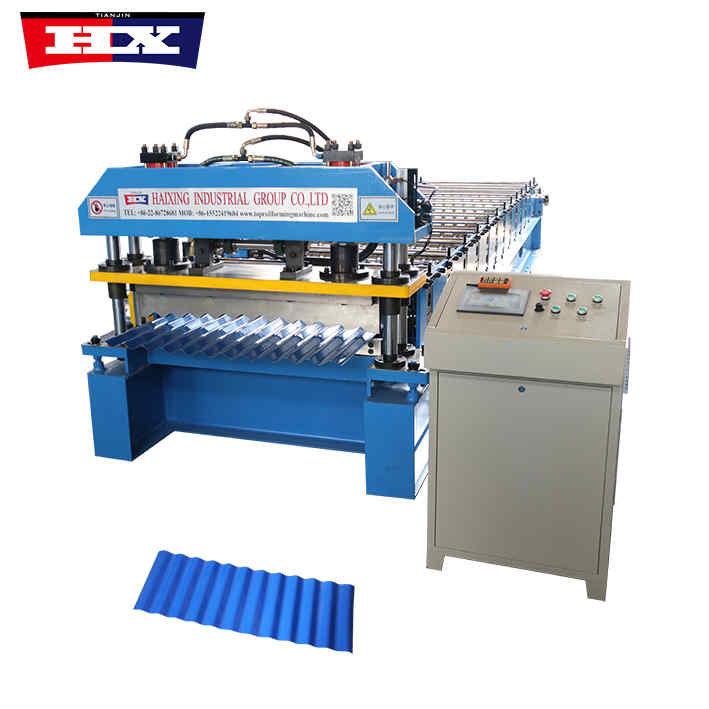

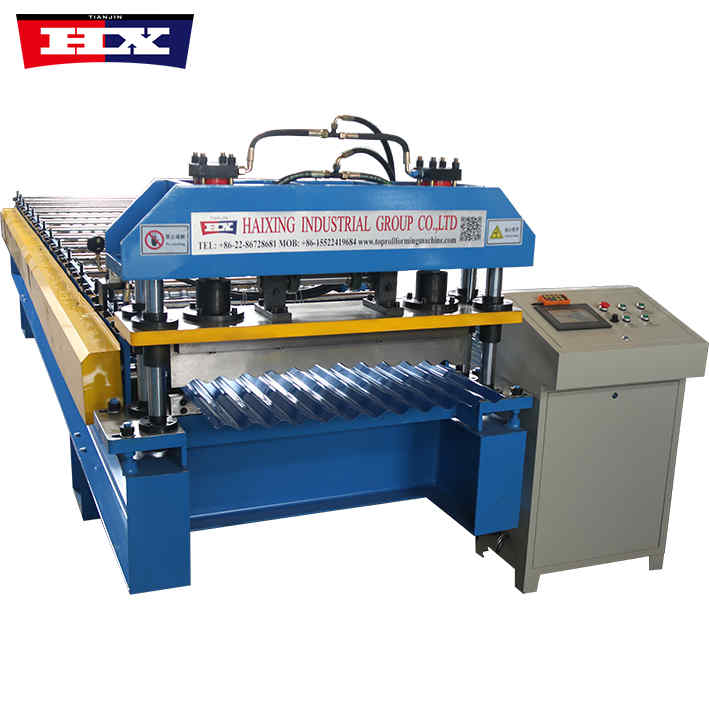

836 corrugated roofing machine is mainly composed of frame, transmission system, hydraulic system, electronic control system and other parts. The rack is the main body of the entire equipment and is welded with high-strength steel to ensure the stability and durability of the equipment. The transmission system transmits the power of the motor through the reducer and chain, allowing the pressing roller to rotate and advance and retreat. The hydraulic system is responsible for providing the pressure and speed required during the pressing process to ensure stable quality of the pressed corrugated tiles. The pressing system includes upper pressing rollers, lower pressing rollers and molds. Through the synergy of the upper and lower pressing rollers, the sheet is pressed into corrugated tiles of the required shape. The electronic control system is responsible for controlling the operation of the entire equipment, including the start, stop, speed regulation of the motor, etc.
Corrugated Roofing Machine
Specification
No. |
Number |
Corrugated Roofing Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 13 |
| 19. | Size | 6500mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
Notice
1. Before using the corrugated roofing machine, staff should be familiar with the structure, performance and operation methods of the equipment to ensure the safe operation of the equipment.
2. Before starting the equipment, check whether all components are intact and whether the oil level of the transmission system and hydraulic system is normal to ensure that the equipment is in good working condition.
3. During the production process, the operating status of the equipment should be checked regularly. If any abnormality is found, the machine should be shut down for inspection in time to avoid equipment damage or impact on product quality.
4. During the operation of the equipment, it is prohibited to adjust the spacing and angle of the pressing rollers at will to avoid damaging the equipment or affecting product quality.
5. After production, the residue inside the equipment should be cleaned in time to keep the equipment clean and dry to prevent the equipment from rusting or being damaged.
