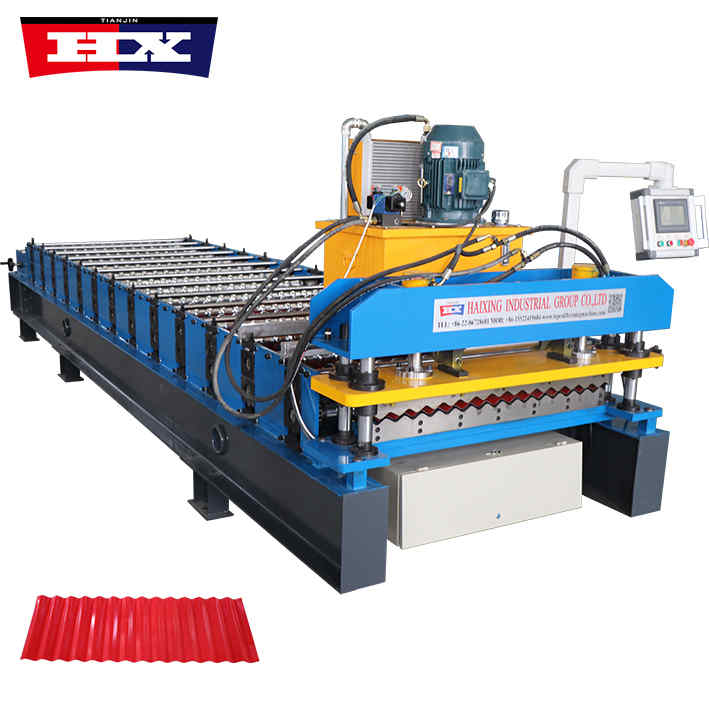

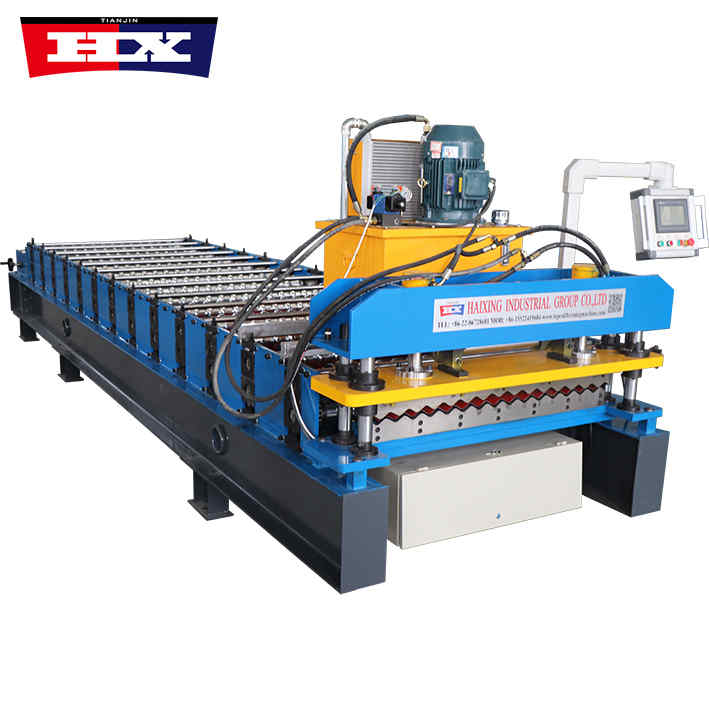

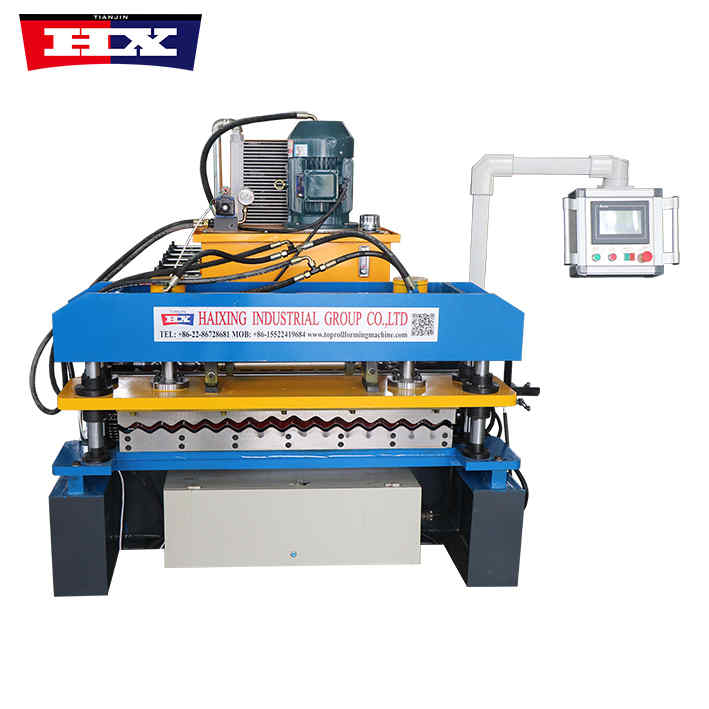

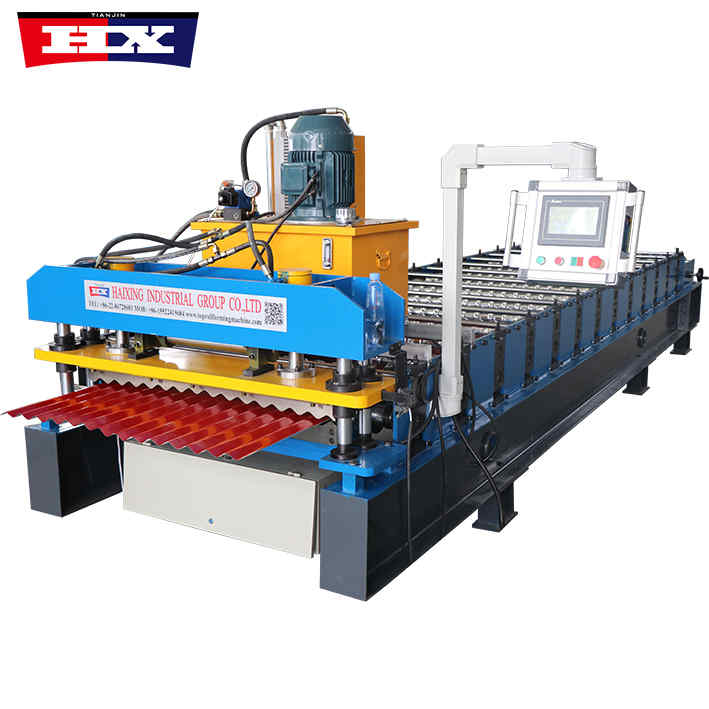

Corrugated Sheet Metal Roof Roll Forming Machine

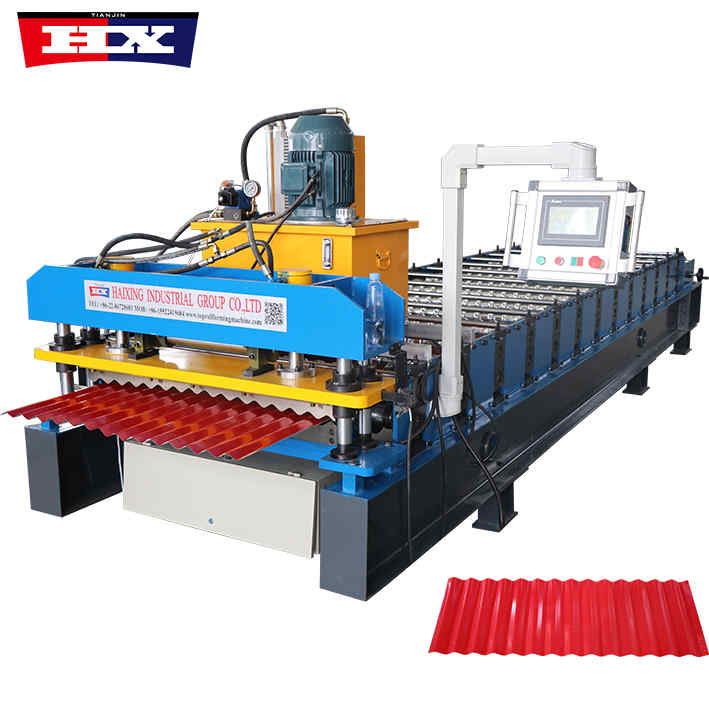

Corrugated Sheet Metal Roof Roll Forming Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin
Corrugated Sheet Metal Roof Roll Forming Machine
Corrugated Sheet Metal Roof Roll Forming Machine
The corrugated sheet metal roof roll forming machine is an efficient and precise metal processing equipment widely used in construction, industry and other fields. Equipment features include high efficiency, high precision, good stability and easy operation. The working principle is mainly based on the transmission system, pressure tile device and control system.

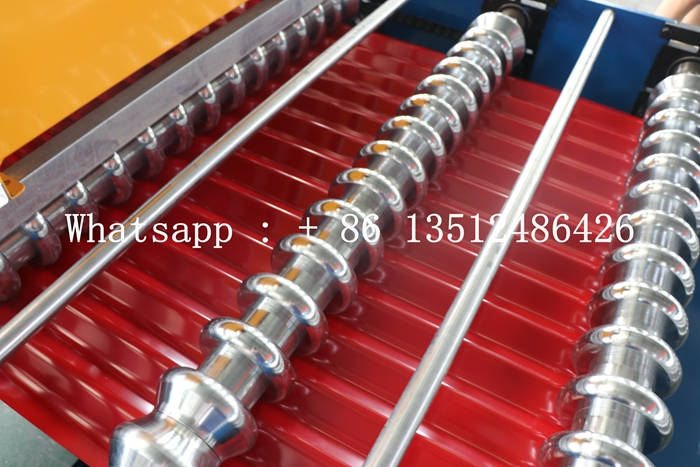

Corrugated Sheet Metal Roof Roll Forming Machine
Specification
No. |
Number |
Corrugated Sheet Metal Roof Roll Forming Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 13 |
| 19. | Size | 6500mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
Advantages
1. Efficient production: The corrugated sheet metal roof roll forming machine adopts an advanced hydraulic system, which can quickly complete the tile pressing work, greatly improving production efficiency. At the same time, the equipment also has functions such as automatic feeding and automatic cutting, which further improves the degree of production automation.
2. Strong stability: The corrugated sheet metal roof roll forming machine is made of high-quality steel with a solid structure and can withstand large working pressure. In addition, the equipment undergoes strict quality testing to ensure stable performance during long-term operation.
3. Easy to operate: The operation interface of the corrugated sheet metal roof roll forming machine is simple and intuitive, making it easy for operators to quickly master operating skills. At the same time, the equipment is also equipped with complete safety protection measures to ensure safety during operation.
4. Diversified production: The corrugated sheet metal roof roll forming machine can produce corrugated tiles of various specifications to meet the needs of different construction projects. In addition, by changing the mold, tiles of other shapes can also be produced, which has strong adaptability.
Maintain
1. Regularly check whether the fasteners of the equipment are loose. If they are loose, tighten them in time.
2. Keep the surface of the equipment clean to avoid accumulation of dust and impurities.
3. Regularly check the lubrication of key components such as the transmission system and bearings to ensure that the equipment maintains good lubrication during operation.
4. Regularly conduct no-load operation and load operation tests on the equipment to check the performance and stability of the equipment.
5. Perform professional maintenance and upkeep on the equipment regularly, such as replacing worn parts, cleaning fuel tanks, etc.
