CZ Purlin Roll Forming Machine
CZ Purlin Roll Forming Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 1.5-3mm
Produce Speed : 8-10m/min
Port : Tianjin
CZ Purlin Roll Forming Machine
CZ Purlin Roll Forming Machine

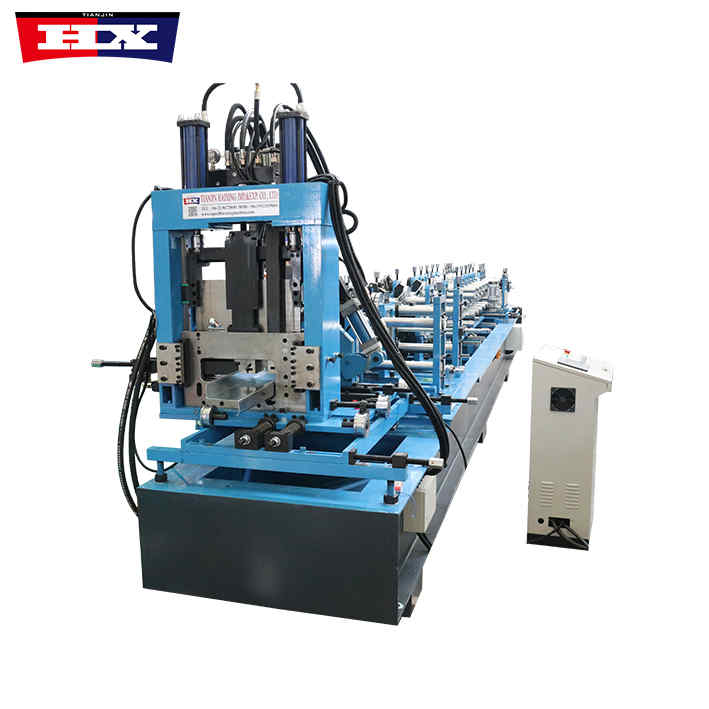

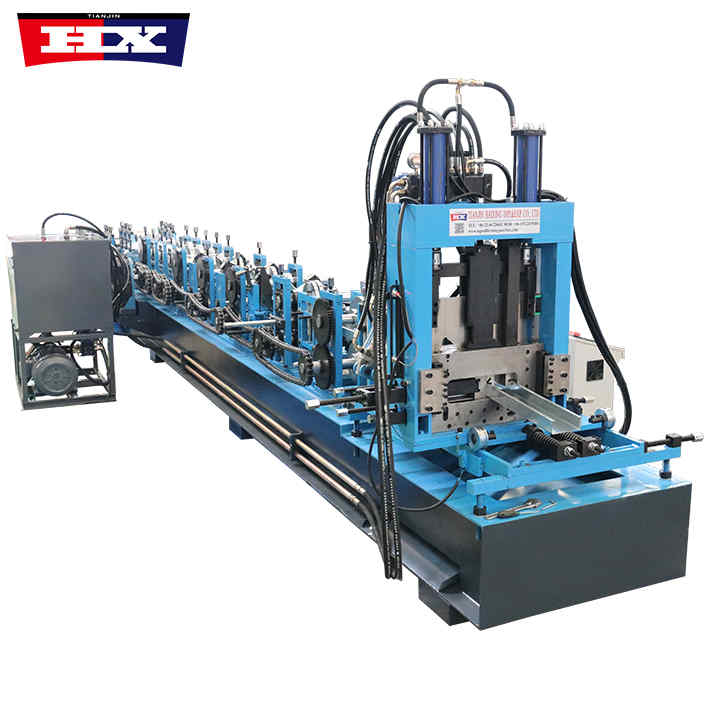

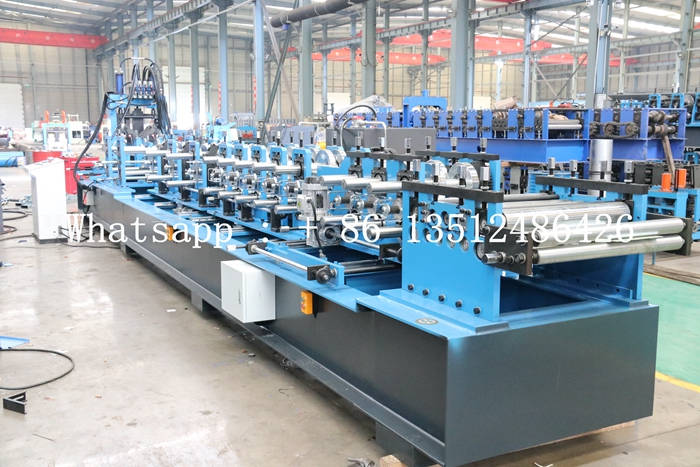

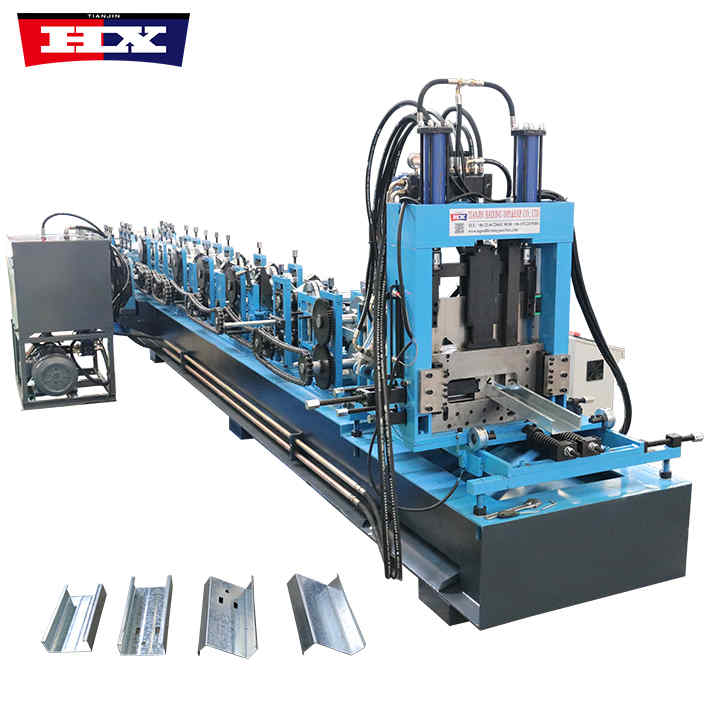

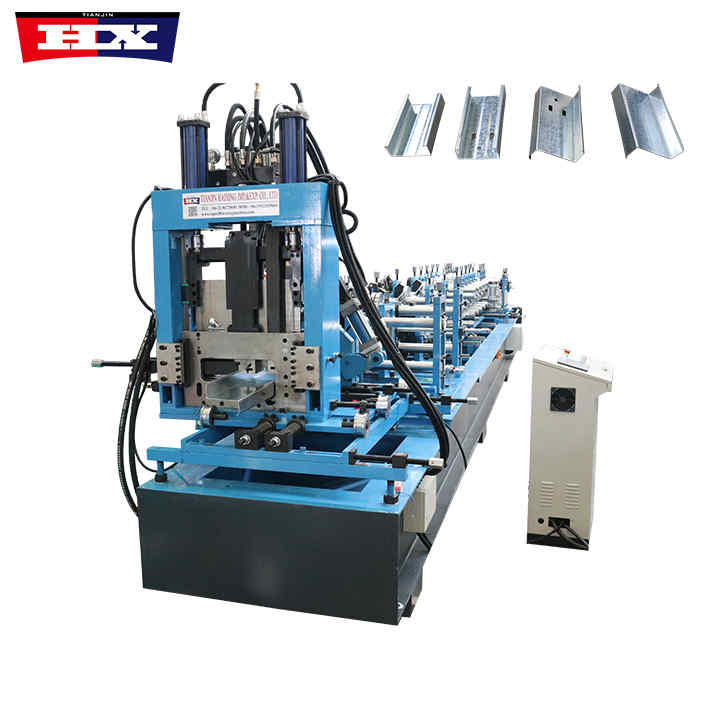

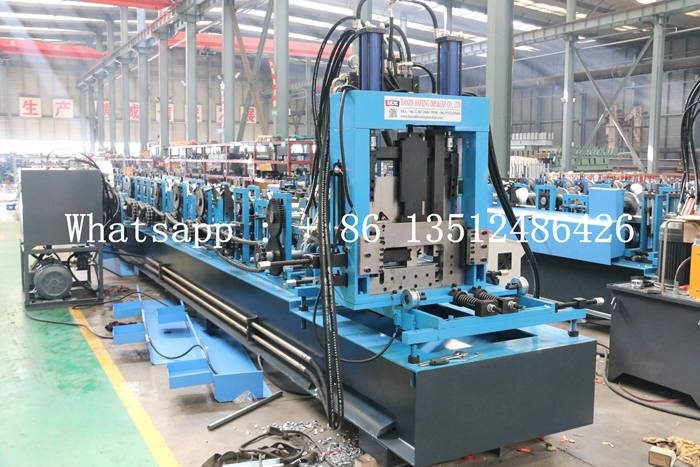

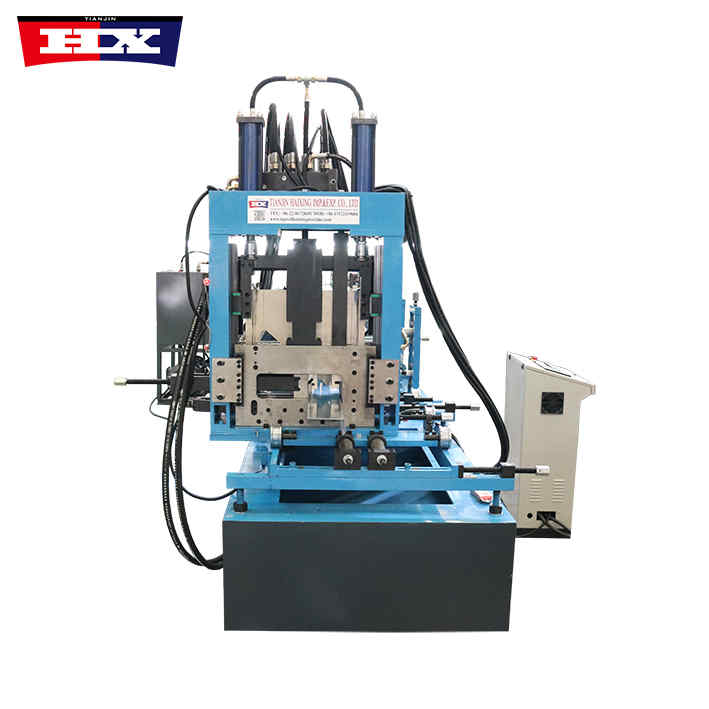

The CZ purlin machine is a single-roll forming unit with one set of rolls that can produce CZ-shaped purlin products of various specifications. The machine mainly consists of a passive loading rack, leveling device, punching device, post-forming cutting device, hydraulic station, computer control system, etc.

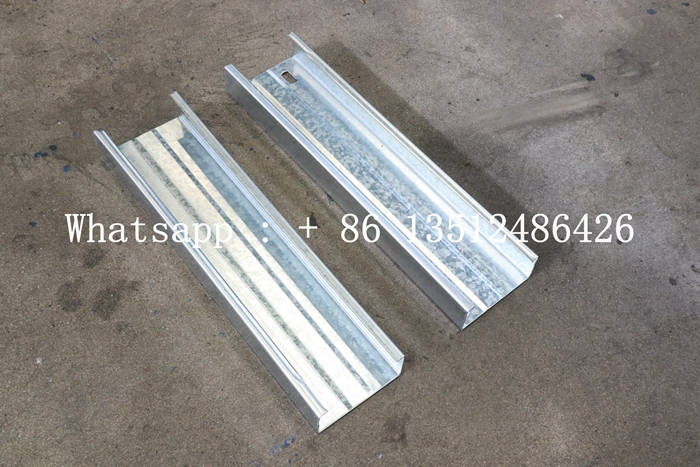

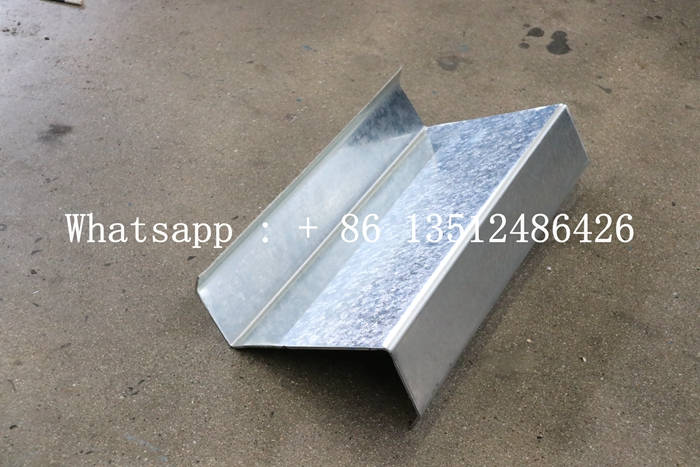

The finished CZ purlin rolled by this CZ purlin machine has good bending and compression resistance, good straightness, fully automatic fixed-length cutting, automatic punching, high degree of automation, and fast and convenient installation.
The product can be used as the main stress-bearing structure of large and medium-sized industrial and civil buildings, such as roof load-bearing loads and wall supports of factories, warehouses, locomotive garages, hangars, exhibition halls, theaters, sports venues, and market garden sheds.
CZ Purlin Roll Forming Machine
Specification
No. |
Number |
CZ Purlin Roll Forming Machine |
| 1. | Suitable to process |
PPGI/PPGL/GI/GL/Carbon |
| 2. | Side panel of machine | 22mm |
| 3. | Rolling materials | Gcr15 Steel Quenched treatment HRC 58-62℃ |
| 4 | Main structure | Square steel frame 450H steel |
| 5. | Dimensions | 9*1.5*1.7m |
| 6. | Materials of cutting blade |
Cr12,Quenched treatment HRC 58-62℃ |
| 7. | Weight | About 7t |
| 8. | Produce speed | 8-10m/min |
| 9. | Engine power | 11Kw |

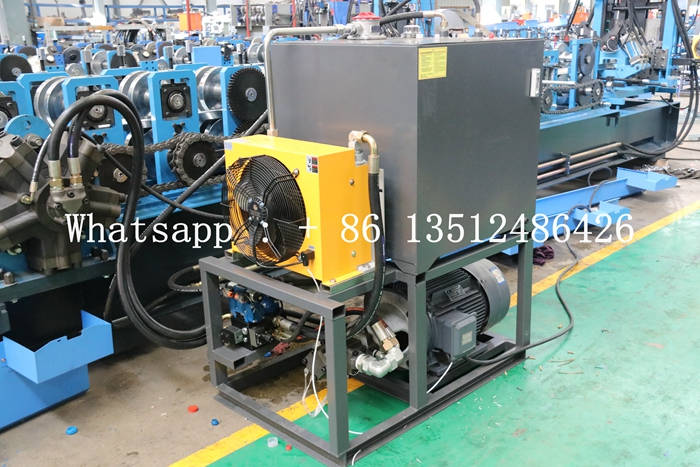

| 10. | Pump station engine | 4kw |
| 11. | Thickness of plate | 1.5-3mm |
| 12. | Cutting way | Grinding tool twisted |
| 13. | Control system | PLC control ( Delta ) |

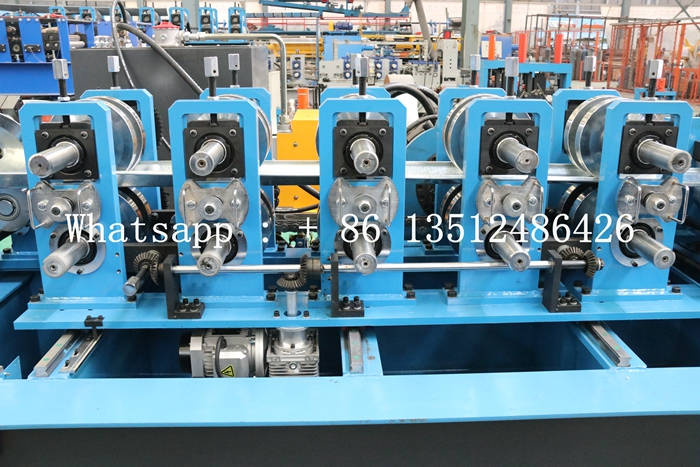

| 14. | Diameter of roller | Φ80mm |

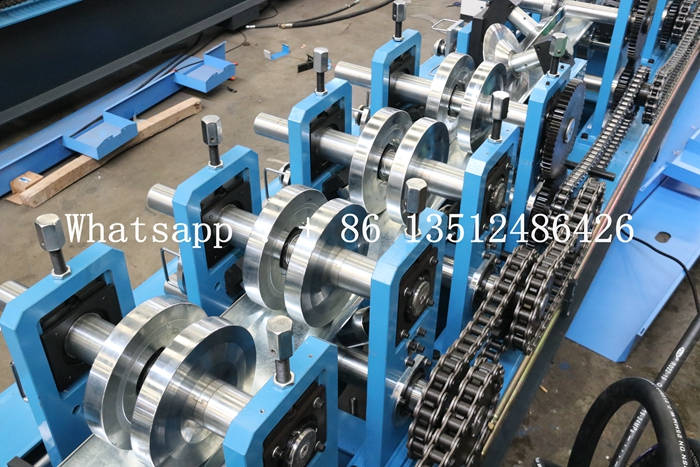

| 15. | Drive method | Chain ( 2 inch ) |
| 16. | Rows | 16 |
| 17. | Length tolerance | ±2mm |
| 18. | Voltage |
380v 50hz 3p or as customers ' requirement |
Features
1. High production efficiency: CZ purlin machine has high production efficiency and can quickly produce CZ-shaped steel of various specifications to meet customer needs.
2. High degree of automation: CZ purlin machine are generally equipped with automated control systems, which can be unattended and greatly improve production efficiency.
3. High precision: The CZ purlin machine can ensure the accuracy and consistency of the product during the production process, thereby improving the quality and stability of the product.
4. Wide range of applications: CZ purlin machine can produce CZ-shaped steel of various specifications and are suitable for different fields, such as construction, automobiles, railways, etc.
Notice
1. Comply with the operating procedures: When operating the CZ purlin machine, you need to comply with the equipment's instructions and operating procedures to ensure the safety and accuracy of the operation.
2. Regular inspection of equipment: The CZ purlin machine needs to be inspected and maintained regularly to discover and solve problems with the equipment in a timely manner to ensure the normal operation of the equipment.
3. Keep the environment clean and tidy: During the production process, attention needs to be paid to keeping the production environment clean and tidy to avoid dust and noise from affecting employees and the environment.
