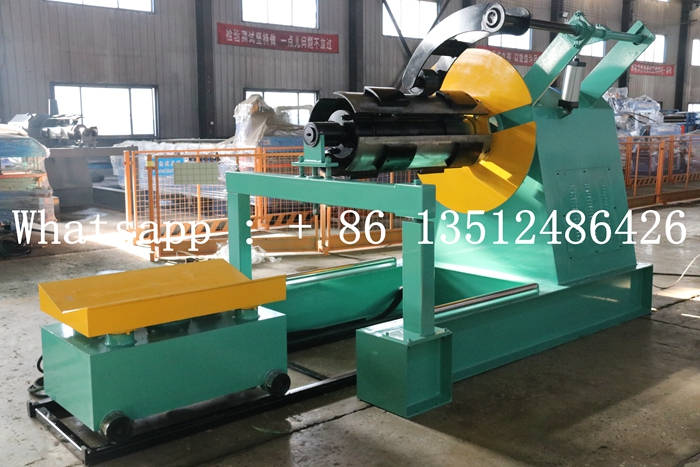

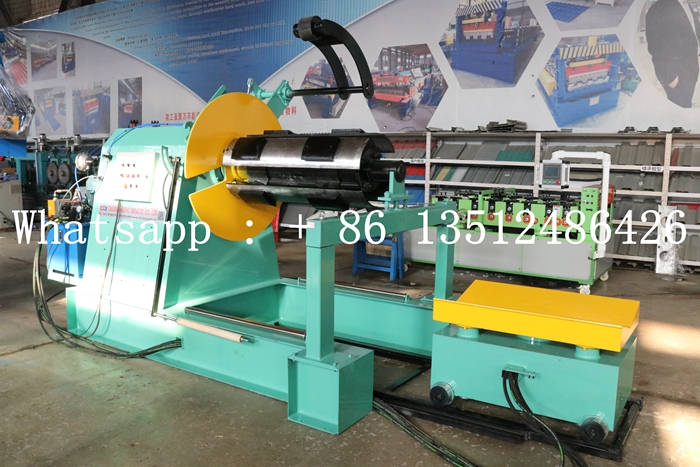

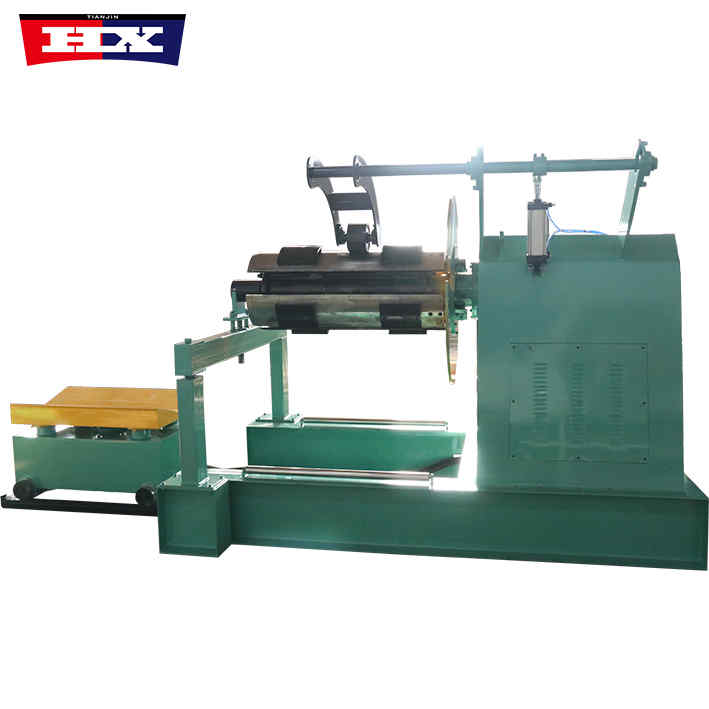

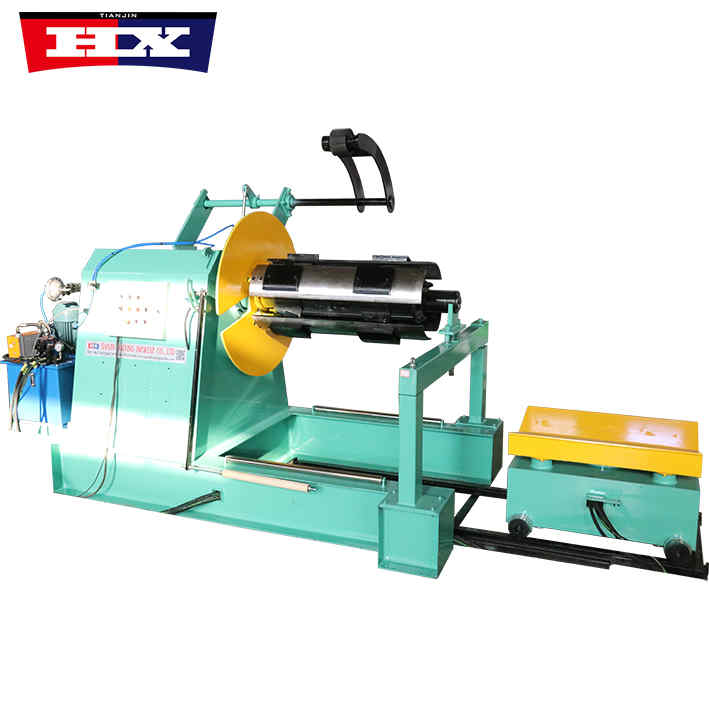

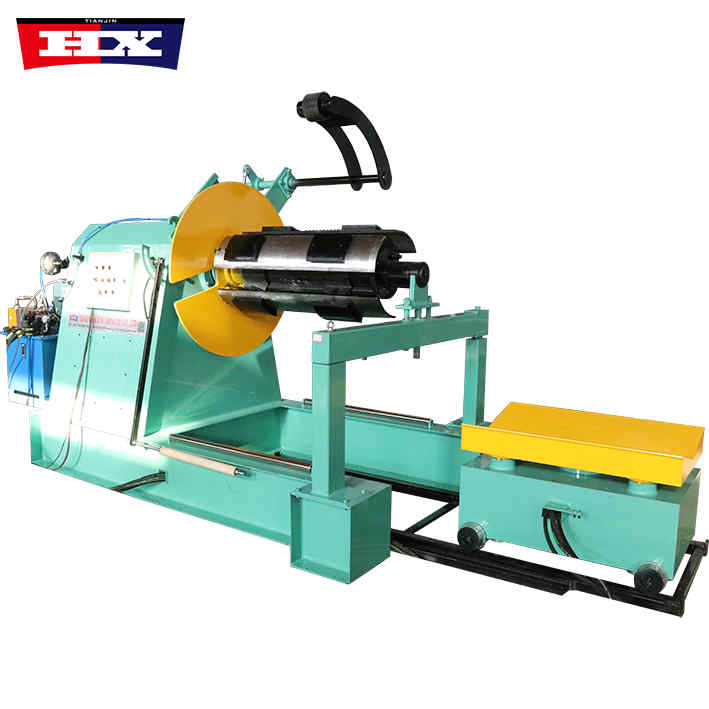

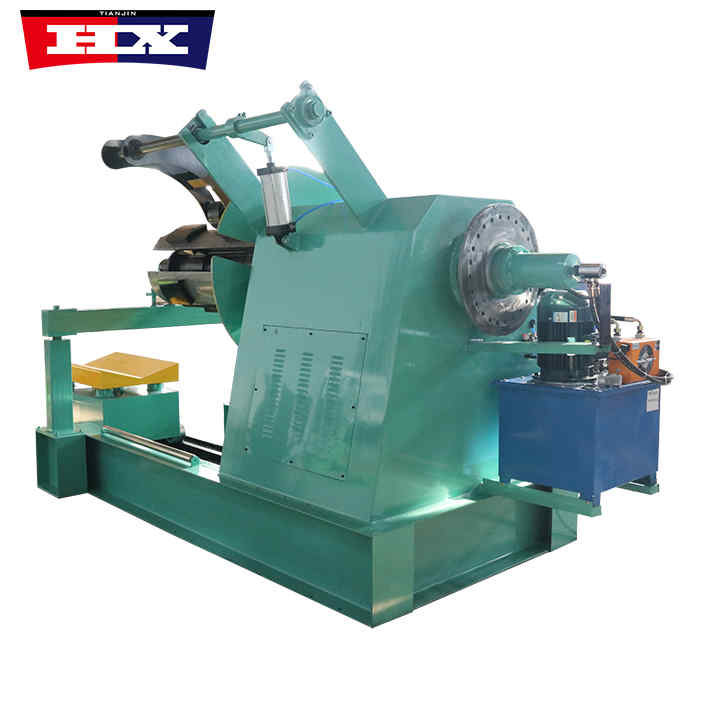

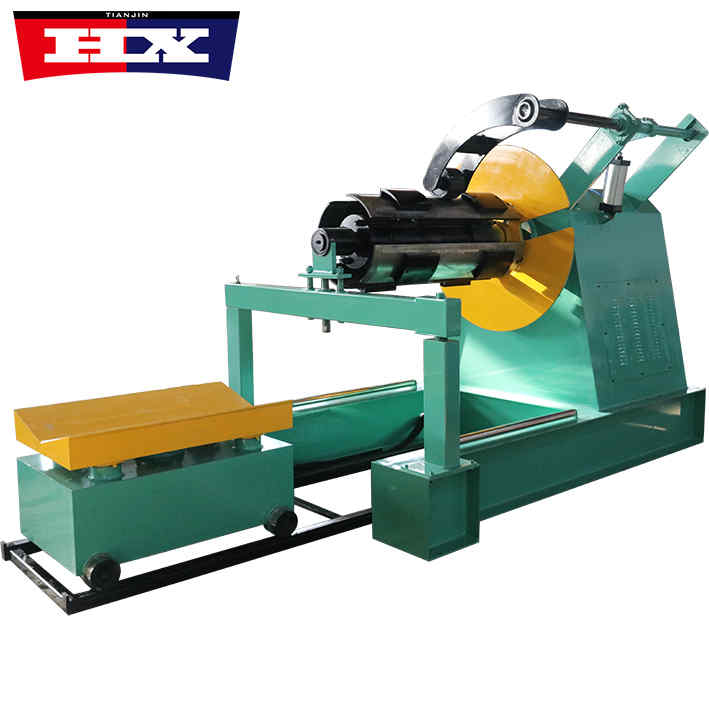

Hydraulic De Coiler
Hydraulic De Coiler
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time:20 working days
Shipping Time : 40 days
Port : Tianjin
Hydraulic De Coiler
De Coiler

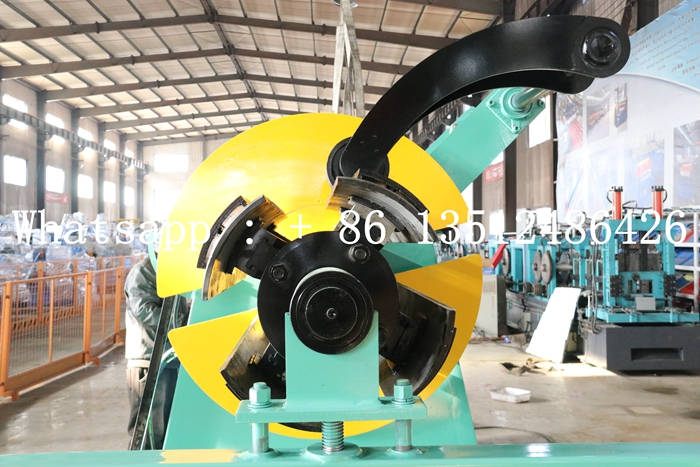

Product structure: It mainly includes coil support device, unwinding head, flattening device, clamping device, feeding device and control system. Among them, the coil support device is used to support the coil, the unwinding head is used to peel off the coil, the flattening device is used to flatten the coil, the clamping device is used to clamp the material, and the feeding device is used to send the material to the subsequent processing equipment, and the control system is used to control the operation of the entire equipment.
Working principle:
The de coiler usually consists of two upper and lower rollers and two side plates. The coil is placed between the upper and lower rollers. Driven by the rollers, the coil is brought to the cutting position. At the same time, the role of the side plates is to maintain the stability of the coil.
When the de coiler is working, a control system will control the cutting length and speed of the coil. Different cutters are required for cutting different coils to ensure the best shearing effect.
Specification
No. |
Number |
Hydraulic Decoiler |
| 1. |

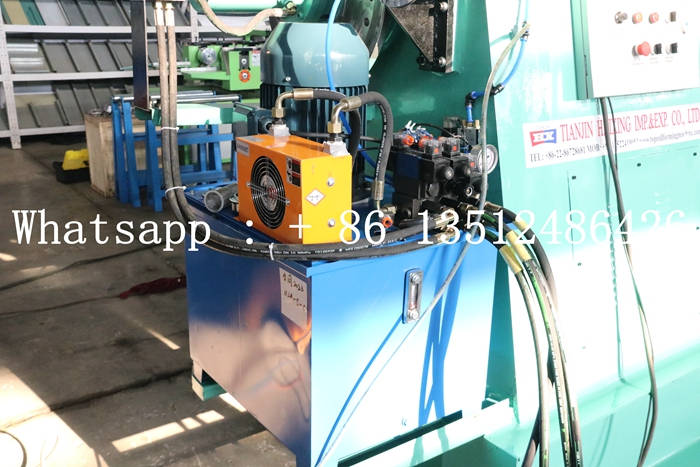

Hydraulic pump station |
4kw (Electromagnetic valves) |
| 2. | Main motor | 5.5kw |
| 3. | Main frame | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Main shaft | 203*55 seamless pipe |
| 7. | Coil inner diameter | 470-530±20mm |
| 8. | Cylinder | 1 Diameter 125mm |
| 9. |
Electrical control system |
Delta Inverter(7.5kw) Domestic Electronic Control System |
| 10. | Feeding width | 0-1500mm |
| 11. | Weight capacity | 5 tons |

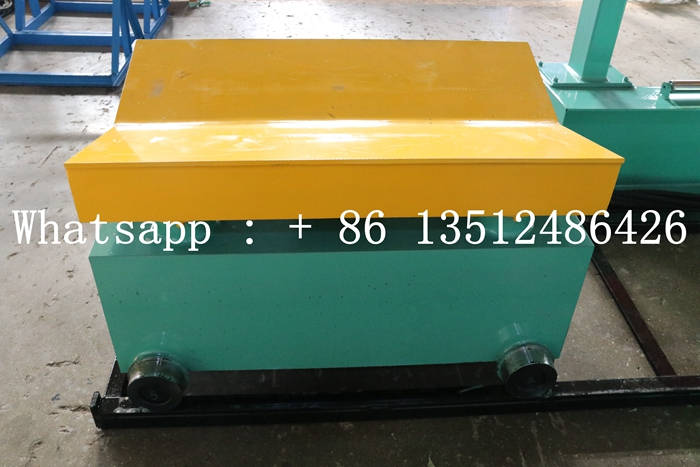

| 12. | Trolley |
Width : 1.1m Length : 0.9m |
| 13. | Trolley track |
Width : 1.15m Length : 2.5m |
| 14. | Trolley route |
High : 300mm Length : 2.5m |
| 15. | Trolley wight | 0.8 tons |
Advantages
1. The de coiler has a simple structure, easy maintenance and stable operation;
2. The de coiler can be applied to coils of different materials and thicknesses, with good flattening effect;
3. The de coiler has the characteristics of high precision and high efficiency, which can improve production efficiency.
Application
1. Metal processing: Uncoilers are often used for shearing and coiling metal sheets and are widely used in automobile, construction, shipbuilding and other industries.
2. Paper industry: The decoiler can be used for cutting and processing paper, and is used in printing, packaging and other industries.
3. Fabric processing: The decoiler can also be used for cutting and trimming fabrics, canvas and other materials.
