10 Tons Hydraulic Decoiler
Product ID : HX
Product Attributes :
10 Tons Hydraulic Decoiler
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time:20 working days
Shipping Time : 40 days
Port : Tianjin
Product Description

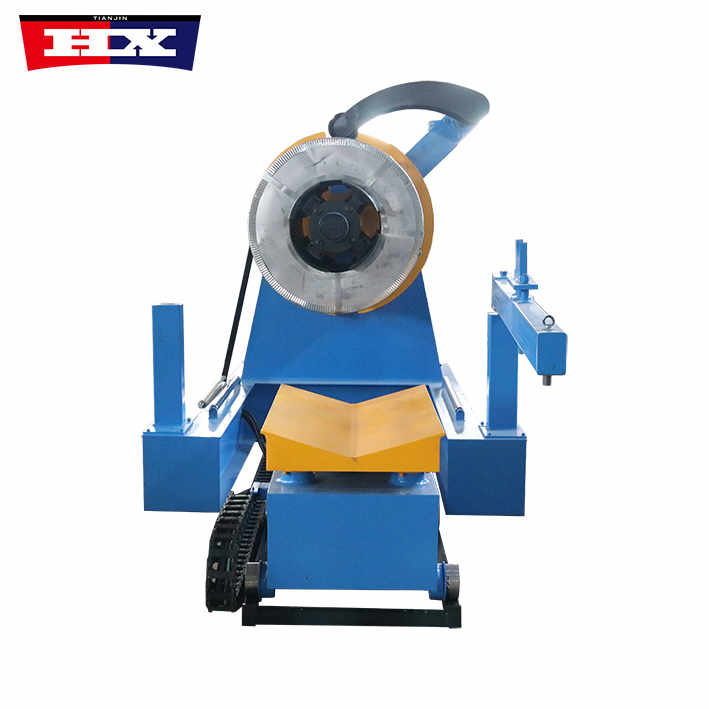

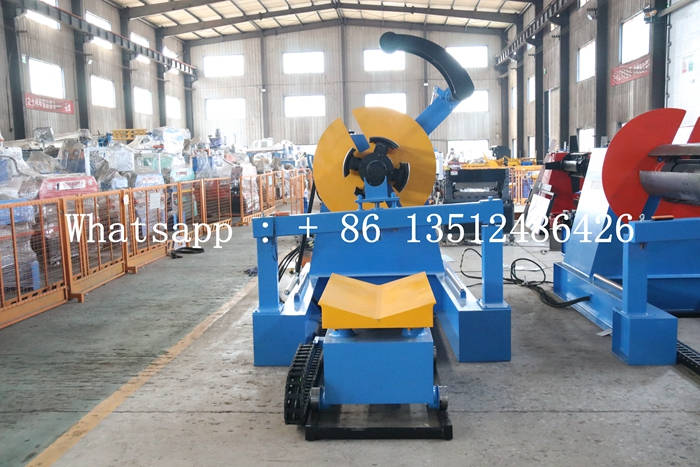

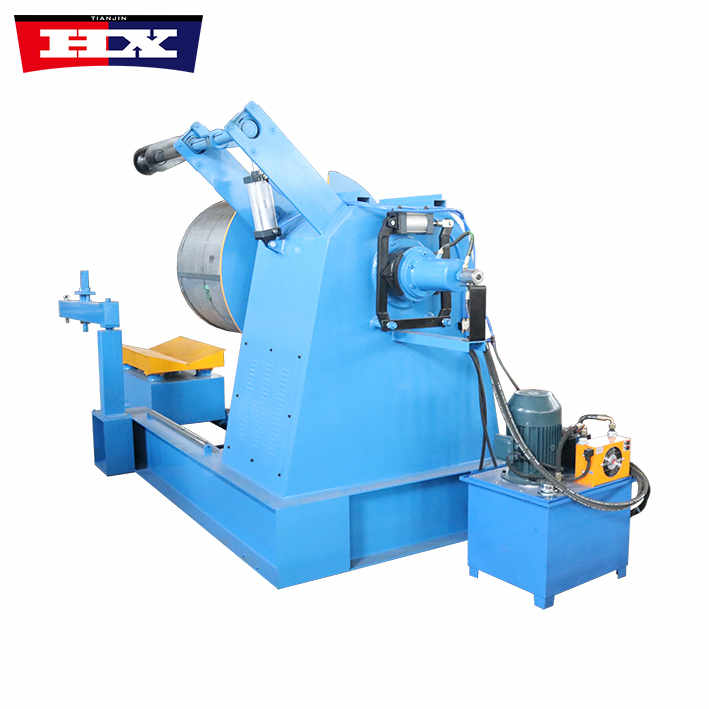

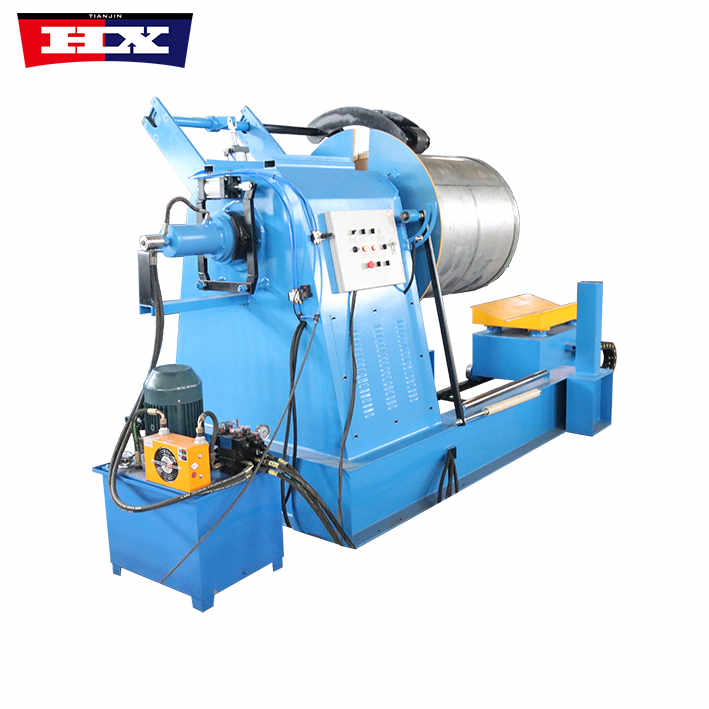

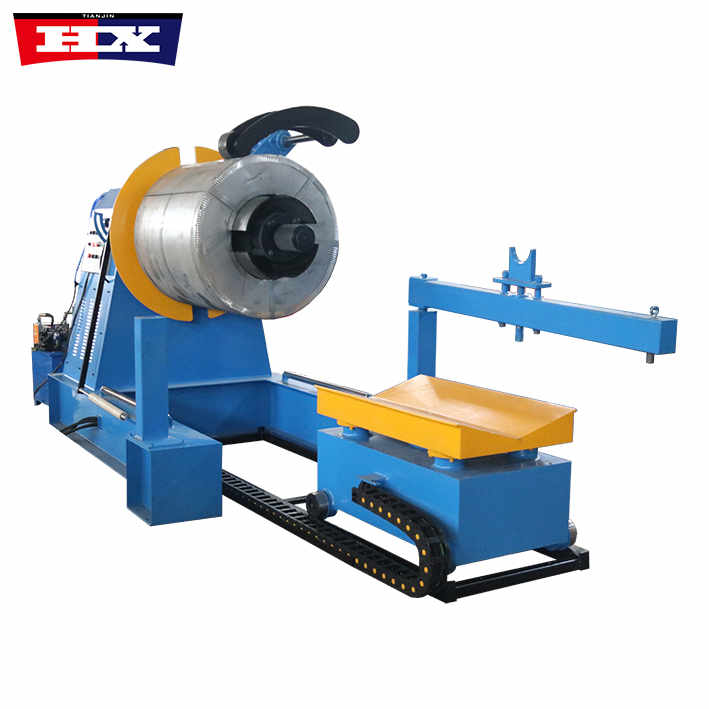

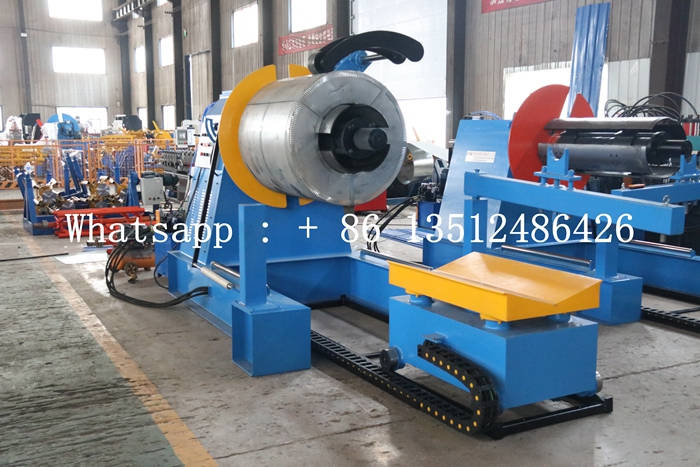

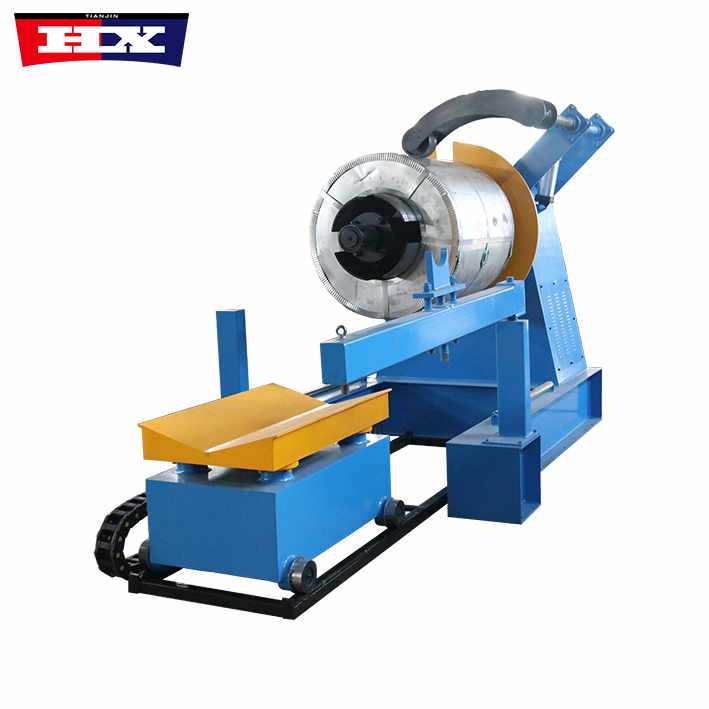

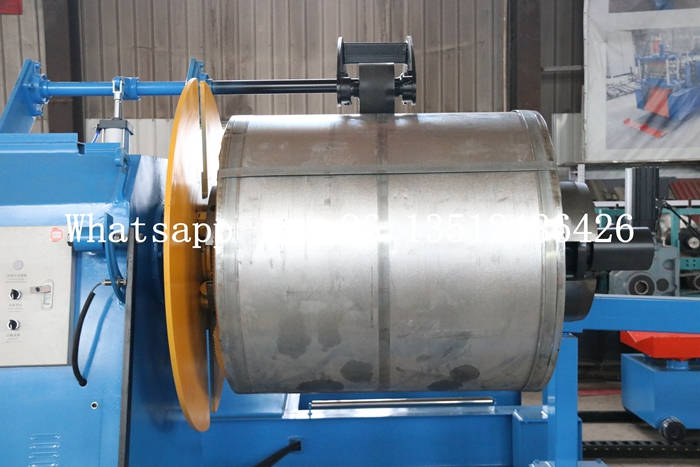

10 Tons Hydraulic Decoiler
Specification
No. |
Number |
10 Tons Hydraulic Decoiler |
| 1. |
Hydraulic pump station |
4kw (Electromagnetic valves) |
| 2. | Main motor | 5.5kw |
| 3. | Main frame | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Main shaft | 203*55 seamless pipe |
| 7. | Coil inner diameter | 470-530±20mm |
| 8. | Cylinder | 1 Diameter 125mm |
| 9. |

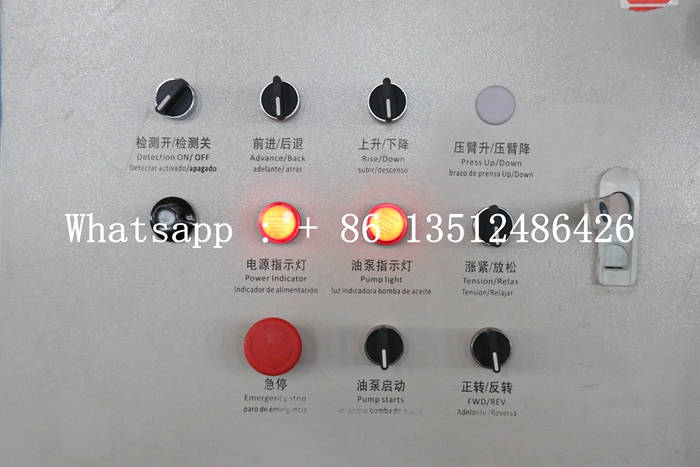

Electrical control system |
Delta Inverter(7.5kw) Domestic Electronic Control System |
| 10. | Feeding width | 0-1500mm |
| 11. | Weight capacity | 10 tons |

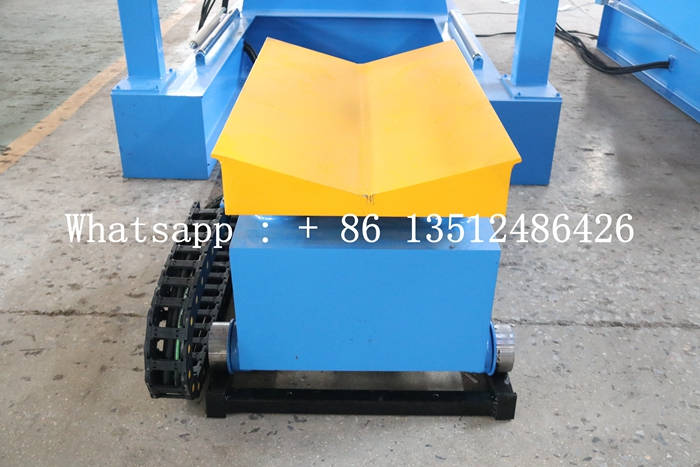

| 12. | Trolley |
Width : 1.1m Length : 0.9m |
| 13. | Trolley track |
Width : 1.15m Length : 2.5m |
| 14. | Trolley route |
High : 300mm Length : 2.5m |
| 15. | Trolley wight | 0.8 tons |
