Trapezoidal Galvanized Sheet Making Machine
Trapezoidal Galvanized Sheet Making Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin

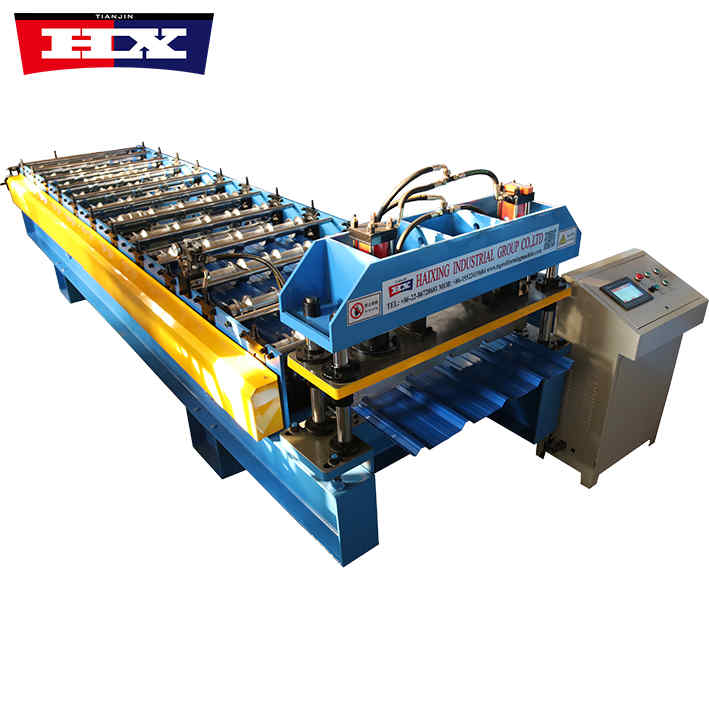

Trapezoidal Galvanized Sheet Making Machine

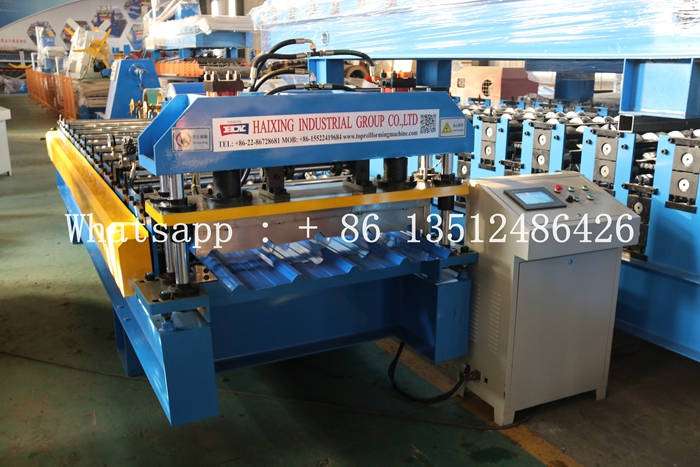

Trapezoidal Galvanized Sheet Making Machine

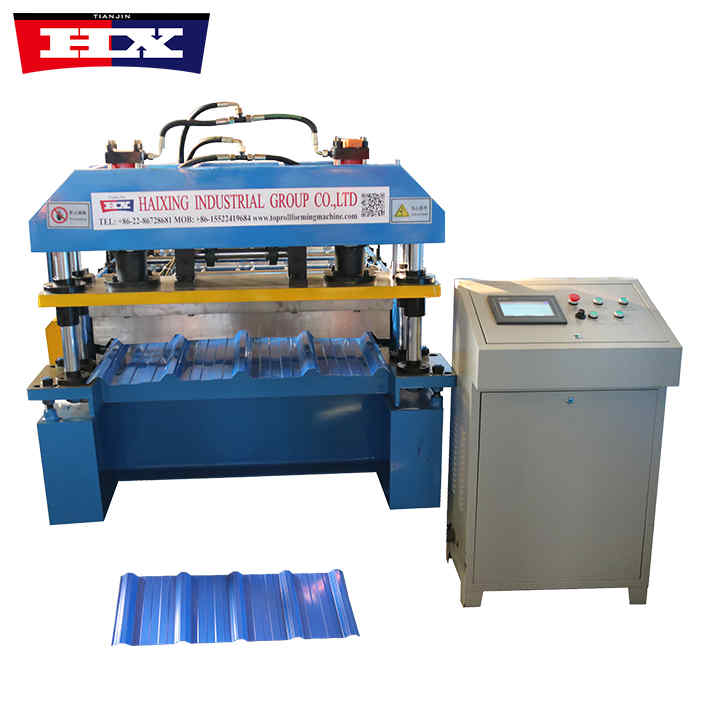

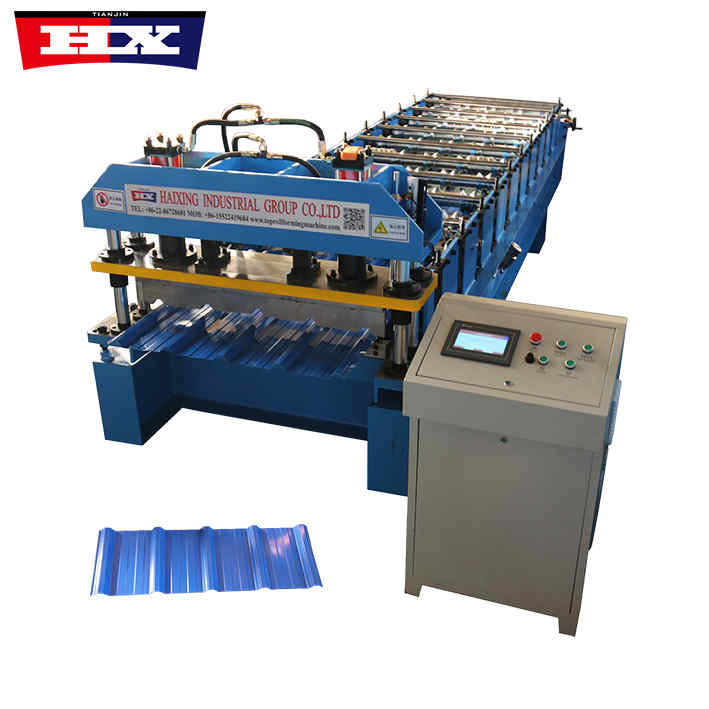

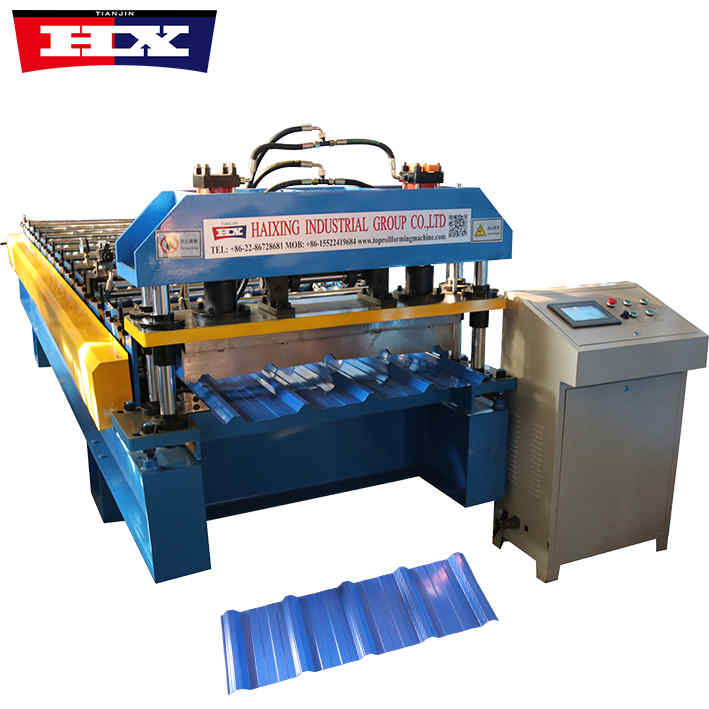

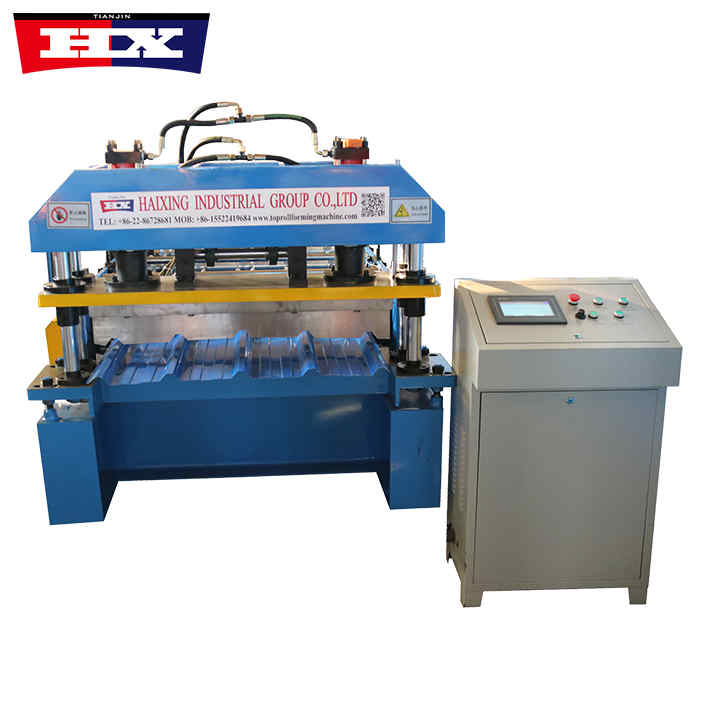

The trapezoidal galvanized sheet making machine is mainly composed of a host machine, a hydraulic system, an electrical control system, a feeding device and other parts.

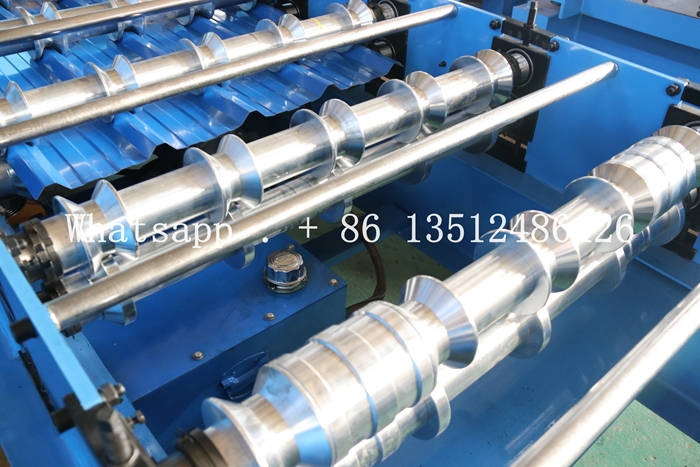

1. The main machine is the core part of the entire machine, including upper and lower molds, cylinders and other components; 2. The hydraulic system is the power source to achieve the pressing action;
3. The electrical control system is the key part to realize automatic control;
4. The feeding device is responsible for feeding the metal sheet into the pressing station.

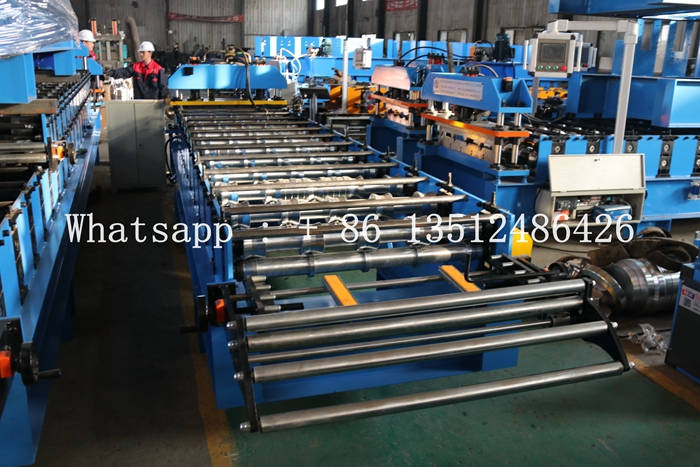

Trapezoidal Galvanized Sheet Making Machine
Specification
No. |
Number |
Trapezoidal Galvanized Sheet Making Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 11 |
| 19. | Size | 6000mm*1500mm*1600mm |
| 20. | Weight | 4000kg |
Application

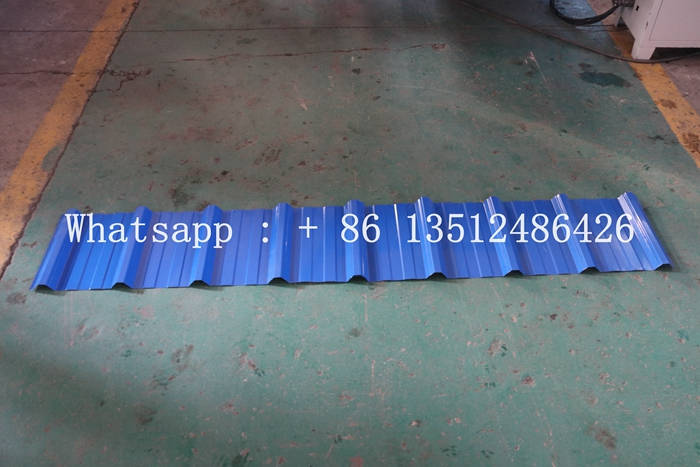

The metal plates that the trapezoidal galvanized sheet making machine can process include stainless steel plates, galvanized plates, aluminum plates, etc., which are widely used in building roofs, walls, elevator car panels, vehicle manufacturing and other fields. Due to its high efficiency and high precision, the trapezoidal galvanized sheet making machine has become one of the ideal equipment in the metal sheet forming industry.
Maintain & Care
In order to maintain the good performance and service life of the trapezoidal galvanized sheet making machine, regular maintenance is required. This includes cleaning dust and oil on the surface of the equipment, checking the oil level and quality of the fuel tank, and checking the operation of the hydraulic system and electrical control system, etc. At the same time, the equipment should be comprehensively inspected regularly to ensure its normal operation.
