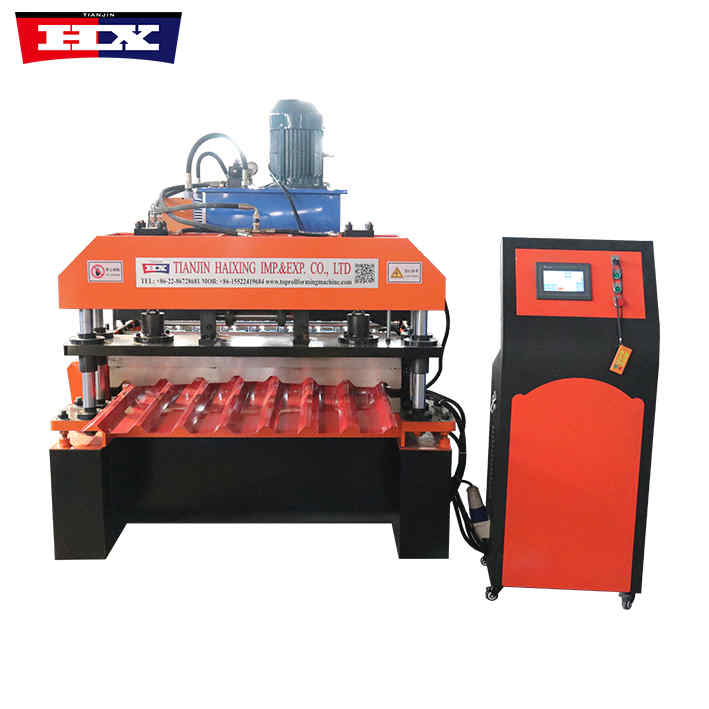

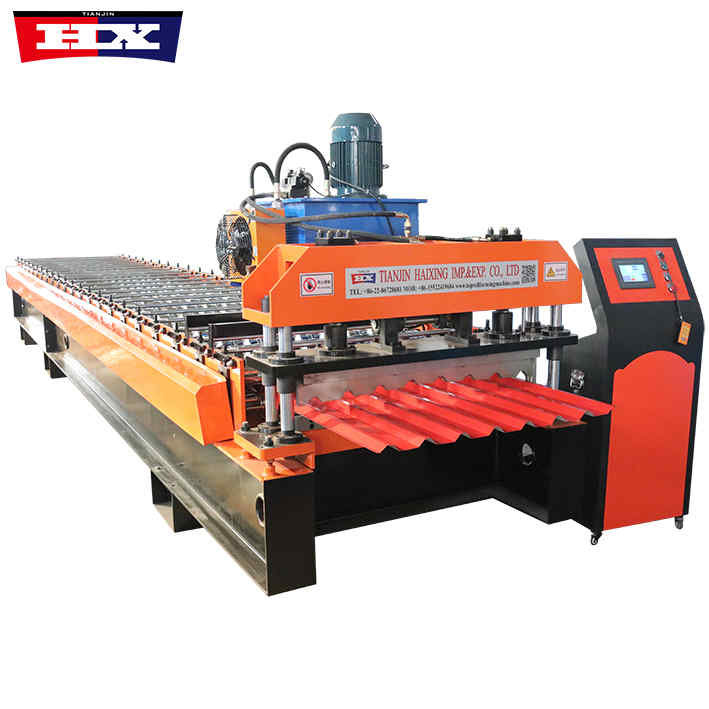

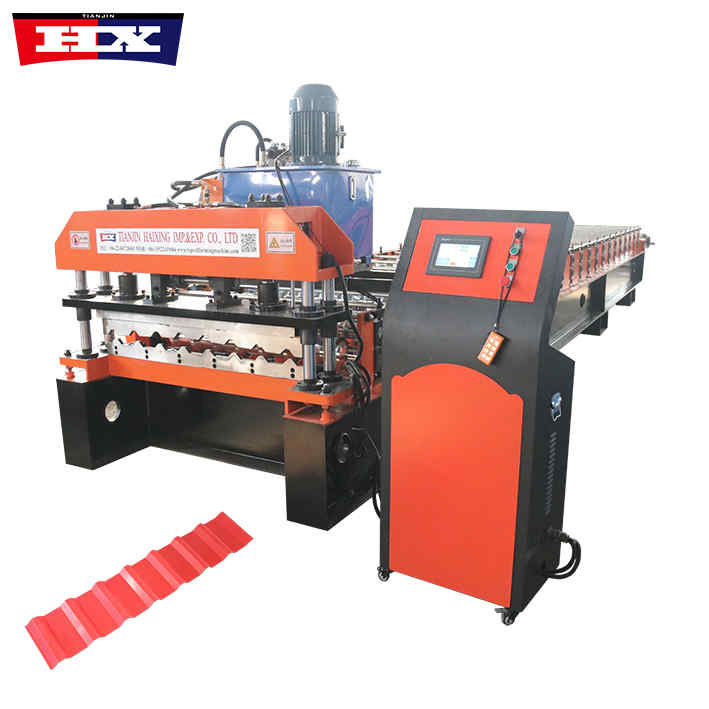

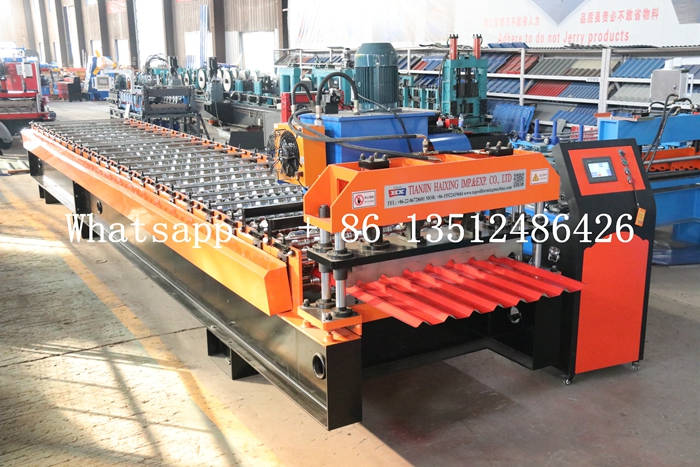

Metal Roof Panel Machine
Metal Roof Panel Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin
Metal Roof Panel Machine
Metal Roof Panel Machine

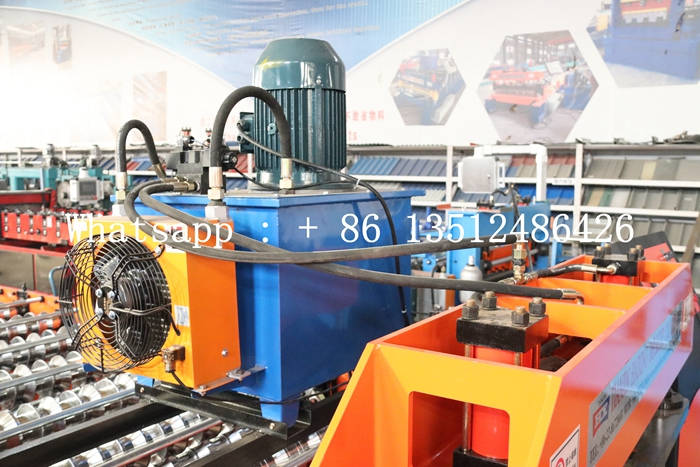

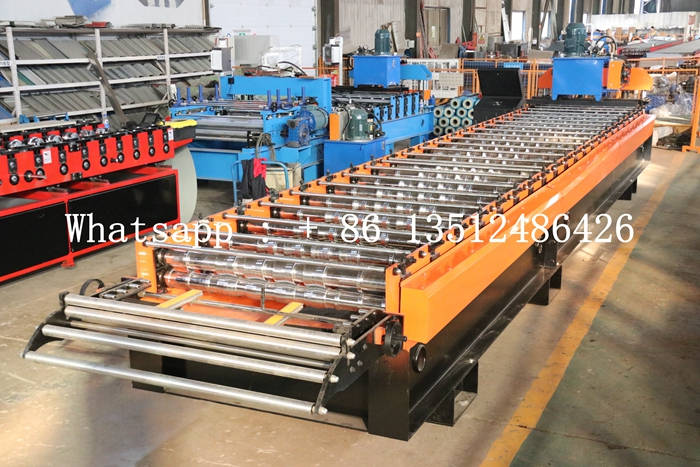

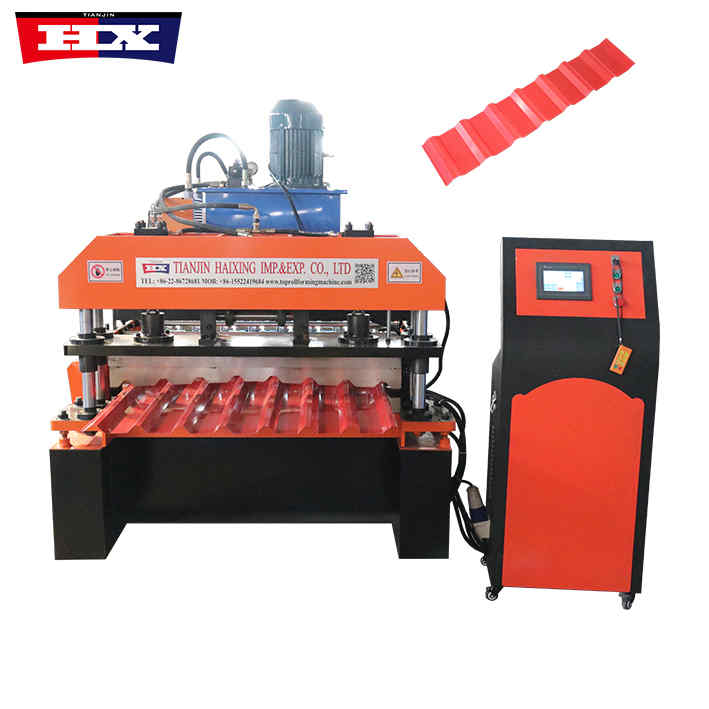

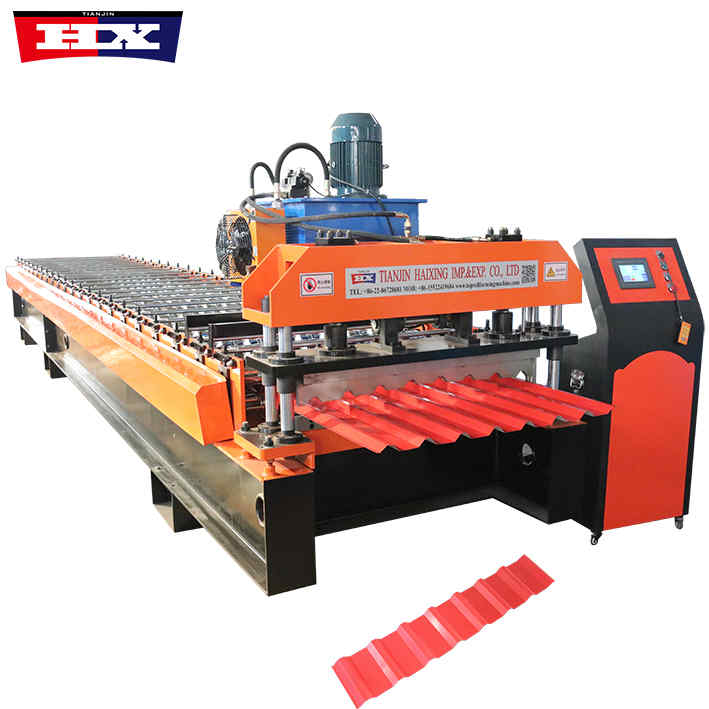

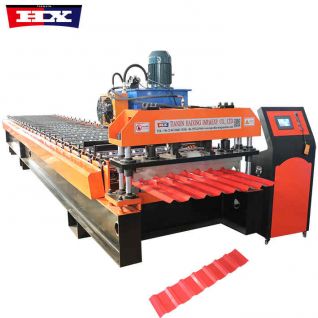

Metal roof panel machine is mainly composed of frame, transmission system, hydraulic system, electronic control system and other parts. The rack is the main body of the entire equipment and is welded with high-strength steel to ensure the stability and durability of the equipment. The transmission system transmits the power of the motor through the reducer and chain, allowing the pressing roller to rotate and advance and retreat. The hydraulic system is responsible for providing the pressure and speed required during the pressing process to ensure stable quality of the pressed corrugated tiles. The pressing system includes upper pressing rollers, lower pressing rollers and molds. Through the synergy of the upper and lower pressing rollers, the sheet is pressed into corrugated tiles of the required shape. The electronic control system is responsible for controlling the operation of the entire equipment, including the start, stop, speed regulation of the motor, etc.
Metal Roof Panel Machine
Specification
No. |
Number |
Metal Roof Panel Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 22 |
| 19. | Size | 10500mm*1500mm*1600mm |
| 20. | Weight | 6000kg |
Features
1. Efficient and stable: The metal roof panel machine adopts advanced transmission system and hydraulic system to ensure stable and efficient operation of the equipment. During the pressing process, the synergistic effect of the upper and lower pressing rollers allows the plate to be pressed in a short time, greatly improving production efficiency.
2. Easy to operate: The electronic control system of the equipment adopts humanized design and is easy to operate. Workers can start, stop, speed adjust and other operations of the equipment simply by pressing the buttons on the control panel.

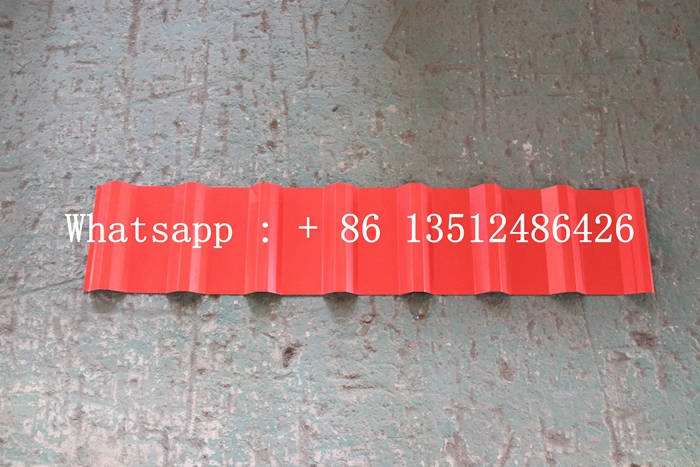

3. Wide scope of application: The metal roof panel machine is suitable for producing corrugated tiles and can meet the needs of different construction projects. At the same time, the equipment also has high flexibility and can adjust the spacing and angle of the pressing rollers according to production needs to adapt to the pressing of plates of different specifications.
4. Easy maintenance: The equipment has a reasonable structural design and is easy to maintain and maintain. The key components of the transmission system and hydraulic system are made of high-quality materials, which are wear-resistant and durable, reducing maintenance costs.
