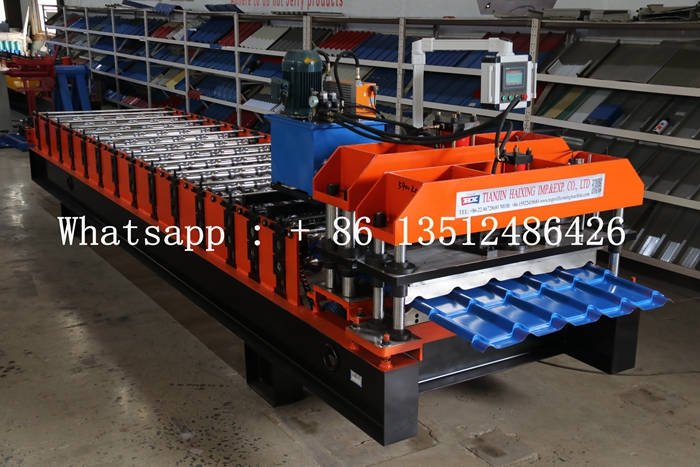

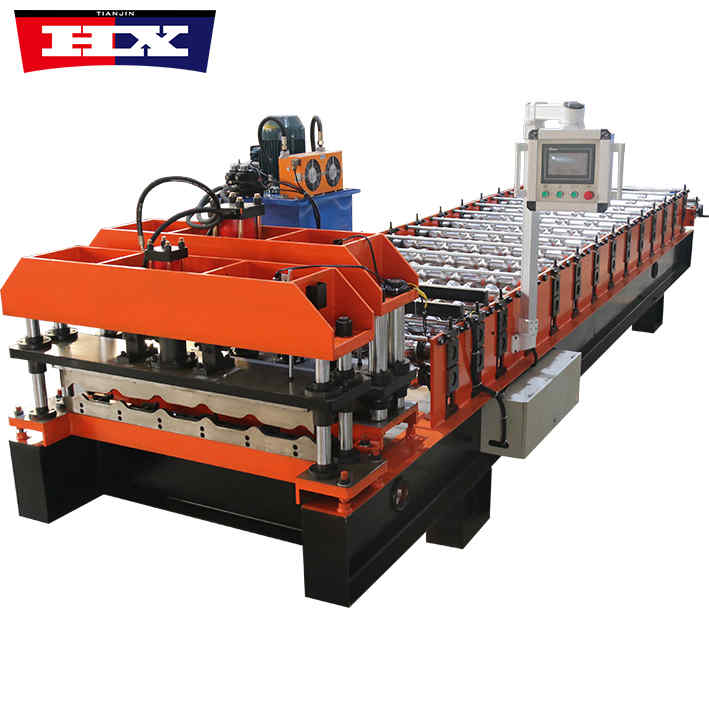

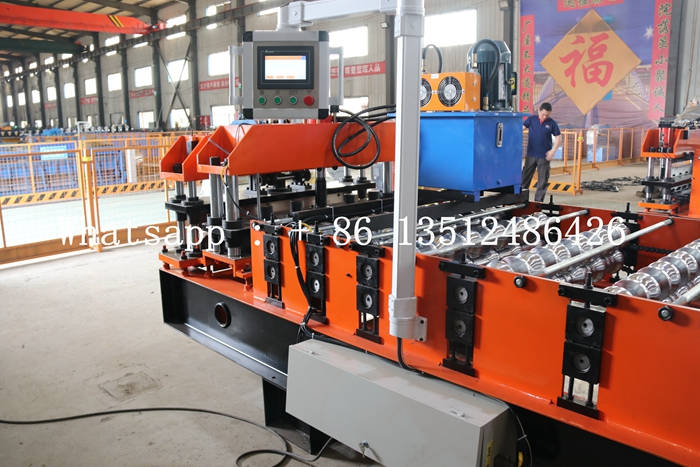

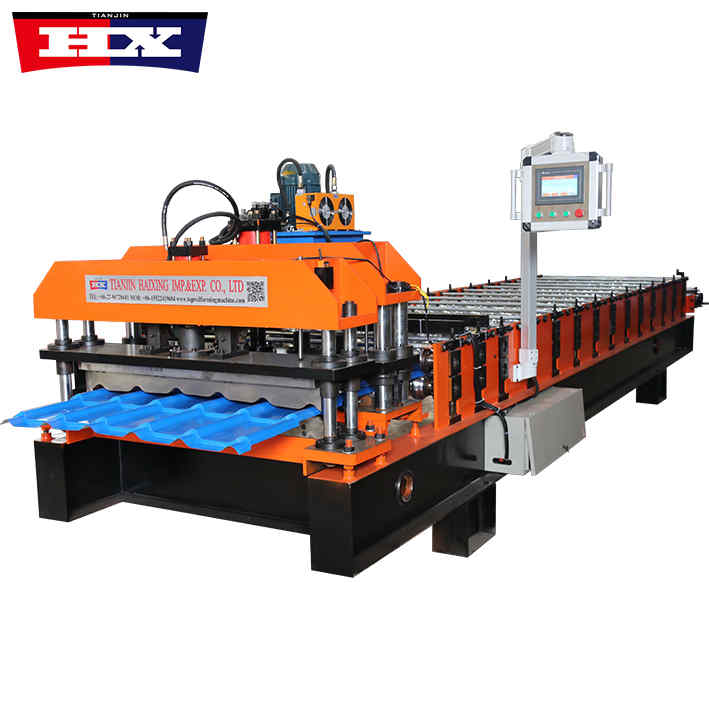

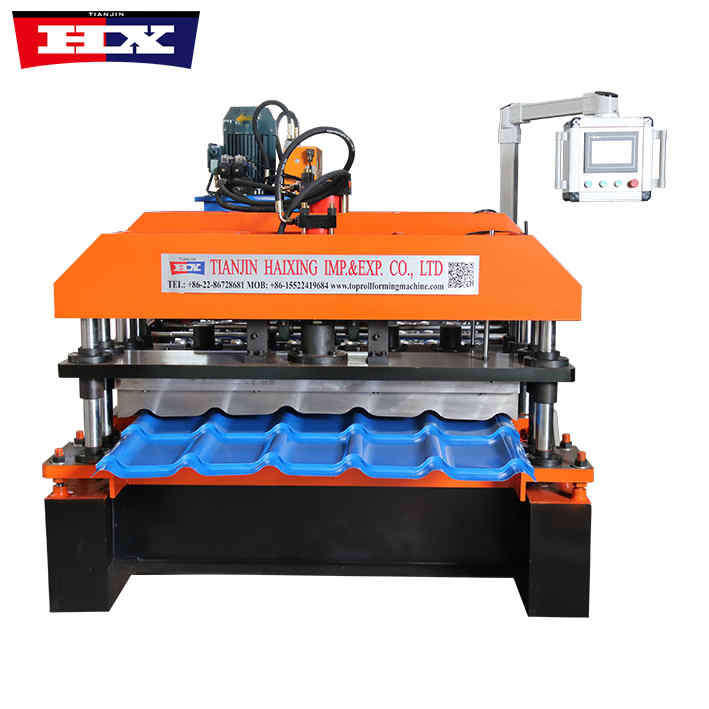

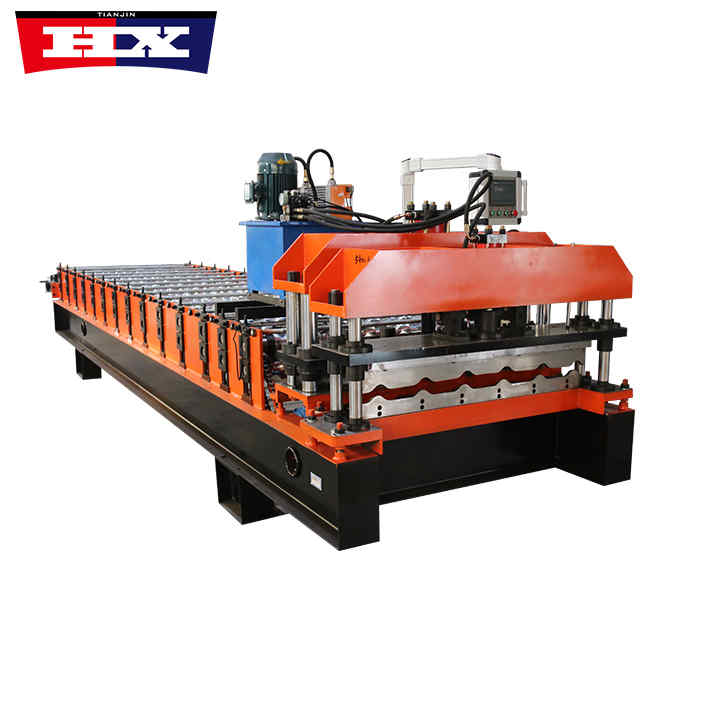

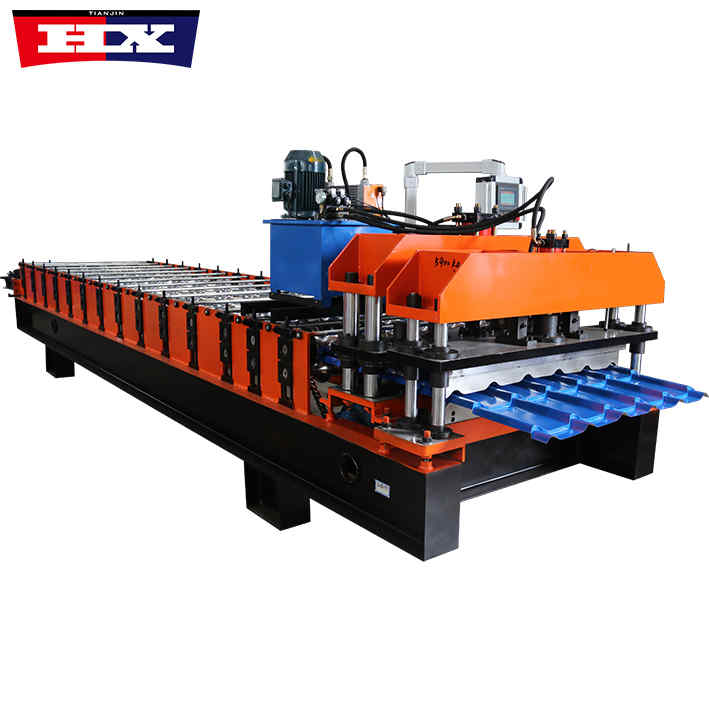

Glazed Roofing Tile Roll Forming Machine
Glazed Roofing Tile Roll Forming Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin
Glazed Roofing Tile Roll Forming Machine
Glazed Roofing Tile Roll Forming Machine
Specification
No. |
Number |
Glazed Roofing Tile Roll Forming Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |

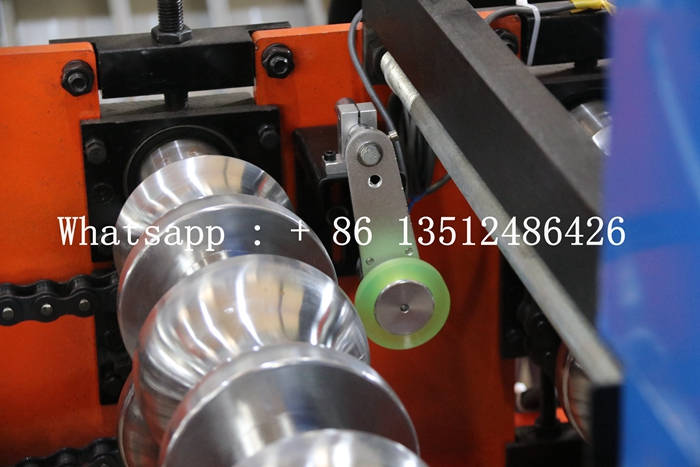

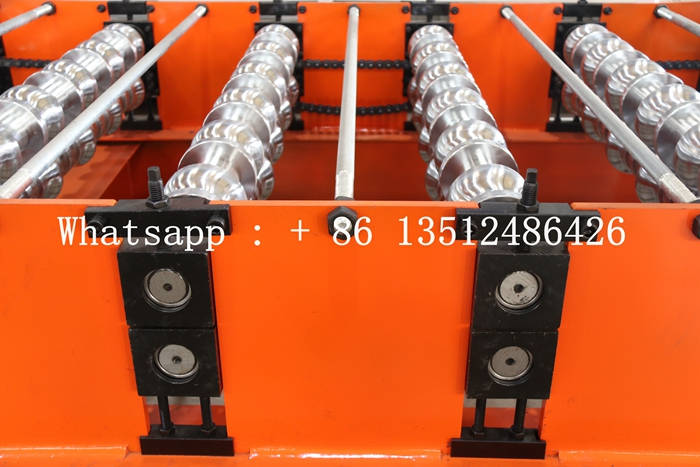

| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 14 |
| 19. | Size | 7000mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
Operation
1. Appoint a dedicated person to operate. Operators must pass training and assessment before they can operate the equipment.
2. Operators must understand the working performance and safe use methods of the equipment. Pay attention to care and maintenance in daily use to keep the equipment in good condition for a long time and extend the service life of the equipment.
3. Conduct a comprehensive inspection of the equipment and add oil as required to ensure that the equipment is well lubricated and operating normally.
4. Test the machine before work to check whether each machine can operate normally. It is best to wipe the molding roller of the main machine with engine oil. 5. During operation, workers should wear gloves to avoid scratching their fingers.
6. Draw a 1.5-meter-wide working area line on each side of the unit and prohibit other non-staff members from entering, so as not to affect normal work, which could lead to a crisis.
7. Do not roll sheets that are overly thick or have defects such as hard scars, slag inclusions and welded edges to avoid damaging the roller ring.
8. If there are any abnormal noises during operation, you should stop the vehicle immediately for inspection and wait until everything is normal before driving.
9. The host should stop the motor when adjusting to avoid accidents. When adjusting the gap between the upper and lower rollers, use a standard thickness gauge. Do not use knives, steel plates or other rough surfaces as substitutes.
10. After use, cut off the main power supply. It is best to apply engine oil to the forming roller of the main machine and cover it with plastic film to prevent rust or other debris from falling in.
