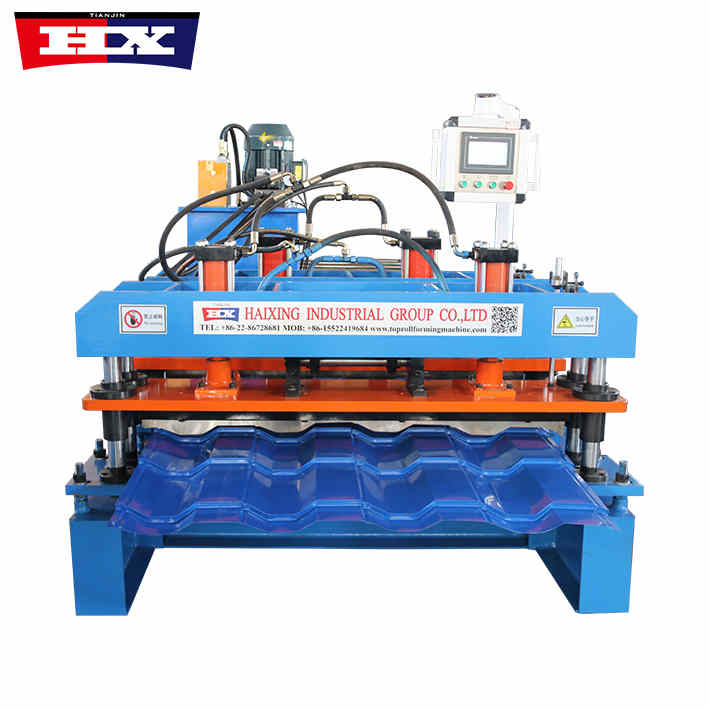

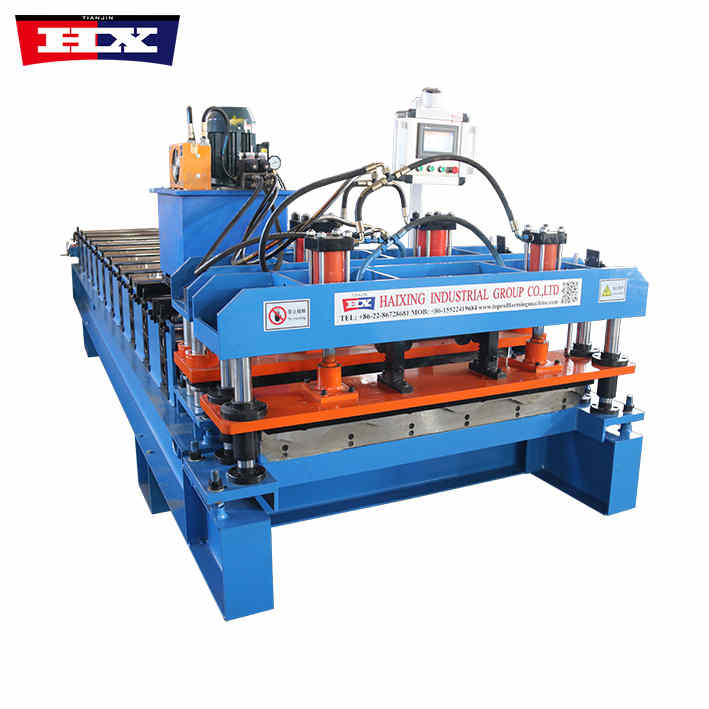

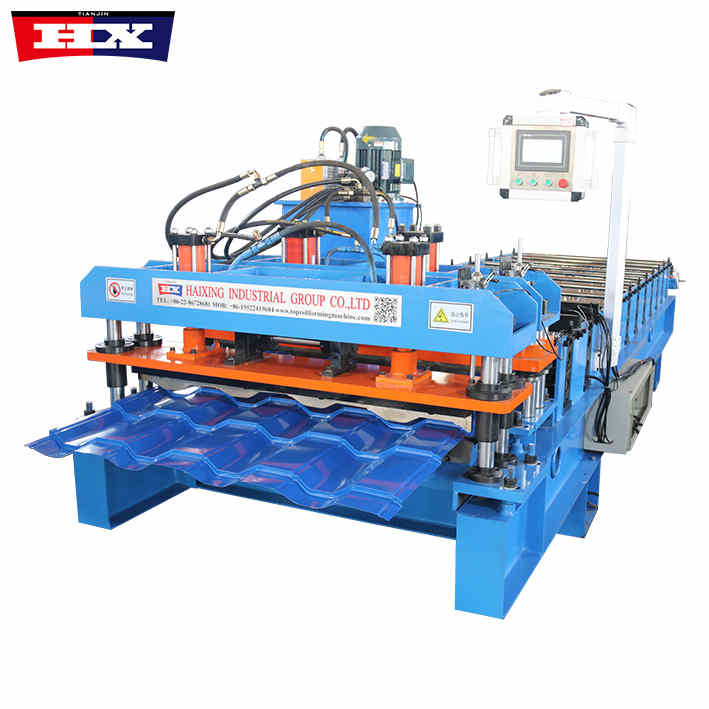

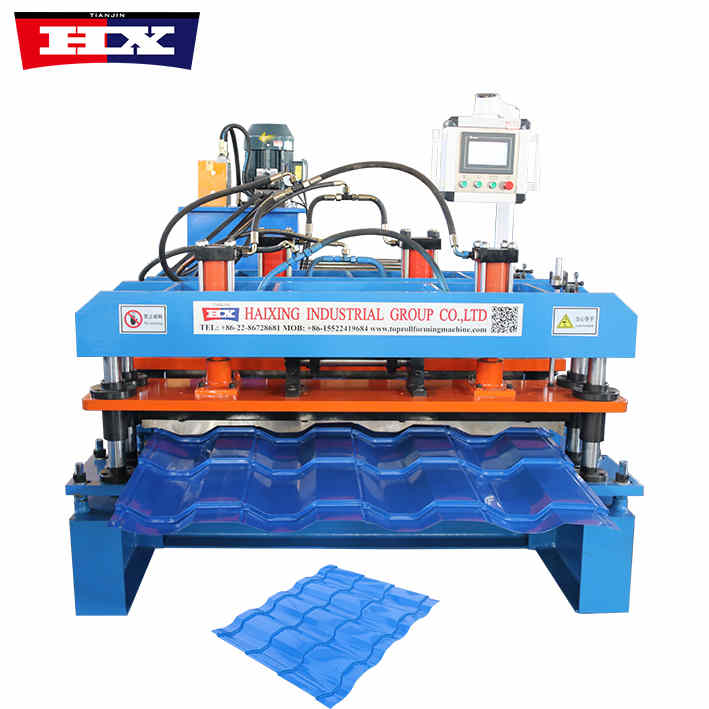

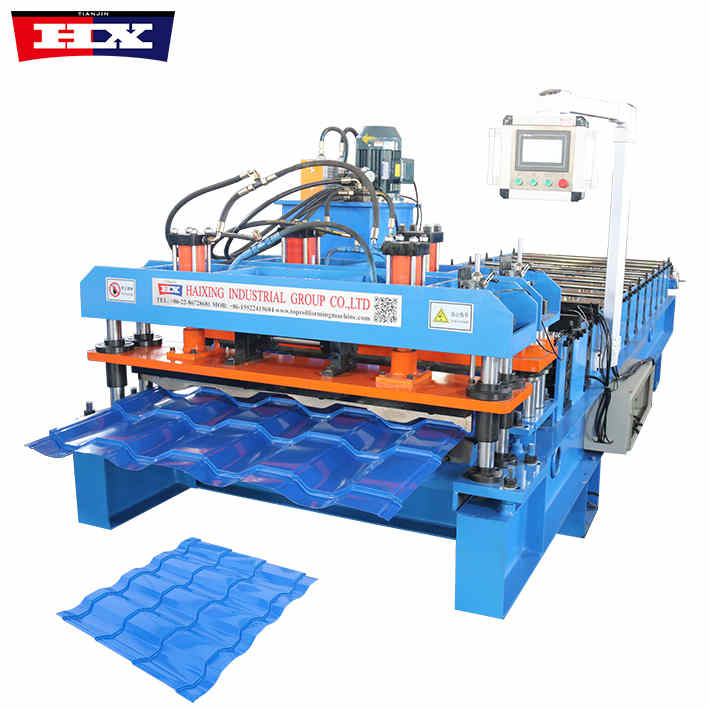

Roof Glazed Tile Forming Machine
Roof Glazed Tile Forming Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin
Roof Glazed Tile Forming Machine
Roof Glazed Tile Forming Machine
Roof Glazed Tile Forming Machine
Specification
No. |
Number |
Roof Glazed Tile Forming Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 11 |
| 19. | Size | 6000mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
Machine Advantages
1. High-efficiency production: greatly improves production efficiency and reduces production time.
2. Quality assurance: Advanced technology and craftsmanship ensure the quality of the tiles, giving them good durability and stability.
3. Diversified choices: Tiles of various shapes and specifications can be produced to meet various architectural design needs.
4. Cost saving: High-efficiency production methods reduce costs and save materials and human resources for users.
5. Easy to operate: The design is user-friendly, the operation is simple and easy to understand, and no professional skills are required, which reduces the training cost of operators.
6. Strong adaptability: suitable for various roof types and building structures, with high versatility.
7. Safe and reliable: Good safety performance ensures the safety of operators and reduces the risk of accidents.
Application
1. Construction field: The roof glazed tile forming machine can be used to produce corrugated sheets of various shapes and specifications, such as roof panels, wall panels, etc., and is widely used in industrial plants, warehouses, cold storages, residential buildings and other construction fields.
2. Decorative field: The glazed sheets produced by the roof glazed tile forming machine have good decorative effects and can be used for indoor and outdoor walls, ceilings, partitions and other decorative projects to improve the beauty and practicality of the overall space.
3. Transportation field: The glazed sheets produced by the roof glazed tile forming machine can also be used in transportation facilities, such as highway guardrails, railway soundproof walls, etc., with good durability and stability.
4. Home appliance field: The roof glazed tile forming machine can also be used to produce shells and parts of home appliances, such as refrigerators, air conditioners, washing machines, etc., and has good anti-rust and anti-corrosion properties.
