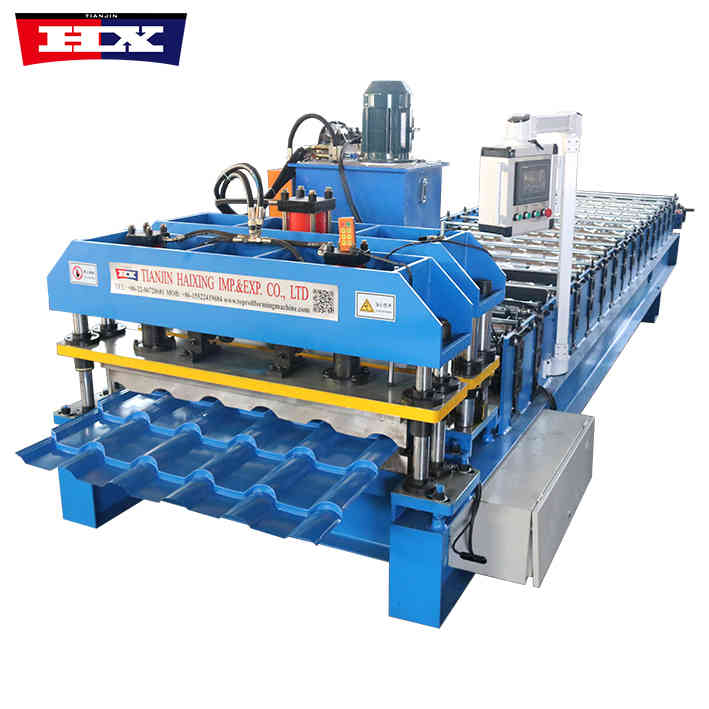

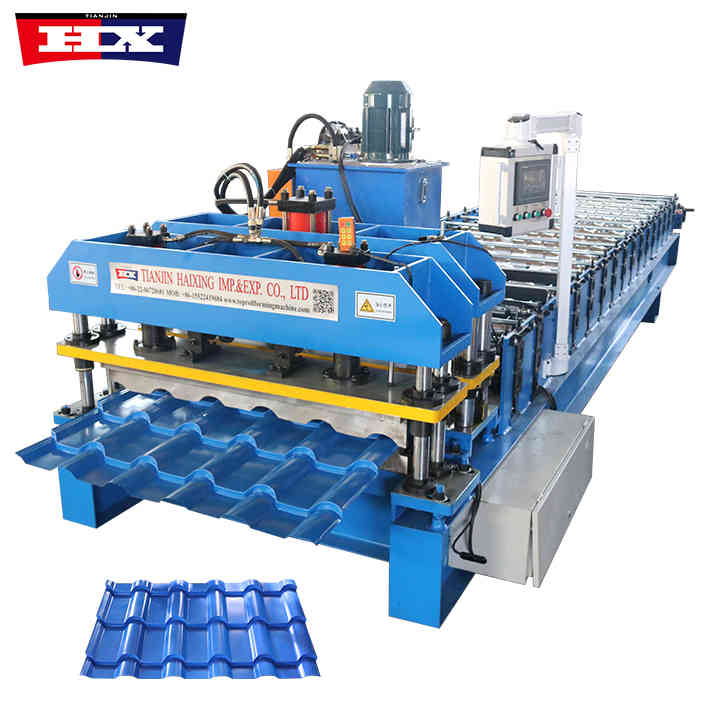

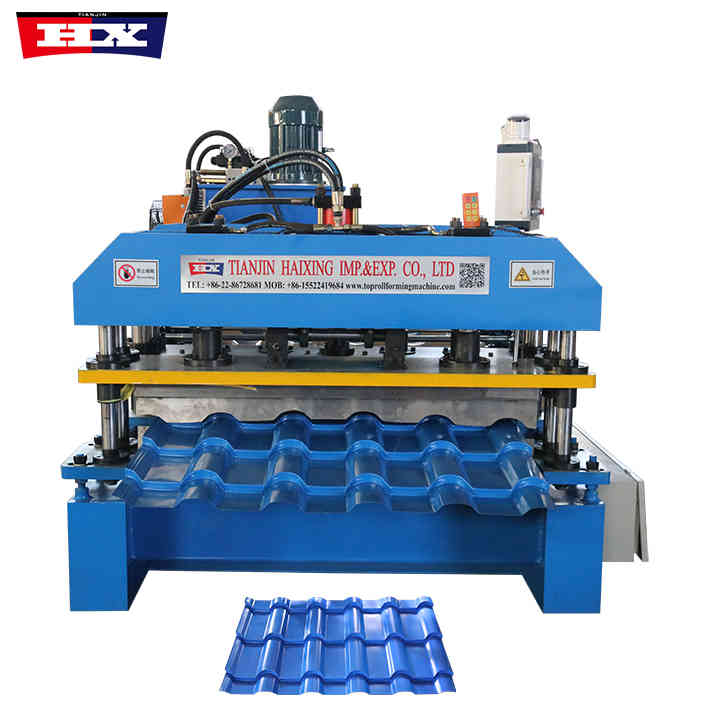

Color Steel Glazed Tile Roll Forming Machine
Color Steel Glazed Tile Roll Forming Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin

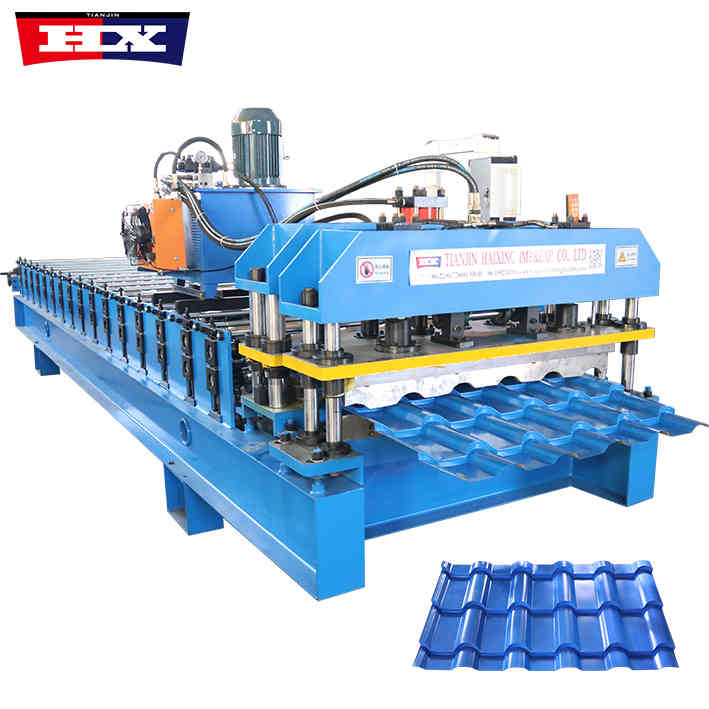

Color Steel Glazed Tile Roll Forming Machine

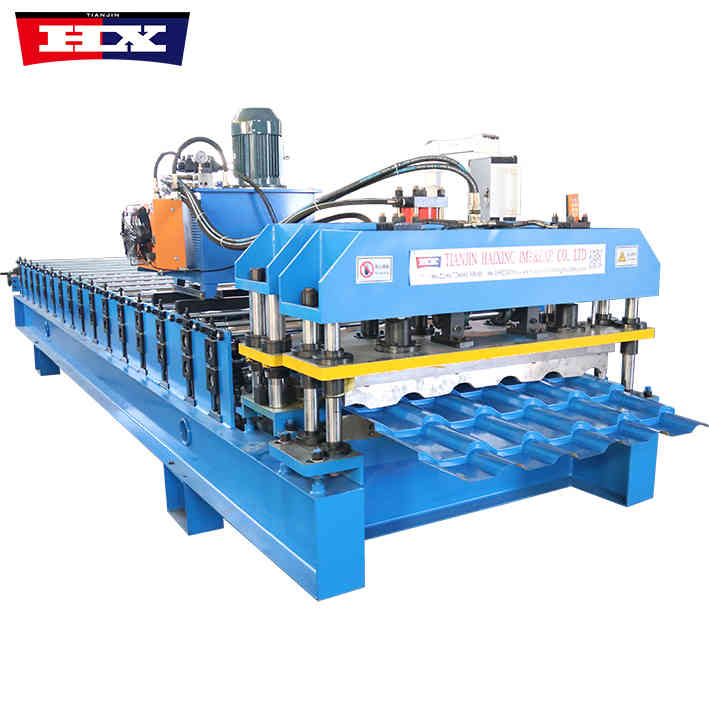

Color Steel Glazed Tile Roll Forming Machine
A color steel glazed tile roll forming machine is a machine that uses pressure to press raw materials into tiles. It consists of molds, electronic control systems, pneumatic components, hydraulic systems and frames. Made of high-quality materials, it has the characteristics of high efficiency, energy saving, environmental protection, and saving of raw materials.
Scope of application:

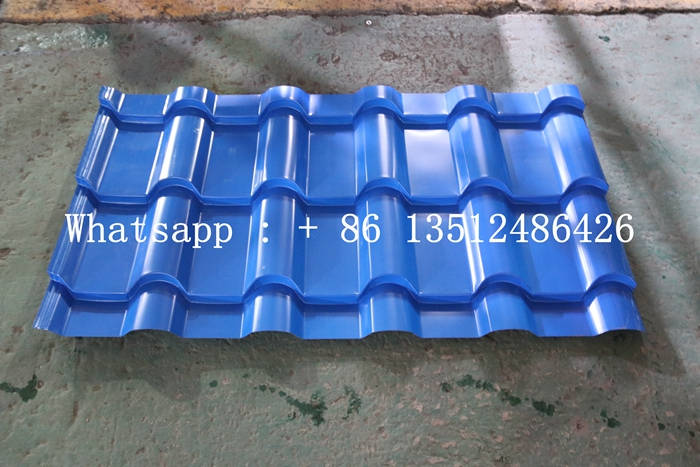

The color steel glazed tile roll forming machine is suitable for the production of various types and specifications of building materials. In particular, it can produce tiles of various specifications with bright color, comfortable feel, waterproof and pressure resistance. It is widely used in various construction projects, garden landscaping, municipal road greening and other fields.

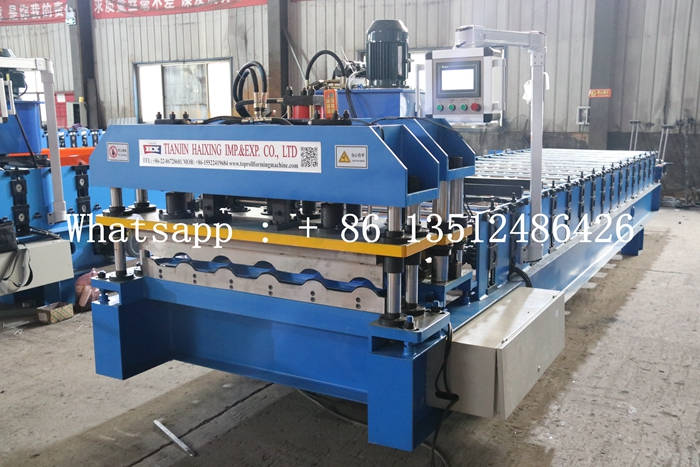

Color Steel Glazed Tile Roll Forming Machine
Specification
No. |
Number |
Color Steel Glazed Tile Roll Forming Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |

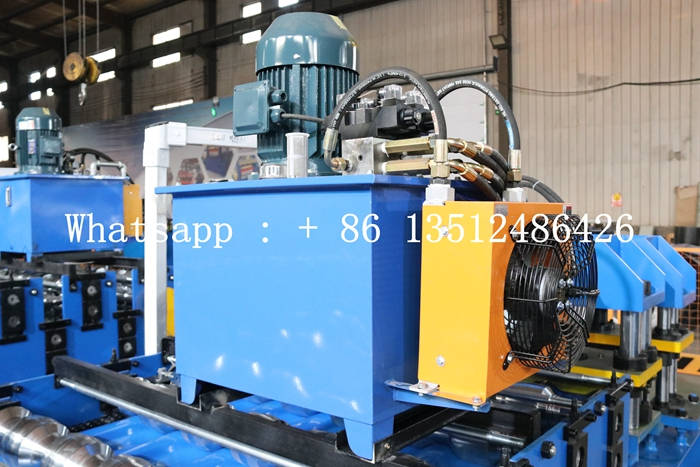

| 6. | Pump station | 4kw |

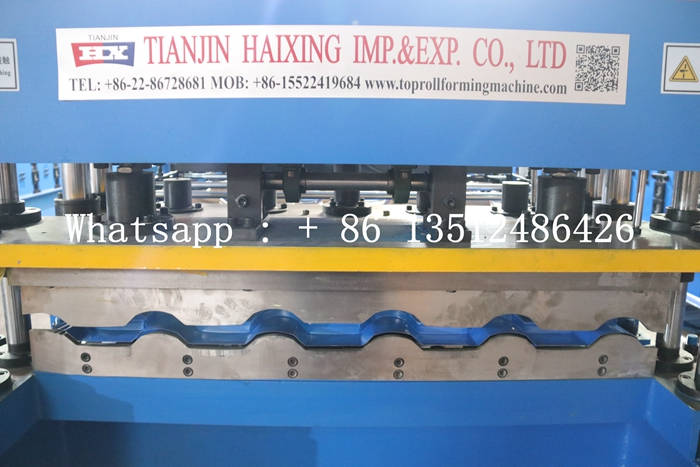

| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |

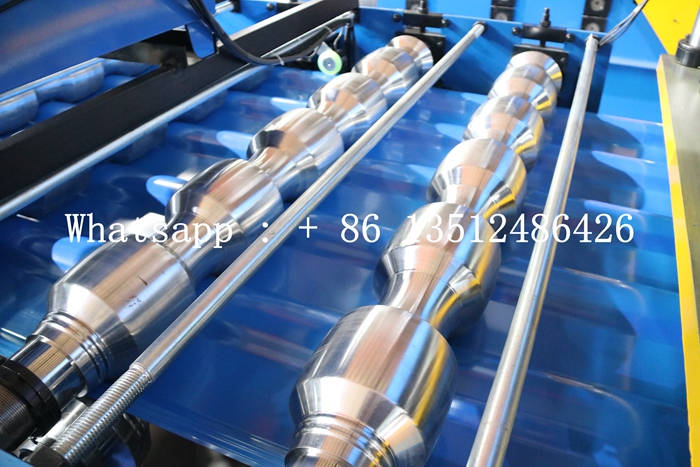

| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 16 |
| 19. | Size | 8000mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
Features
1. The color steel glazed tile roll forming machine has efficient production capacity. It uses advanced technology and design to quickly produce large quantities of tiles in a short period of time. This makes it one of the indispensable production equipment in the construction industry and manufacturing industry.
2. The color steel glazed tile roll forming machine has the characteristics of high precision and high stability. It produces high-quality tiles with each tile being the same size and shape. This makes it widely used in the construction and manufacturing fields, as it can meet a variety of different production needs.
3. The color steel glazed tile roll forming machine is also easy to operate and maintain. It adopts a simple and easy-to-use operation interface and control method, making operation and maintenance more convenient and faster. At the same time, it also has low energy consumption and operating costs, making it an economical production equipment.
