Glazed Roof Tile Machine
Glazed Roof Tile Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin
Glazed Roof Tile Machine
Glazed Roof Tile Machine

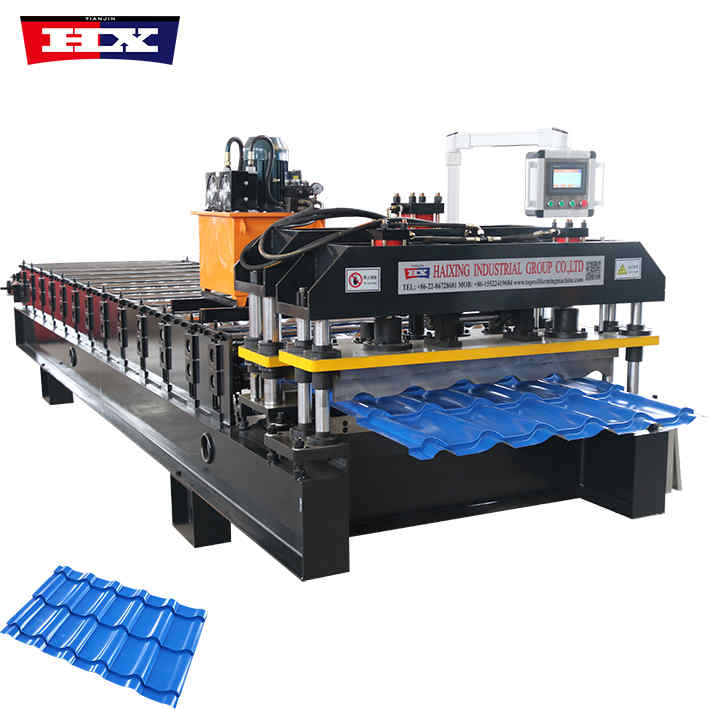

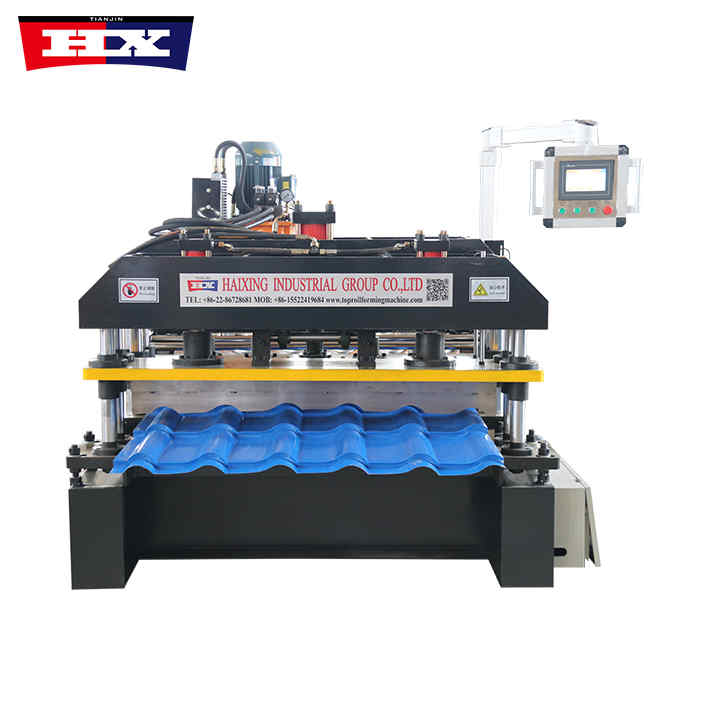

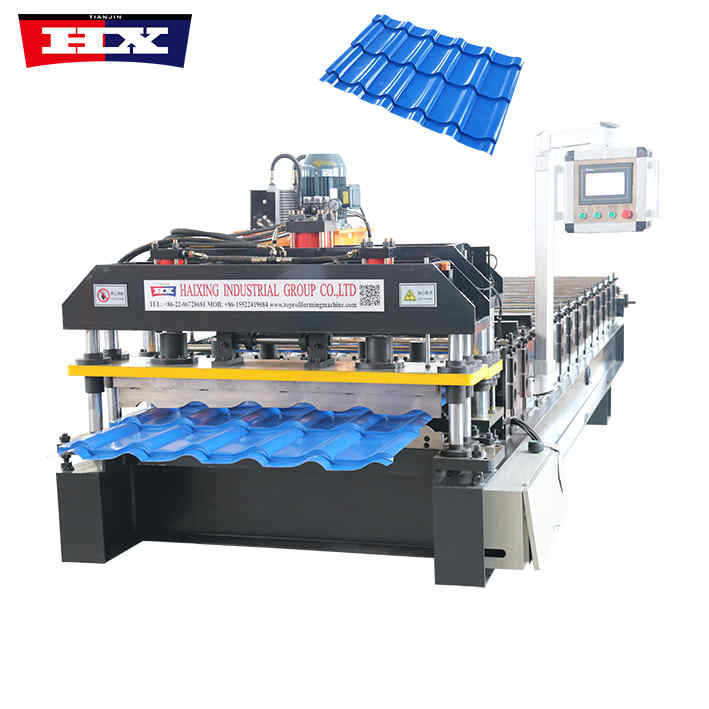

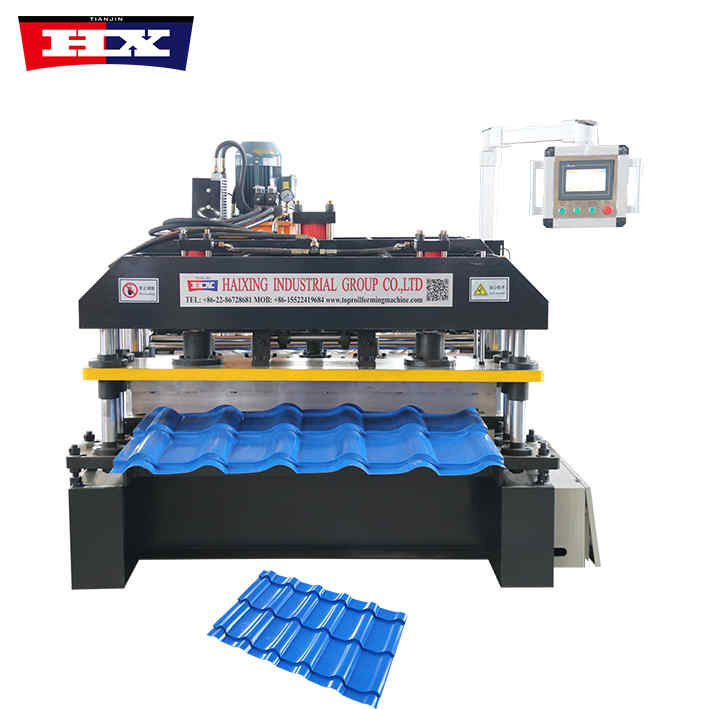

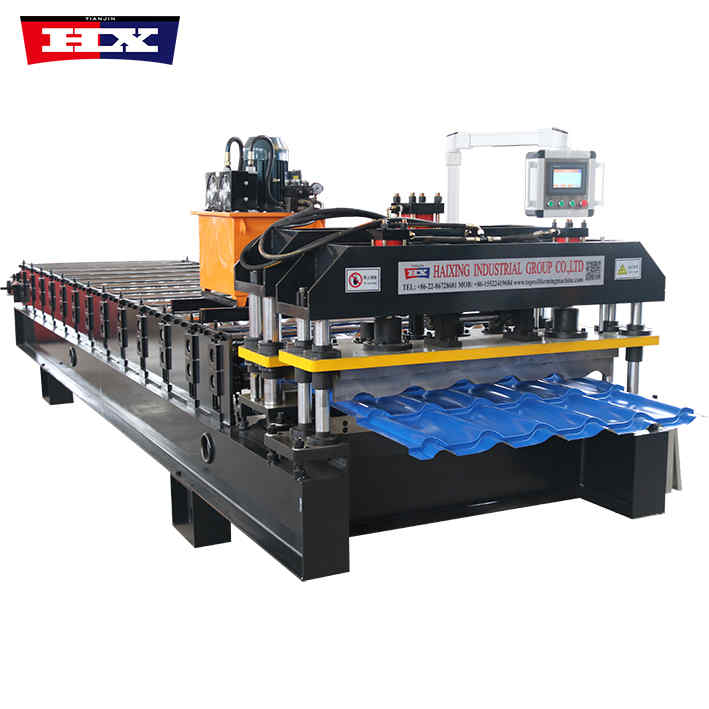

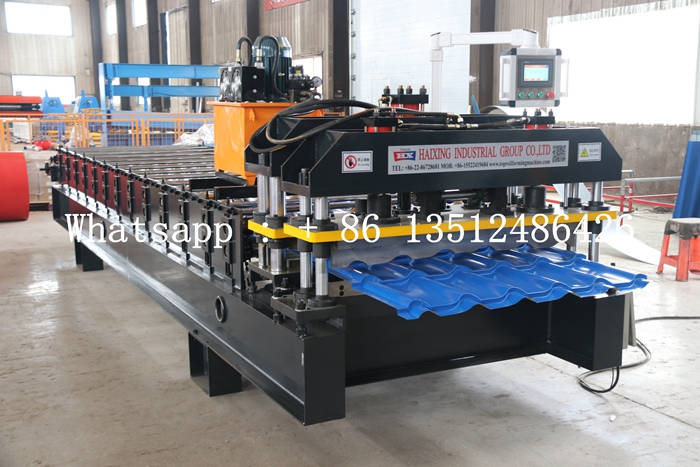

A glazed roof tile machine is a mechanical device specifically used to make and install roof tiles. It secures the tiles to the roof of the building by applying pressure to ensure it is strong and flat.

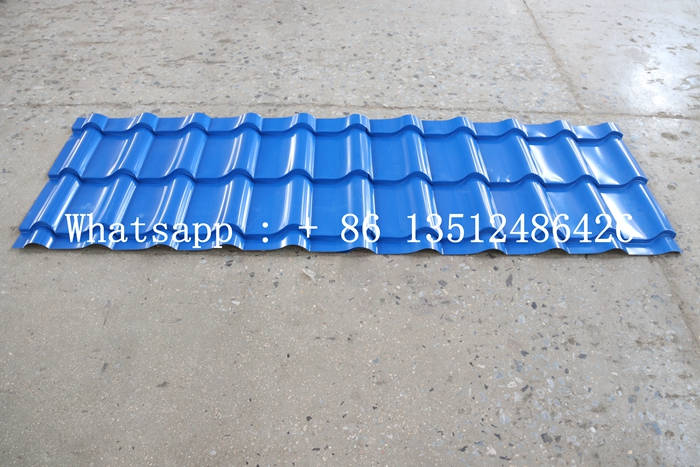

The main function of the glazed roof tile machine is to press steel plates. The forming process of the pressed steel plates by the tile press consists of unloading, forming, and post-forming and cutting. The products produced after pressing have a smooth and beautiful appearance, uniform paint patterns, high strength, and durability. It is widely used in industrial and civil buildings, such as factories, warehouses, locomotive garages, aircraft hangars, gymnasiums, exhibition halls, theaters and other rooms and walls.
Glazed Roof Tile Machine
Specification
No. |
Number |
Glazed Roof Tile Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |

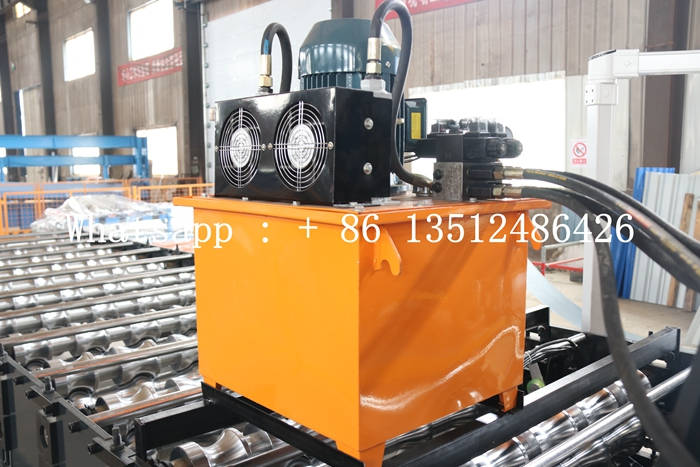

| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 13 |
| 19. | Size | 6500mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
Machine Composition

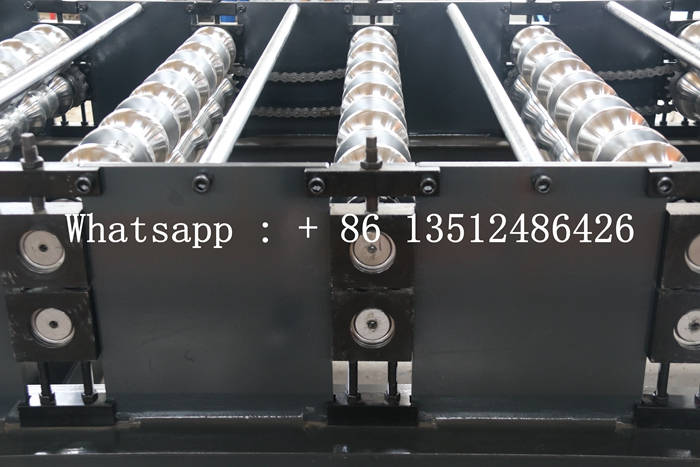

1. The roller is the core component, and its quality directly affects the forming effect and product quality.
2. The base is the main structure that supports the entire equipment and requires high rigidity and stability to ensure smooth and accurate operation of the equipment.

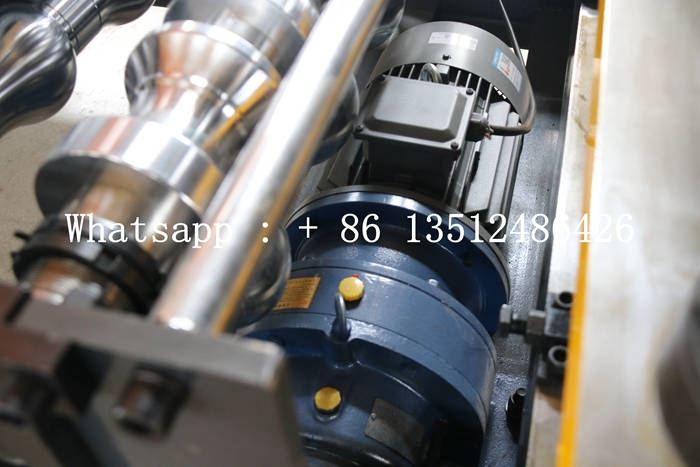

3. The transmission system is the power part that drives the roll and requires high precision and reliability.
4. The control system is a key part of realizing automated production. It can monitor and adjust the equipment in real time to ensure the smooth progress of production.
