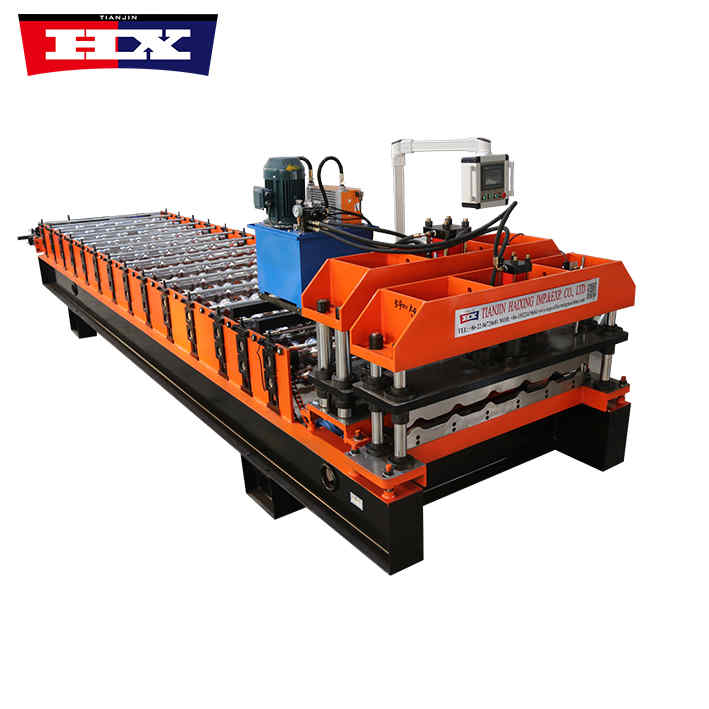

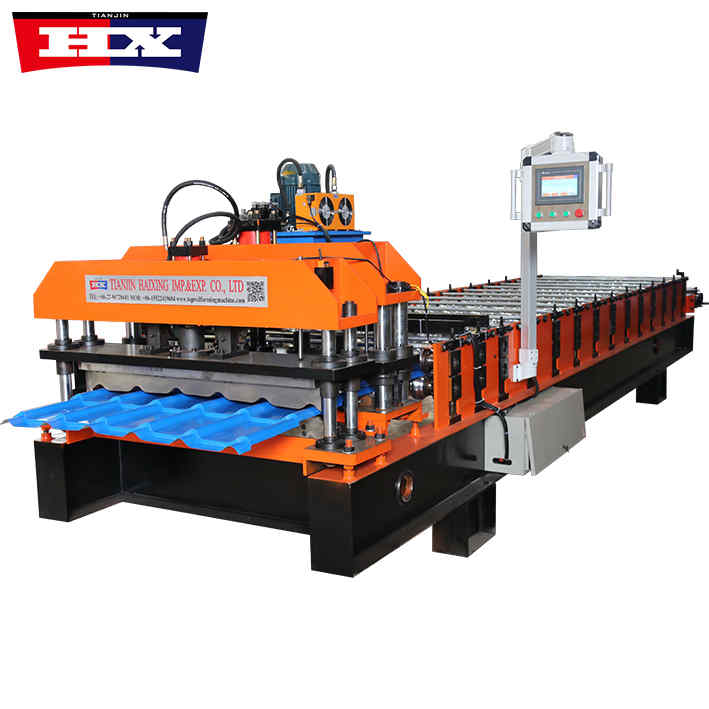

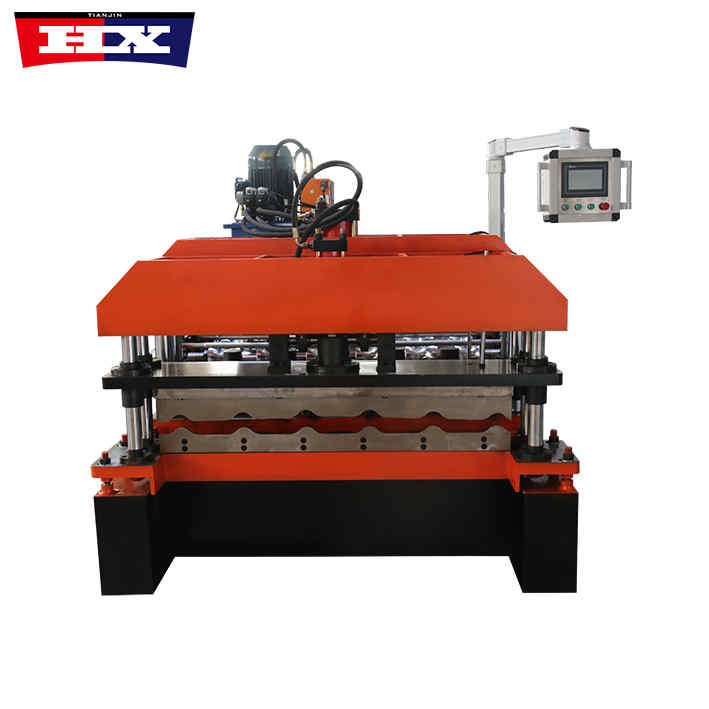

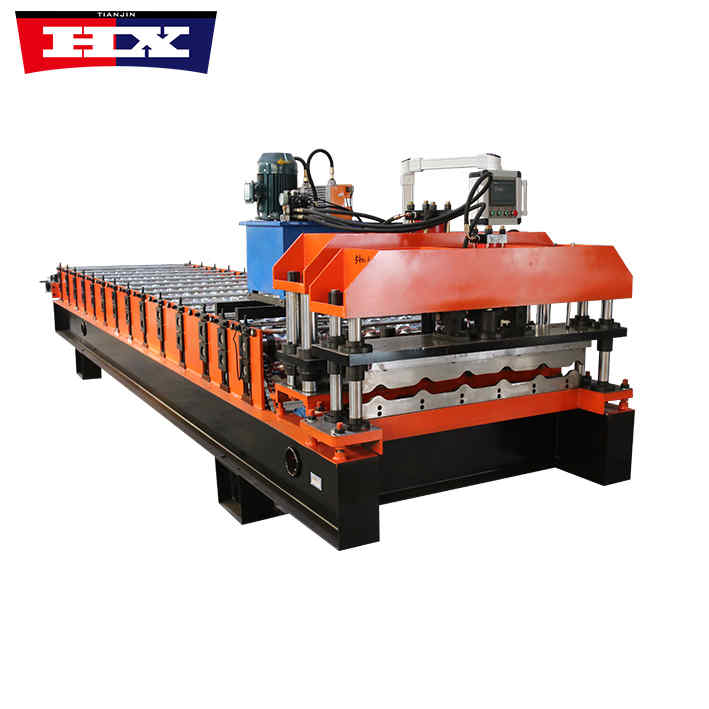

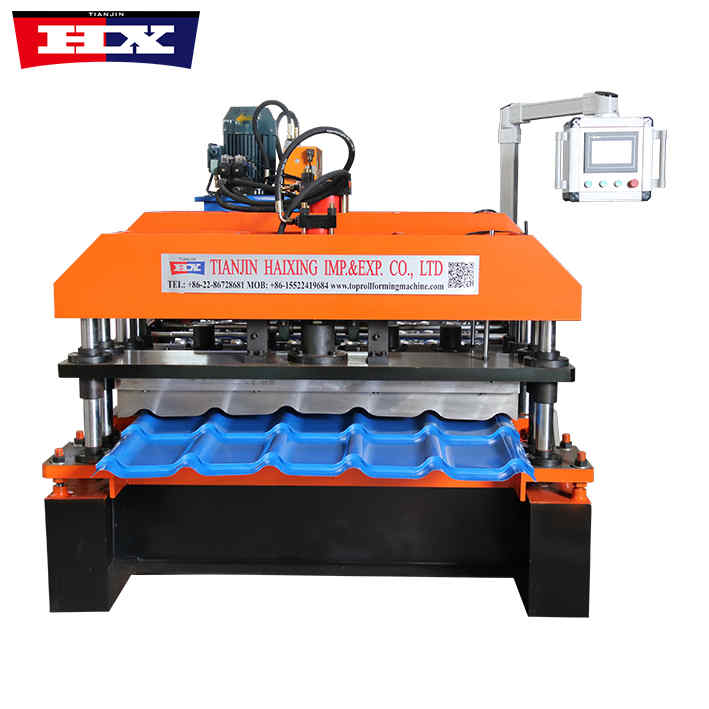

Glazed Tile Machine
Glazed Tile Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin

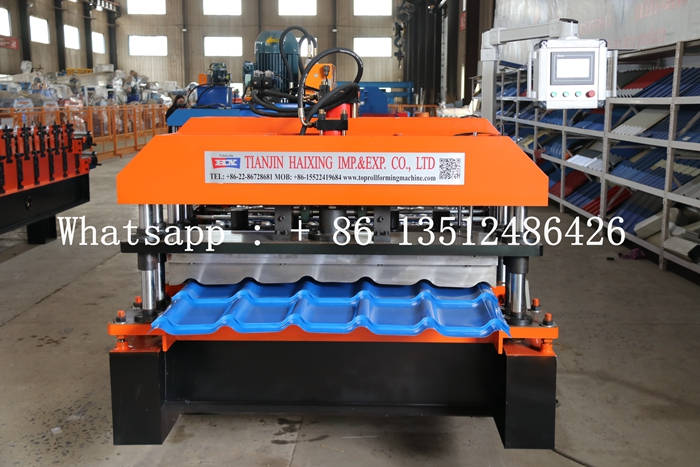

Glazed Tile Machine
Glazed Tile Machine

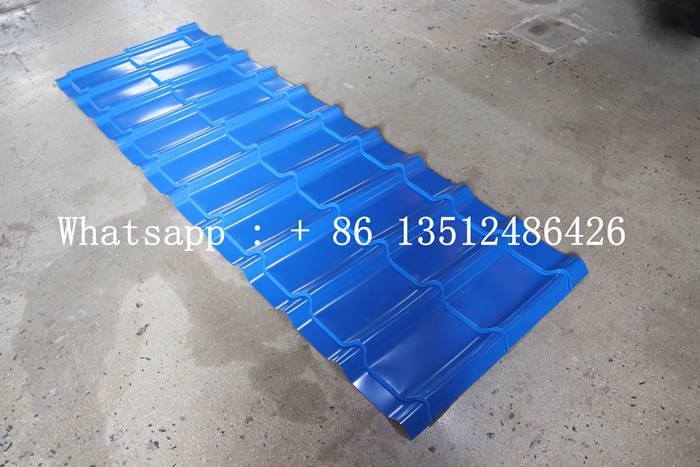

The profiled plate rolled by the glazed tile machine is both solemn and elegant, beautiful and novel. It has a smooth appearance, uniform corrugation, high utilization rate, high strength, high degree of production automation, low cost and durability.
Application : Color steel tile all-steel structure factory building frame, villa-style color steel plate room with span color steel plate ceiling, single-sided color steel plate steel structure factory building, multi-span steel structure workshop, factory building with wooden driving beams, roof addition, large-span factory building, Light steel structure ring shed.

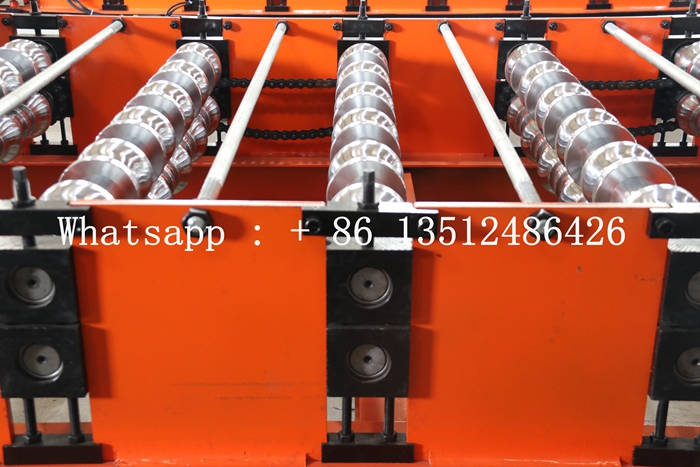

Glazed Tile Machine
Specification
No. |
Number |
Glazed Tile Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |

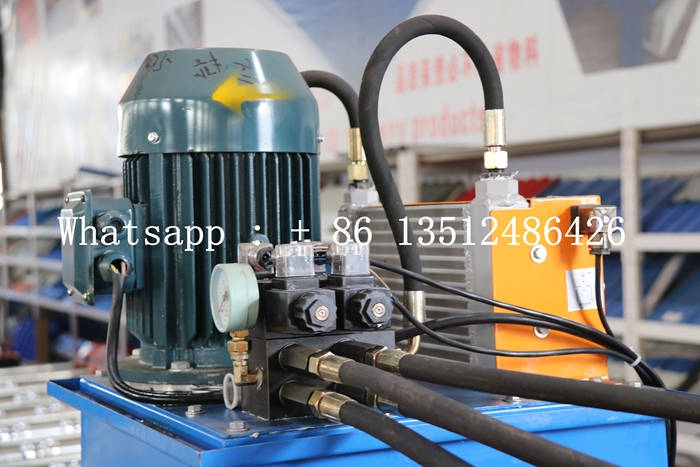

| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 14 |
| 19. | Size | 7000mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
Instructions
1. Start-up preparation
Before using the tile press computer, you need to make the following preparations:
1. Check whether the equipment is in normal working condition.
2. Check whether the tile mold is installed correctly to avoid mechanical failure caused by installation errors.
3. Check whether the device is connected to the correct power line, and check whether the power switch is turned off.
4. Check whether the lubricating oil is sufficient to ensure that the equipment operates smoothly during work.
2. Operation steps
1. Turn on the power of the equipment and start the computer control system.
2. Place the tiles to be produced in the mold, and adjust the mold to ensure that the angle and size of the mold meet the requirements.
3. Set production parameters in the computer control system, including tile length, width, thickness, production speed, etc.
4. Press the start button on the machine, and the equipment starts to work automatically to process and produce tiles.
5. During the production process, it is necessary to constantly check the operation of the equipment to ensure the normal operation of the equipment.
6. After production is completed, turn off the power of the equipment and clean and maintain the equipment.
3. Maintenance
1. Regularly check the electronic control system and mechanical transmission components of the equipment, and repair and replace them if necessary.
2. Change the lubricating oil in the equipment regularly to keep the equipment in good operating condition.
3. Clean the processing chips and residual tiles of the equipment to ensure the processing accuracy and work efficiency of the equipment.
4. Regularly maintain and upgrade the computer control system of the equipment to ensure the stability and work efficiency of the equipment.
In short, the tile press computer is one of the indispensable equipment in the current building materials production process. When using it, you need to pay attention to the above operating steps and maintenance measures to ensure the efficient operation of the equipment and production quality.
