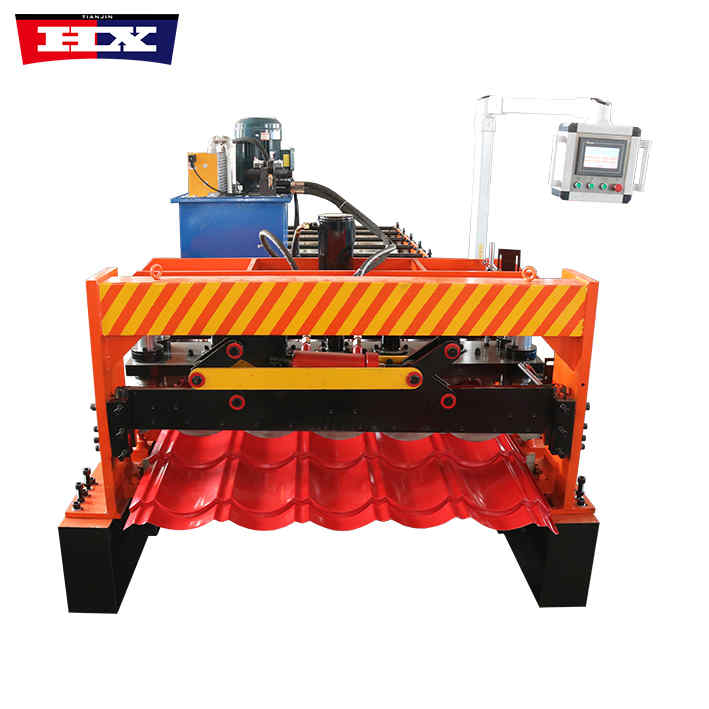

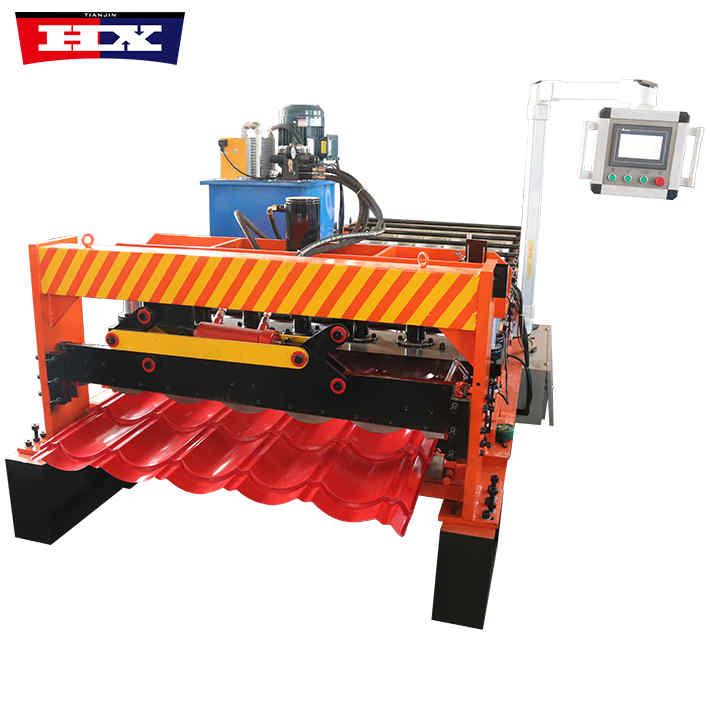

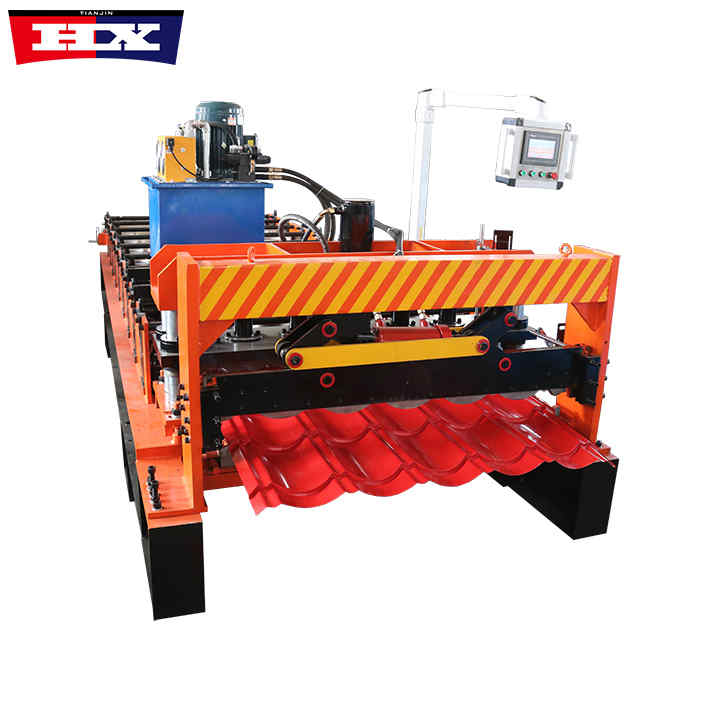

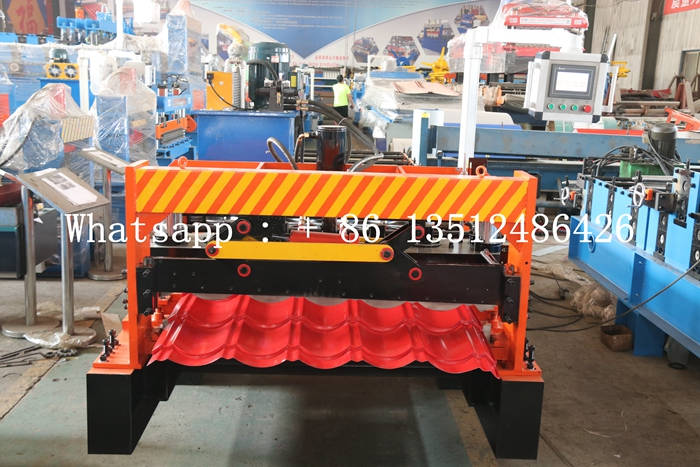

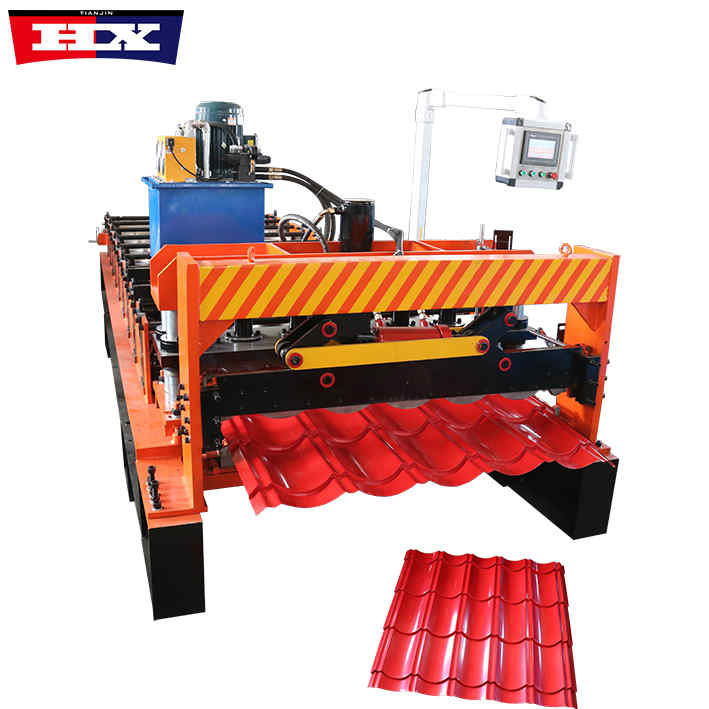

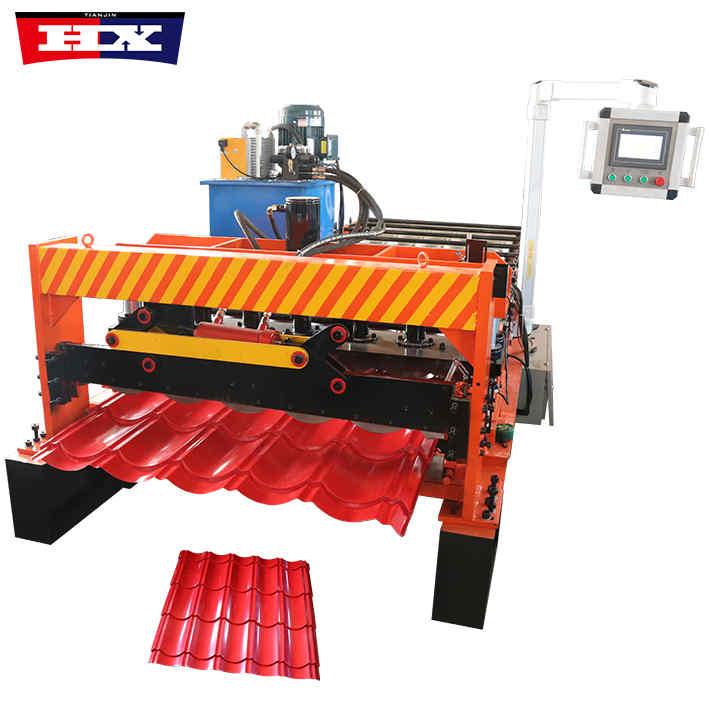

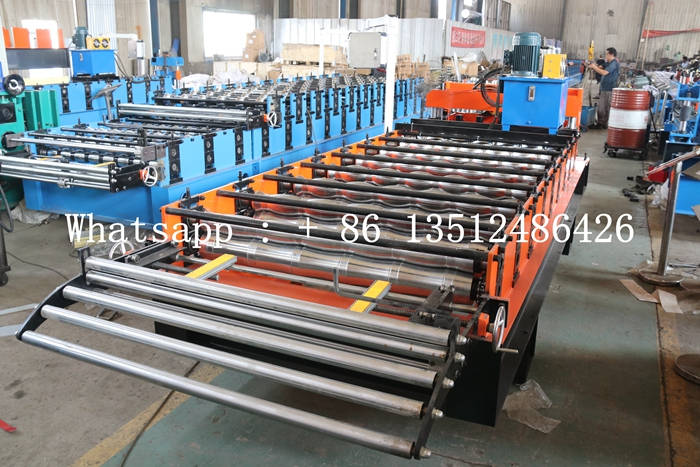

Roof Glazed Sheet Roll Forming Machine
Roof Glazed Sheet Roll Forming Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin
Roof Glazed Sheet Roll Forming Machine
Roof Glazed Sheet Roll Forming Machine
1. High efficiency: The roof glazed sheet roll forming machine adopts advanced transmission system and high-speed motor, which greatly improves production efficiency, greatly shortens the production cycle, and improves the competitiveness of the enterprise.
2. High precision: The roof glazed sheet roll forming machine is equipped with a high-precision control system and molding mold to ensure that the tiles produced are accurate in size and beautiful in shape, meeting the high requirements of modern architecture for tile quality.

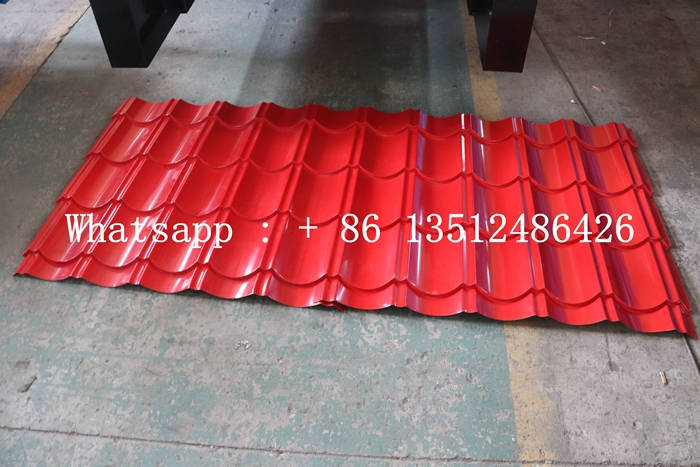

3. Multi-function: The roof glazed sheet roll forming machine can produce tiles of various specifications to meet the needs of different architectural styles.
4. Environmental protection and energy saving: This roof glazed sheet roll forming machine adopts advanced energy-saving technology to reduce energy consumption and environmental pollution, which is in line with the development trend of green and environmental protection.
Roof Glazed Sheet Roll Forming Machine
Specification
No. |
Number |
Roof Glazed Sheet Roll Forming Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |

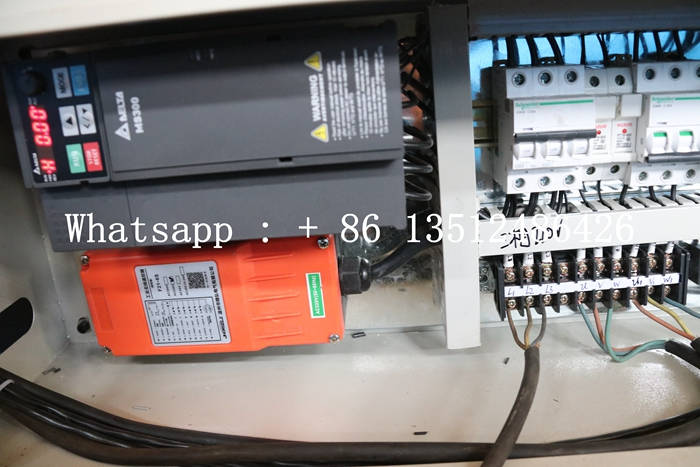

| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |

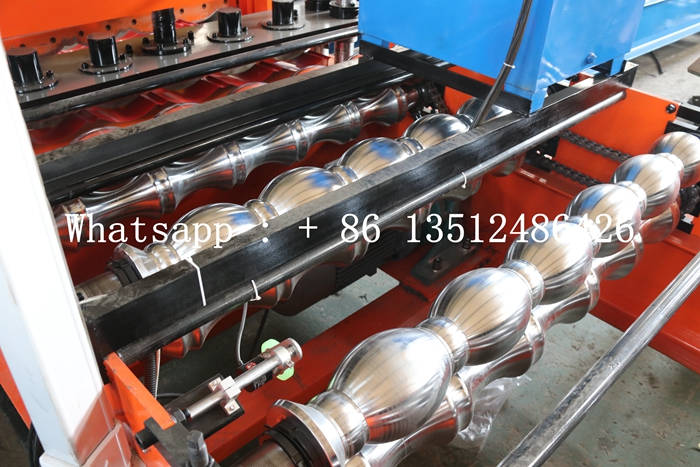

| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 10 |
| 19. | Size | 5500mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
Company Advantages
1. Strictly control raw materials and customize according to customer requirements
2. Rich production experience, modern production equipment, and sound management system
3. Cooperate with major logistics companies to ensure that items reach customers on time
4. Provide one-stop pre-sales and after-sales services, think about what customers want, and solve problems in a timely manner
5. Factory production, direct delivery
