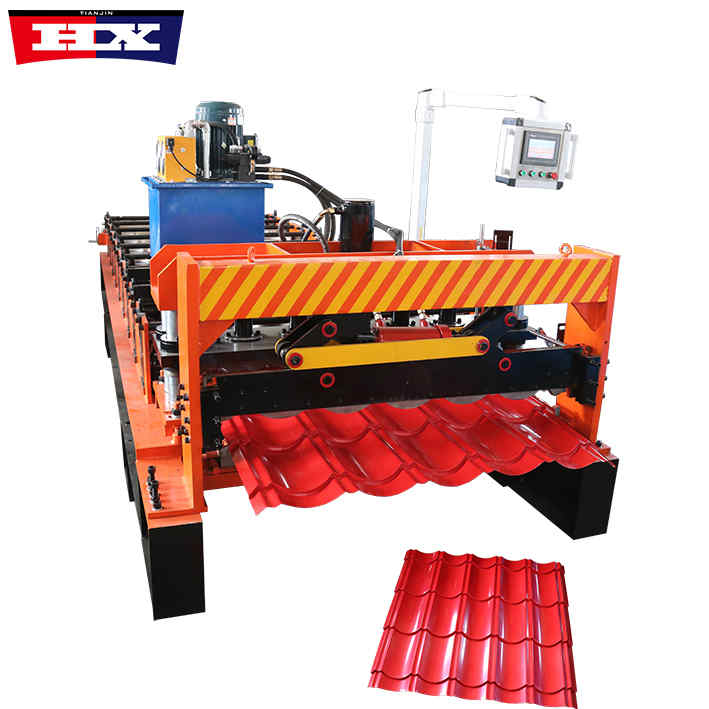

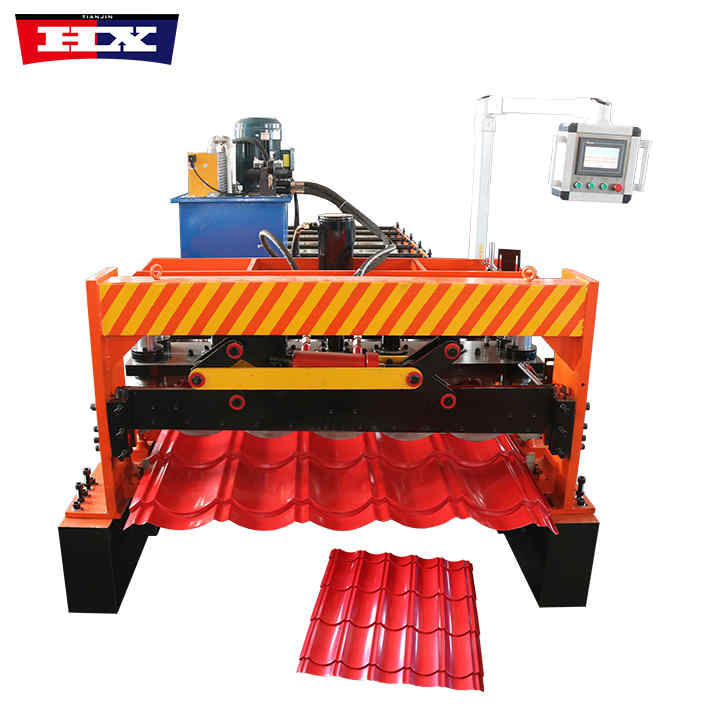

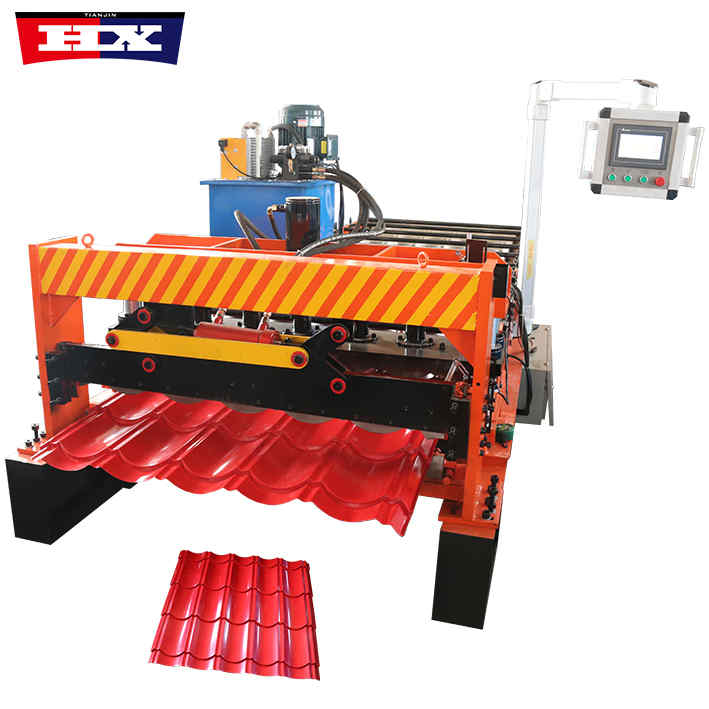

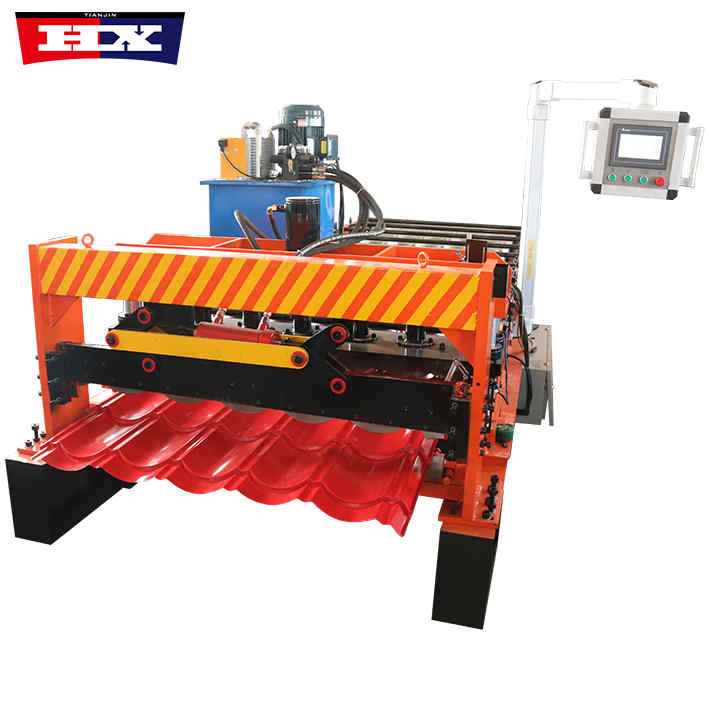

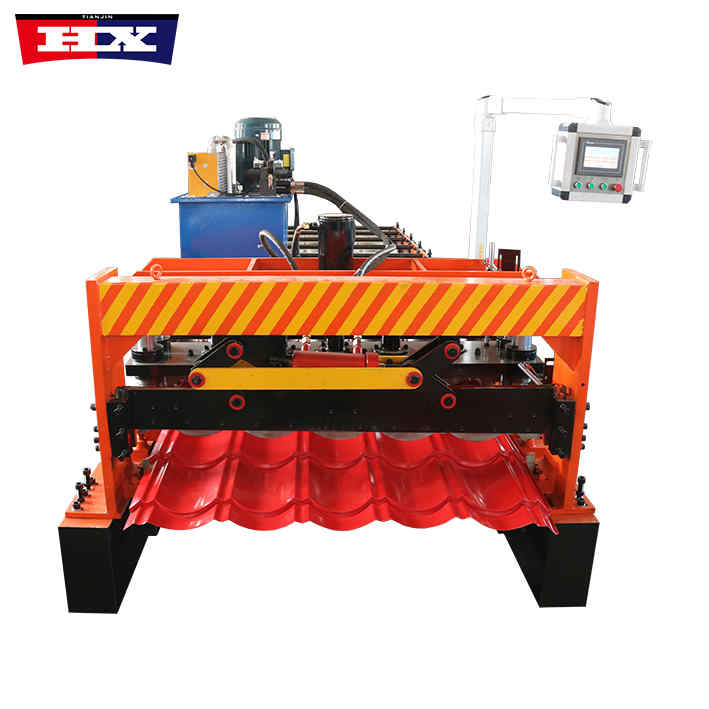

Roof Glazed Tile Roll Forming Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin
Roof Glazed Tile Roll Forming Machine
1. Roofs of industrial buildings usually require large areas of tiles. Roof glazed tile roll forming machine production line can achieve continuous production and improve production efficiency and capacity.
2. Roof glazed tile roll forming machine can customize tiles of different sizes and specifications according to different needs to meet the needs of industrial buildings for large-area tiles.
3. Roof glazed tile roll forming machine can produce special tiles for agricultural buildings, such as greenhouse tiles, cold storage tiles, etc. These tiles have good thermal insulation properties and light transmission properties, providing good conditions for agricultural production.
4. Agricultural buildings need to withstand the test of storms and severe weather. The tiles produced by roof glazed tile roll forming machine can provide strong windproof and waterproof capabilities, ensuring the safety and reliability of agricultural buildings.
No. |
Number |
Roof Glazed Tile Roll Forming Machine |
1. | Operation style | Automatic |
2. | Raw materials | PPGI |
3. | Structure | 350H Beam |
4 | Middle side | 16mm |
5. | Main motor | 5.5kw |

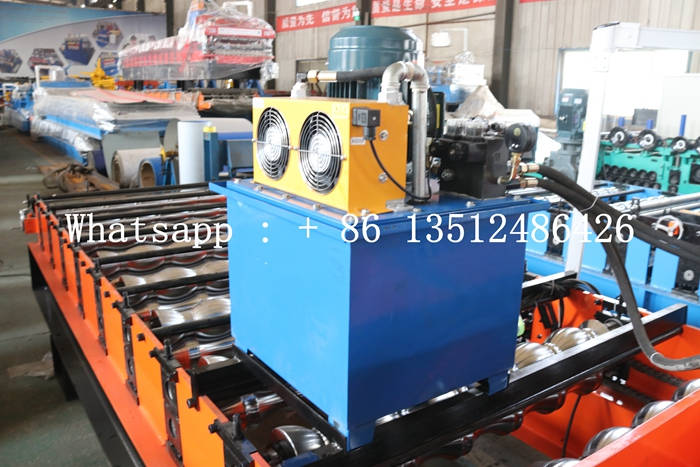

6. | Pump station | 4kw |
7. | Cutting type | Hydraulic cutting |
8. | Produce speed | 10-15m/min |
9. | Chain | 1 inch |
10. | Shaft material | Cr12MoV |
11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
12. | Touch screen/inverter | Delta or customized according to customer requirements |
13. | Rolling materials | Forged 45# steel with chrome plate |
14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |

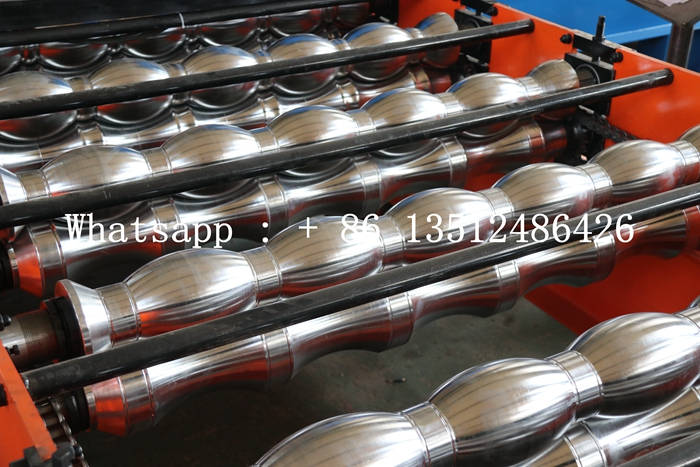

15. | Roller diameter | Φ70mm |
16. | Voltage | 380v 50hz 3p be customized |
17. | Thickness | 0.3-0.8mm |
18. | Rows | 10 |
19. | Size | 5500mm*1500mm*1600mm |
20. | Weight | 5000kg |
1. Efficient production: Roof glazed tile roll forming machine adopts advanced pressing technology, which can quickly and accurately complete the tile pressing work. The equipment is equipped with an efficient power system, which can achieve continuous and stable production, greatly improving production efficiency.
2. Diversified pressing: Roof glazed tile roll forming machine has a variety of pressing molds, which can produce tiles of different specifications and shapes to meet different building needs. At the same time, users can also customize molds according to actual needs to achieve personalized production.
3. Easy to operate: Roof glazed tile roll forming machine adopts a humanized operating interface and control system, making the operation easier and more intuitive. The equipment is also equipped with complete safety protection measures to ensure safety during operation.
4. Sturdy and durable: Roof glazed tile roll forming machine adopts high-quality materials and advanced production technology, and has high wear resistance, corrosion resistance, impact resistance and other properties, ensuring the service life and stability of the equipment.
