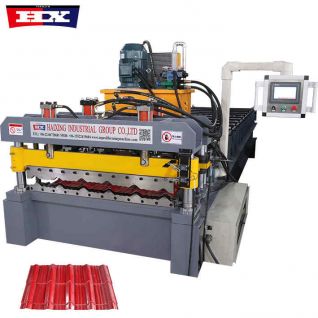

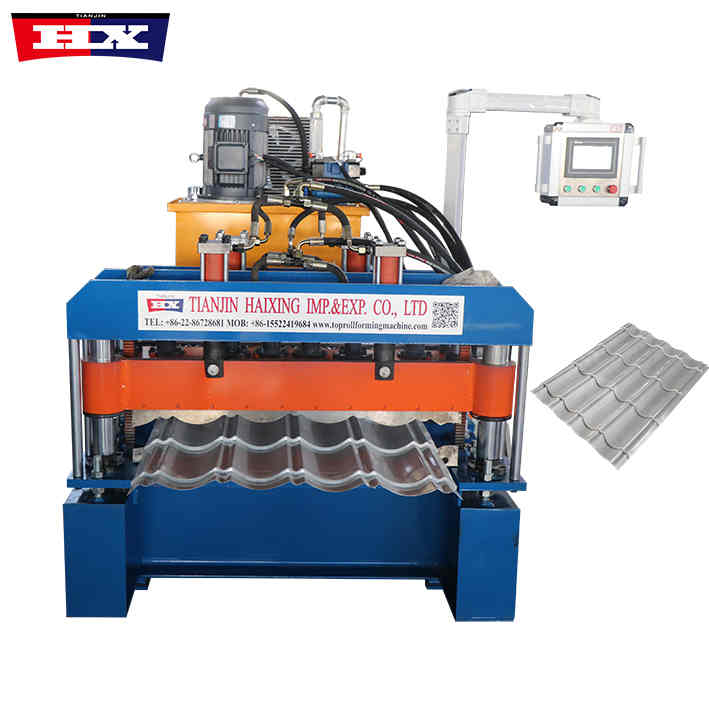

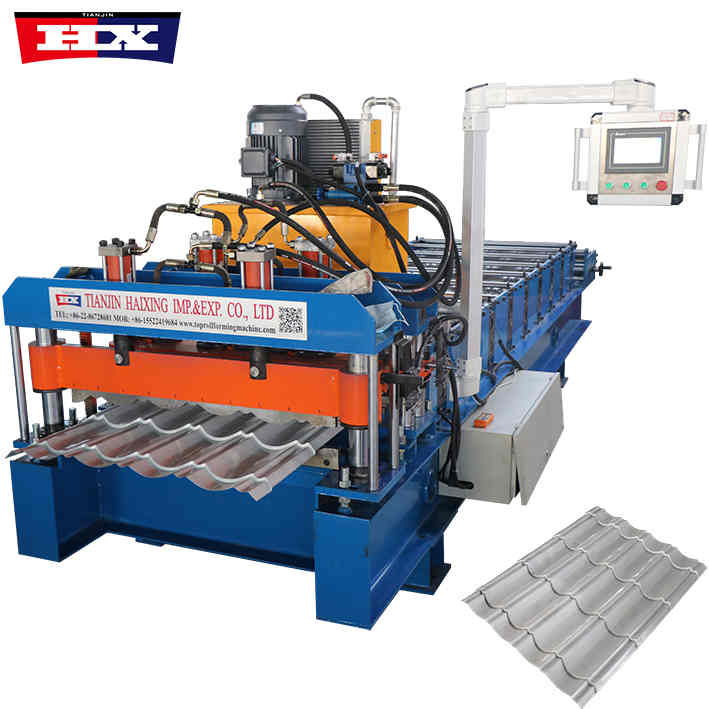

Glazed Roof Roll Forming Machine
Glazed Roof Roll Forming Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin

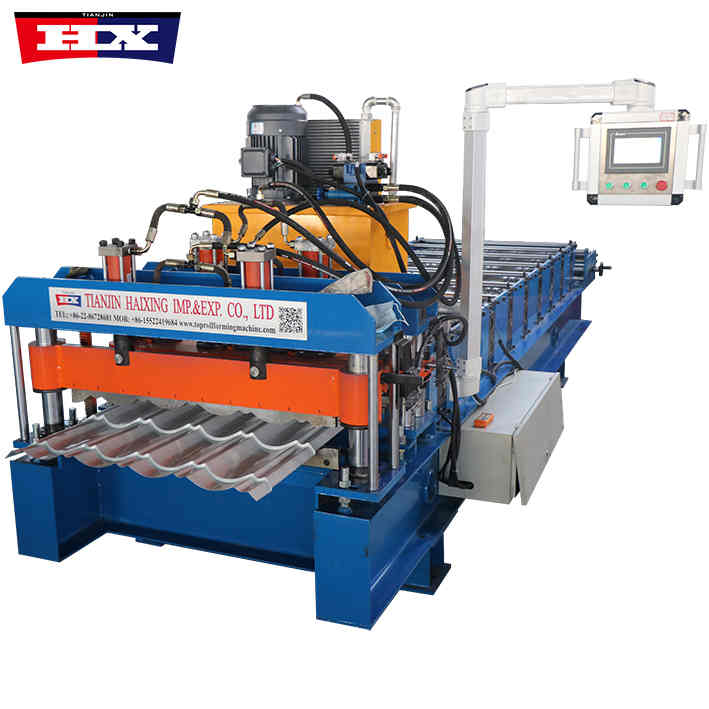

Glazed Roof Roll Forming Machine

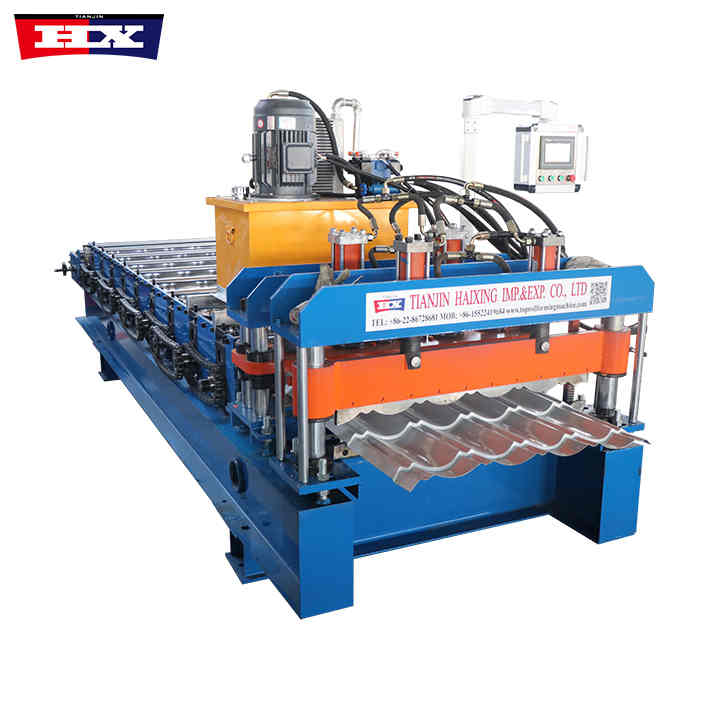

Glazed Roof Roll Forming Machine

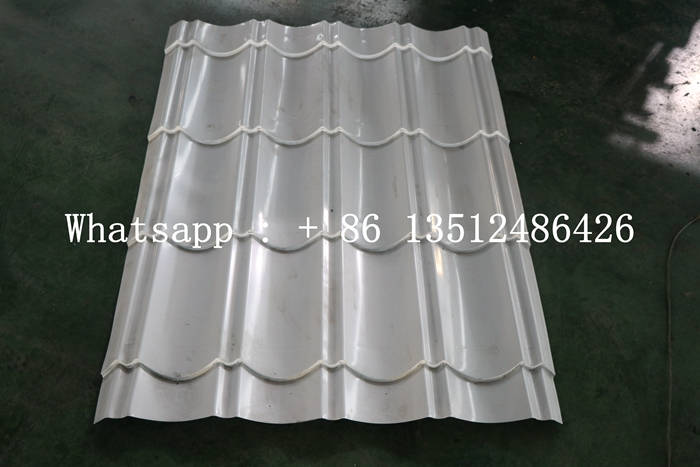

The profiled plate rolled by the glazed roof roll forming machine is both solemn and elegant, beautiful and novel. It has a smooth appearance, uniform corrugation, high utilization rate, high strength, high degree of production automation, low cost and durability.
Application : Color steel tile all-steel structure factory building frame, villa-style color steel plate room with span color steel plate ceiling, single-sided color steel plate steel structure factory building, multi-span steel structure workshop, factory building with wooden driving beams, roof addition, large-span factory building, Light steel structure ring shed.

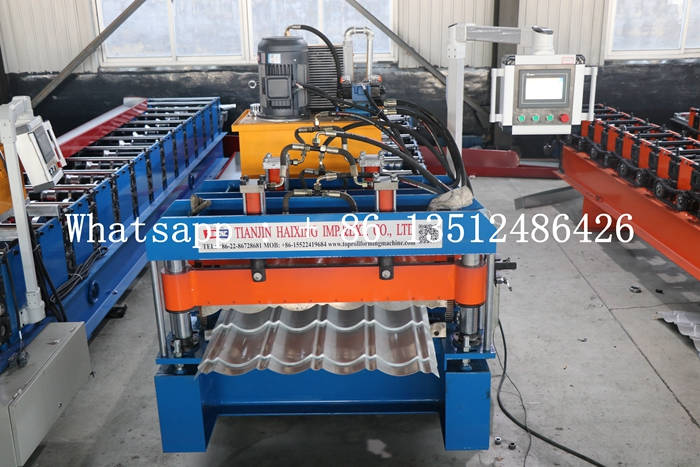

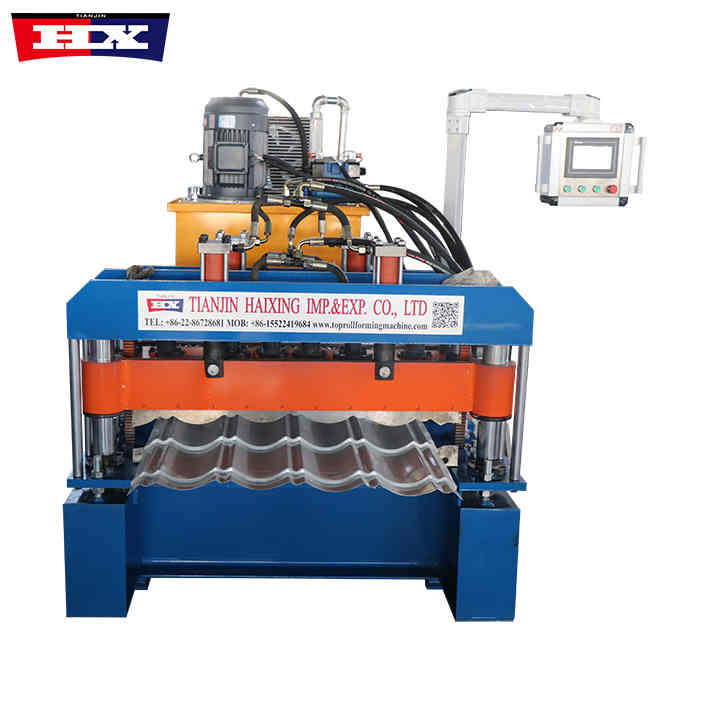

Glazed Roof Roll Forming Machine
Specification
No. |
Number |
Glazed Roof Roll Forming Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |

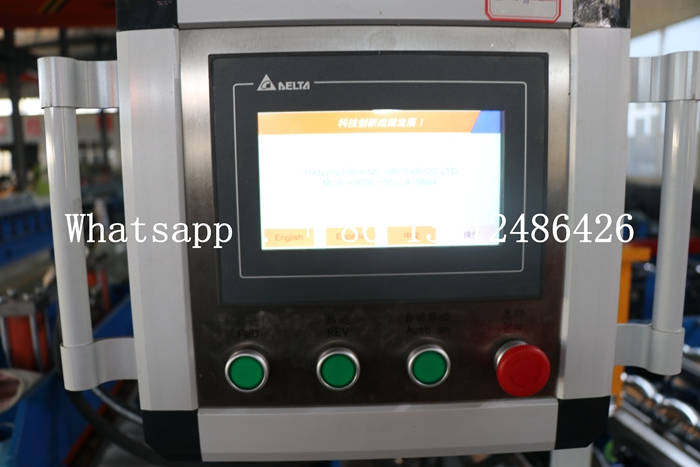

| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |

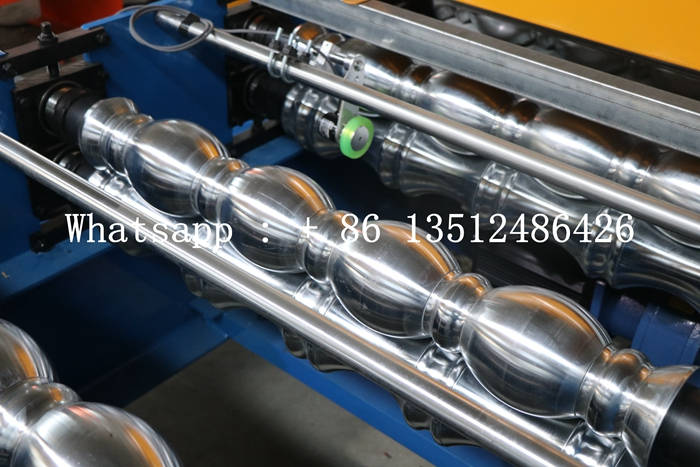

| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 9 |
| 19. | Size | 5000mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
Advantages
1. Excellent weather resistance - service life not less than fifty years
2. Outstanding waterproof performance - no need for waterproof layer
3. Wind resistance and earthquake resistance - 90-degree building facade decoration is safe and reliable
4. Rich colors, novel personality, long-lasting and stable
5. Good fire resistance
6. Thermal insulation and thermal insulation - the roof tile with the highest thermal insulation performance
7. Good sound insulation performance
8. The glazed roof roll forming machine control system is simple to operate and has high precision. The cutting accuracy of each piece is less than 0.1mm, which meets the process requirements. The program runs stably and reliably.
