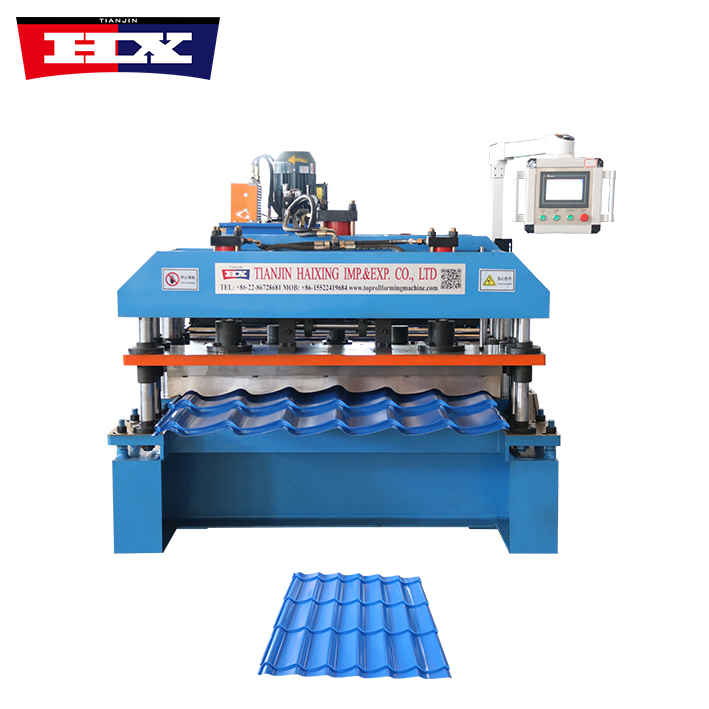

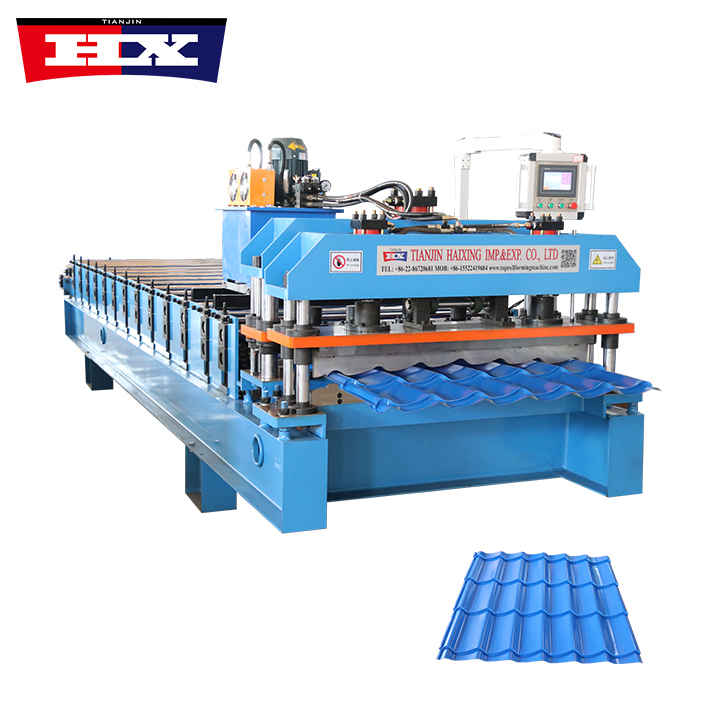

Glazed Tile Roll Forming Machine
Glazed Tile Roll Forming Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin
Glazed Tile Roll Forming Machine
Glazed Tile Roll Forming Machine
1. Small size, light weight, easy to move and transport, small space occupied color steel tile press.
2. One machine has multiple uses and diverse functions, allowing users to operate multiple varieties flexibly according to market needs and avoid bearing market risks due to a single product.
3. The equipment uses less power, saves energy consumption, and helps reduce production costs.
4. Reduce labor force, reduce labor intensity, improve labor efficiency, and reduce production costs.
Glazed Tile Roll Forming Machine
Specification
No. |
Number |
Glazed Tile Roll Forming Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |

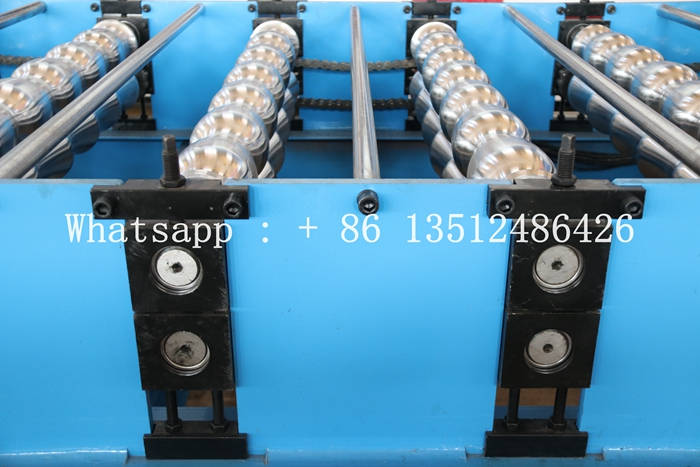

| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 13 |
| 19. | Size | 6500mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
Advantages
1. Excellent weather resistance - service life not less than fifty years
2. Outstanding waterproof performance - no need for waterproof layer
3. Wind resistance and earthquake resistance - 90-degree building facade decoration is safe and reliable
4. Rich colors, novel personality, long-lasting and stable
5. Good fire resistance
6. Thermal insulation and thermal insulation - the roof tile with the highest thermal insulation performance
7. Good sound insulation performance
