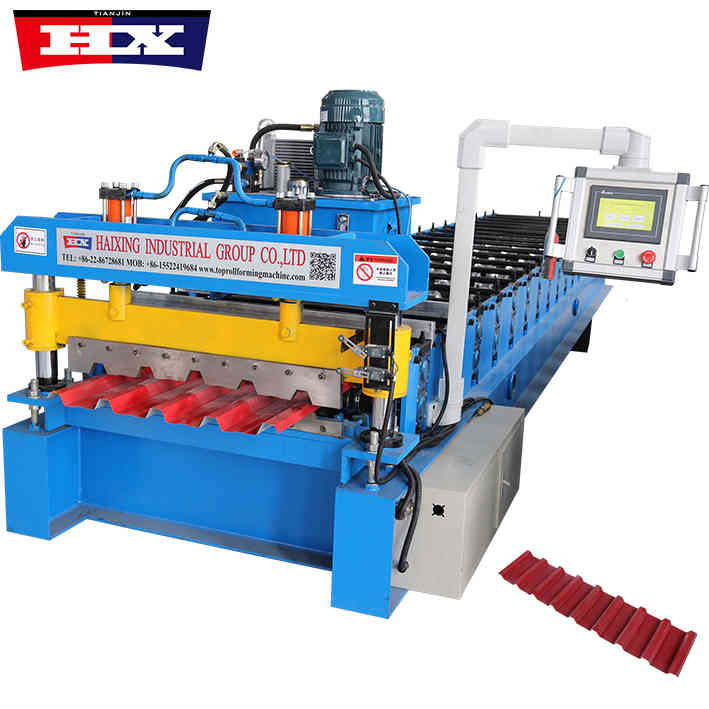

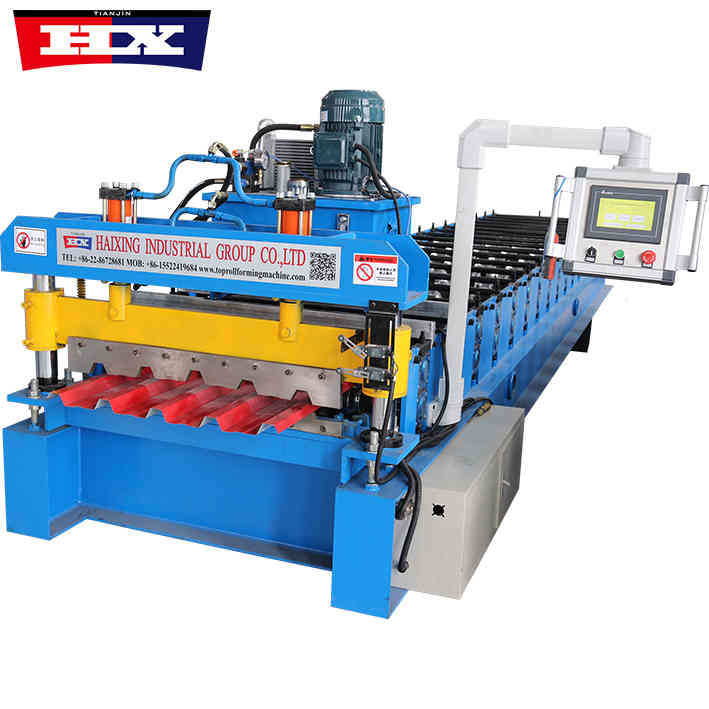

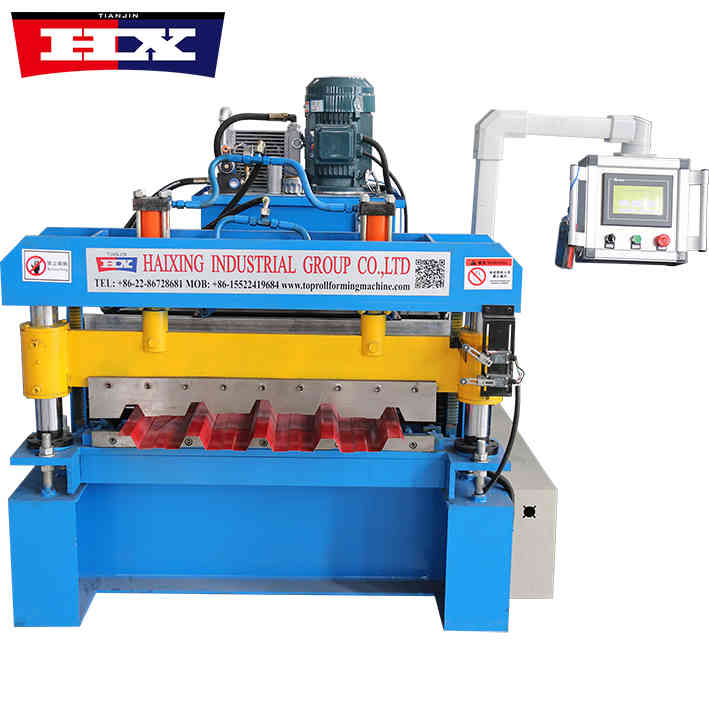

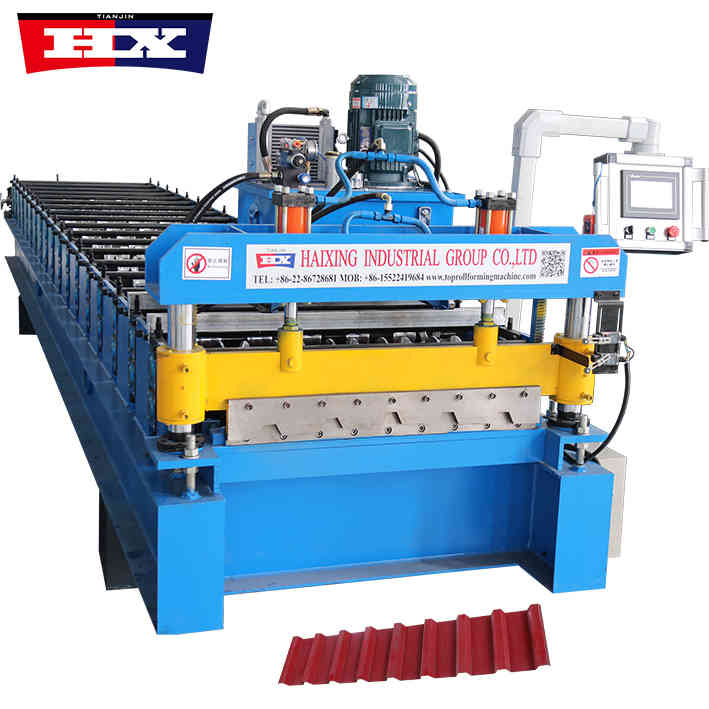

IBR Making Machine
IBR Making Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin

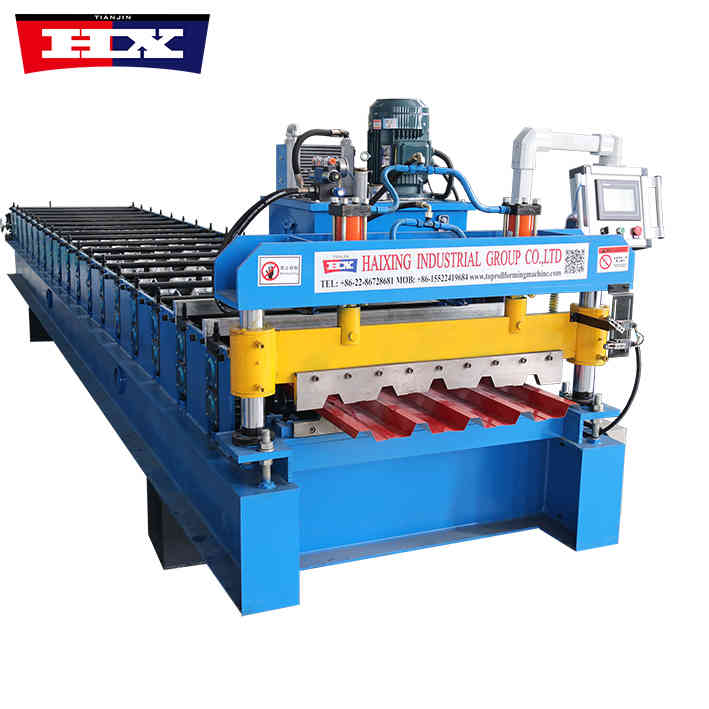

IBR Making Machine

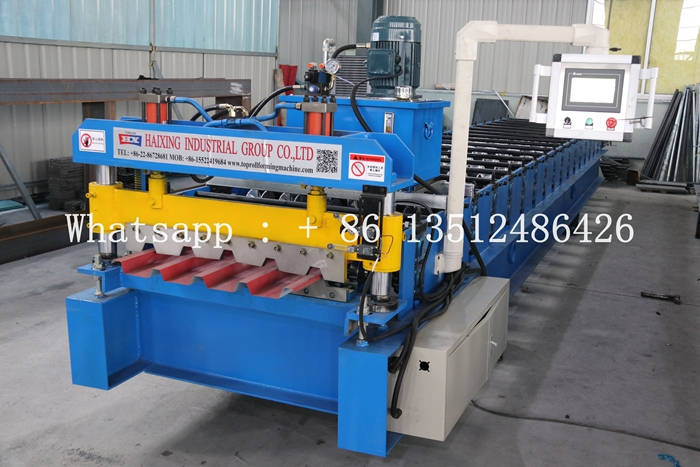

IBR Making Machine
1. High efficiency: The IBR making machine has high pressure and speed, which can quickly and accurately complete the pressing work of metal sheets and improve production efficiency.
2. High precision: Adopt advanced control system and transmission system to ensure high pressing accuracy and repeatability, and reduce product scrap rate.
3. High reliability: The IBR making machine adopts high-quality materials and components, and undergoes strict quality control and durability testing to ensure the reliability and stability of the equipment.
4. High degree of automation: Equipped with an automated control system and safety protection device, it can realize automatic feeding, automatic pressing and automatic discharging functions, reducing manual intervention and operating difficulty.
5. Wide scope of application: suitable for pressing various metal plates, such as steel plates, stainless steel plates, aluminum plates, etc., widely used in construction, machinery, ships, automobiles and other fields.

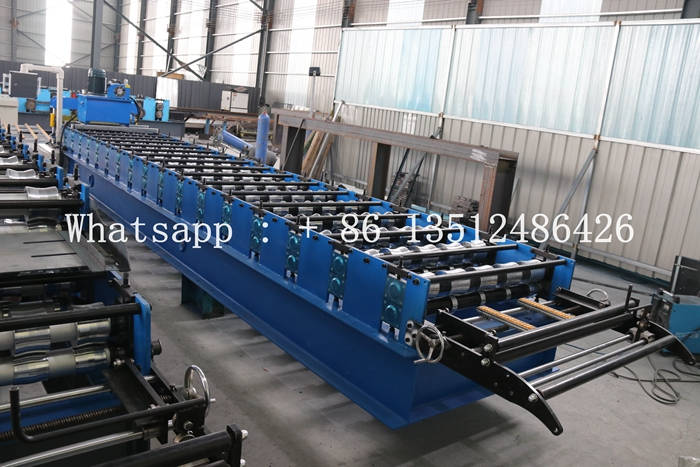

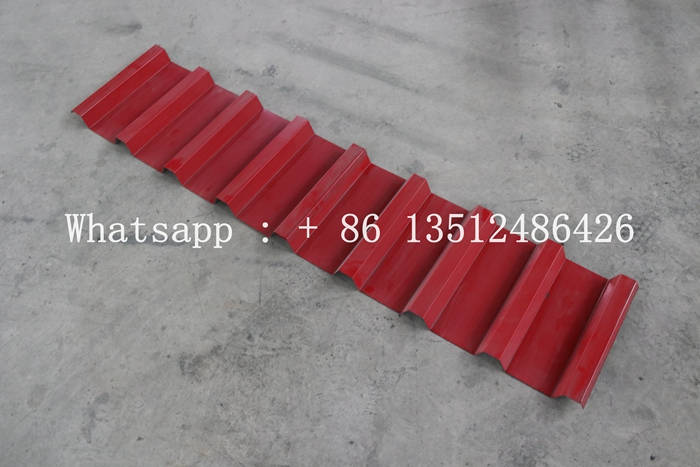

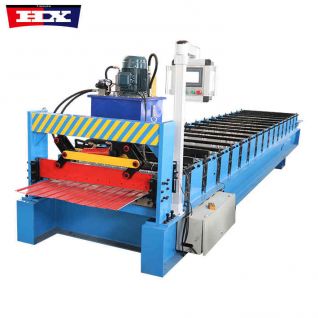

IBR Roofing Sheet Making Machine
Specification
No. |
Number |
IBR Making Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |

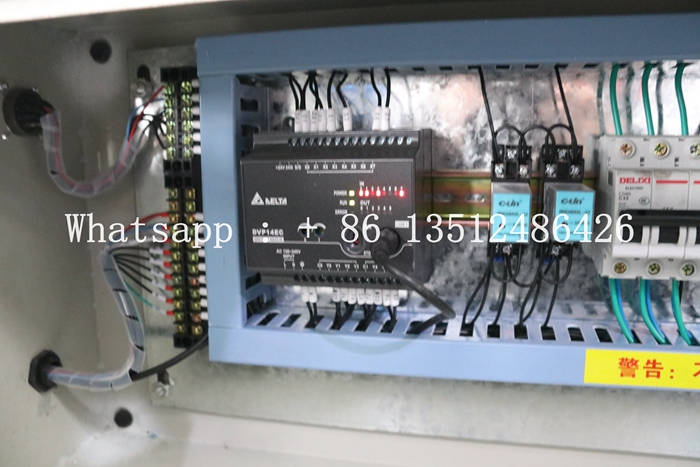

| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 18 |
| 19. | Size | 9000mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
Maintain
In order to ensure the normal operation of the IBR making machine and extend the life of the machine, we should perform regular maintenance work. Specifically including the following aspects:
1. Regularly check whether the fasteners of the equipment are loose. If they are loose, tighten them in time.
2. Keep the surface of the equipment clean to avoid accumulation of dust and impurities.
3. Regularly check the lubrication of key components such as the transmission system and bearings to ensure that the equipment maintains good lubrication during operation.
4. Regularly conduct no-load operation and load operation tests on the equipment to check the performance and stability of the equipment.
5. Perform professional maintenance and upkeep on the equipment regularly, such as replacing worn parts, cleaning fuel tanks, etc.
