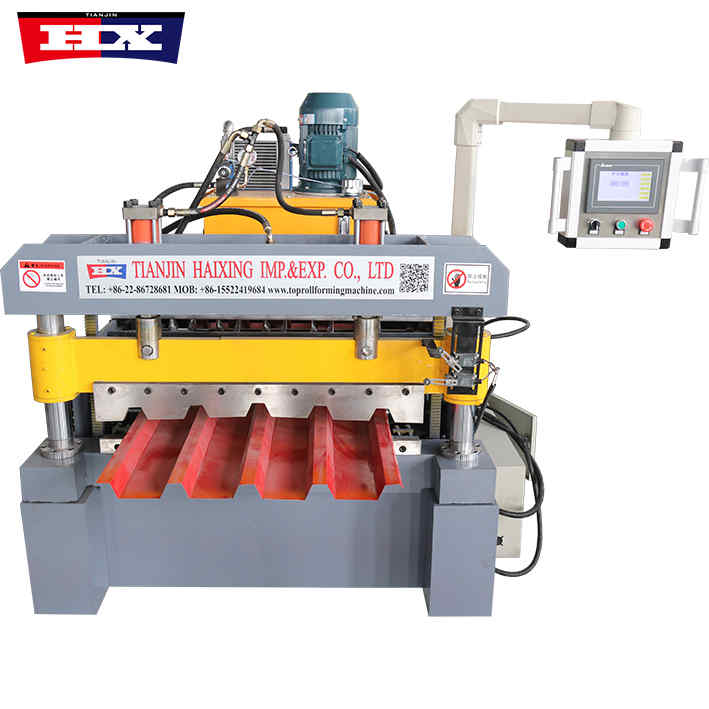

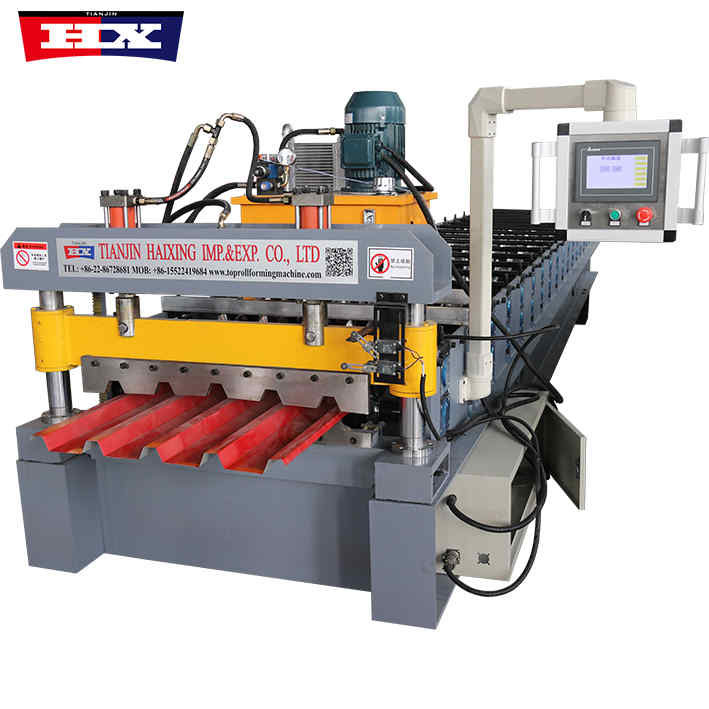

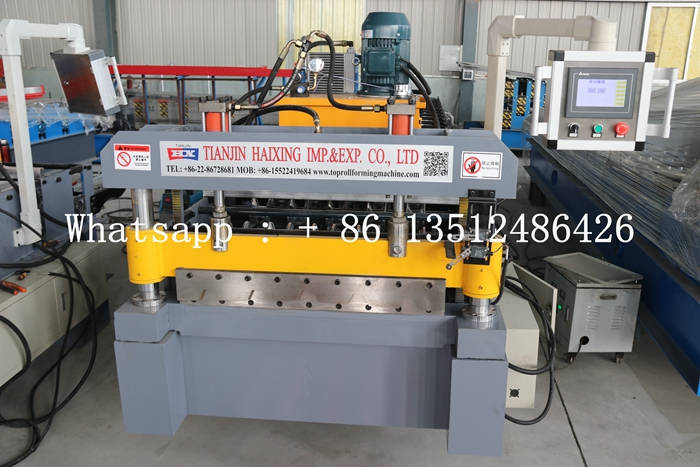

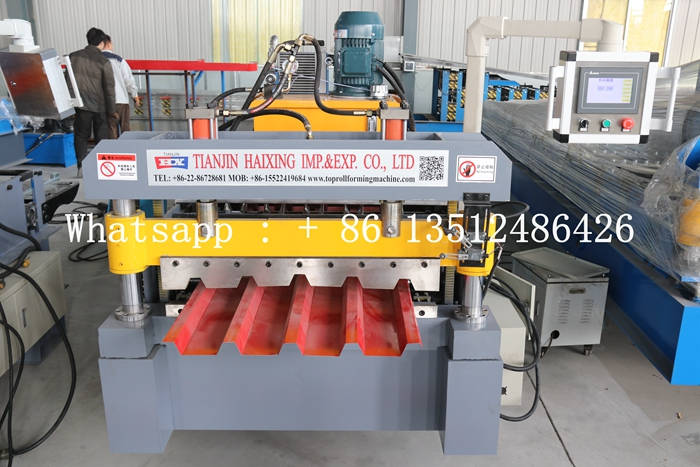

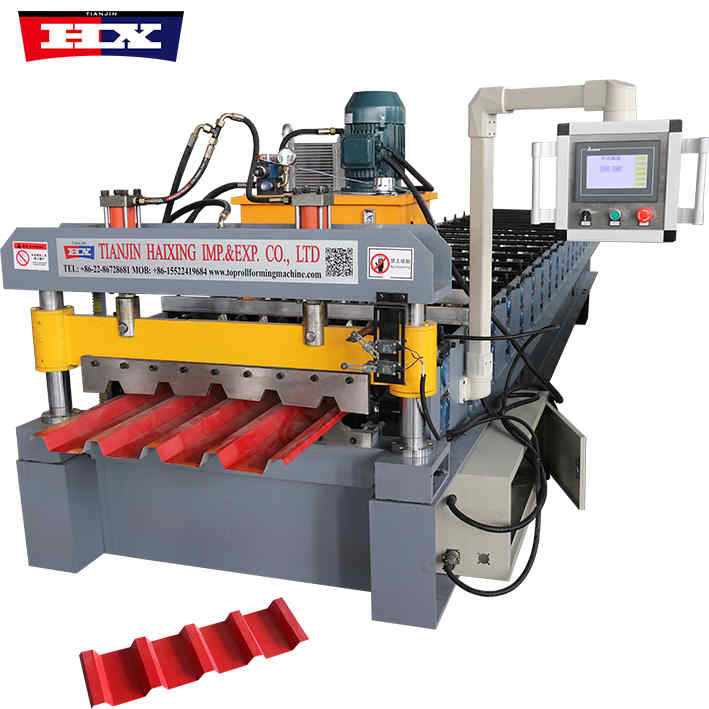

IBR Sheet Making Machine
IBR Sheet Making Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin

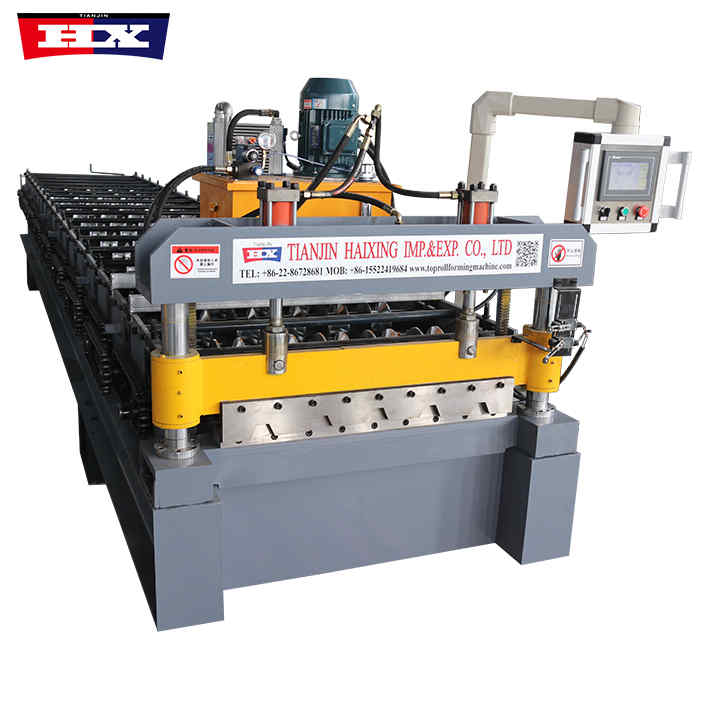

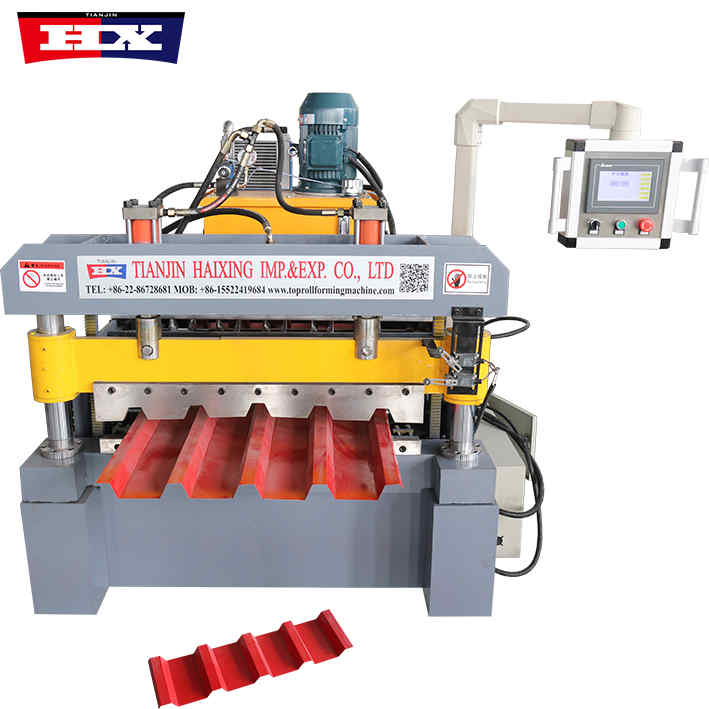

IBR Sheet Making Machine
IBR Sheet Making Machine
As a common construction machinery and equipment, the IBR sheet making machine has a wide range of applications. It plays an integral role in residential, commercial, industrial, agricultural and landscape projects. By laying tiles, providing protection and decoration, the IBR sheet making machine meets the needs of construction; by providing clean energy through efficient production, it brings many advantages to industrial buildings; in agricultural buildings and landscape projects, the IBR sheet making machine provides these Developments in the field provide reliable building materials. With the continuous innovation and development of construction technology, the uses of tile presses will become more extensive and diversified.
IBR Sheet Making Machine
Specification
No. |
Number |
IBR Sheet Making Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |

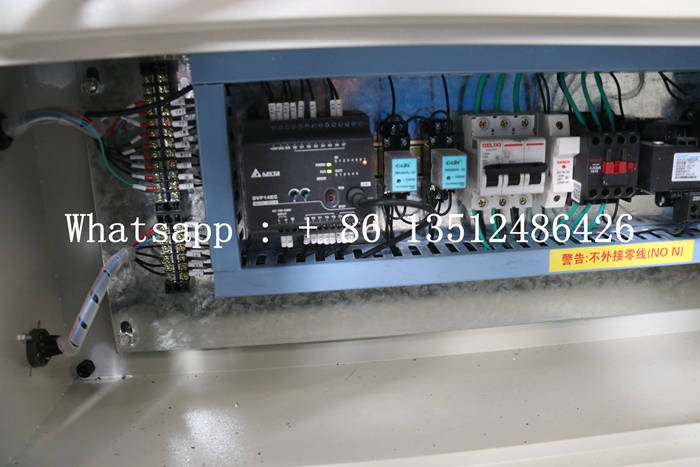

| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |

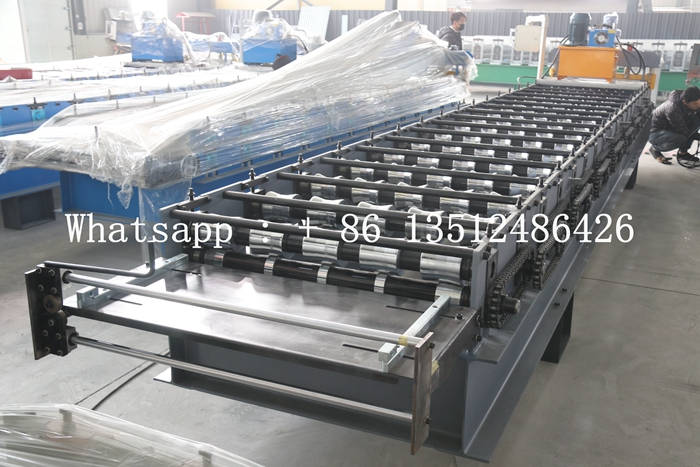

| 18. | Rows | 18 |
| 19. | Size | 9000mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
Features
1. Efficient production
1). Roofs of industrial buildings usually require large areas of tiles. The tile press production line can achieve continuous production and improve production efficiency and capacity.
2). The tile press can customize tiles of different sizes and specifications according to different needs to meet the needs of industrial buildings for large-area tiles.
2. Provide brand image
1).Commercial buildings usually require a unique appearance and image to attract more customers. The tile press can customize tiles of different colors, shapes and patterns to meet various personalized needs of commercial buildings.
2).Through the creative design and high-quality production of tiles, commercial buildings can establish a brand image and increase brand recognition and appeal.
3. Application of tile press in agricultural construction
1). The tile press can produce special tiles for agricultural buildings, such as greenhouse tiles, cold storage tiles, etc. These tiles have good thermal insulation properties and light transmission properties, providing good conditions for agricultural production.
2). Agricultural buildings need to withstand the test of storms and severe weather. The tiles produced by the tile press can provide strong windproof and waterproof capabilities to ensure the safety and reliability of agricultural buildings.
