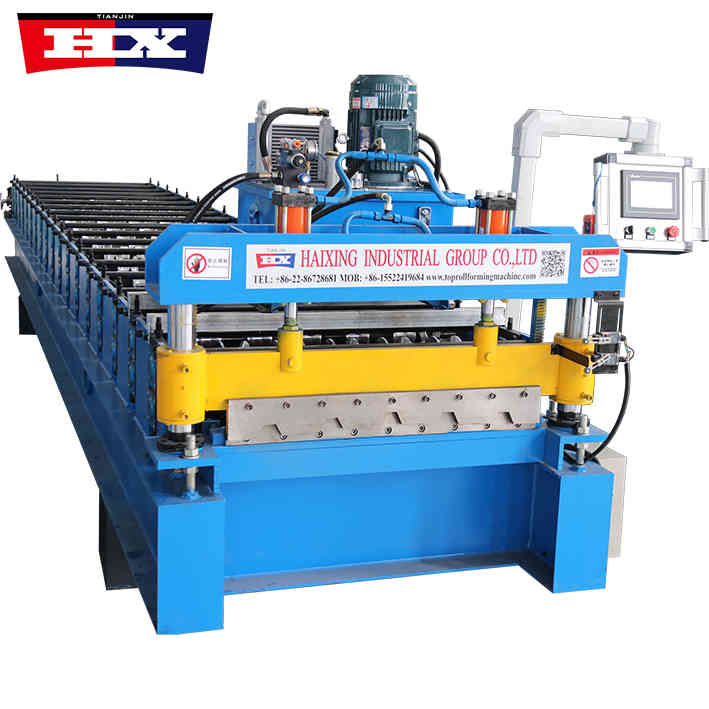

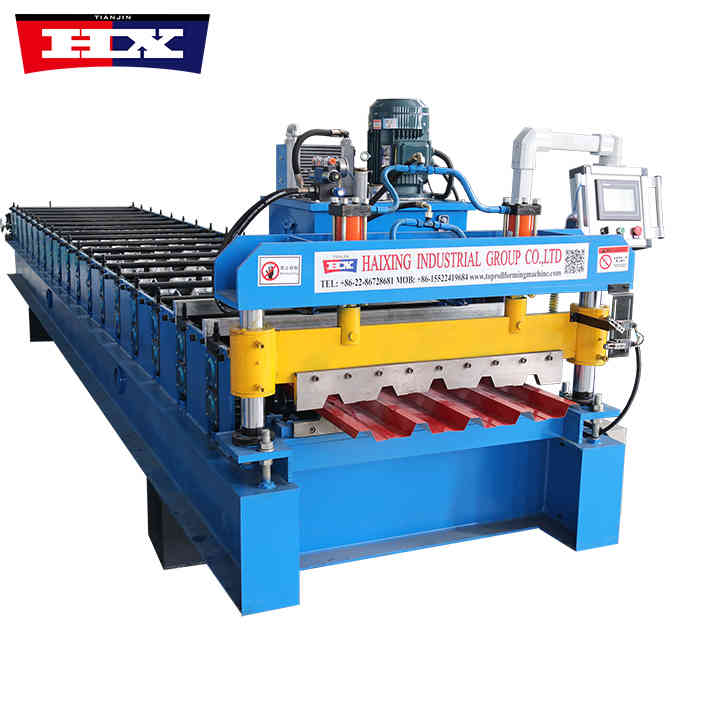

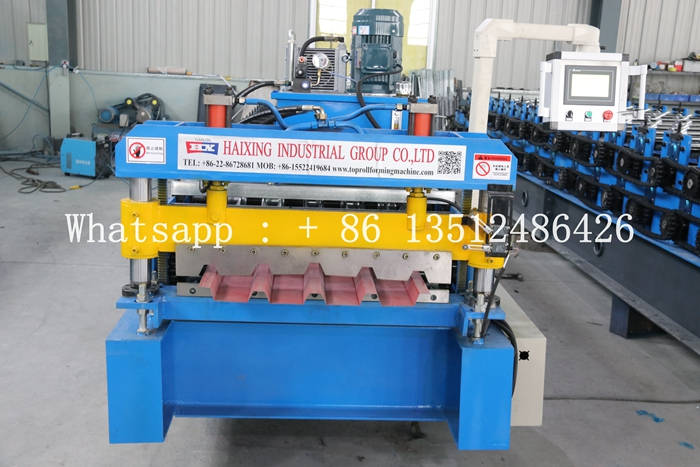

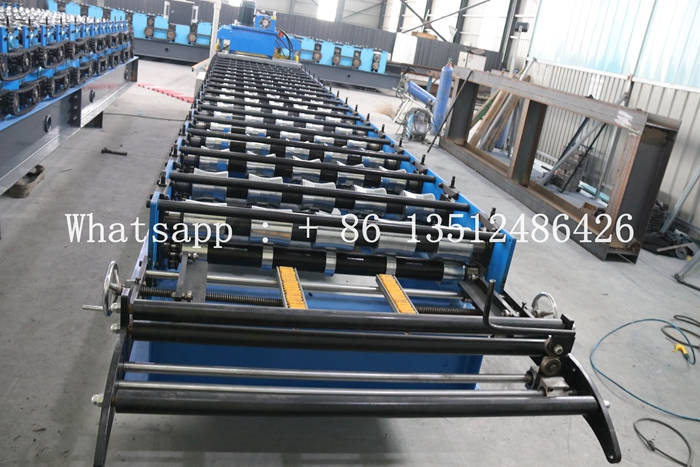

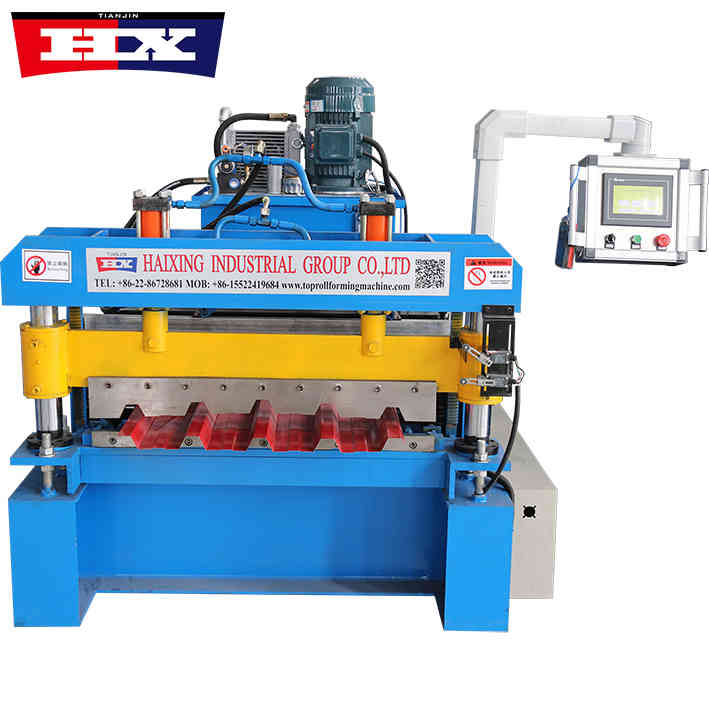

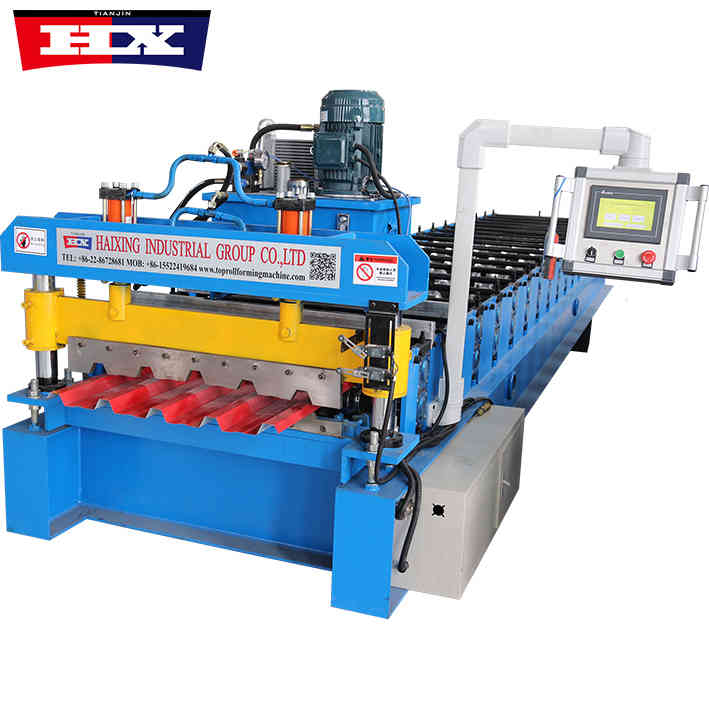

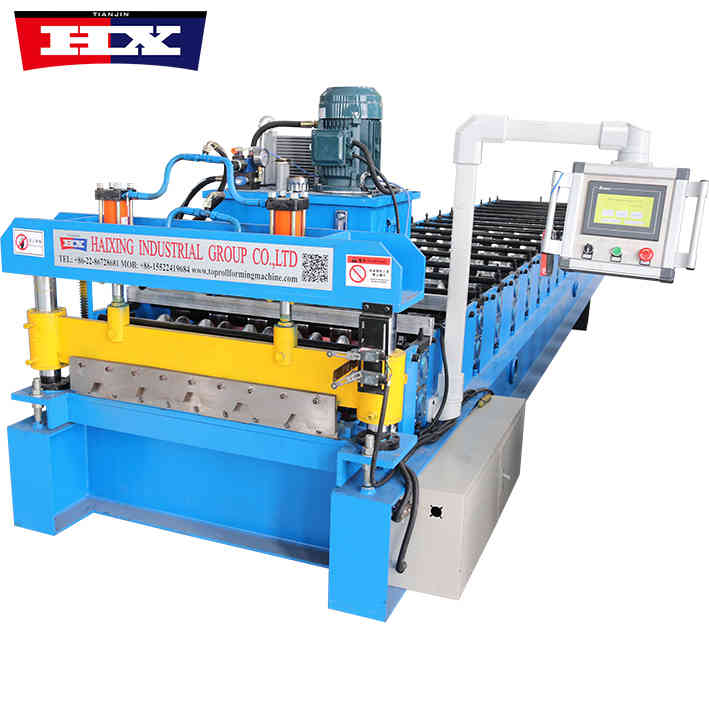

IBR Roof Sheet Forming Machine
IBR Roof Sheet Forming Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin
IBR Roof Sheet Forming Machine
IBR Roof Sheet Forming Machine
1. High efficiency: The IBR roof sheet forming machine adopts a high-speed, high-pressure hydraulic system, which can complete the pressing of a large number of tiles in a short time, improving production efficiency.
2. High precision: This IBR roof sheet forming machine uses high-precision molds and control systems to ensure that the pressed tiles are accurate in size and consistent in shape, effectively reducing the defective rate.
3. Easy to operate: The IBR roof sheet forming machine adopts human-machine interface operation, making the operation process simple and easy to understand, reducing operating difficulty and labor costs.
4. Easy maintenance: The IBR roof sheet forming machine adopts a modular design, which facilitates maintenance and maintenance and reduces the cost of use.
5. Wide range of applications: The IBR roof sheet forming machine can press metal sheets of various materials, thicknesses and specifications to meet the needs of different fields.
IBR Roof Sheet Forming Machine
Specification
No. |
Number |
IBR Roof Sheet Forming Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |

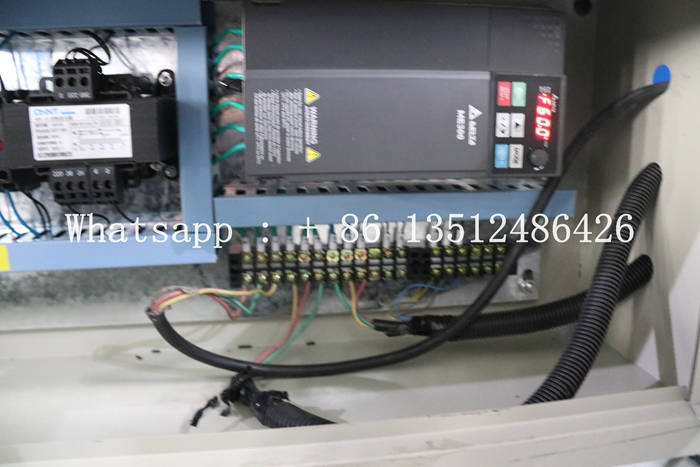

| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 18 |
| 19. | Size | 9000mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
Working Principle
The working principle of the IBR roof sheet forming machine mainly involves two aspects: hydraulic transmission and mold forming.
1. First, the hydraulic system delivers oil to various actuators, such as cylinders, motors, etc., through high-pressure oil pumps to drive the equipment to move. During the pressing process, the metal sheet enters the mold area through the feeding device.

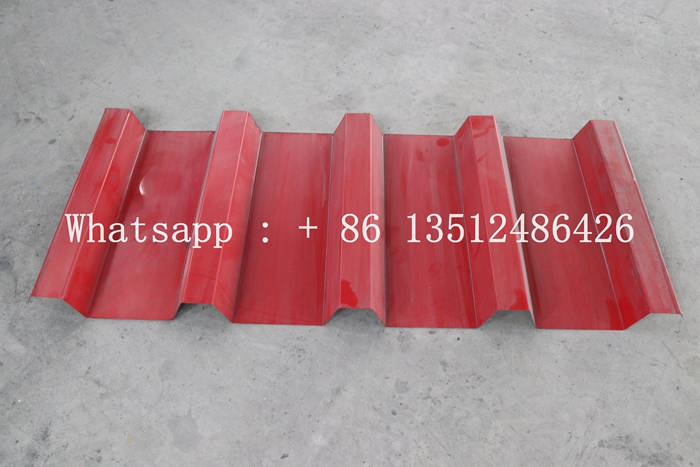

2. And then under the action of a high-pressure oil cylinder, the sheet is pressed into the required shape in the mold. After the pressing is completed, the finished tiles are transported to the stacking area by the discharging device.
