Roof Machine
Roof Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin
Roof Machine
Roof Machine

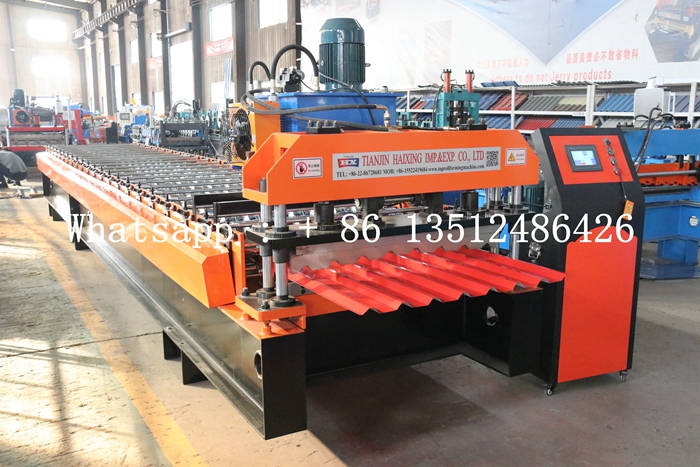

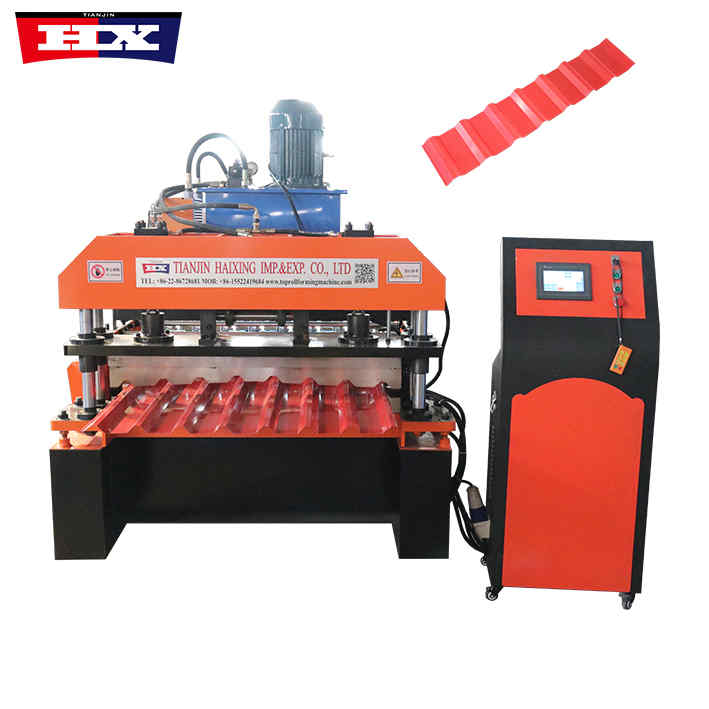

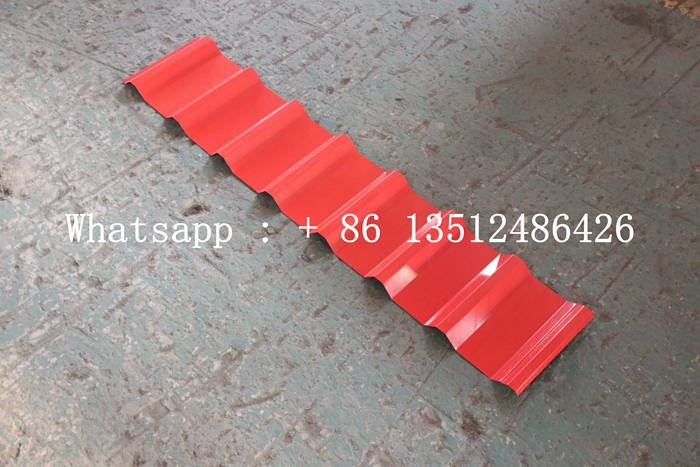

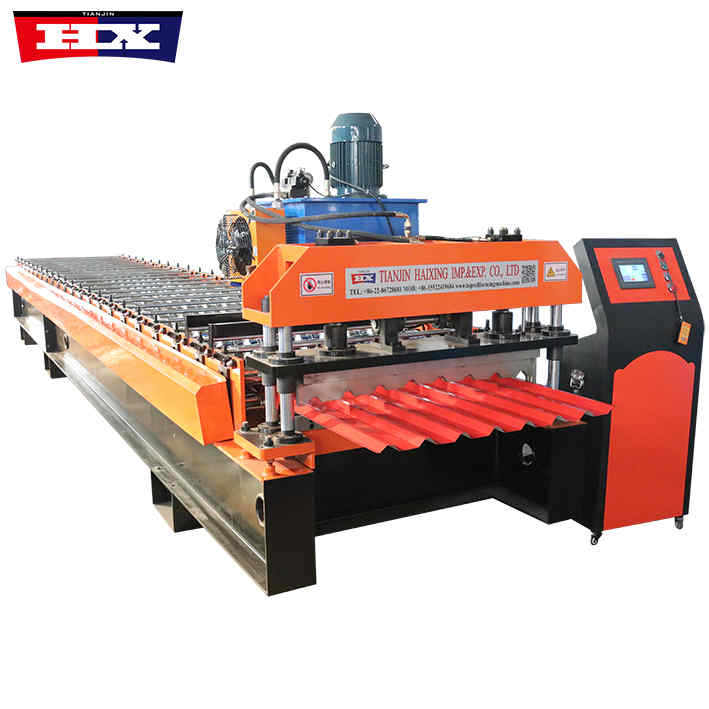

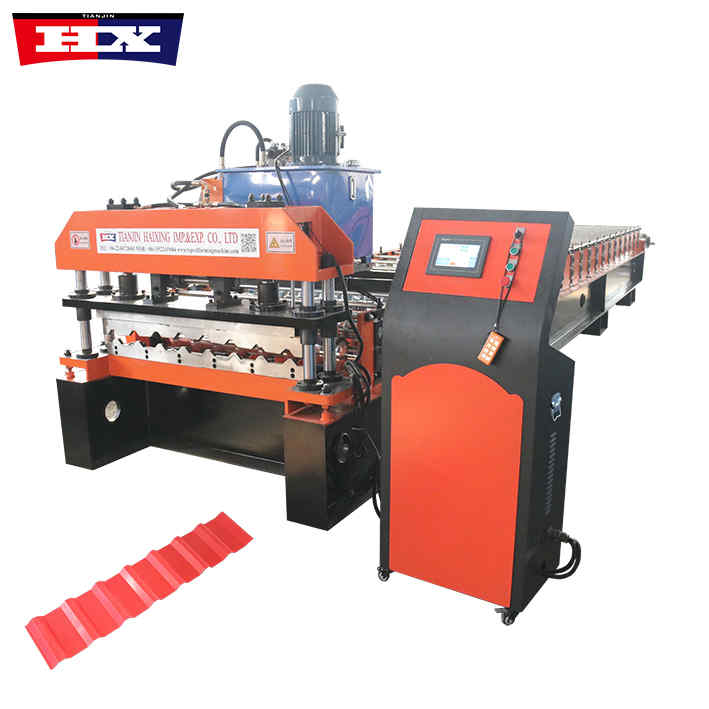

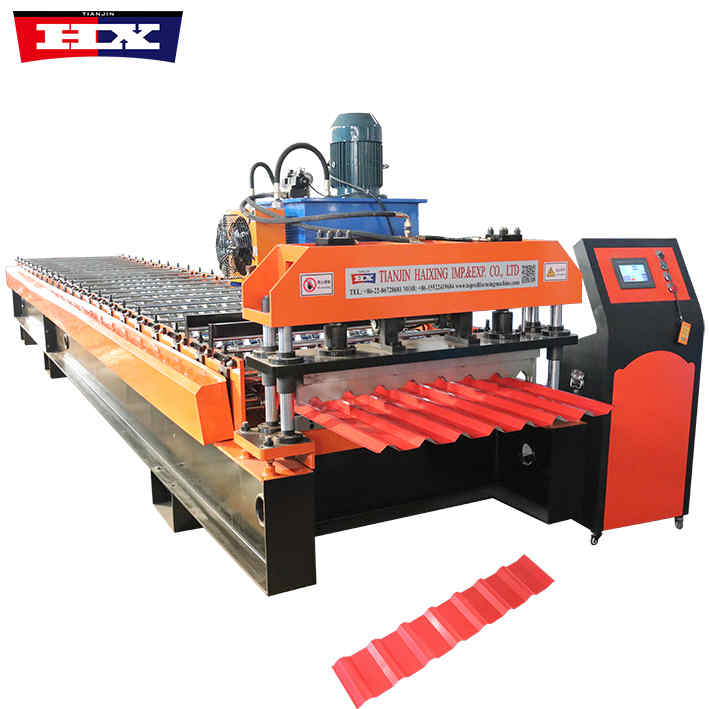

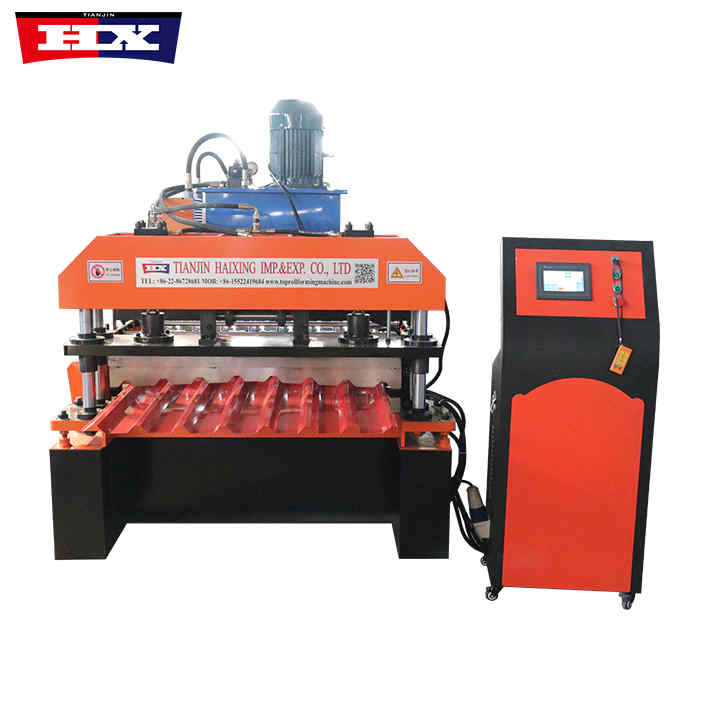

The roof machine is a device that uses mechanical principles to quickly press metal sheets into tile shapes. Its main function is to process metal sheets into metal tiles for building roofs and walls, providing the construction industry with higher-quality, practical and beautiful building materials. At the same time, the corrugated iron roofing sheet making machine can also produce metal tiles of different shapes such as arc shapes according to different needs by replacing different press tile molds.
Roof Machine
Specification
No. |
Number |
Roof Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |

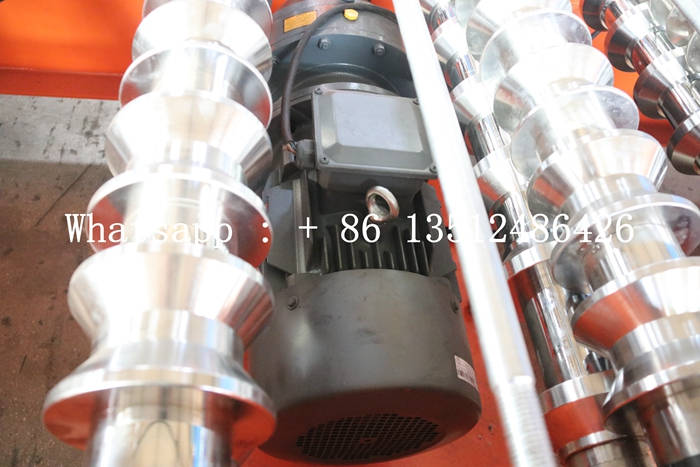

| 5. | Main motor | 5.5kw |

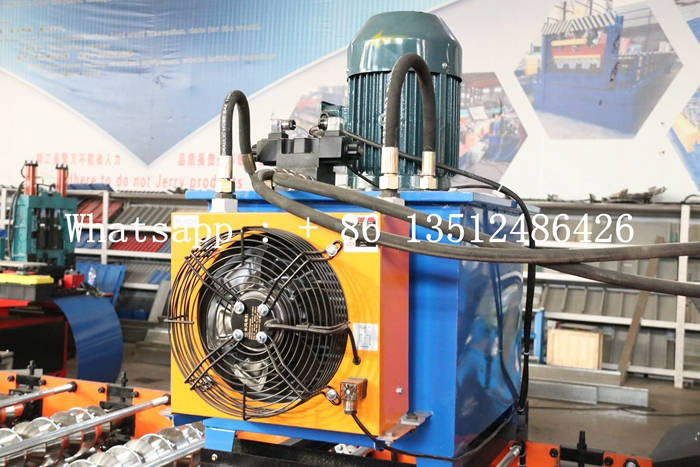

| 6. | Pump station | 4kw |

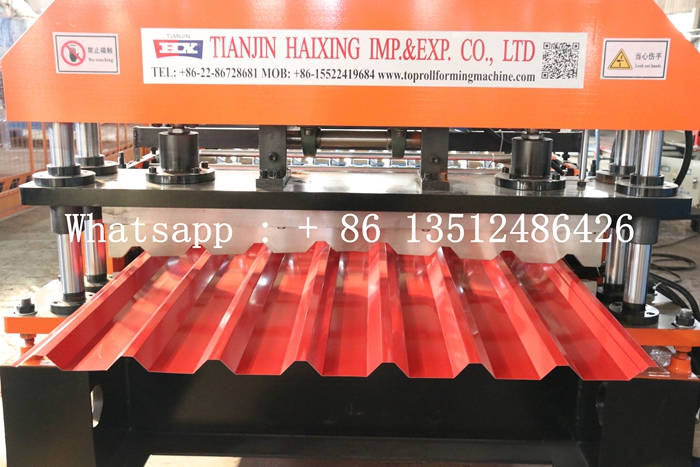

| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 22 |
| 19. | Size | 10500mm*1500mm*1600mm |
| 20. | Weight | 6000kg |
Advantages
1. High production efficiency: Glazed tile roof sheet machine adopts automatic control, has high production efficiency and can produce multiple tiles at one time.
2. High-quality finished products: The tiles produced by glazed tile roof sheet machine are of good quality and are beautiful, durable, and resistant to pressure.
3. Wide applicability: This glazed tile roof sheet machine is suitable for the production of various building materials, such as cement tiles, concrete tiles, stone tiles, etc.
4. Low maintenance cost: The components used in glazed tile roof sheet machine have been strictly tested and tested, and have good durability and maintainability.
5. Simple operation: The glazed tile roof sheet machine is simple to operate, does not require too many technical personnel to operate, and can also achieve automated production.
