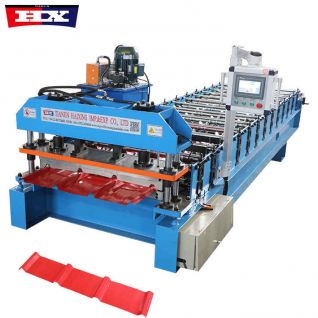

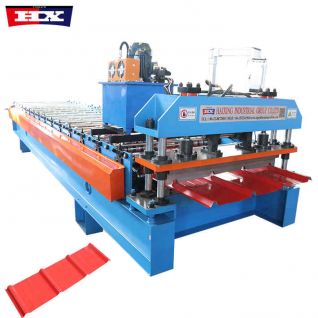

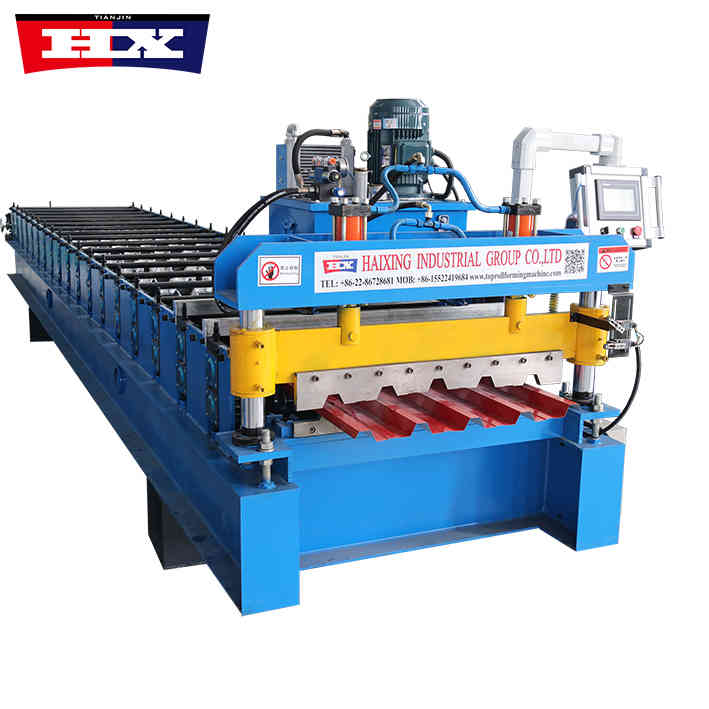

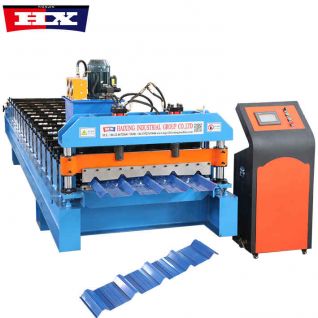

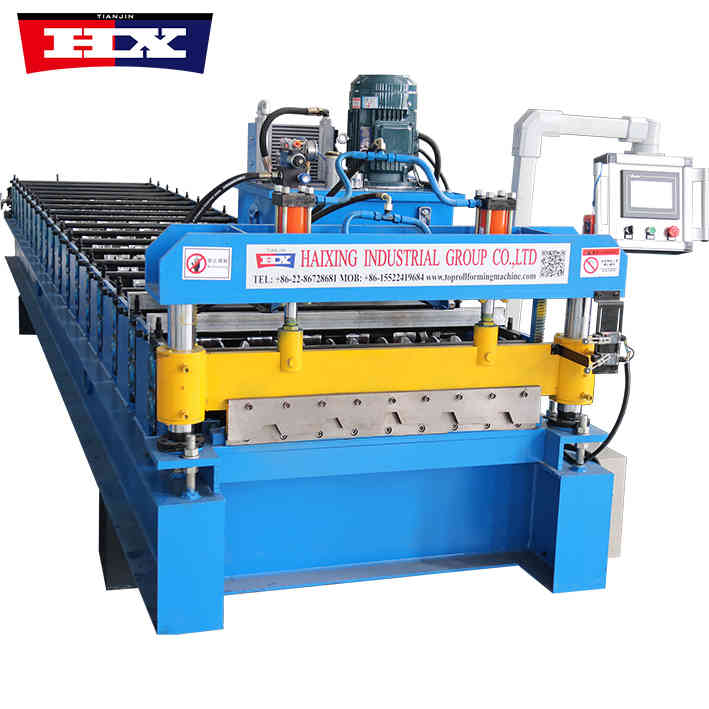

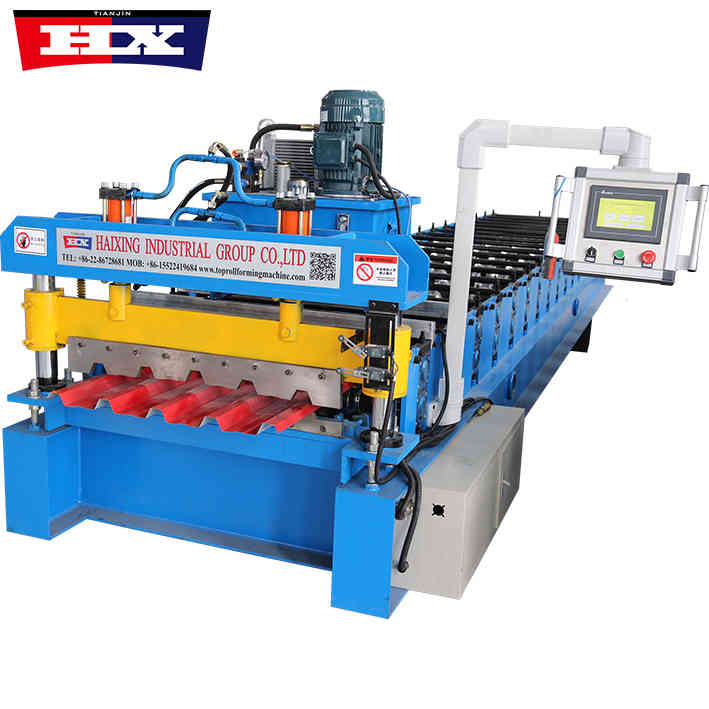

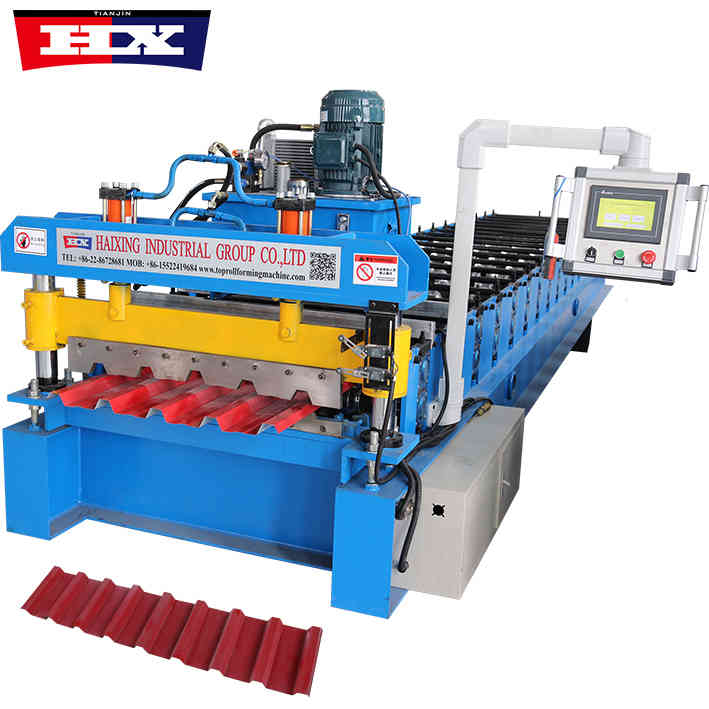

IBR Roof Sheet Making Machine
IBR Roof Sheet Making Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin

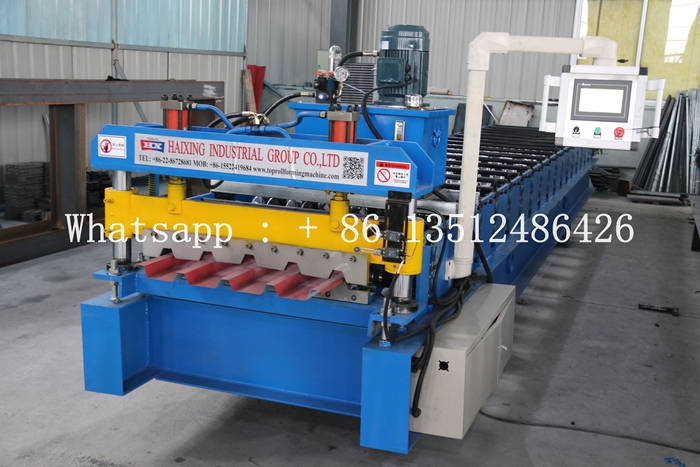

IBR Roof Sheet Making Machine

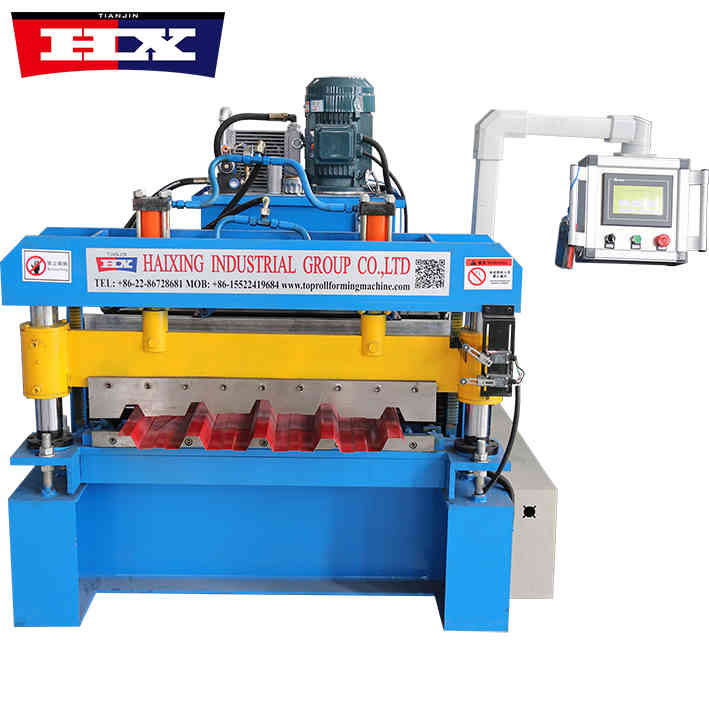

IBR Roof Sheet Making Machine
1. High degree of automation and reduced labor intensity: The tile press adopts an advanced automation control system to realize automation and information management of the production process. The staff only need to operate in the control room to complete the production of color steel tiles. This greatly reduces the labor intensity of workers and improves production efficiency and quality.
2. Easy to operate and reduce the difficulty of use: The operation of the tile press is simple and easy to understand, and you can master the operating skills after simple training. In addition, the device is also equipped with a user-friendly operating system, which makes the operation more convenient and greatly reduces the difficulty of use.
3. Durable and reduces maintenance costs: The tile press is made of high-quality materials and undergoes strict quality control and durability testing to ensure the stability and durability of the equipment. In addition, the maintenance cost of this equipment is low, and only key parts need to be regularly inspected and maintained to maintain good working condition.

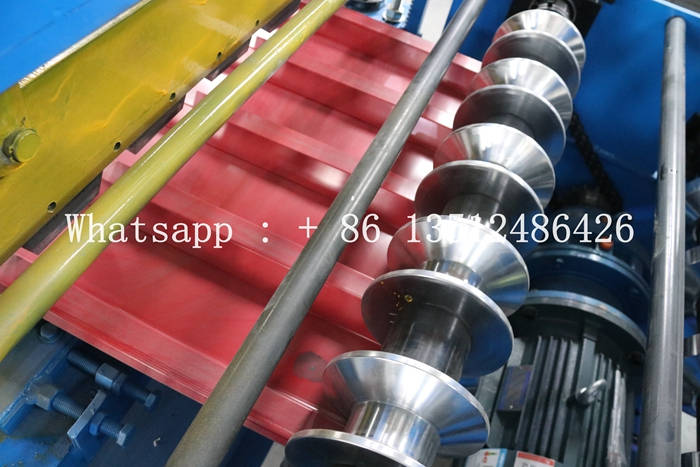

IBR Roof Sheet Making Machine
Specification
No. |
Number |
IBR Roof Sheet Making Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |

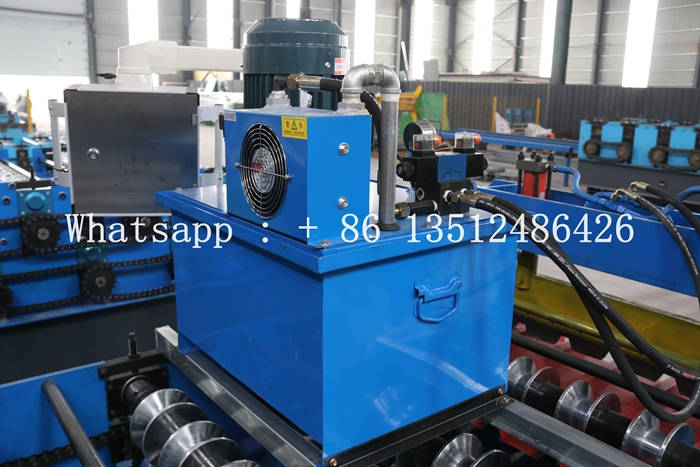

| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |

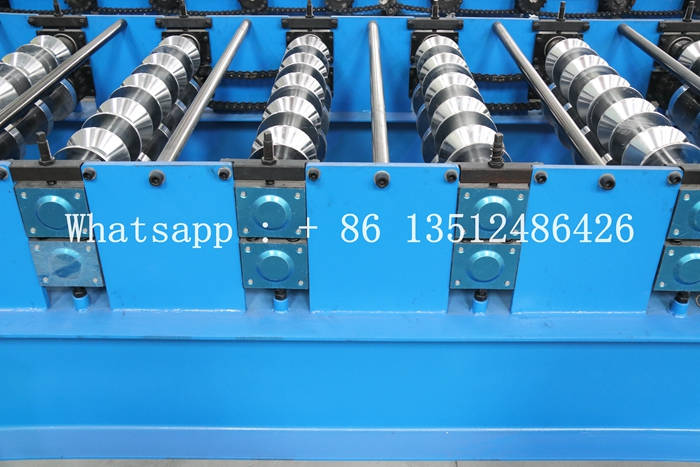

| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 18 |
| 19. | Size | 9000mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
Advantages
1. High output
The tile press can produce a large number of high-quality pressed tiles in a short period of time to meet the needs of customers in a short period of time. By being equipped with automatic feeding devices, automatic cutting wheel knives and hydraulic cutting devices, continuous production can be achieved, greatly improving production efficiency.
2. Energy saving and environmental protection
During the operation of the tile press, advanced CNC technology is used to reduce internal energy waste and achieve energy conservation and environmental protection. At the same time, the tile press adopts advanced secondary molding technology, which reduces the scrap rate and greatly reduces resource consumption and pollution emissions. Thereby achieving the purpose of energy saving and environmental protection.
3. Easy to operate
The operation of the tile press is very simple, and the operator only needs certain training to operate it smoothly. Moreover, the tile press is also equipped with a touch screen control system, which makes the operation more user-friendly and greatly reduces the probability of misoperation. In addition, the tile press can also automatically complete feeding, positioning, cutting and other tasks, reducing manual intervention and achieving semi-automatic production.
