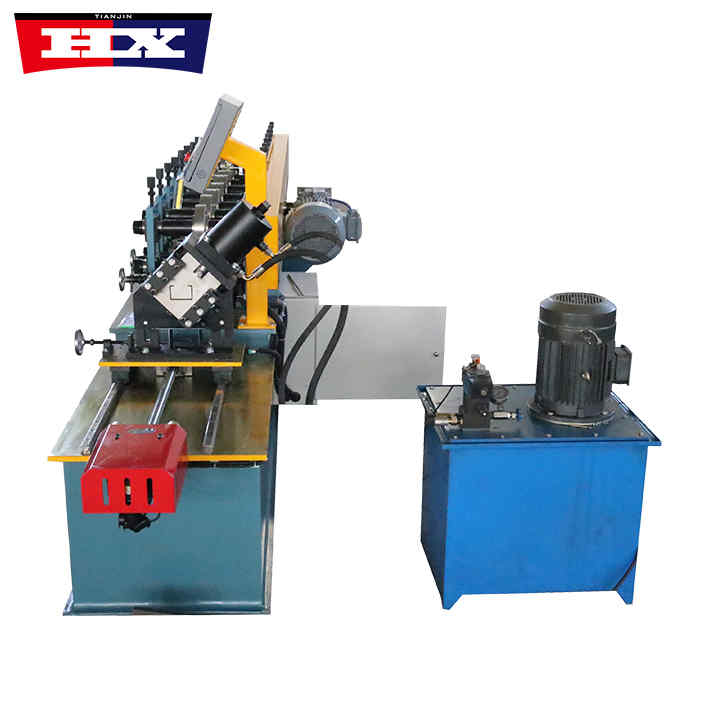

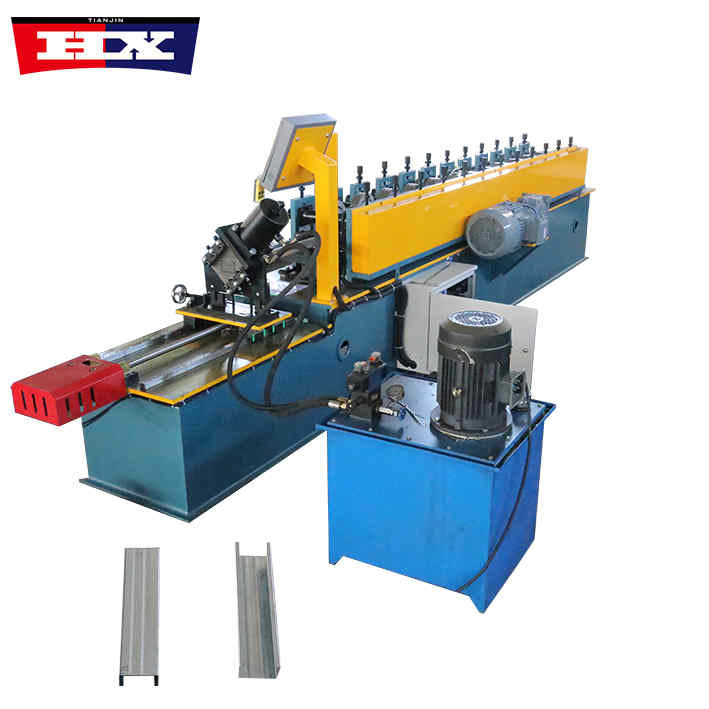

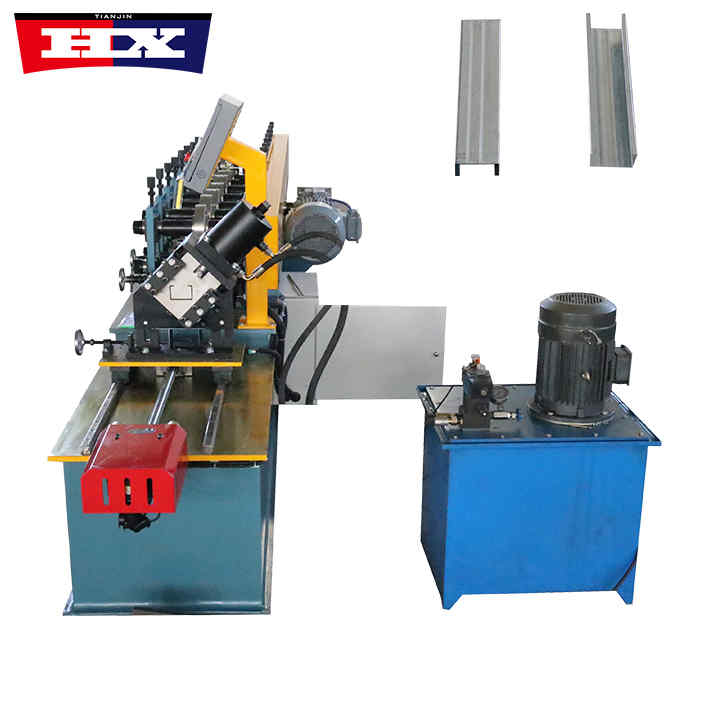

Light Steel Frame Machine
Light Steel Frame Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.4-1.2mm
Produce Speed : 45-60m/min
Port : Tianjin

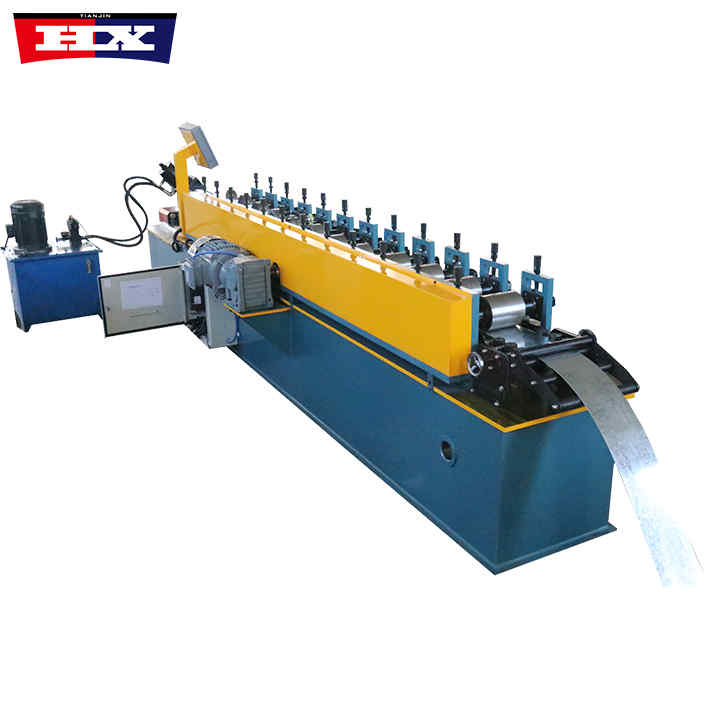

Light Steel Frame Machine
Light Steel Frame Machine
The light steel frame machine is a mechanical equipment professionally used to manufacture various light steel keels. It has the characteristics of high efficiency, precision and energy saving, which greatly improves production efficiency and quality.
The light steel frame machine is driven by a hydraulic system and presses steel plates into keels of various shapes through molds. Its main working principle is to use a mold to stamp the steel plate and deform it into the required shape. After a series of operations and adjustments, a high-precision and high-quality keel product is finally generated.

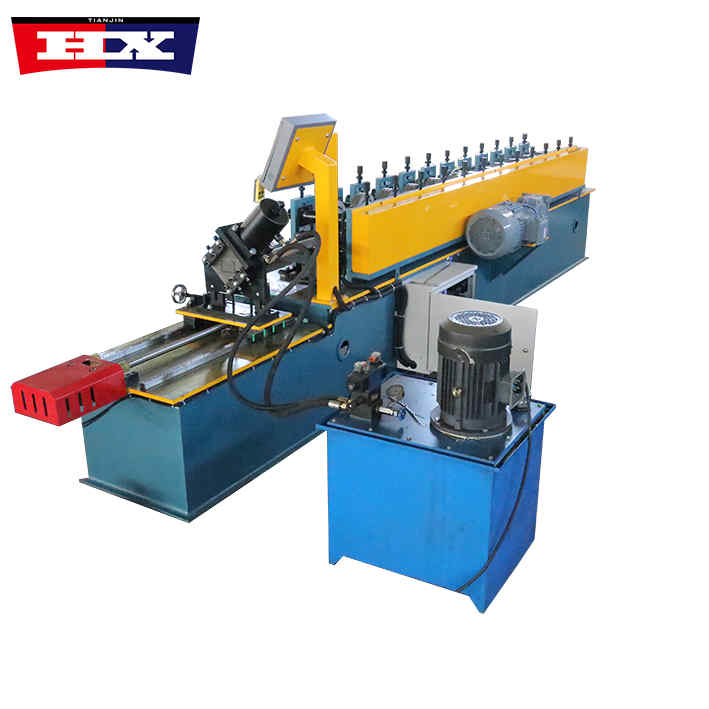

Light Steel Frame Machine
Specification
No. |
Number |
Light Steel Frame Machine |
| 1. | Suitable to process |
Color alu zinc steel coils |
| 2. | Transfer method | Gear transmission |
| 3. | Base frame | Type 300 Channel Steel Frame Welding Panel thickness 2mm, Q235 iron plate material (gantry milling plane processing) |
| 4 | Main frame | Square steel frame |
| 5. | Dimensions | 6.5*1.2*1.6m |
| 6. | Board size |
Memorial arch, thickness 35 mm (double bearings on front and rear arches) |
| 7. | Weight | About 3.6t |
| 8. | Produce speed | 45-60m/min |
| 9. | Engine power | 5.5Kw, the motor includes a type K reducer |
| 10. | Pump station engine | 5.5kw |
| 11. | Thickness of plate | 0.4-1.2mm |

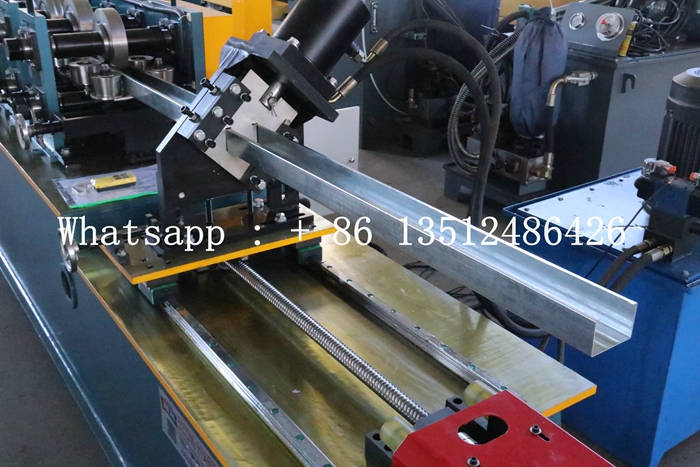

| 12. | Cutting shape | Servo track cutting system 2.3kw servo motor power Platform track cut 30×30, ball screw diameter 3mm |

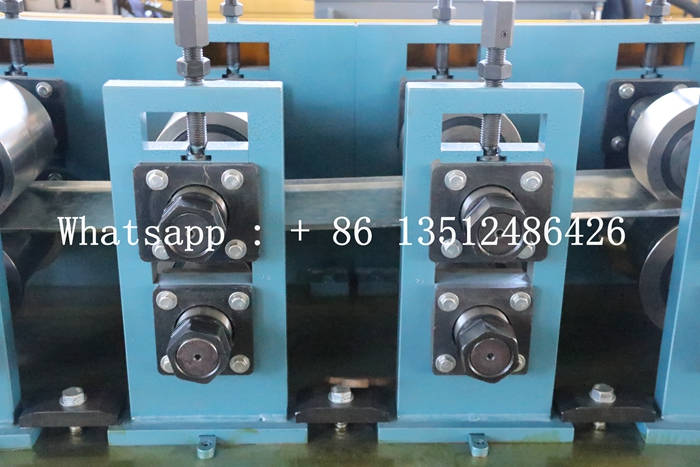

| 13. | Roller diameter | Φ50mm |
| 14. | Spacer | Φ70mm |
| 15. | Control system | PLC control ( Delta ) |
| 16. | Touch screen | Delta |
| 17. | Rolling stock | Cr12 steel bearing |
| 18. | Rows | 12 |
| 19. | Length tolerance | ±2mm |
| 20. | Voltage |
380v 50hz 3p or as customers ' requirement |
Application

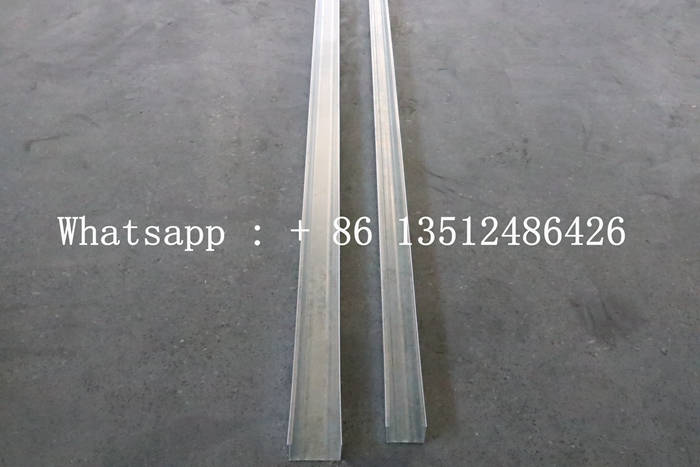

1. In the construction field, light steel frame machine can be used to manufacture light steel keels, such as ceiling keels, wall keels, etc., which improves the quality and life of the building.
2. In the manufacturing field, light steel frame machine can be used to manufacture various metal products, such as auto parts, kitchen supplies, etc., greatly improving production efficiency and quality.
Advantages
1. Efficient: It is driven by a hydraulic system, which greatly improves production efficiency and reduces labor costs.
2. Precision: Using molds for stamping can produce high-precision and high-quality keel products.
3. Energy saving: The hydraulic system can completely recycle hydraulic energy to achieve energy saving effects.
