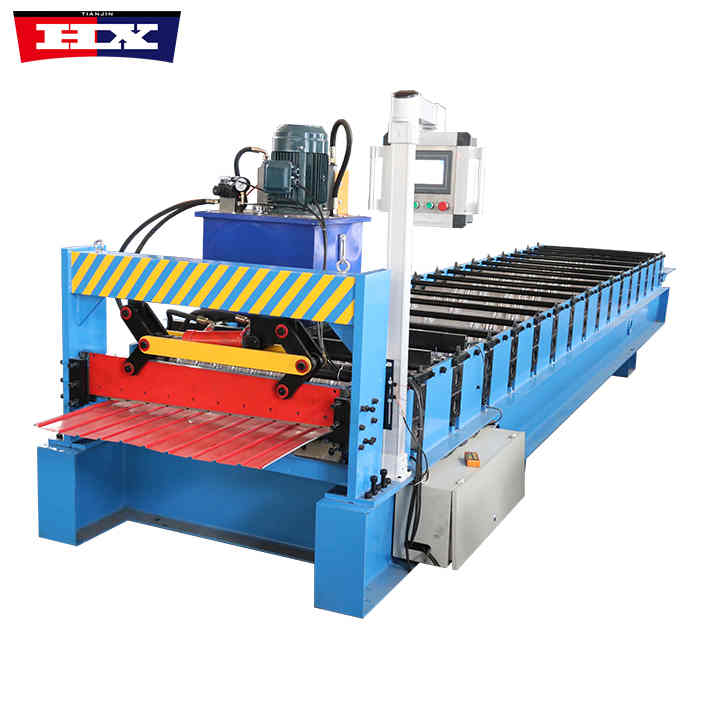

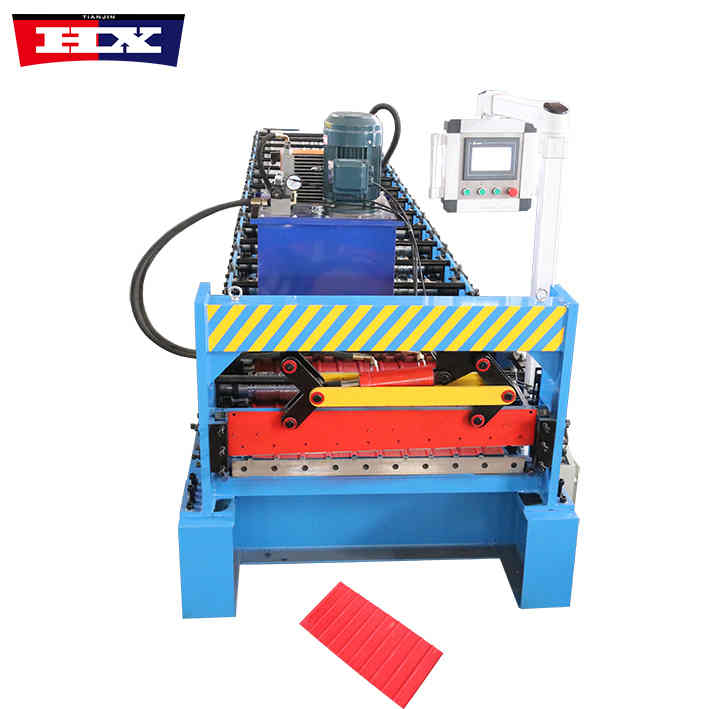

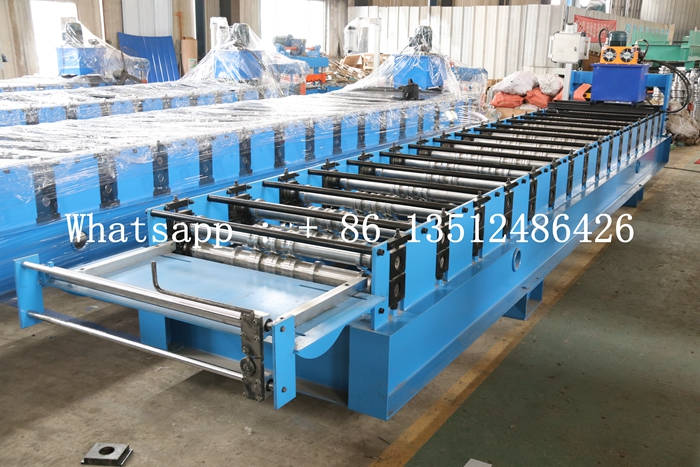

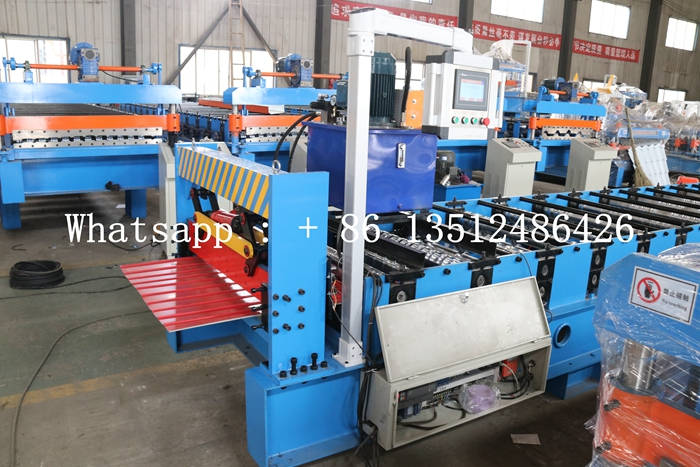

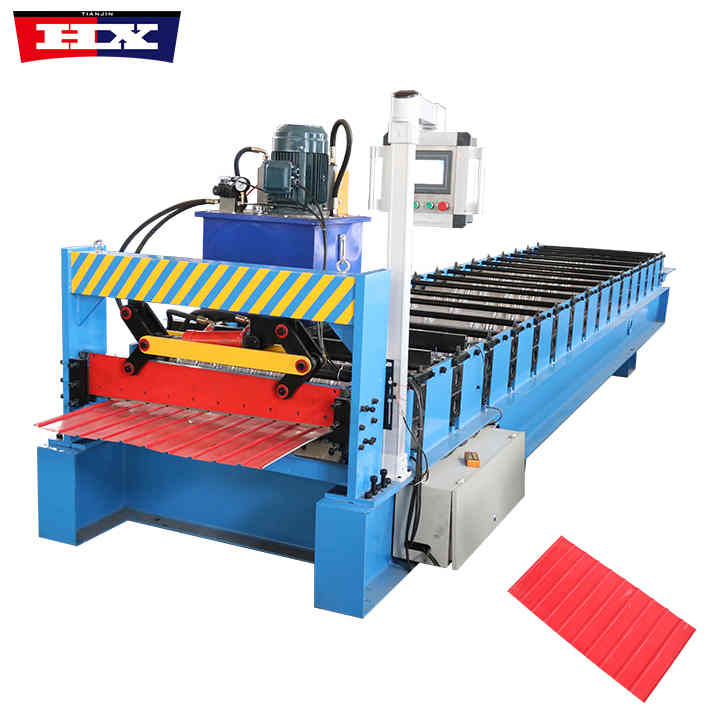

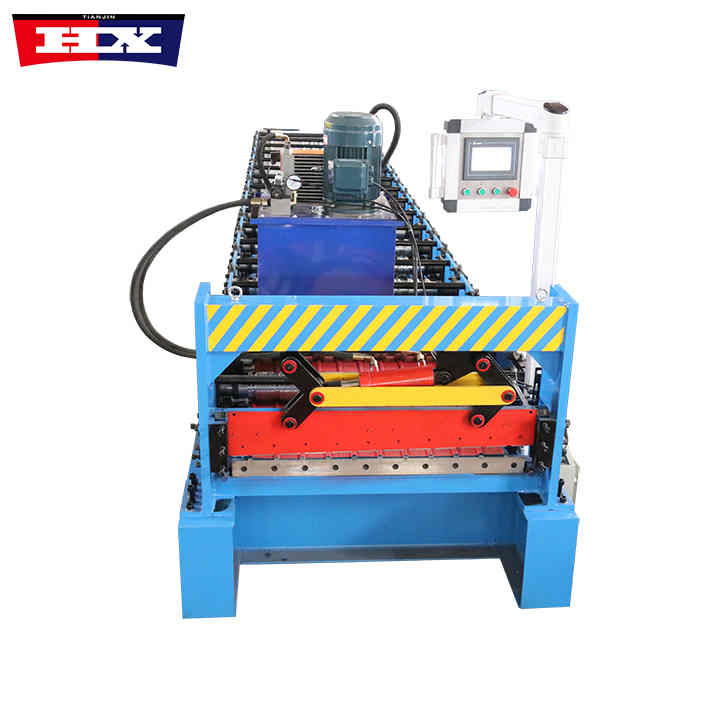

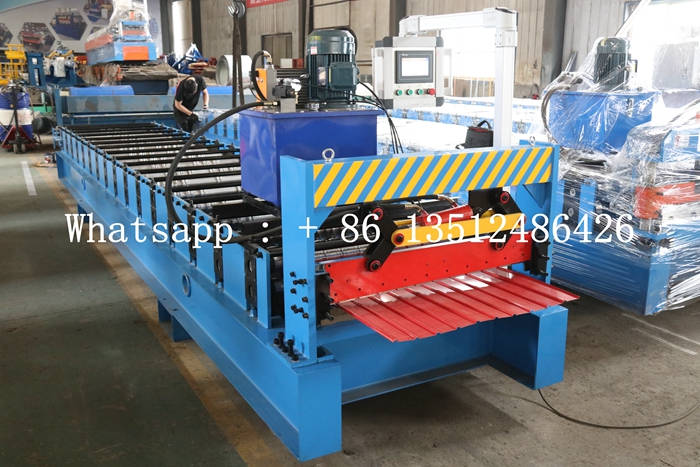

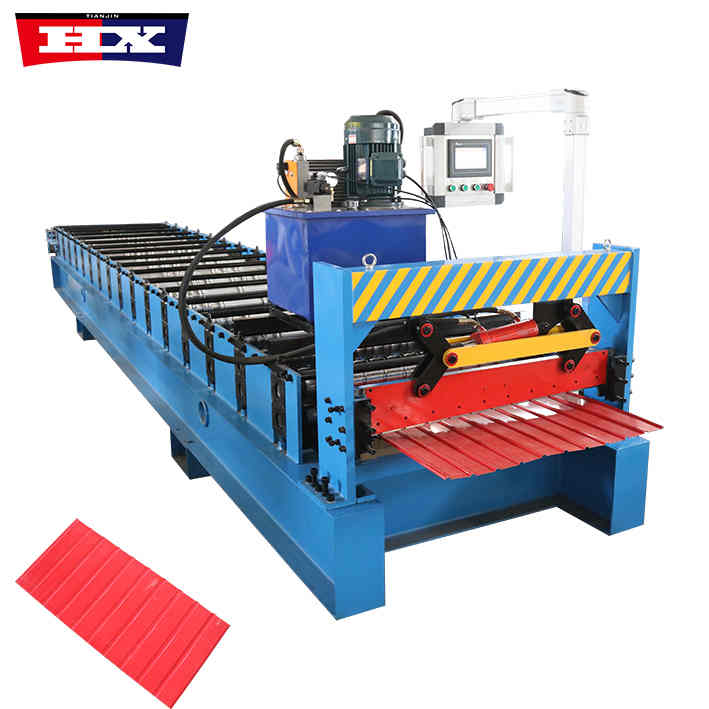

Machine For Roofing Sheet
Machine For Roofing Sheet
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin
Machine For Roofing Sheet
Machine For Roofing Sheet

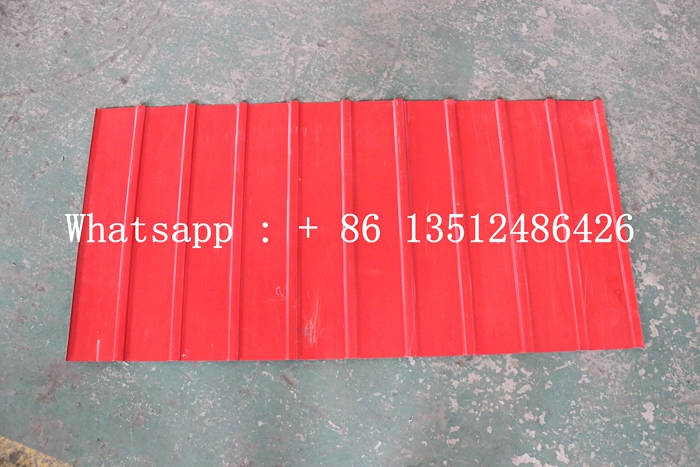

Machine for roofing sheet is a common construction machinery used to produce various types of tiles. It has a wide range of uses and can be used not only on roofs of residential buildings, commercial buildings and industrial buildings, but also in agricultural buildings and landscaping projects.
Machine For Roofing Sheet
Specification
No. |
Number |
Machine For Roofing Sheet |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |

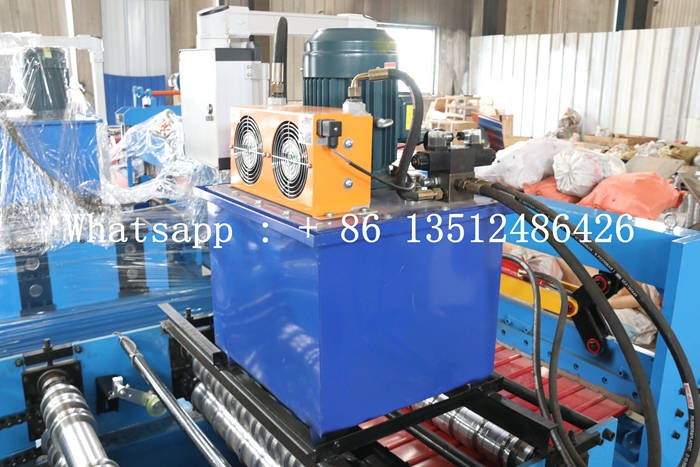

| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 16 |
| 19. | Size | 8000mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
Features
1. Laying the roof
1). By using a tile press, various types of tiles can be laid easily, such as colored steel tiles, cement tiles, etc. These tiles are pressed and shaped by machines to ensure their dimensional consistency and quality stability.
2). The tile press can achieve high-speed laying and improve construction efficiency and work efficiency. It can quickly complete the roof laying work, reducing labor and time costs.
2. Provide protection and decoration
1). Pressed tiles have high density and durability and can be effectively waterproof, shockproof and windproof. This provides reliable protection for residential buildings and increases their service life.
2). Various types of tiles come in rich colors and can be selected according to the design and style of the residential building, providing beautiful appearance and decorative effects.
3. Provide protection and insulation
1).Commercial buildings generally require higher security and protection. The tiles produced by the tile press have high density and strength, which can provide reliable waterproof and wind resistance, protecting commercial buildings from severe weather.
2). The tile press can produce tiles with thermal insulation properties, reduce the energy consumption of commercial buildings, and improve energy-saving effects.
4. Landscape engineering
1). The tiles produced by the tile press can be used in landscape projects, such as gardens, parks and leisure squares. By choosing tiles of different colors and shapes, you can create a unique landscape effect and increase the beauty of the area.
2). The pressed tiles are compression-resistant and durable, can withstand the impact of people and traffic, and are durable.
