Roof Panel Machine
Roof Panel Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin
Roof Panel Machine
Roof Panel Machine

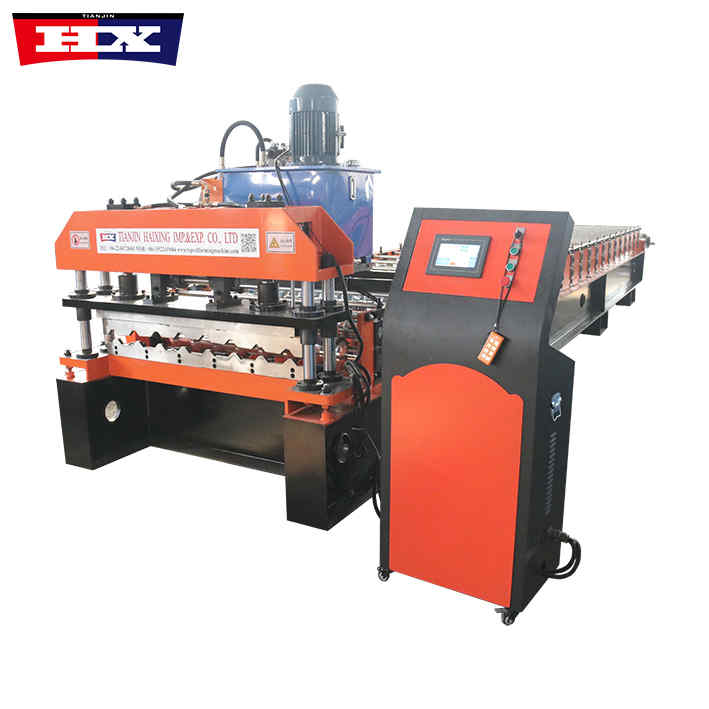

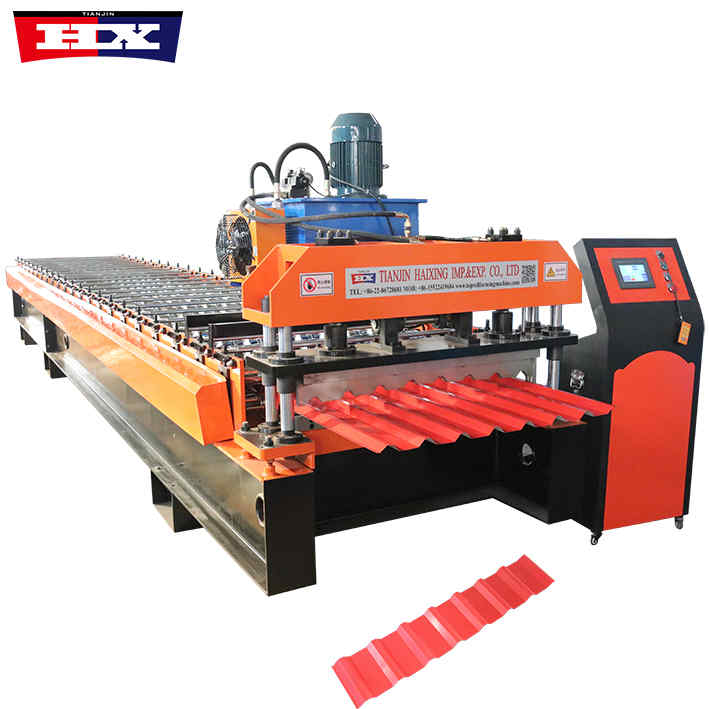

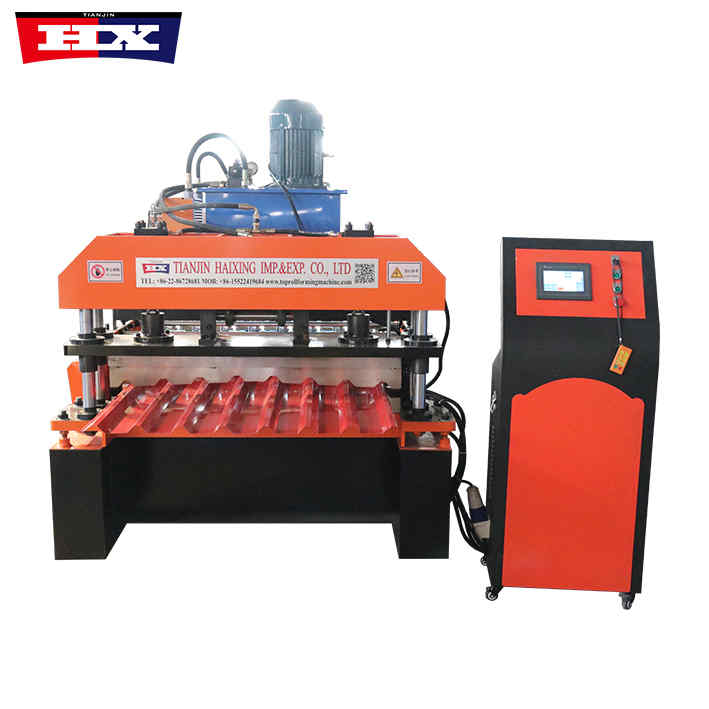

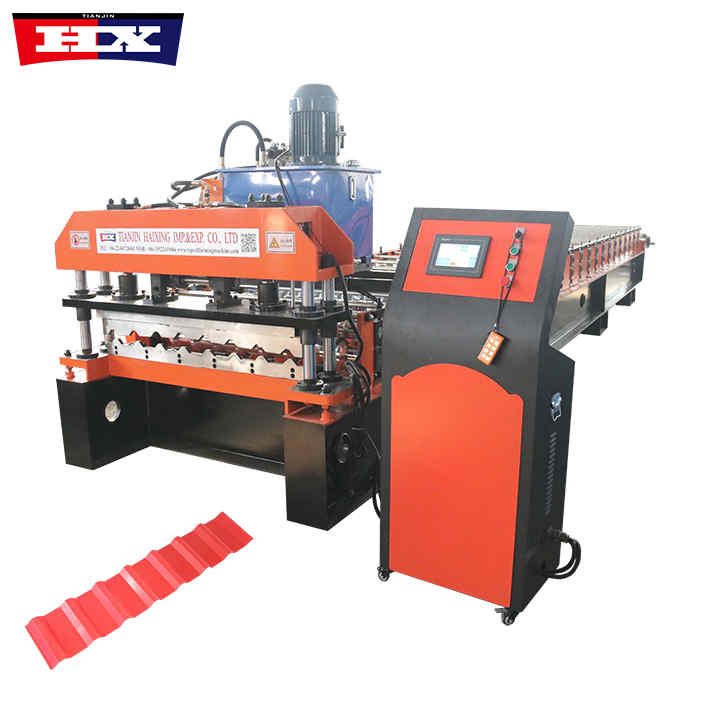

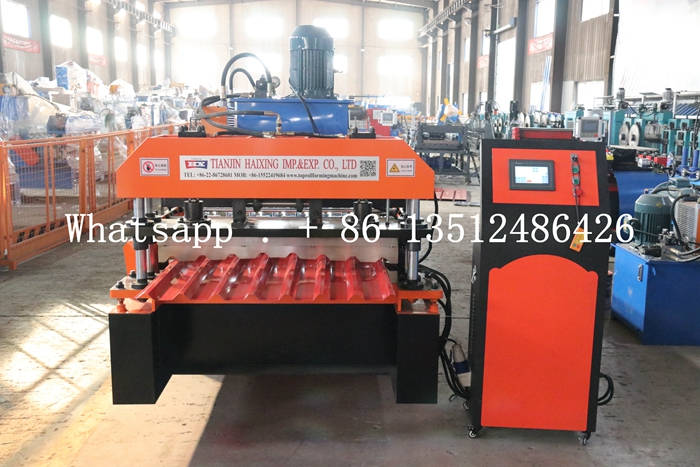

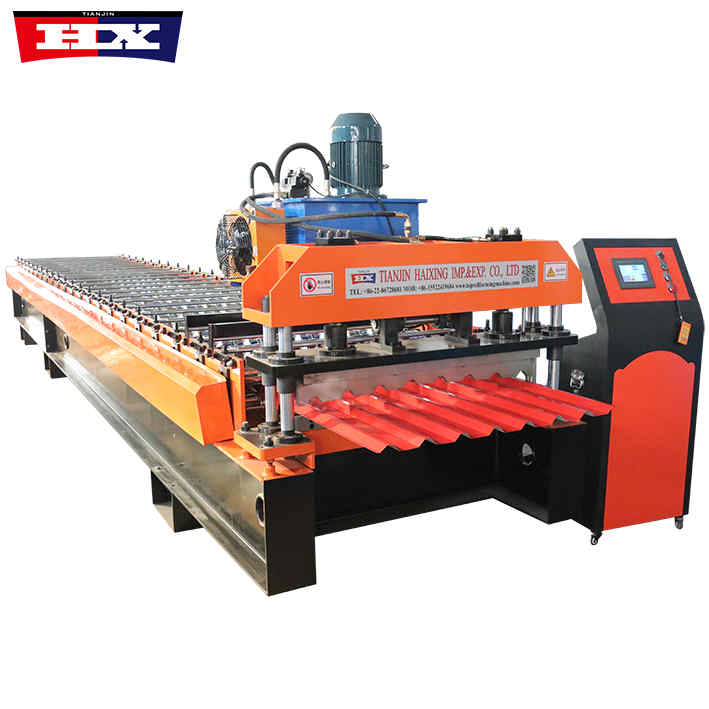

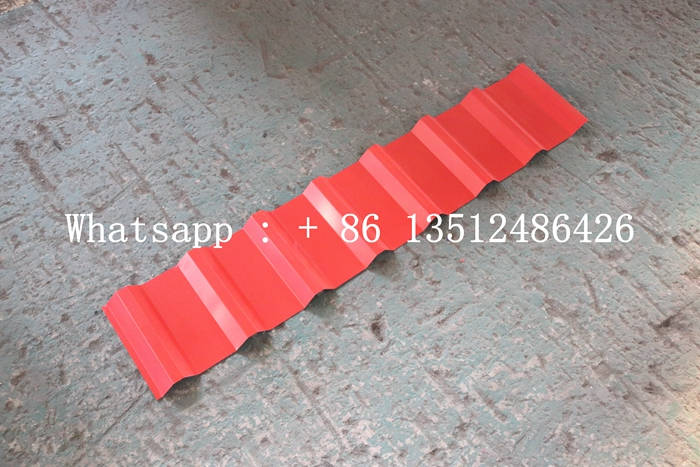

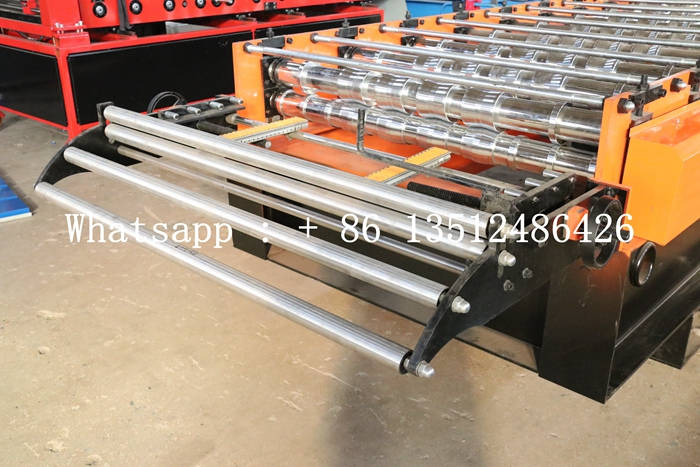

The roof panel machine consists of unloading, forming, and post-forming and cutting. The color plates produced have a smooth and beautiful appearance, uniform paint patterns, high strength, and durability. They are widely used in industrial and civil buildings, such as factories, warehouses, gymnasiums, exhibition halls, theaters, etc. House surface and walls.
1. Efficient, precise and stable production capacity.
2. Using a chain drive system, the tile pressing work can be completed quickly and accurately, greatly improving production efficiency.
3. It has a high degree of automation and intelligence, can realize automatic control and intelligent management, and reduces labor costs and labor intensity.
Roof Panel Machine
Specification
No. |
Number |
Roof Panel Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |

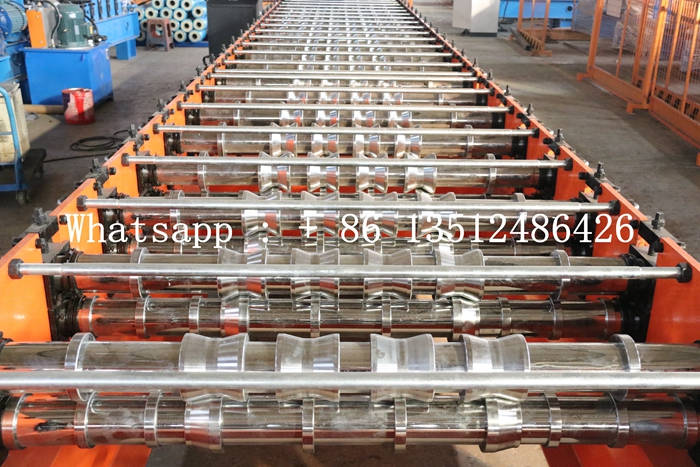

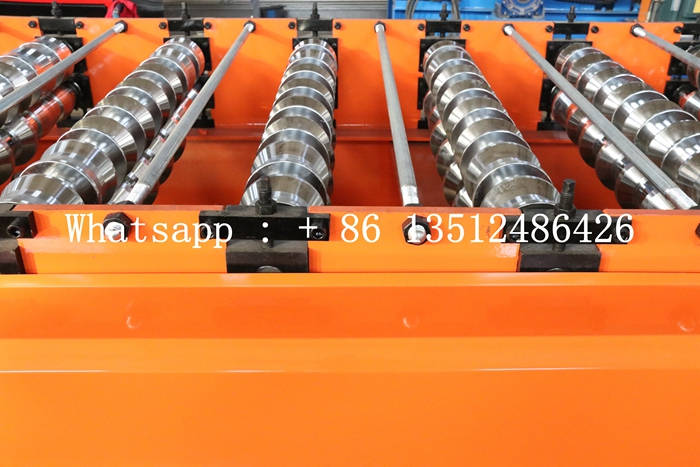

| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 22 |
| 19. | Size | 10500mm*1500mm*1600mm |
| 20. | Weight | 6000kg |
Advantages
1. By using a tile press, various types of tiles can be laid easily, such as colored steel tiles, etc. These tiles are machine pressed and shaped to ensure dimensional consistency and quality stability.
2. The tile press can achieve high-speed laying and improve construction efficiency and work efficiency. It can quickly complete the roof laying work, reducing labor and time costs.
3. Pressed tiles have high density and durability, and can be effectively waterproof, shockproof and windproof. This provides reliable protection for residential buildings and increases their service life.
4. Various types of tiles are available in rich colors and can be selected according to the design and style of the residential building, providing beautiful appearance and decorative effects.
