Roof Panel Machine For Sale
Roof Panel Machine For Sale
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin
Roof Panel Machine For Sale
Roof Panel Machine For Sale

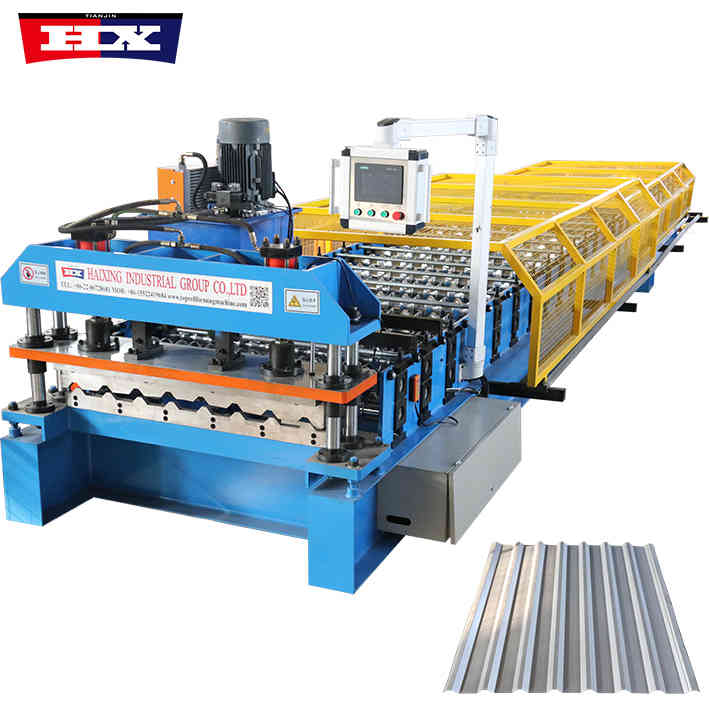

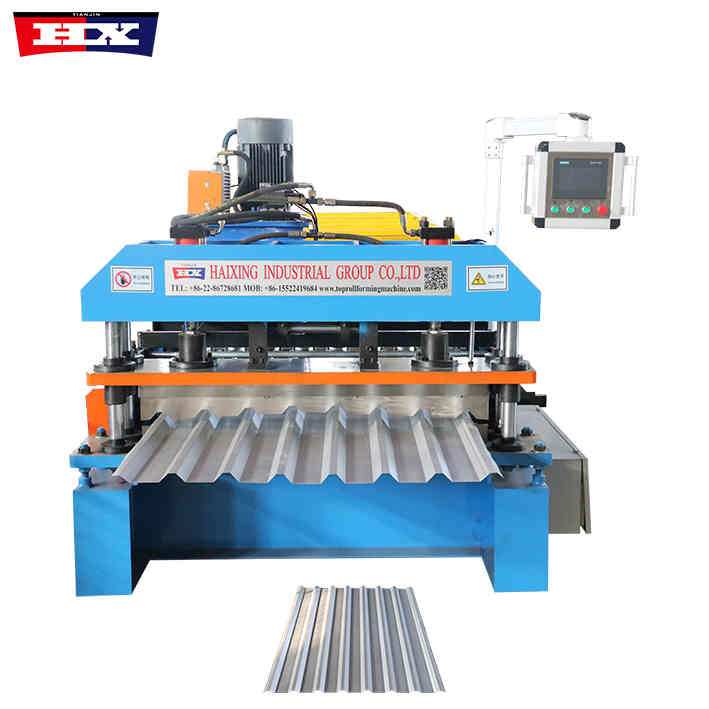

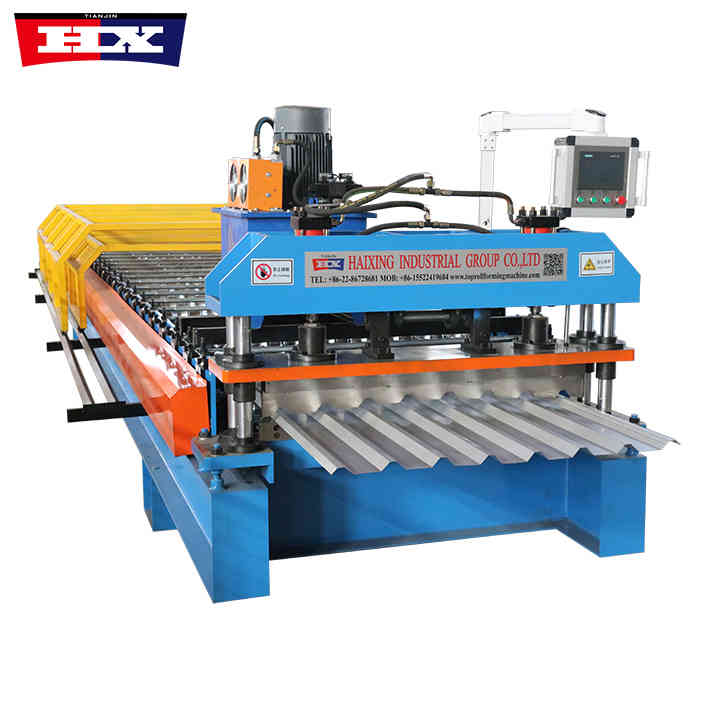

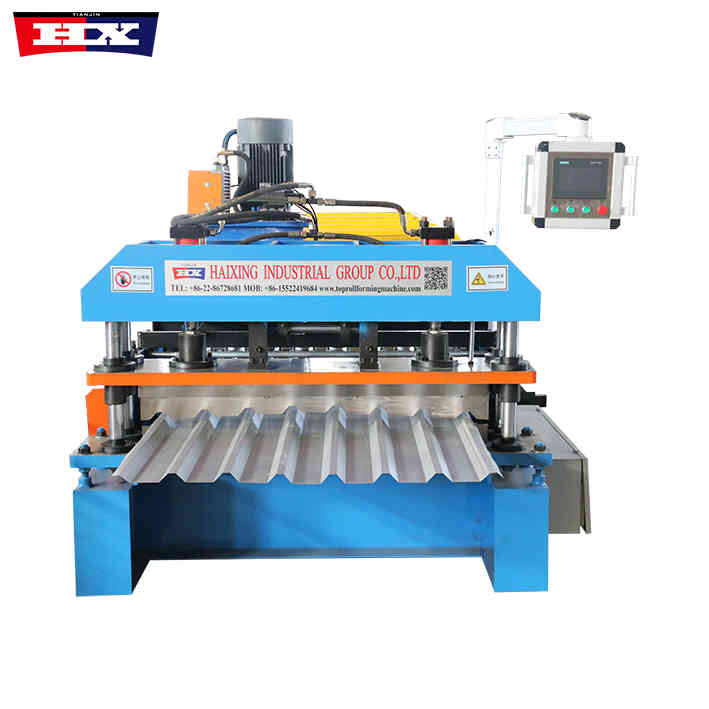

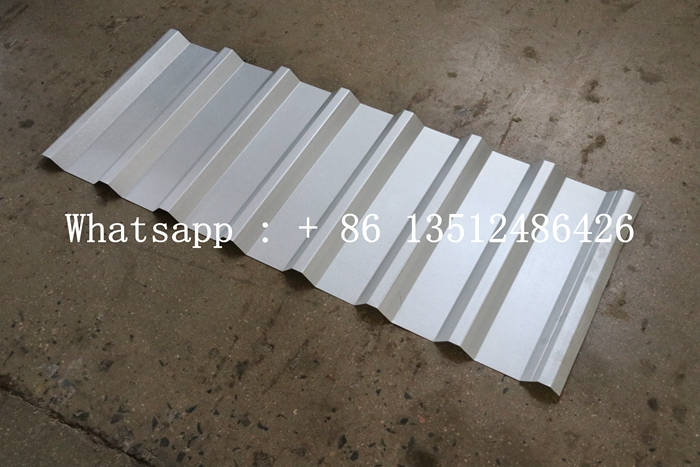

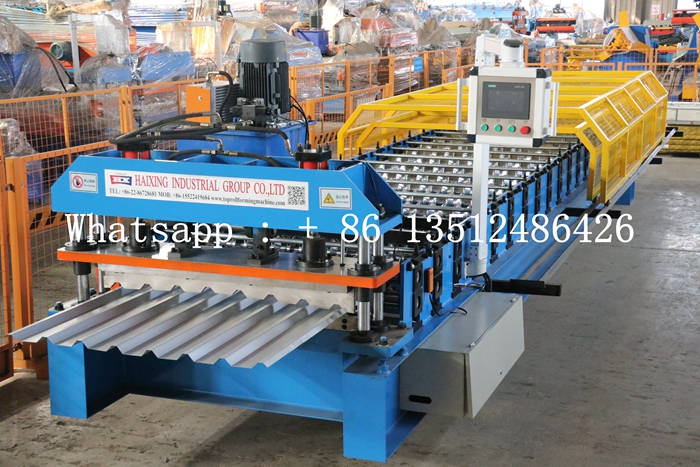

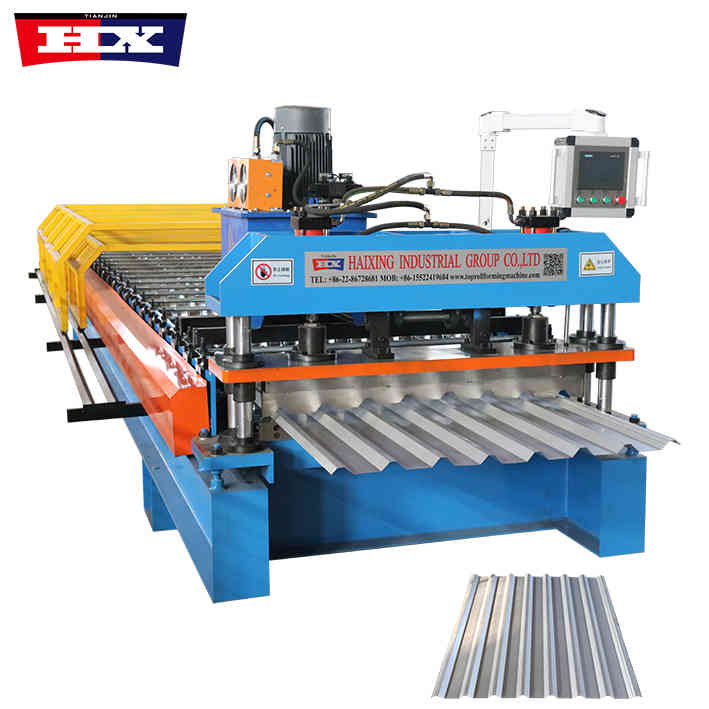

The roof panel machine for sale is an efficient and precise metal processing equipment that is widely used in construction, decoration, transportation, home appliances and other fields. Its main function is to press metal sheets into corrugated sheets of various shapes to meet the needs of metal corrugated sheets in different fields.
Roof Panel Machine For Sale
Specification
No. |
Number |
Roof Panel Machine For Sale |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |

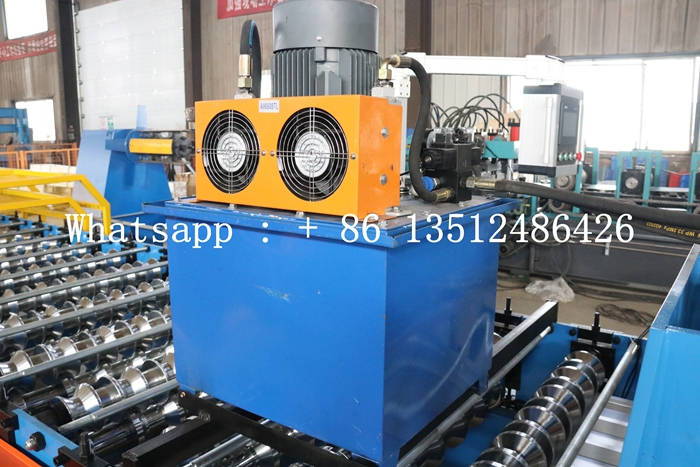

| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |

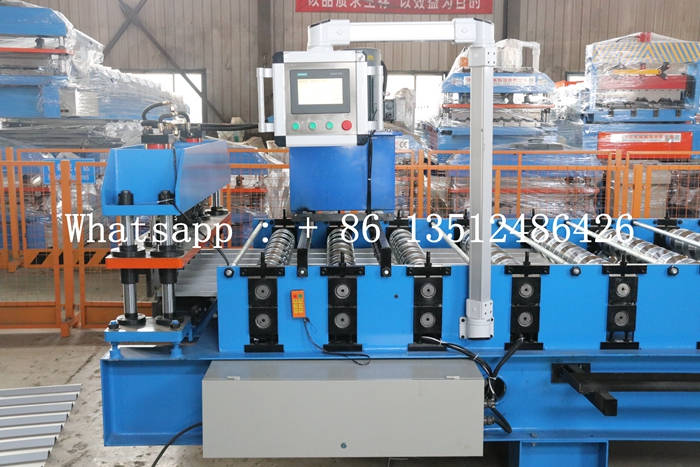

| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |

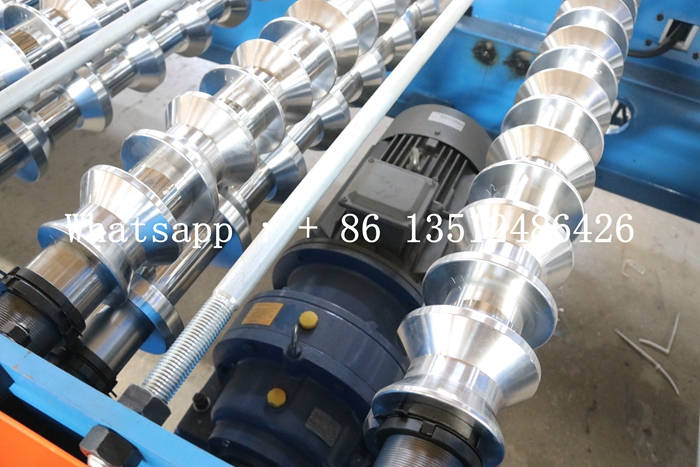

| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 22 |
| 19. | Size | 10500mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
How To Operate
1. Preparation: Confirm that the machine power supply is connected and powered on. Check whether all parts of the machine are operating normally, such as transmission belts, bearings, etc. Check whether the raw materials are ready.
2. Adjust the mold: According to the required tile specifications, select the corresponding mold and install it on the machine. Make sure the mold is installed securely. Adjust the mold position and pressing depth to accommodate different tile shapes and thicknesses.
3. Adjust pressure and speed: Adjust the machine parameters according to the required pressure and speed. Generally speaking, lower pressure and speed are suitable for thinner tiles, while higher pressure and speed are suitable for thicker tiles. Make adjustments according to actual conditions.
4. Start pressing: Put the raw materials into the feed port of the machine, and send the raw materials into the mold through the machine's conveying system. Start the machine and start pressing the tiles.
5. Check the quality: During the pressing process, always check whether the quality and shape of the tiles meet the requirements. If any problems are found, stop the machine for maintenance and troubleshooting in time.
6. Collect finished products: The pressed tiles will be discharged from the discharge port of the machine. The finished tiles are collected using a collecting device, processed and packaged.
7. Cleaning and maintenance: After using the fully automatic tile press, clean the residue inside and outside the machine in time to keep the machine clean and tidy. Perform regular maintenance, check the wear and tear of various parts of the machine, and make necessary replacements and repairs.
