Roof Tiles Machine For Sale
Roof Tiles Machine For Sale
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin
Roof Tiles Machine For Sale
Roof Tiles Machine For Sale

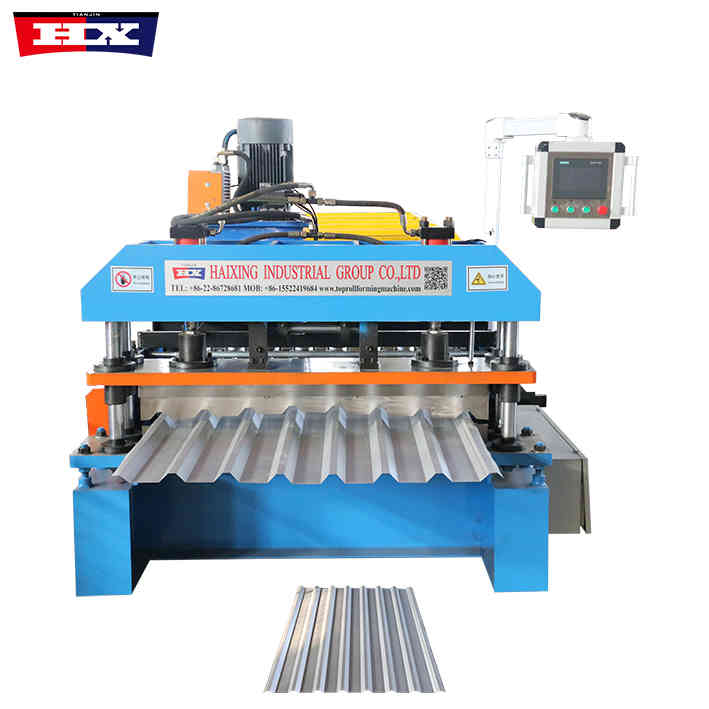

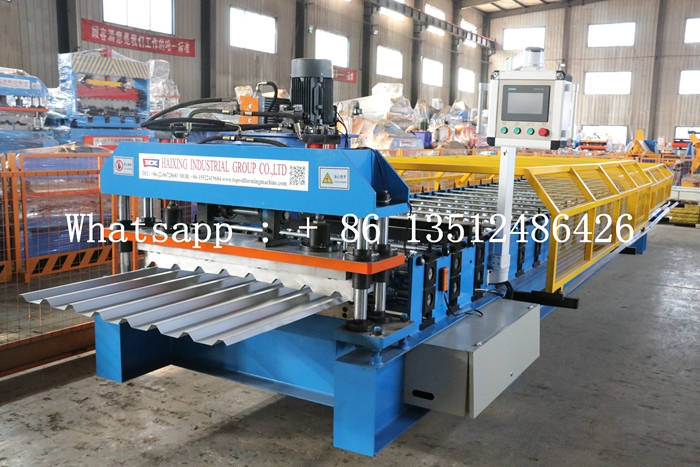

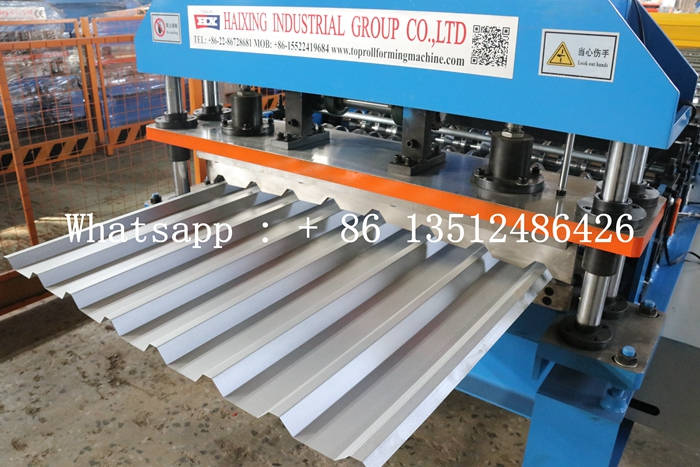

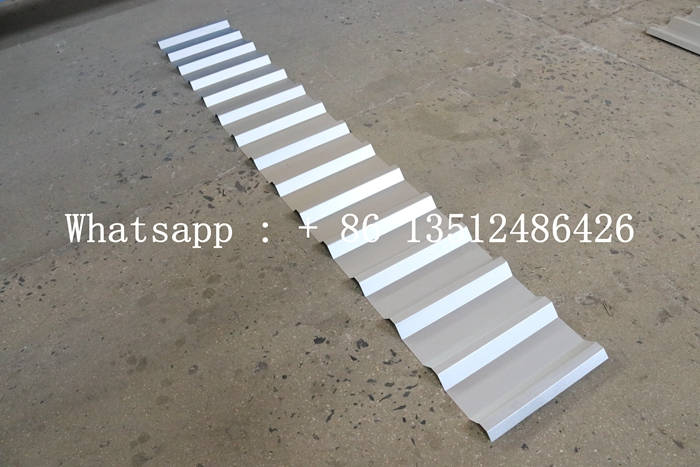

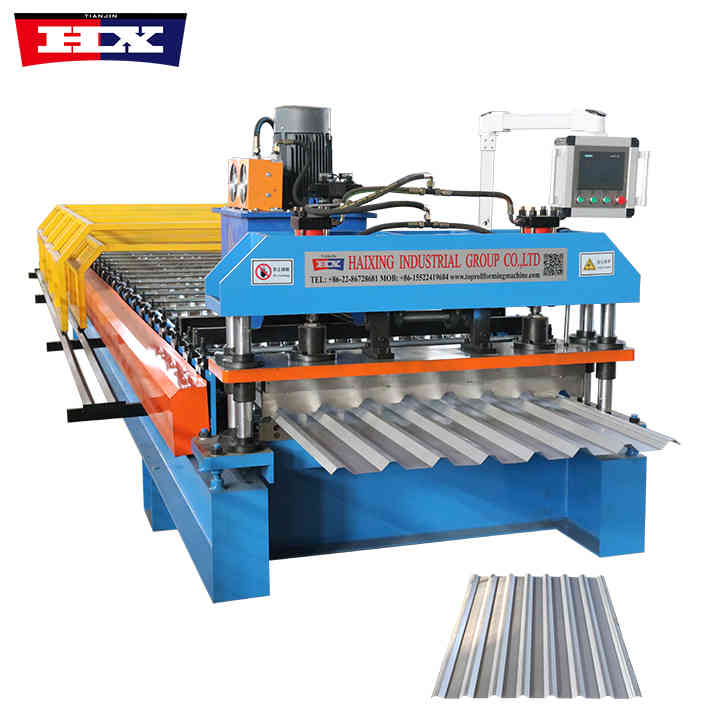

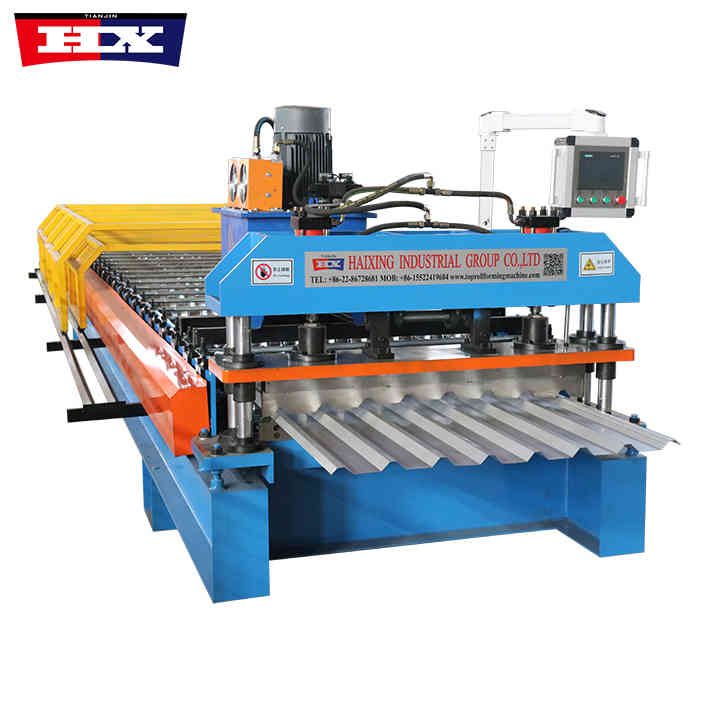

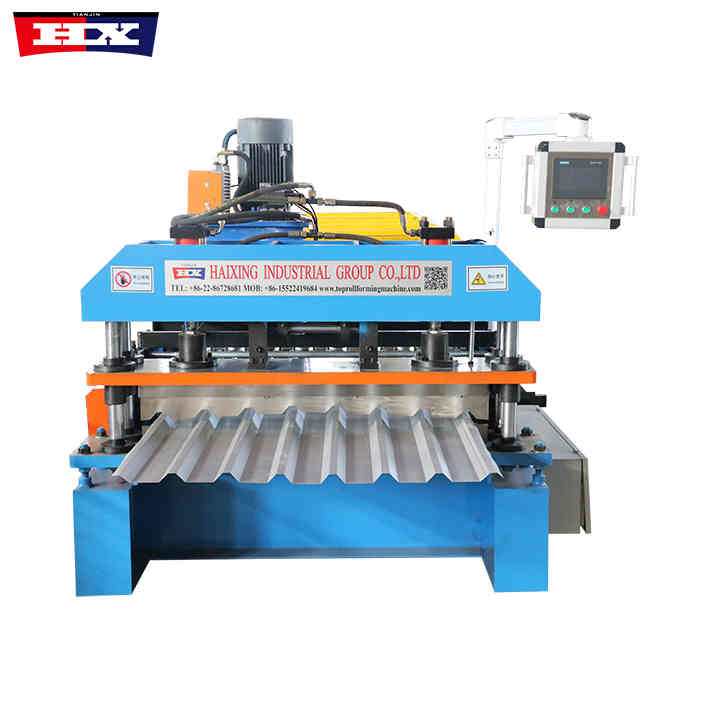

The roof tiles machine for sale is a machine that consists of unloading, forming, and post-forming and cutting. Its color plate has a smooth and beautiful appearance, uniform paint texture, high strength, and durability. It is widely used in industrial and civil buildings, such as factories, warehouses, gymnasiums, etc. Exhibition halls, theaters and other rooms and walls.
Roof Tiles Machine For Sale
Specification
No. |
Number |
Roof Tiles Machine For Sale |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |

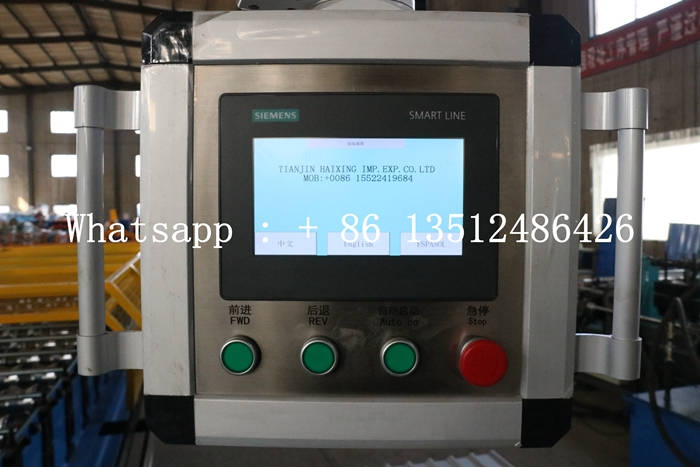

| 12. | Touch screen/inverter | Delta or customized according to customer requirements |

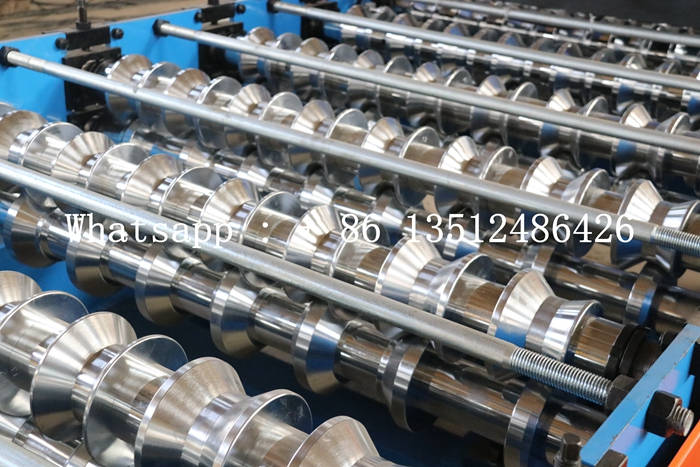

| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 22 |
| 19. | Size | 10500mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
Features
1. High efficiency
The tile press is a high-efficiency mechanical equipment suitable for tile production in industrial production, building tile processing and other fields. Because it has the characteristics of high efficiency, high precision and high speed, it can quickly complete various processing tasks and greatly improve production efficiency.
2. Low cost
Compared with traditional manual processing, the cost of using a tile press is much lower. Because its operation is very simple, only a small amount of manpower and material resources are needed to complete the production task. In addition, the raw materials used by the tile press are relatively low-cost and can bring higher profits.
3. Simple operation
The operation of the tile press is relatively simple and does not require excessive technical experience and professional knowledge. In the case of some simple operations, it only takes about an hour to learn the tile press and start production immediately. This is great for beginners and newbies, especially for small businesses.
4. Comprehensive functions
The functions of the tile press are very comprehensive and can adapt to different processing needs. It can process tiles in a variety of shapes, sizes, specifications, etc. In addition, the tile press supports mass production and can efficiently handle large-volume tile production tasks.
5. Excellent performance
The performance of the tile press is very excellent and can adapt to different production environments and material properties, making the processing more efficient, more precise and more stable. In addition, the tile press can be customized according to user needs to meet the special needs of users and maximize brand value.
