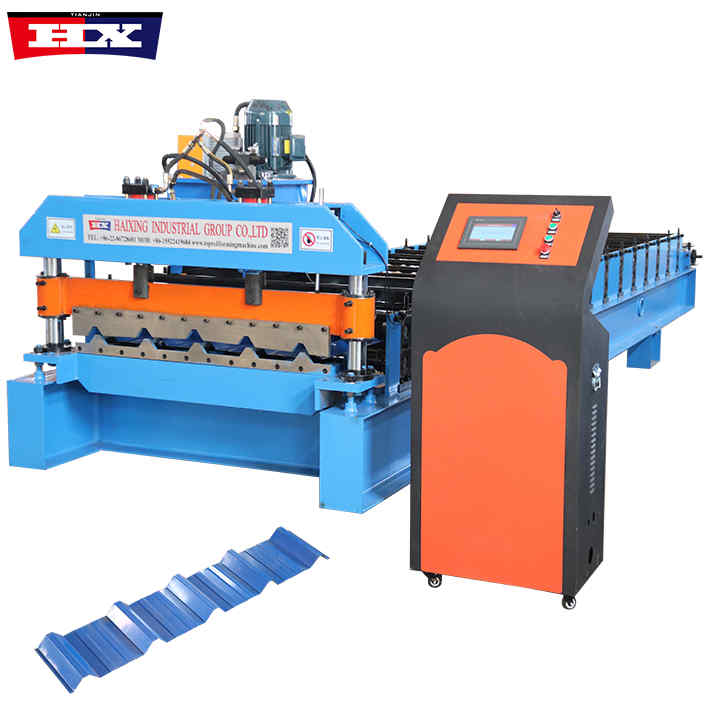

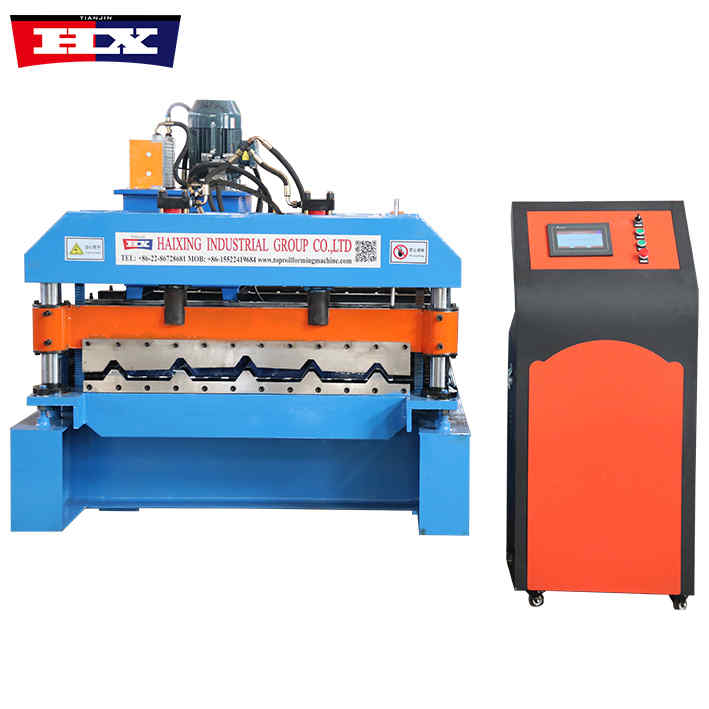

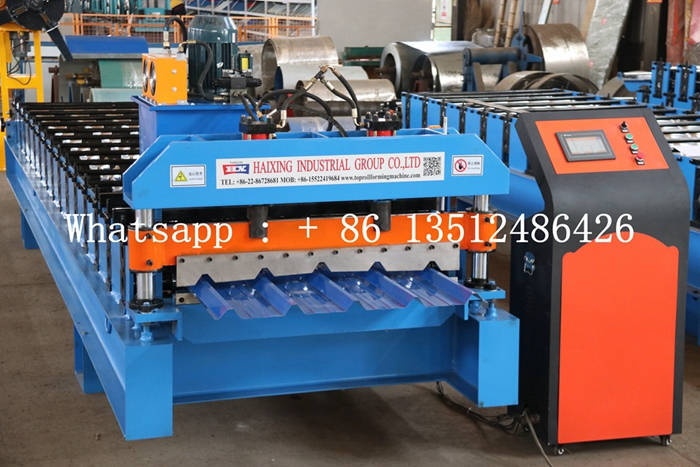

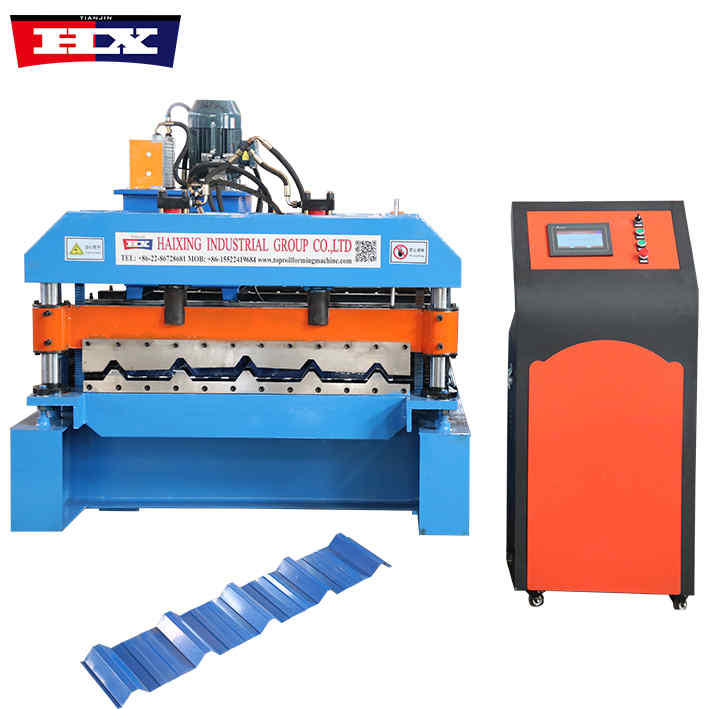

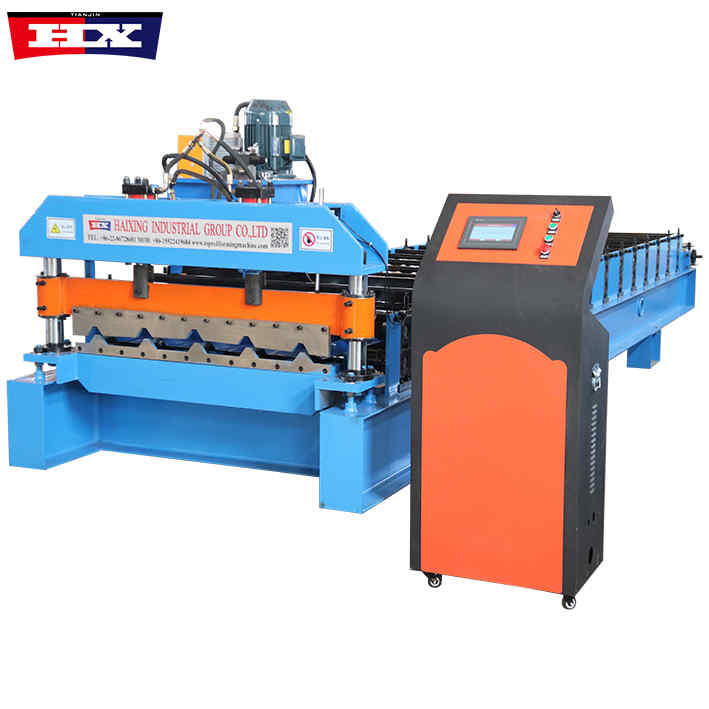

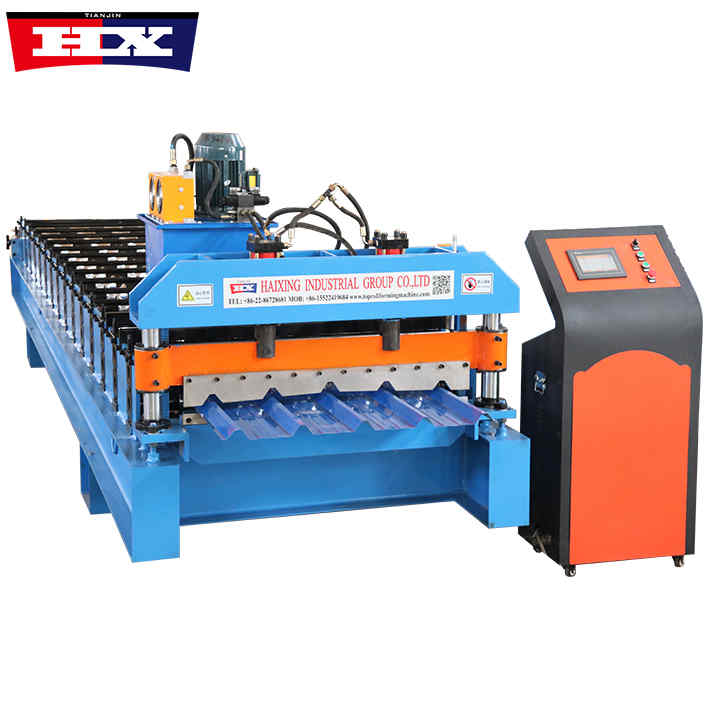

Trapezoidal Roof Sheet Rolling Machine
Trapezoidal Roof Sheet Rolling Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin
Trapezoidal Roof Sheet Rolling Machine
Trapezoidal Roof Sheet Rolling Machine

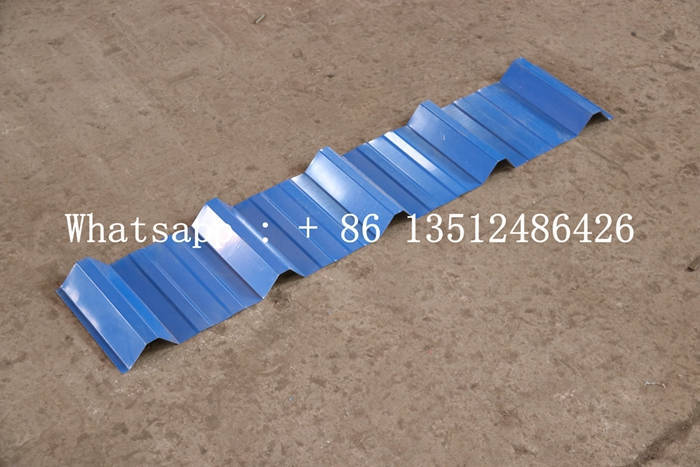

A trapezoidal roof sheet rolling machine is a forming equipment used to produce corrugated or tile-shaped metal sheets. It is usually fed from coils and undergoes a series of forming processes to finally obtain metal tiles or roof panels of the desired shape. Tile presses are suitable for construction, industrial equipment, transportation and other fields. Their products are widely used due to their lightweight, high strength and strong decorative properties.
It adopts the method of coil feeding and cold rolling forming, and is suitable for the manufacture of cold rolled sheets, galvanized sheets, aluminum sheets and other materials.
Trapezoidal Roof Sheet Rolling Machine
Specification
No. |
Number |
Trapezoidal Roof Sheet Rolling Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |

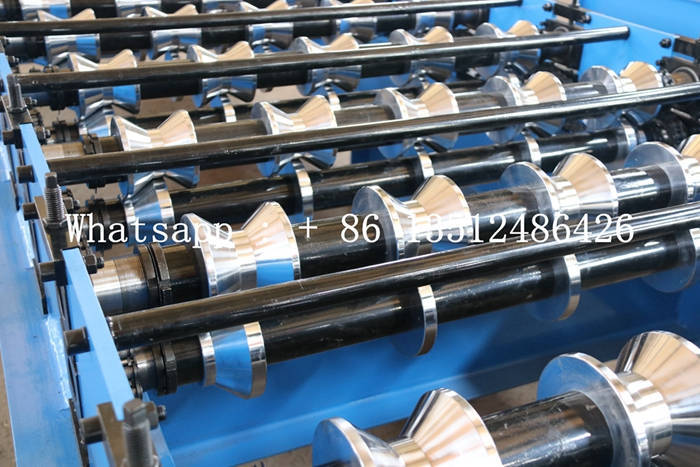

| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 15 |
| 19. | Size | 7500mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
Advantages
1. High output

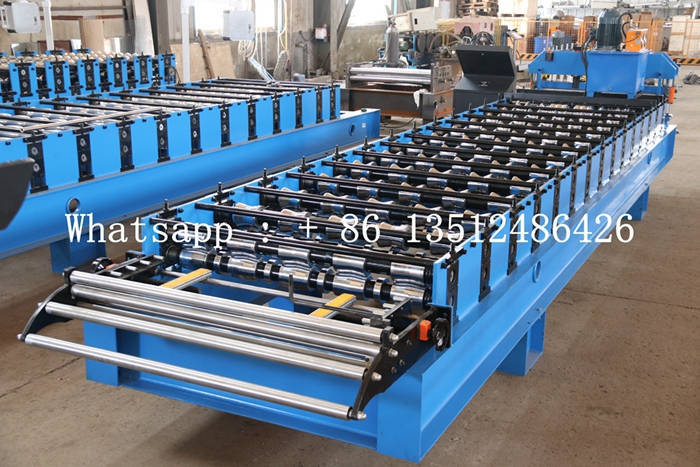

The trapezoidal roof sheet rolling machine can produce a large number of high-quality pressed tiles in a short period of time to meet the needs of customers in a short period of time. By being equipped with automatic feeding devices, automatic cutting wheel knives and hydraulic cutting devices, continuous production can be achieved, greatly improving production efficiency.
2. Energy saving and environmental protection
During the operation of the trapezoidal roof sheet rolling machine, advanced CNC technology is used to reduce internal energy waste and achieve energy conservation and environmental protection. At the same time, the tile press adopts advanced secondary molding technology, which reduces the scrap rate and greatly reduces resource consumption and pollution emissions. Thereby achieving the purpose of energy saving and environmental protection.
3. Easy to operate
The operation of the trapezoidal roof sheet rolling machine is very simple, and the operator only needs certain training to operate it smoothly. In addition, the tile press is also equipped with a touch screen control system, which makes the operation more user-friendly and greatly reduces the probability of misoperation. In addition, the tile press can also automatically complete feeding, positioning, cutting and other tasks, reducing manual intervention and achieving semi-automatic production.
