Roof Machine For Sale
Roof Machine For Sale
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin
Roof Machine For Sale
Roof Machine For Sale

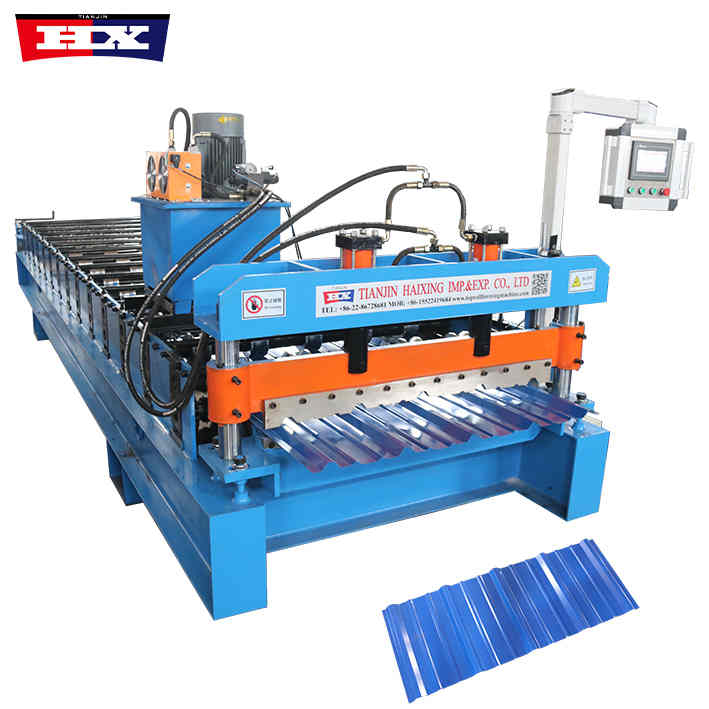

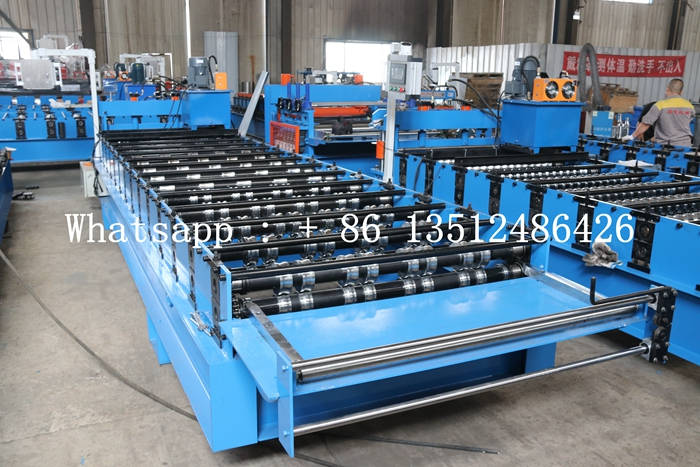

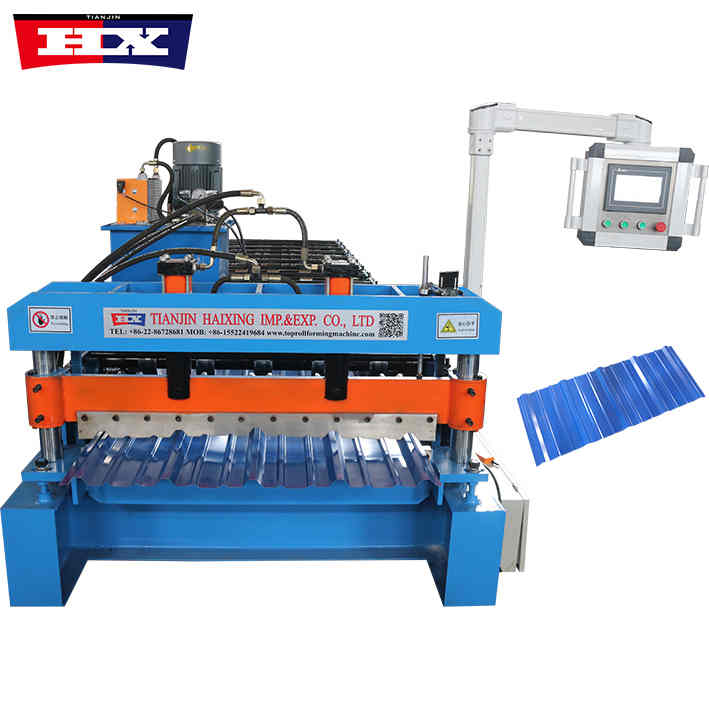

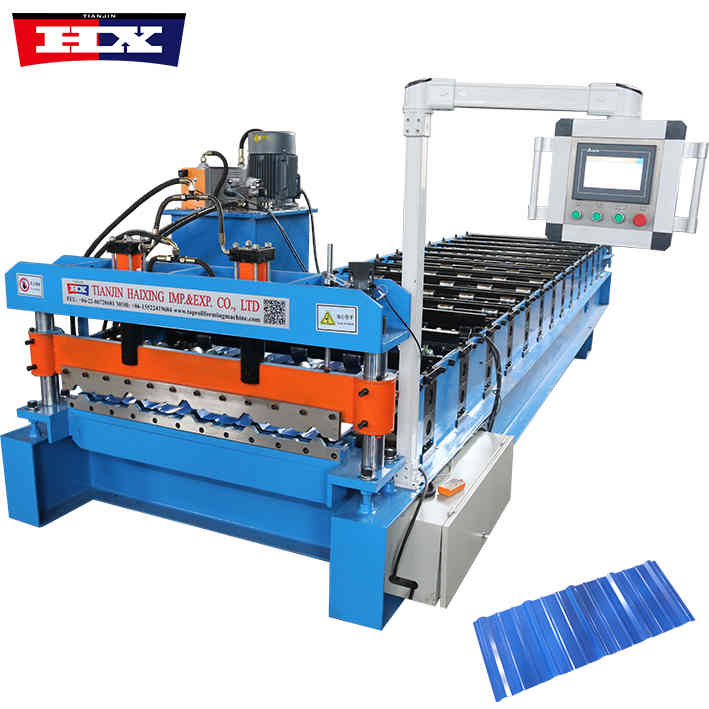

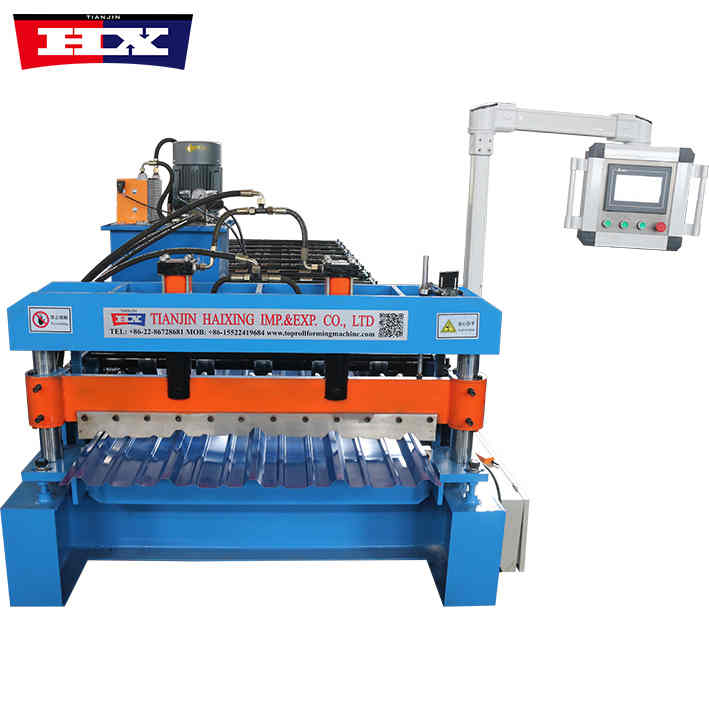

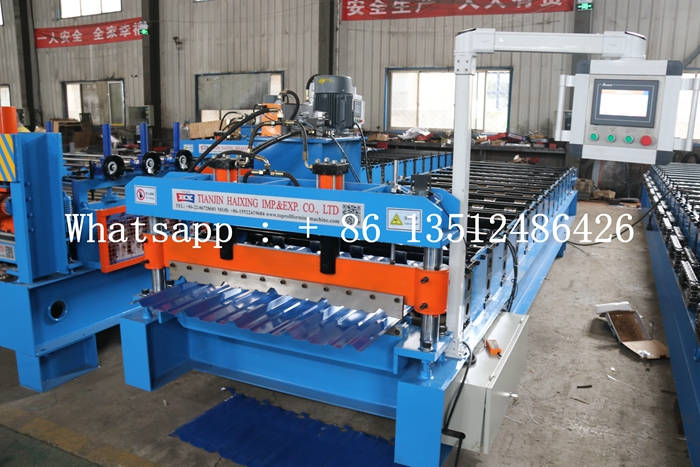

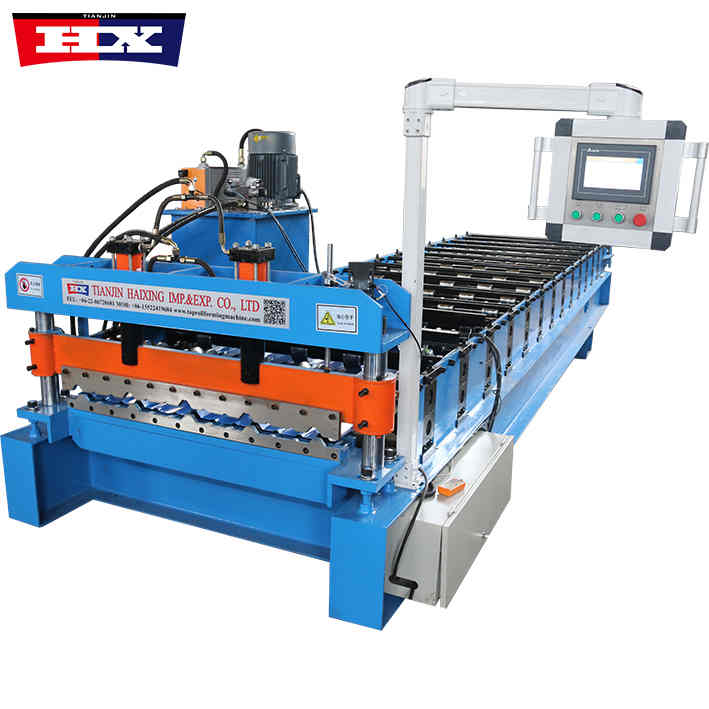

Roof machine for sale is mainly composed of fuselage, transmission system, hydraulic system, electrical control system and other parts. When working, the electric control system controls the transmission system to drive the hydraulic system, so that the upper and lower molds of the tile press are closed, and the metal plates placed between the molds are pressed and formed. After the pressing is completed, the mold is opened and the finished tiles automatically fall off, completing a pressing process.
Roof Machine For Sale
Specification
No. |
Number |
Roof Machine For Sale |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |

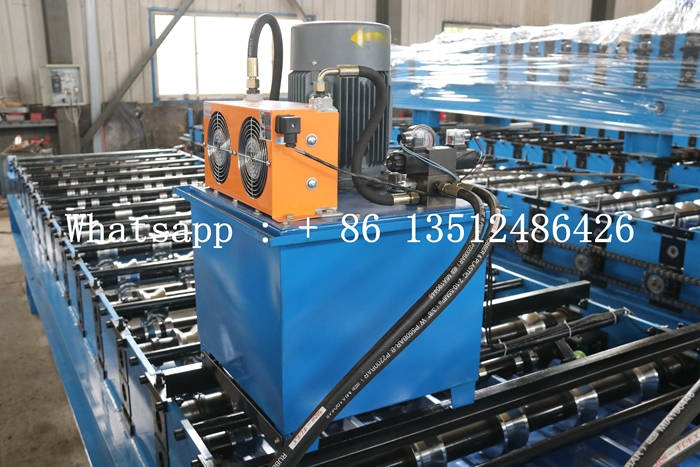

| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |

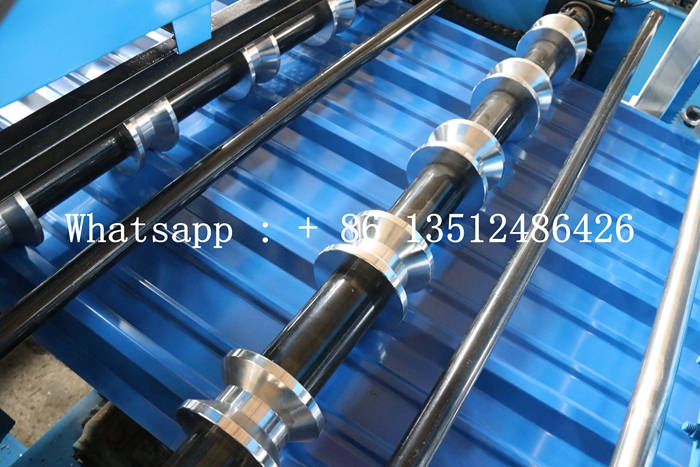

| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 14 |
| 19. | Size | 7000mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
Features
1. Efficiency: Zinc roofing sheet making machine adopts an advanced hydraulic system, which can achieve fast and stable pressing action, greatly improving production efficiency.
2. Accuracy: Zinc roofing sheet making machine adopts a precise control system, which can accurately control the pressing depth and speed to ensure the stability and consistency of product quality.
3. Reliability: The overall structure of the equipment is strong, durable, and has a long service life, which can meet the needs of long-term continuous work.
4. Easy to operate: Zinc roofing sheet making machine adopts a humanized design, which is simple and convenient to operate. Even inexperienced staff can get started quickly.
