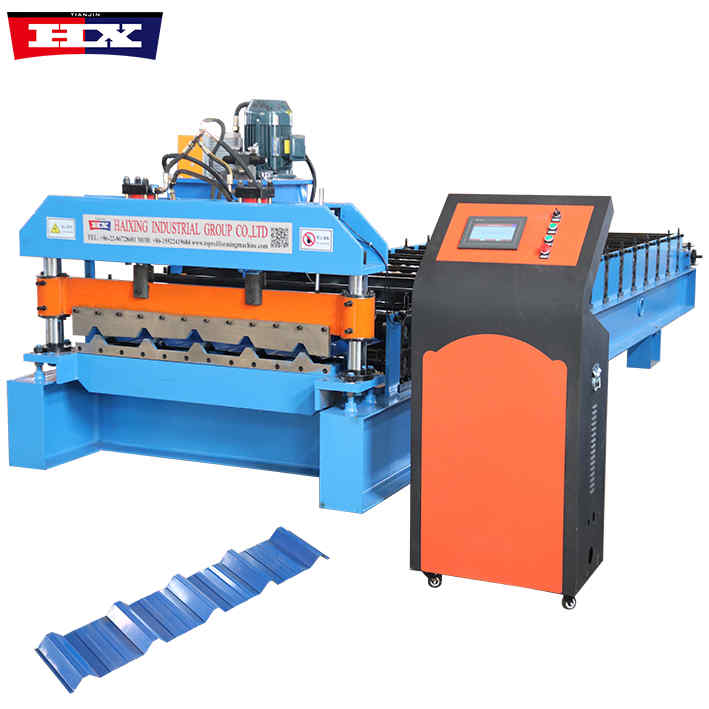

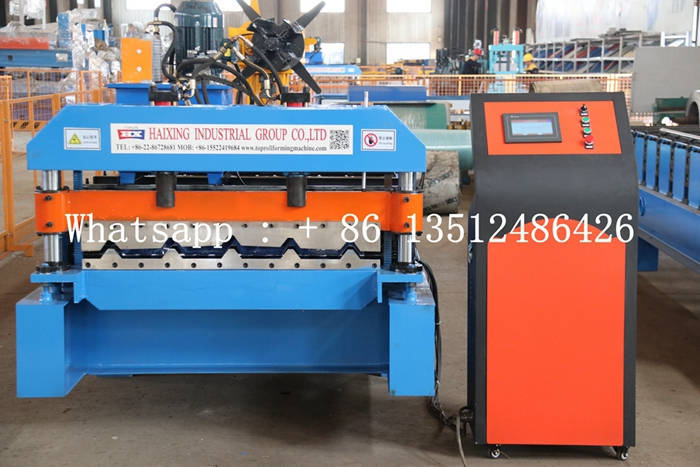

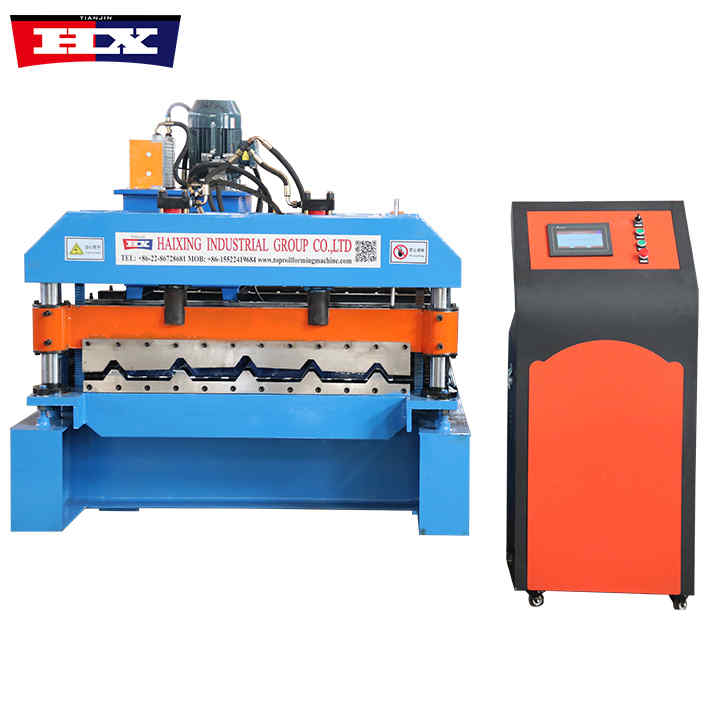

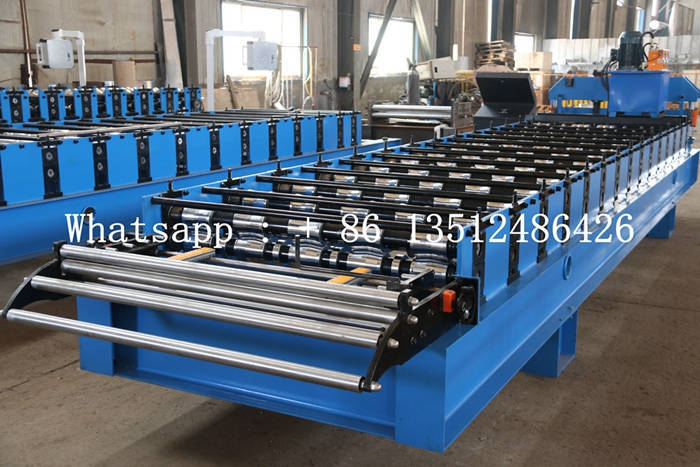

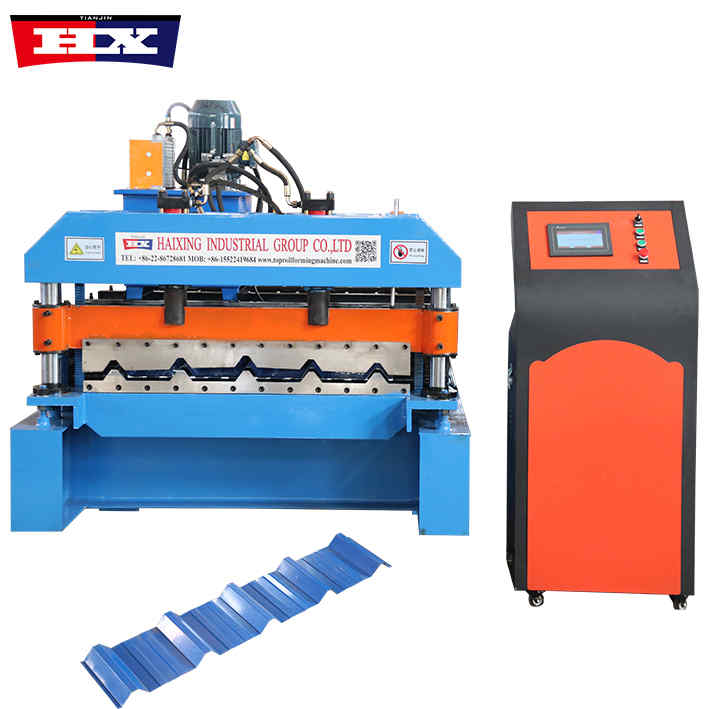

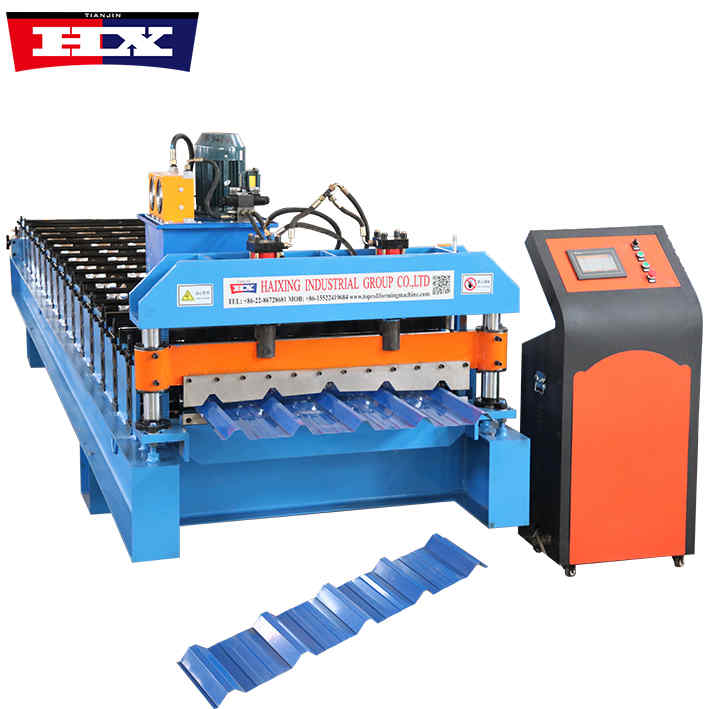

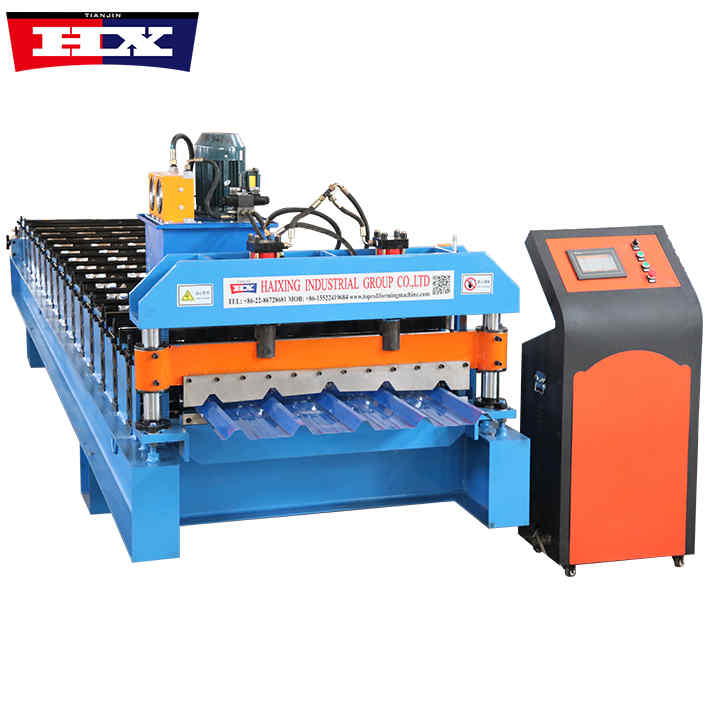

Trapezoidal Roof Tiles Making Machine For Sale
Trapezoidal Roof Tiles Making Machine For Sale
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin
Trapezoidal Roof Tiles Making Machine For Sale
Trapezoidal Roof Tiles Making Machine For Sale
1. Efficient production capacity: Detailed introduction to the advantages of the 928 tile press in terms of production efficiency, such as production speed, output, etc.
2. Advanced control system: Introduce the control system of the 928 type tile press, including the degree of automation, programmable controller, etc.
3. High-quality materials and technology: Analyze the high-quality materials and advanced technology used in the 928 tile press to improve the service life and performance of the machine.
4. Easy to operate and maintain: This illustrates the simplicity of operation and maintenance convenience of the 928 tile press, and reduces the cost of use.
Trapezoidal Roof Tiles Making Machine For Sale
Specification
No. |
Number |
Trapezoidal Roof Tiles Making Machine For Sale |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |

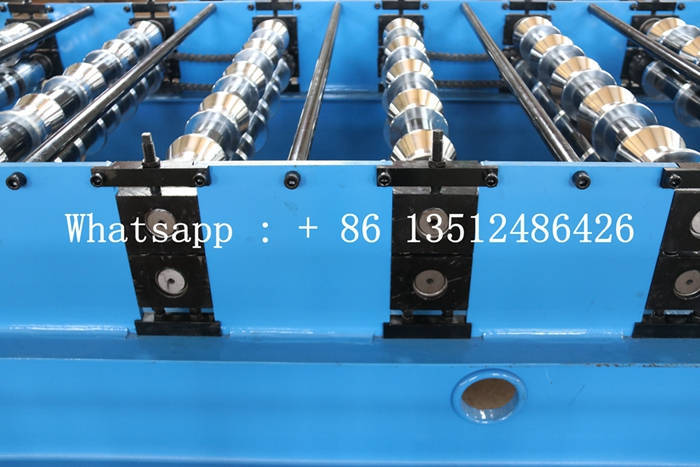

| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 15 |
| 19. | Size | 7500mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
Preparation Before Use
1. Confirm whether the power supply meets the requirements and connect the ground wire.
2. Check whether the oil circuit is smooth and add enough lubricating oil.
3. Check whether all parts are fastened reliably, especially the transmission device and fastening bolts, etc.
4. Install the appropriate mold as needed, and adjust the height and width of the pressure roller.
5. Place the materials to be processed on the feeding rack and determine the feeding direction.
Operation
1. Turn on the power switch and press the start button to start the tile press.
2. Place the materials to be processed on the feeding rack and adjust the feeding position.
3. Press the pressing button, and the pressure roller starts to press the material downward until it reaches the predetermined height.
4. After stopping the pressing button, release the pressing roller and remove the processed plate.
5. If you need to continue processing, just repeat the above steps.
