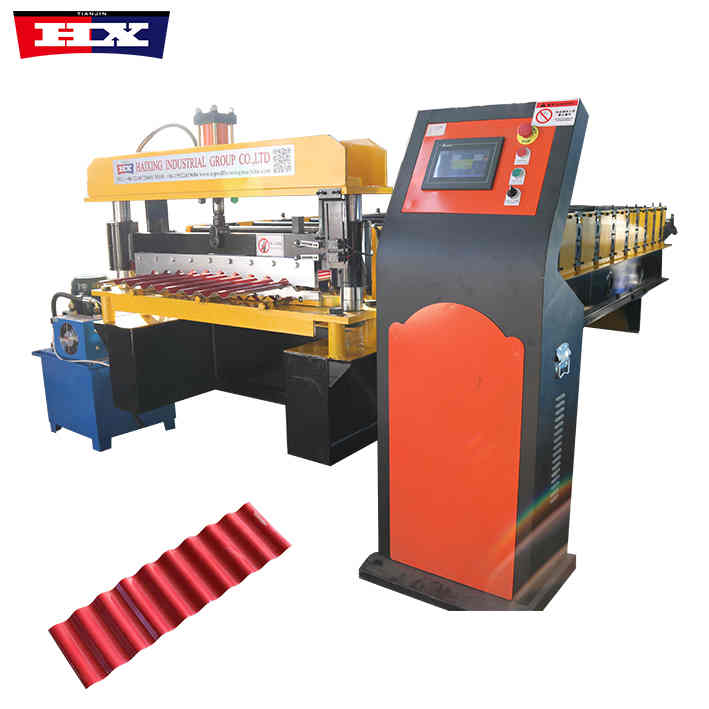

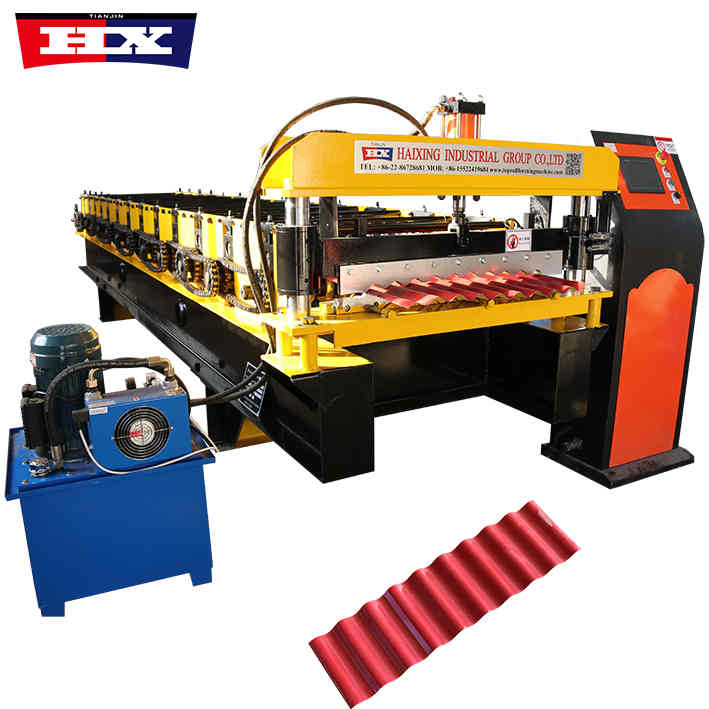

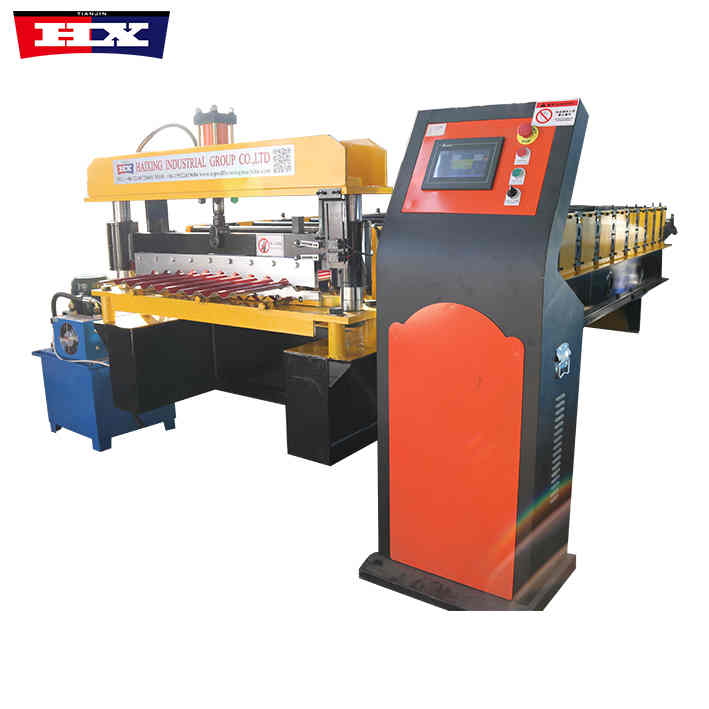

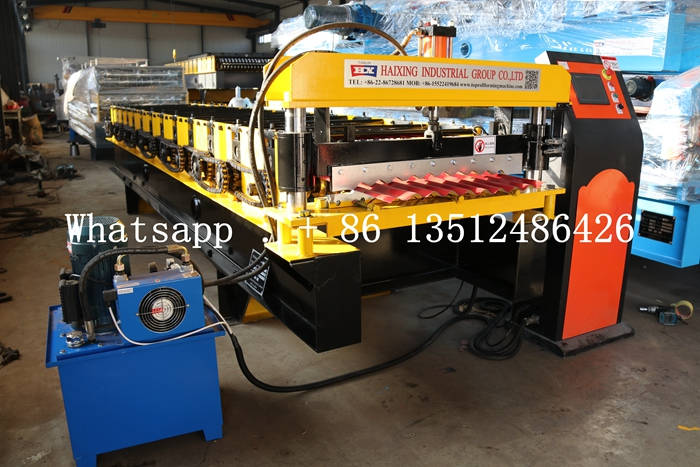

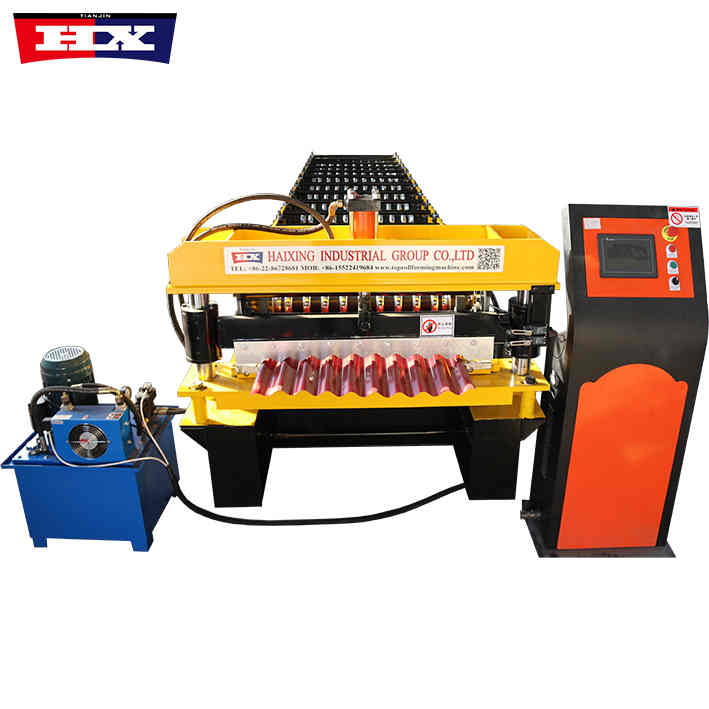

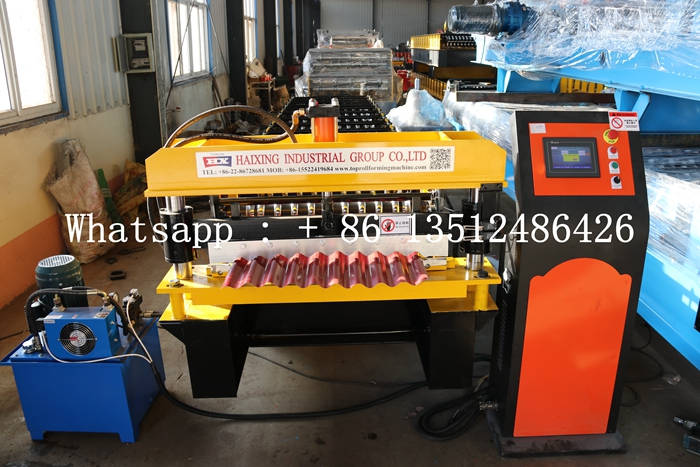

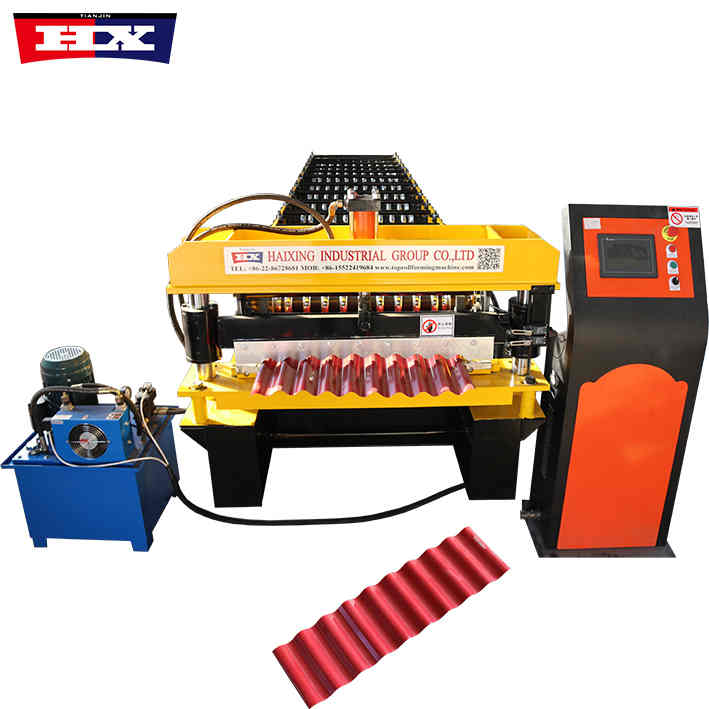

Roofing Machine
Roofing Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin
Roofing Machine
Roofing Machine

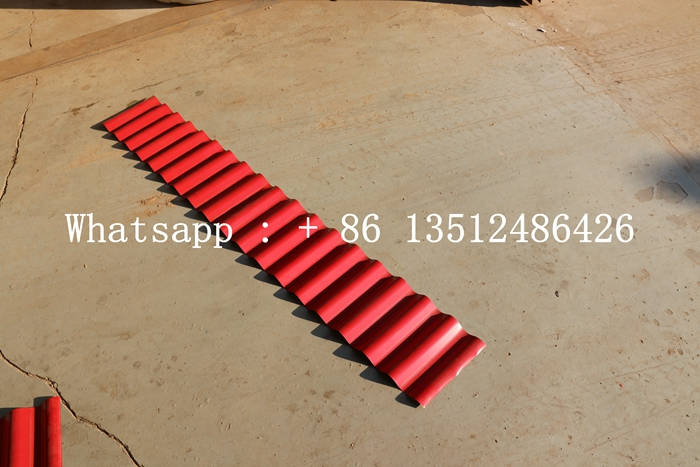

1. Construction industry: used to produce tiles of various specifications, such as cement tiles, color steel tiles, etc., to provide high-quality roofing materials for houses, factories and other buildings.
2. Industrial field: It can be used to produce various metal plates, pipes and other industrial parts to meet the needs of industrial production.
3. Agricultural field: Used to produce skeletons, supports and other materials for agricultural greenhouses, providing a solid material foundation for agricultural production.
Roofing Machine
Specification
No. |
Number |
Roofing Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |

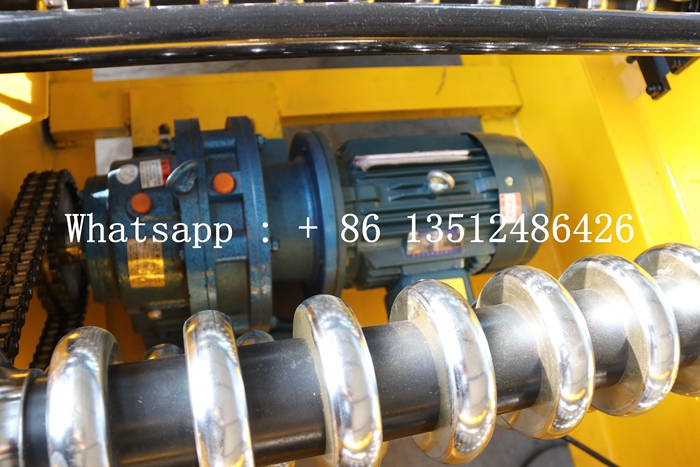

| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |

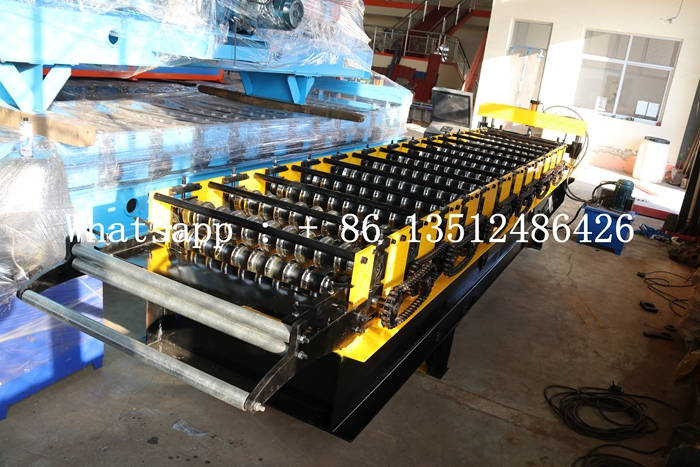

| 18. | Rows | 13 |
| 19. | Size | 6500mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
Application
1. Construction industry: used to produce tiles of various specifications, such as cement tiles, color steel tiles, etc., to provide high-quality roofing materials for houses, factories and other buildings.
2. Industrial field: It can be used to produce various metal plates, pipes and other industrial parts to meet the needs of industrial production.
3. Agricultural field: Used to produce skeletons, supports and other materials for agricultural greenhouses, providing a solid material foundation for agricultural production.
Notice
1. Safe operation: Before operating the equipment, you must be familiar with the structure, performance and safe operating procedures of the equipment to ensure personal safety and equipment safety.
2. Equipment maintenance: Carry out regular maintenance and care on the equipment, check whether the performance indicators of the equipment are normal, and discover and deal with potential problems in a timely manner.
3. Reasonable material selection: Select appropriate tile materials and specifications according to production needs to ensure product quality and production efficiency.
4. Comply with regulations: During the production process, equipment usage regulations and operating procedures must be strictly observed to avoid equipment damage or safety accidents caused by illegal operations.
