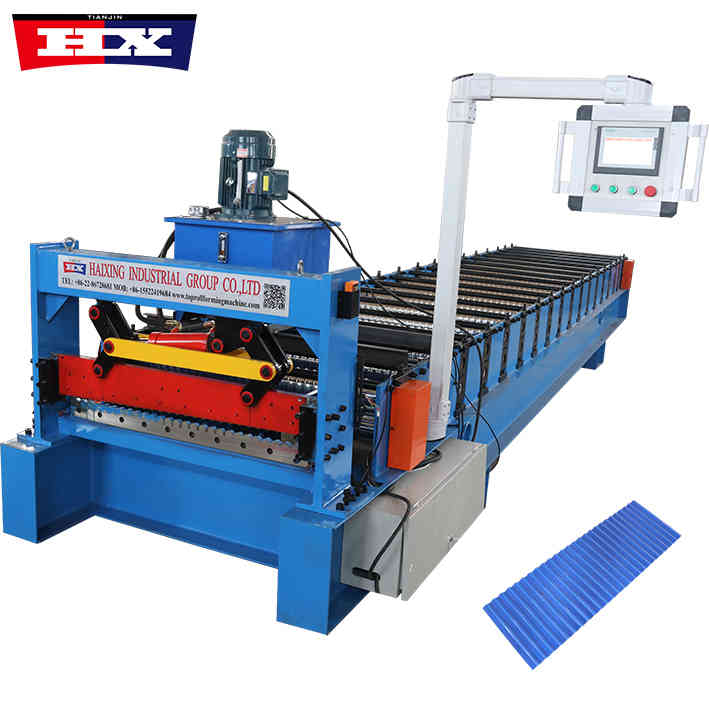

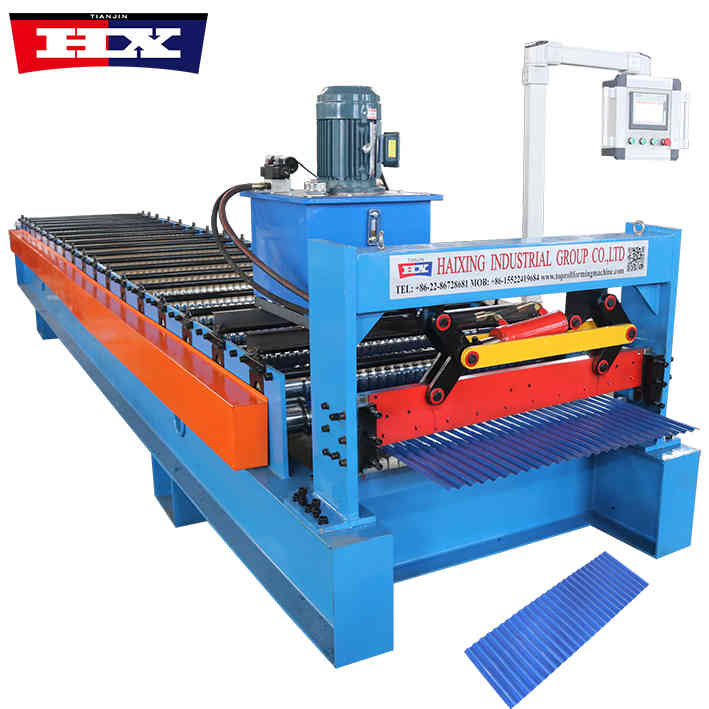

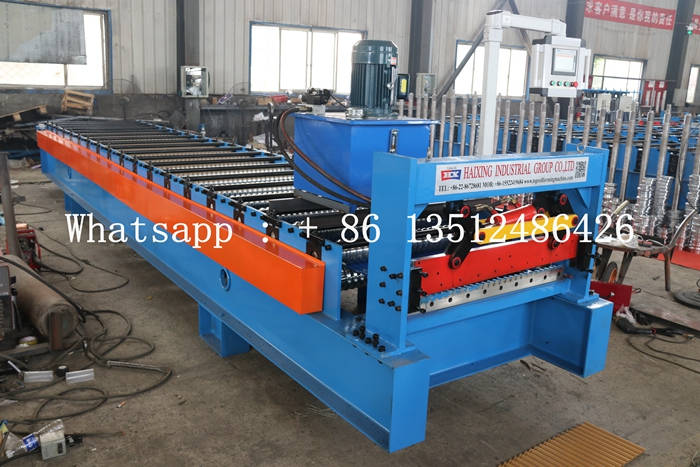

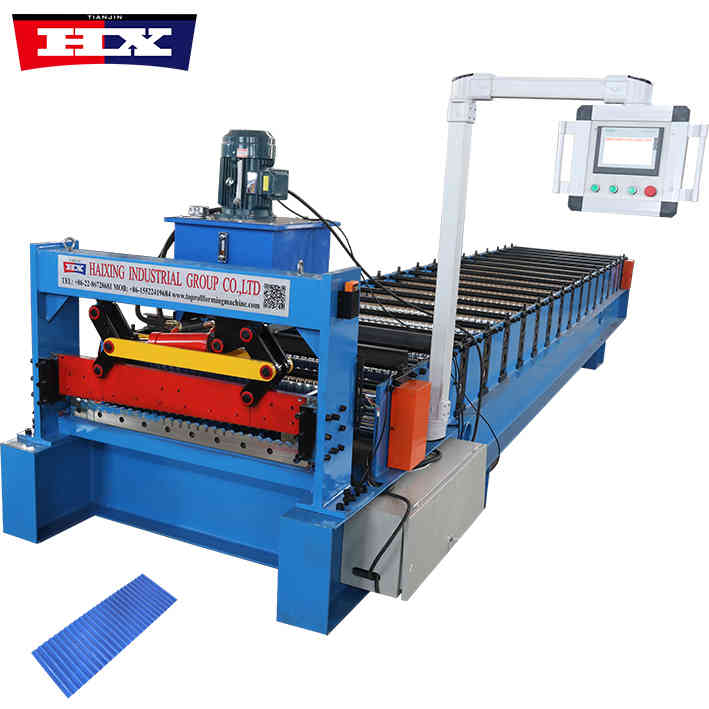

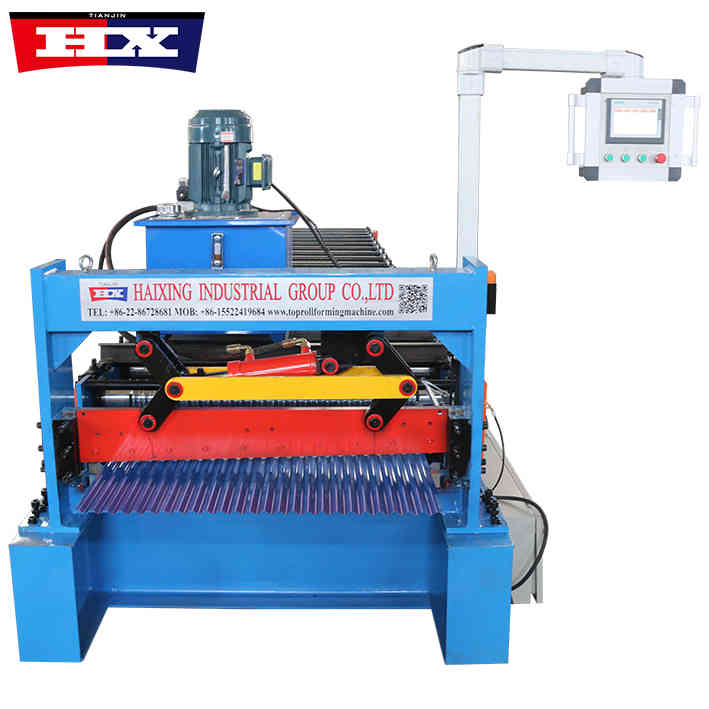

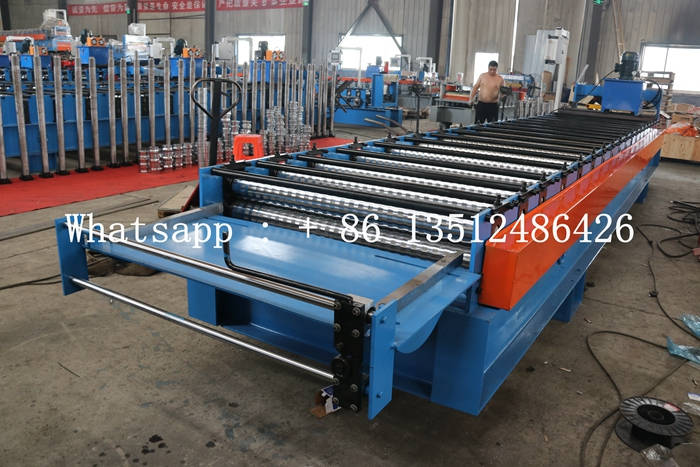

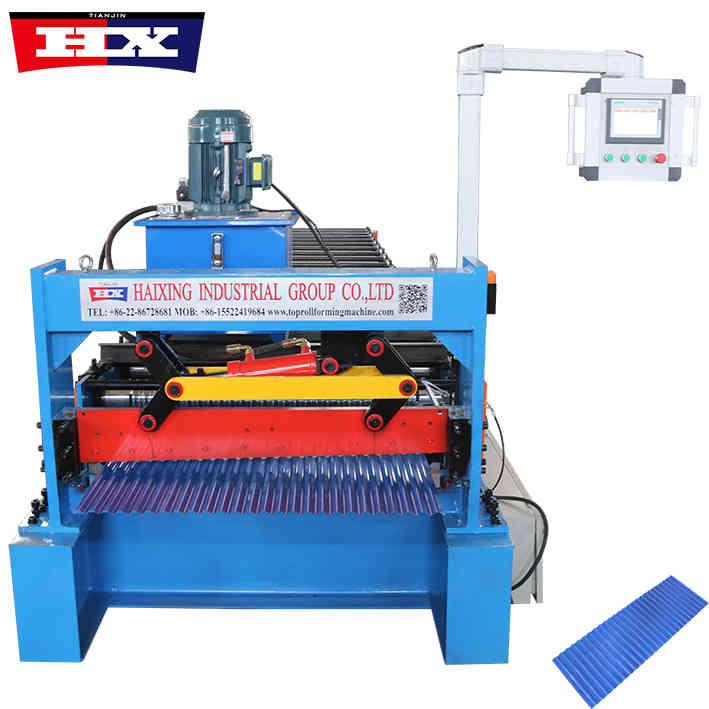

Roofing Sheet Making Machine Corrugated
Roofing Sheet Making Machine Corrugated
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin
Roofing Sheet Making Machine Corrugated
Roofing Sheet Making Machine Corrugated
1. High efficiency
The roofing sheet making machine corrugated is a high-efficiency mechanical equipment suitable for tile production in industrial production, building tile processing and other fields. Because it has the characteristics of high efficiency, high precision and high speed, it can quickly complete various processing tasks and greatly improve production efficiency.
2. Low cost
Compared with traditional manual processing, the cost of using roofing sheet making machine corrugated is much lower. Because its operation is very simple, only a small amount of manpower and material resources are needed to complete the production task. In addition, the raw materials used by the tile press are relatively low-cost and can bring higher profits.
3. Easy to operate
The operation of the roofing sheet making machine corrugated is relatively simple and does not require excessive technical experience and professional knowledge. In the case of some simple operations, it only takes about an hour to learn the tile press and start production immediately. This is great for beginners and newbies, especially for small businesses.
4. Comprehensive functions
The functions of the roofing sheet making machine corrugated are very comprehensive and can adapt to different processing needs. It can process tiles in a variety of shapes, sizes, specifications, etc. In addition, the tile press supports mass production and can efficiently handle large-volume tile production tasks.
Roofing Sheet Making Machine Corrugated
Specification
No. |
Number |
Roofing Sheet Making Machine Corrugated |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |

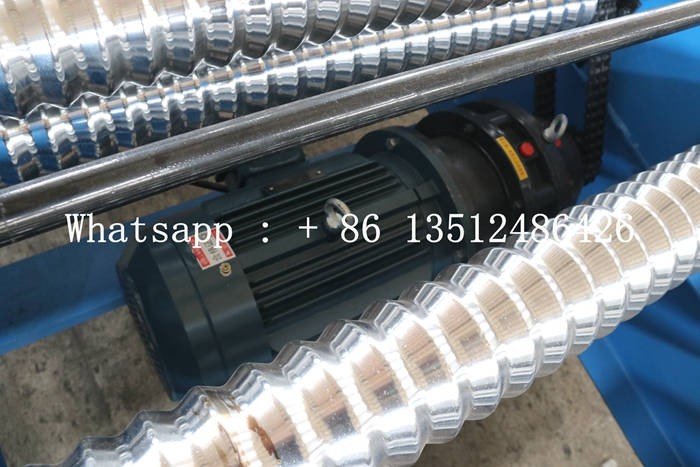

| 5. | Main motor | 5.5kw |

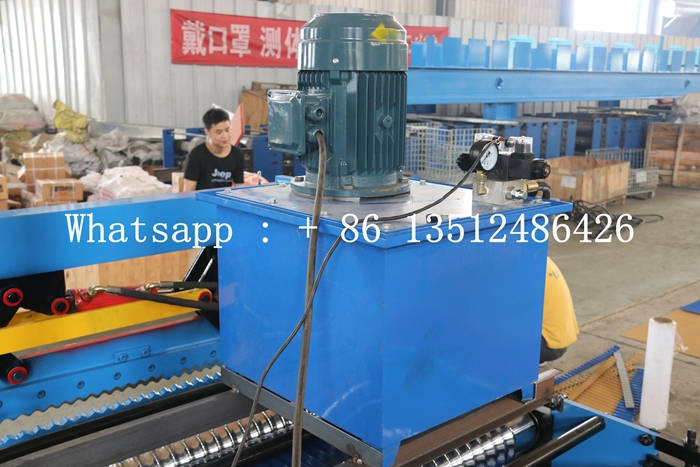

| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 18 |
| 19. | Size | 10500mm*1500mm*1600mm |
| 20. | Weight | 6000kg |
Maintenance
1. Operate strictly in accordance with the operating procedures.
2. Before starting the machine, add lubricating oil regularly, at fixed points and quantitatively according to the lubrication chart. The oil should be clean and free of sediment.
3. The tile press equipment must always be kept clean, and the unpainted parts must be kept rust-proof and grease-proof.
4. The lubricating oil in the motor bearings should be replaced and refilled regularly, and the electrical parts should be checked regularly to see if they are working normally, safely and reliably.
5. Regularly check whether the V-belt, handle, knobs, and buttons are damaged. If they are seriously worn, they should be replaced in time, and spare parts should be reported for replenishment.
6. Regularly check and repair switches, insurances, and handles to ensure they work reliably.
7. Lubricate and scrub the machine tool 10 minutes before get off work every day.
8. Non-designated personnel are strictly prohibited from operating the equipment. Normally, people must leave the machine and stop it.
