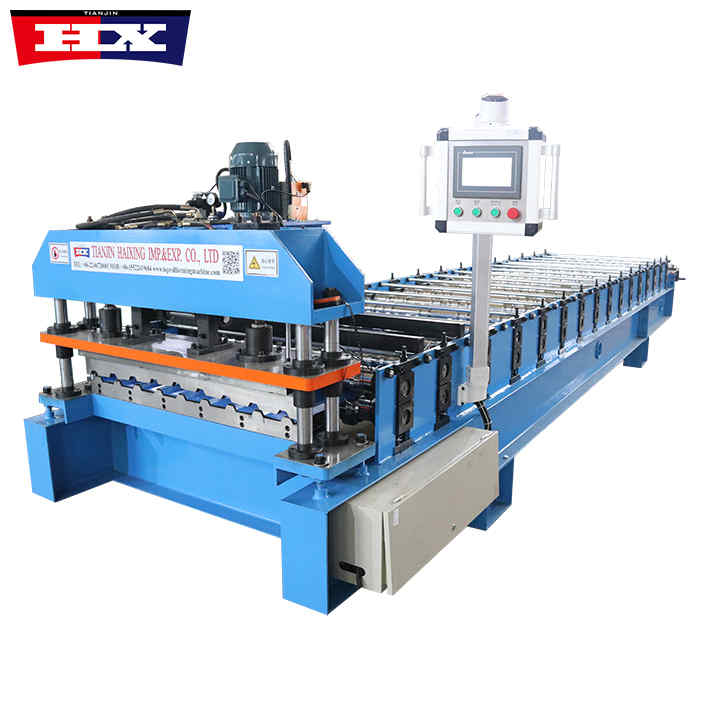

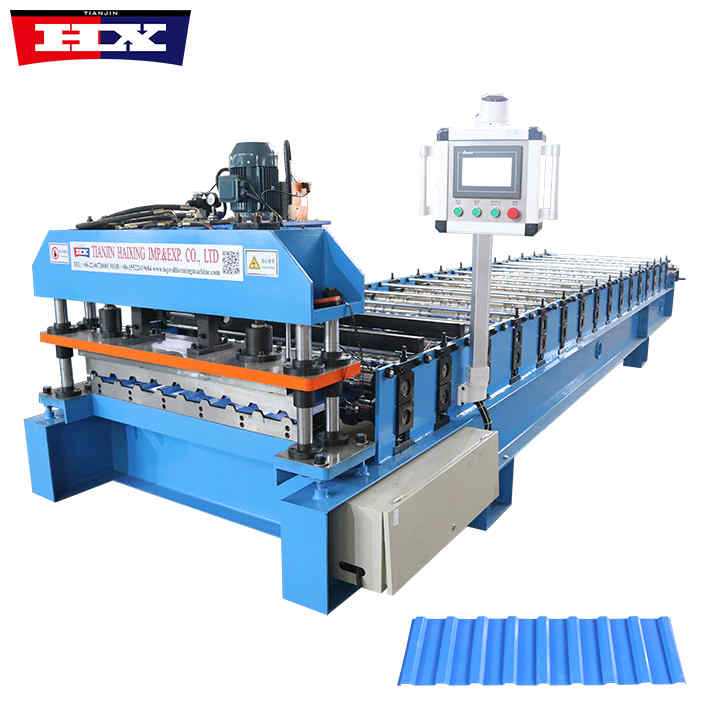

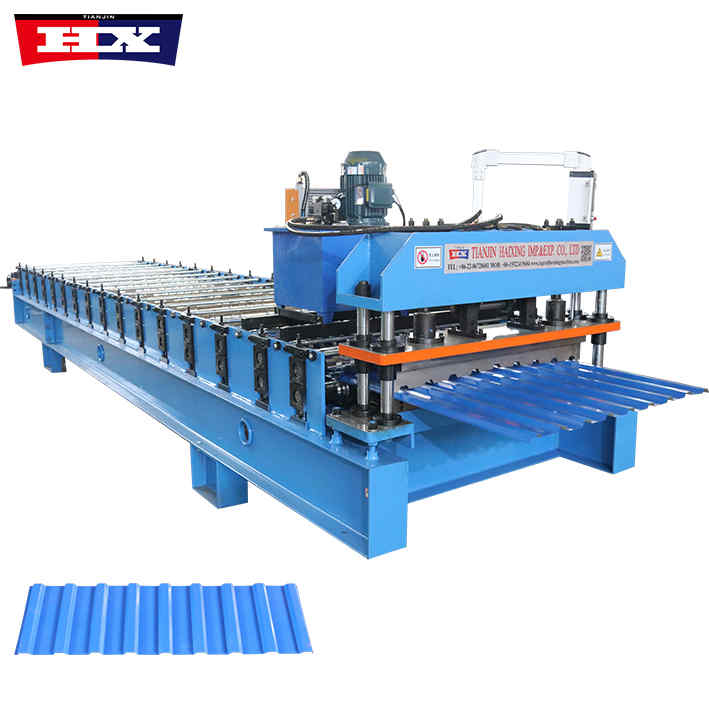

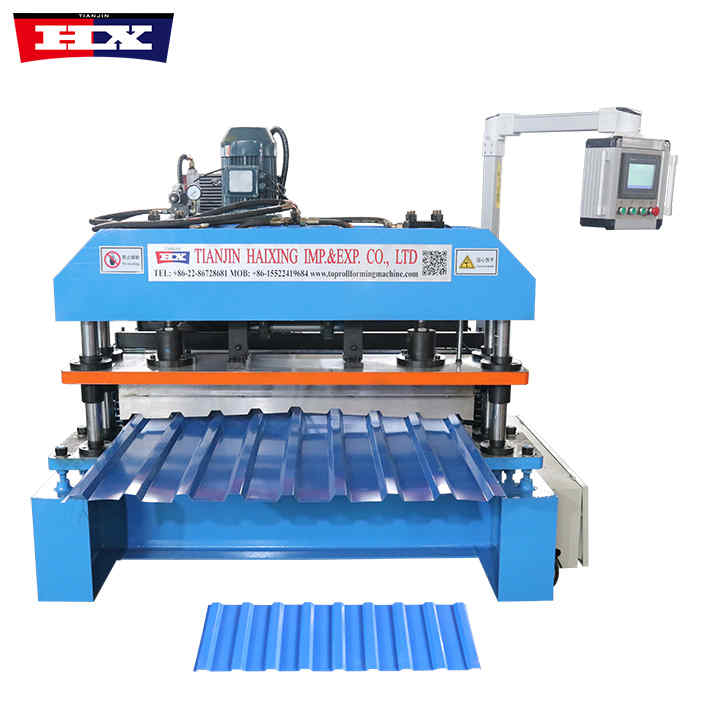

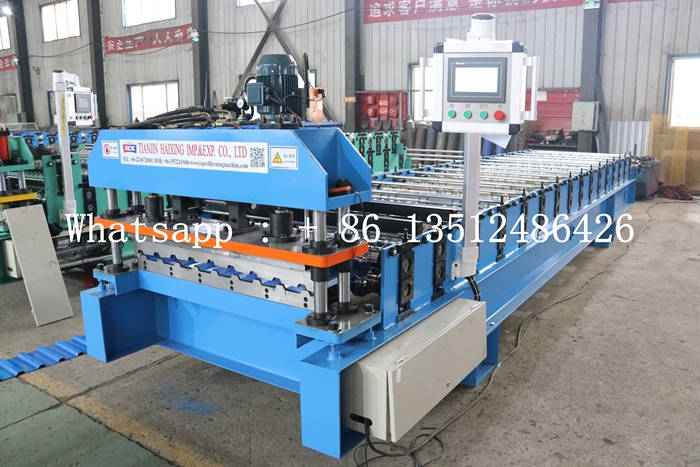

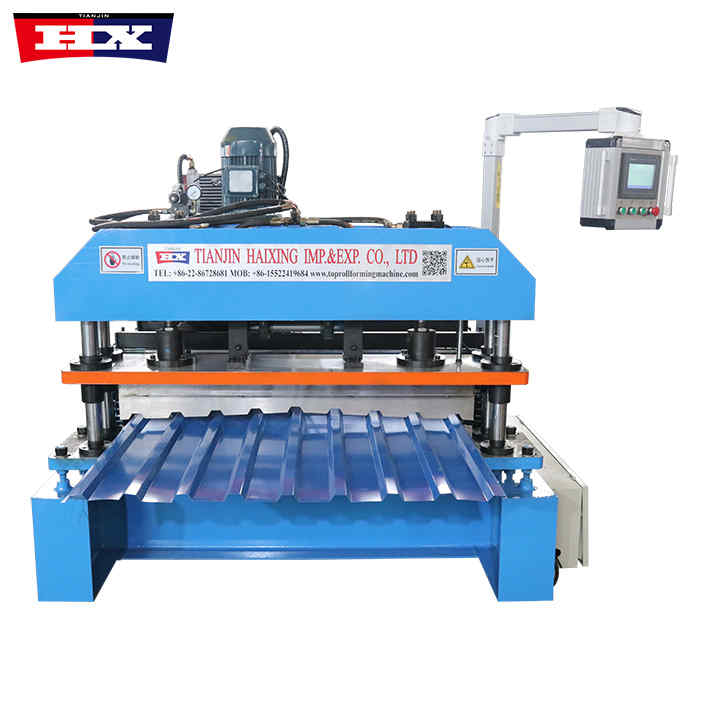

Roofing Sheet Making Machine Manufacturers
Roofing Sheet Making Machine Manufacturers
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin
Roofing Sheet Making Machine Manufacturers
Roofing Sheet Making Machine Manufacturers
The working principle of the roofing sheet making machine manufacturers mainly relies on the hydraulic system and the pneumatic system. During the working process, the hydraulic system first drives the main shaft of the tile press to rotate, while the pneumatic system controls the up and down movement of the tile press mold. When the tile raw materials enter the mold, the spindle rotates to press the raw materials into tiles of the desired shape. Then, the next piece of raw material is fed into the mold through the automatic feeding system to complete the next round of pressing work. During the entire process, the equipment will automatically perform operations such as cutting and counting to achieve automated production.
Roofing Sheet Making Machine Manufacturers
Specification
No. |
Number |
Roofing Sheet Making Machine Manufacturers |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |

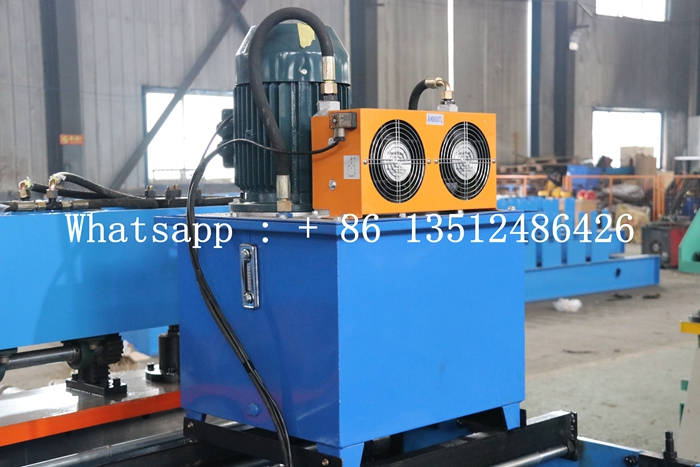

| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |

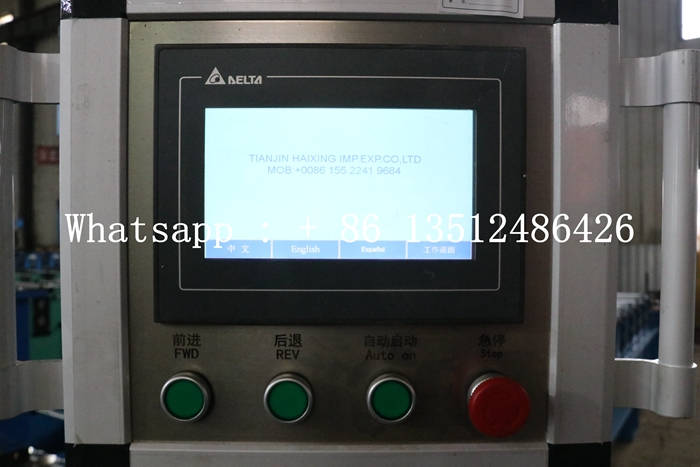

| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 16 |
| 19. | Size | 8000mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
Parts Of Machine
1. Feed guide
① Positioning plate: adjust the position of both ends to match the feeding width.
②Guide frame: plays a role in supporting the advancement of material roll transportation.
③ Feeding roller: The upper and lower round roller design makes the feeding process smoother.
④Hand-pull front cutting: Manually cut the front section according to the amount of material roll.

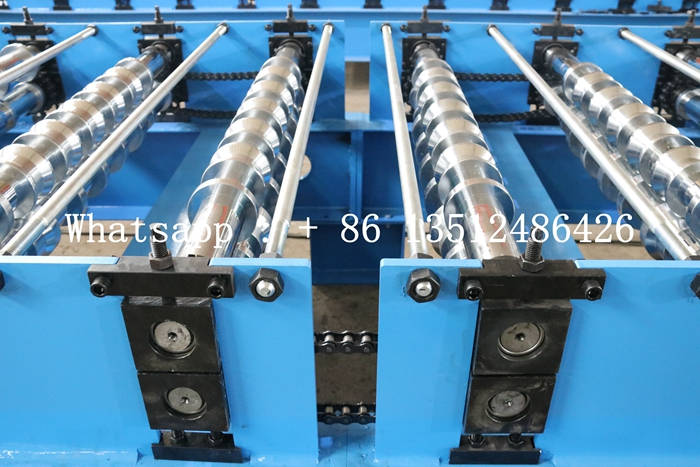

2. Roller
①Spindle diameter: φ70mm, 45# steel.
②Roller material: surface hard chrome plating, mirror polishing, heat treatment.
③ Base: 350H large frame 16mm middle plate to increase the rigidity on both sides of the wall panel.
④Cold bending: the process of cold bending the material roll one by one.
3. Forming shearing
① Guide mechanism: Double guide column slide rail, smooth shearing and no deformation of the cut.
② Cast iron knife holder: Cast iron has obvious shock absorption effect and strong impact resistance.
③Blade material: Cr12Mov.
