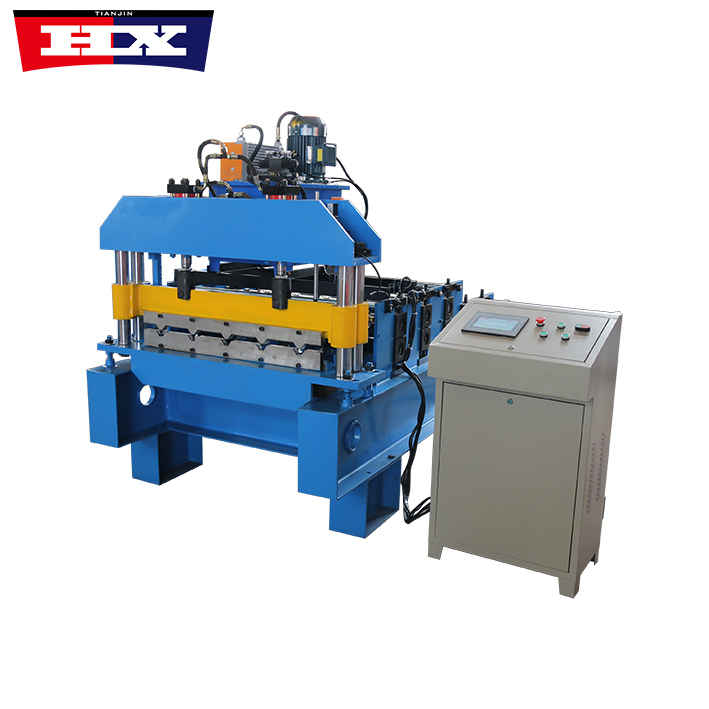

Steel Curving Machine
Curving Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Port : Tianjin

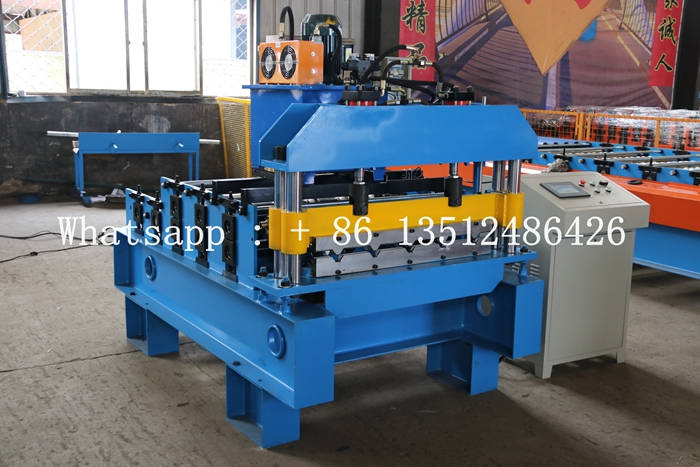

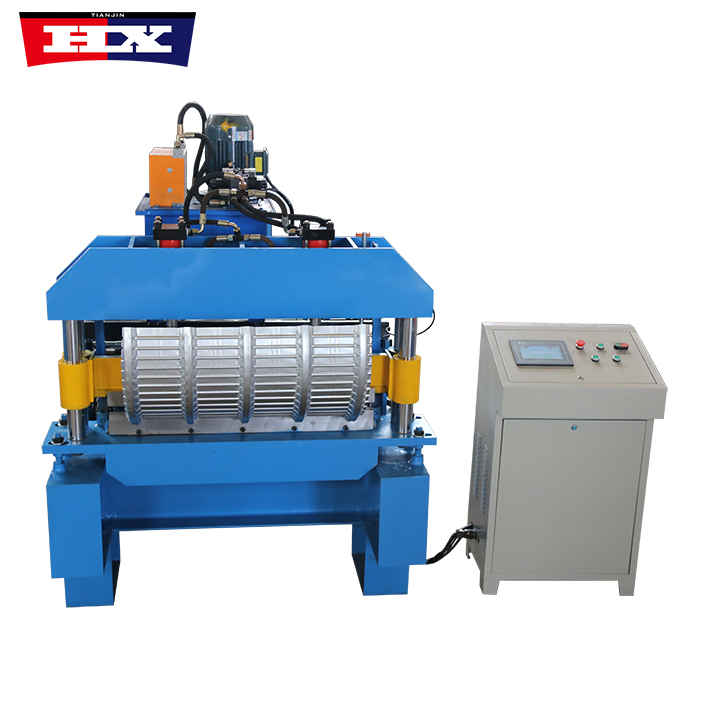

Steel Curving Machine

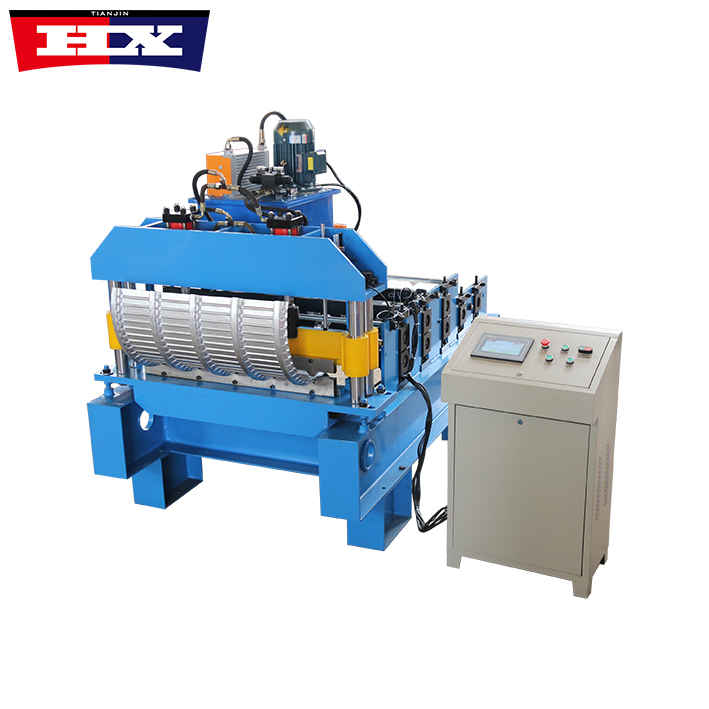

Steel Curving Machine
Specification
No. |
Number |
Steel Curving Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 3kw |
| 6. | Pump station | 3kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 3-5m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 5 |
| 19. | Size | 1800mm*1500mm*1600mm |
| 20. | Weight | 1200kg |
Advantages
1. The curving machine is an efficient and precise steel structure processing equipment that can quickly process steel plates, greatly improving work efficiency while ensuring quality.
2. The curving machine has the characteristics of fast bending speed, high precision, low noise and long service life. It is an ideal steel structure processing equipment.
3. The curving machine is able to process according to customer requirements, with high flexibility and strong applicability.
4. The curving machine can quickly bend and process steel plates. It is a steel structure processing equipment with high precision and simple operation.
