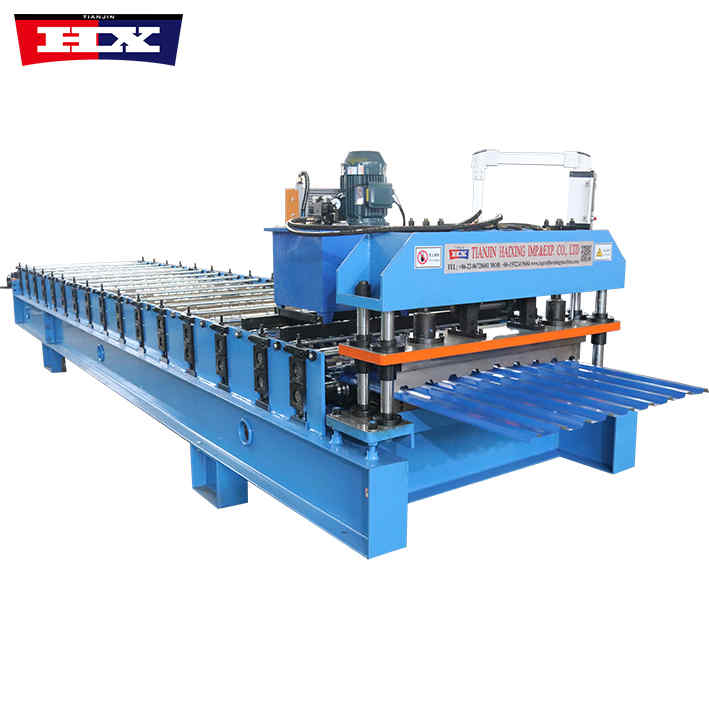

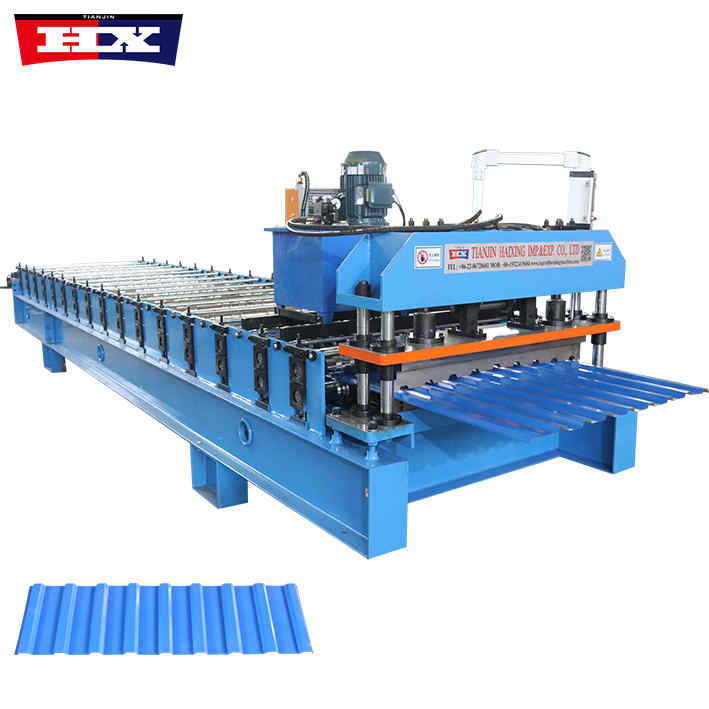

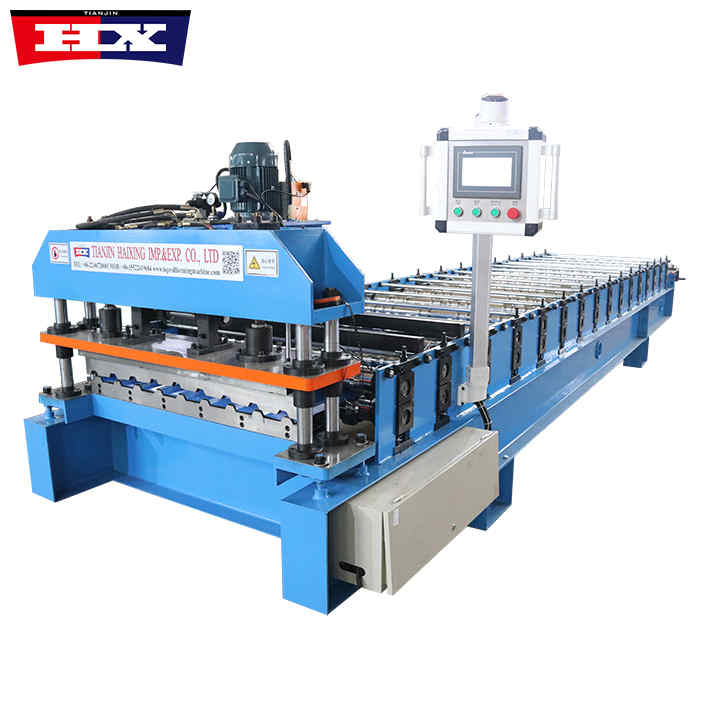

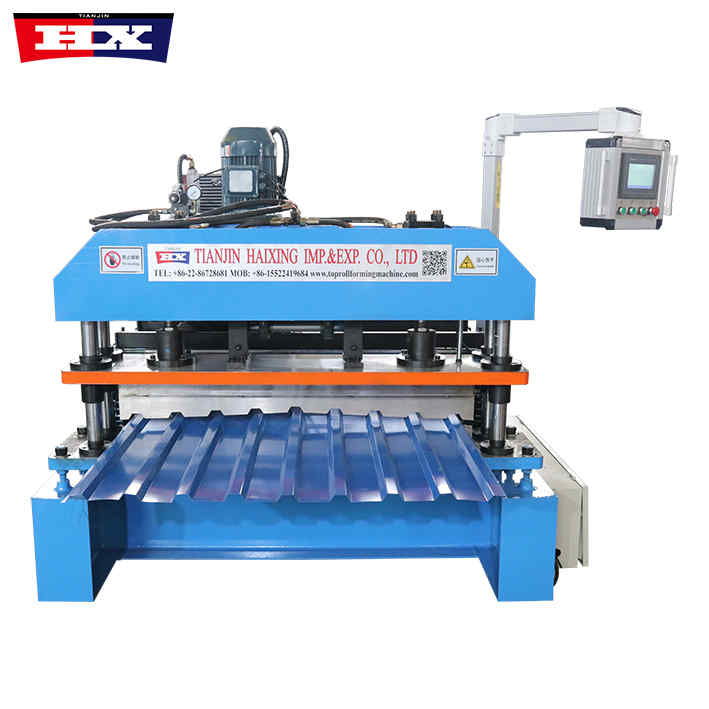

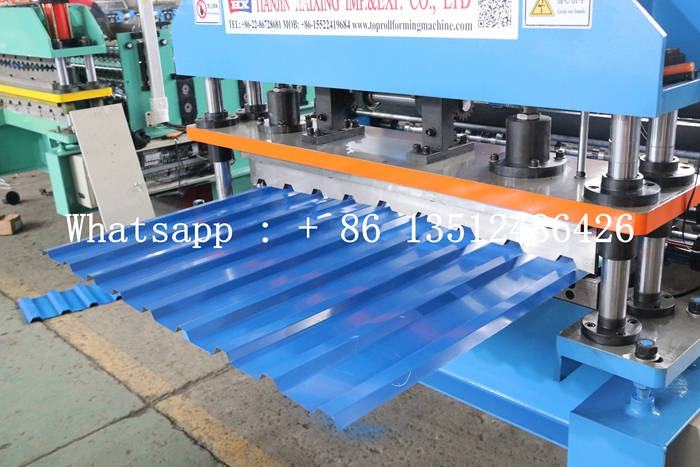

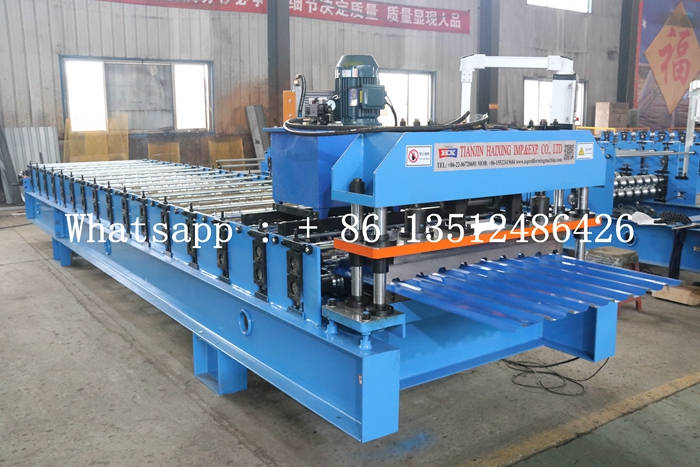

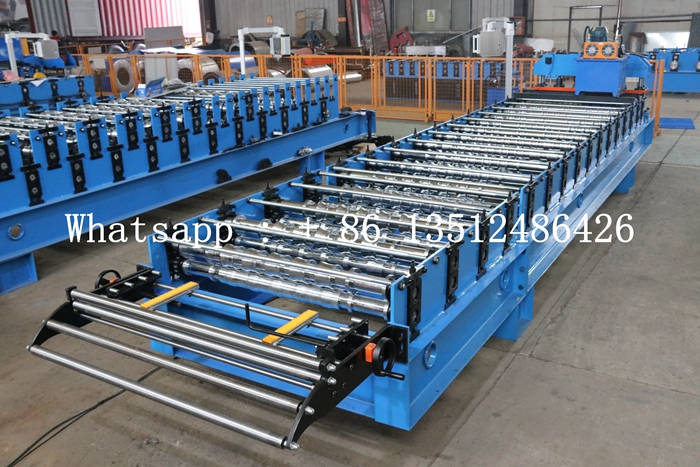

Steel Roofing Roll Forming Machines
Steel Roofing Roll Forming Machines
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin

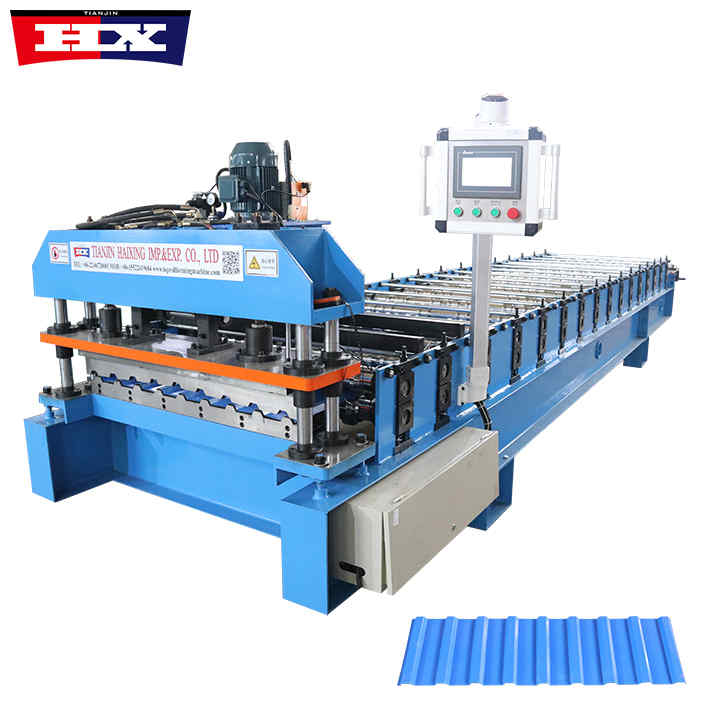

Steel Roofing Roll Forming Machines
Steel Roofing Roll Forming Machines
The steel roofing roll forming machines is an efficient and precise metal processing equipment widely used in construction, industry and other fields. Equipment features include high efficiency, high precision, good stability and easy operation. The working principle is mainly based on the transmission system, pressure tile device and control system.

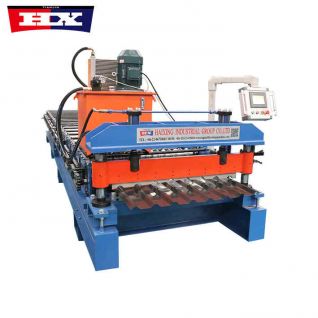

Steel Roofing Roll Forming Machines
Specification
No. |
Number |
Steel Roofing Roll Forming Machines |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 16 |
| 19. | Size | 8000mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
Application

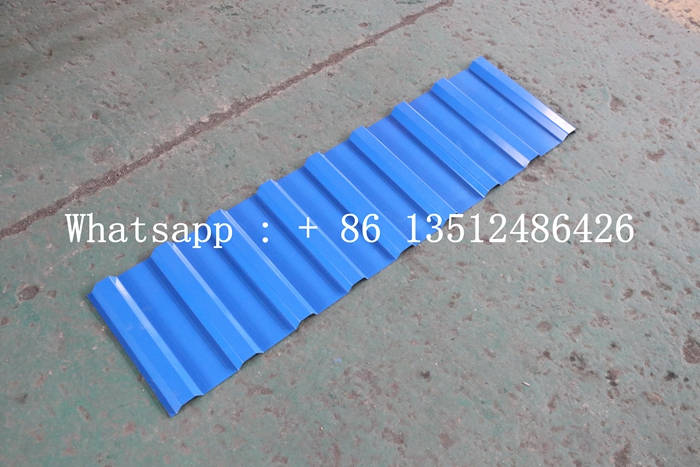

1. Construction industry: used to manufacture various metal roofs, walls, doors, windows and other building components to improve the aesthetics and functionality of the building.
2. Machinery industry: used to produce various metal sheet products, such as metal boxes, frames, bases, etc., to meet the manufacturing needs of mechanical equipment.
3. Ship industry: used to manufacture ship hulls and various metal parts on ships to improve the performance and safety of ships.
4. Automobile industry: used to produce automobile bodies, doors, hoods and other components to improve the aesthetics and performance of automobiles.
5. Other industries: such as metal sheet processing and manufacturing in aerospace, petrochemical, electric power and other fields.
