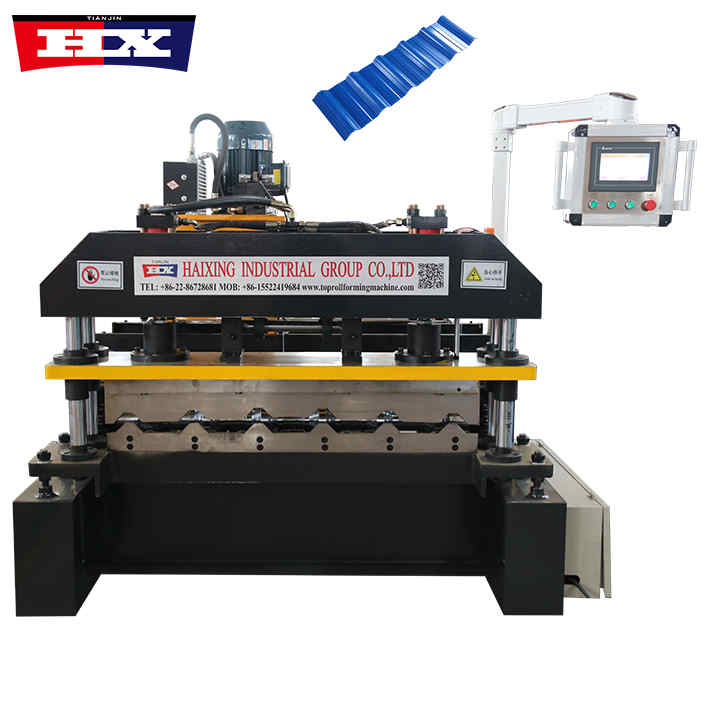

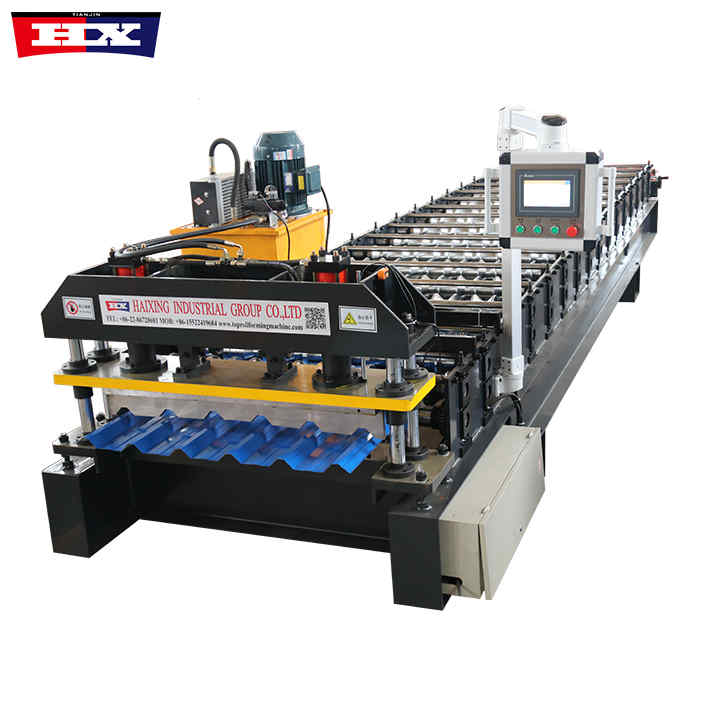

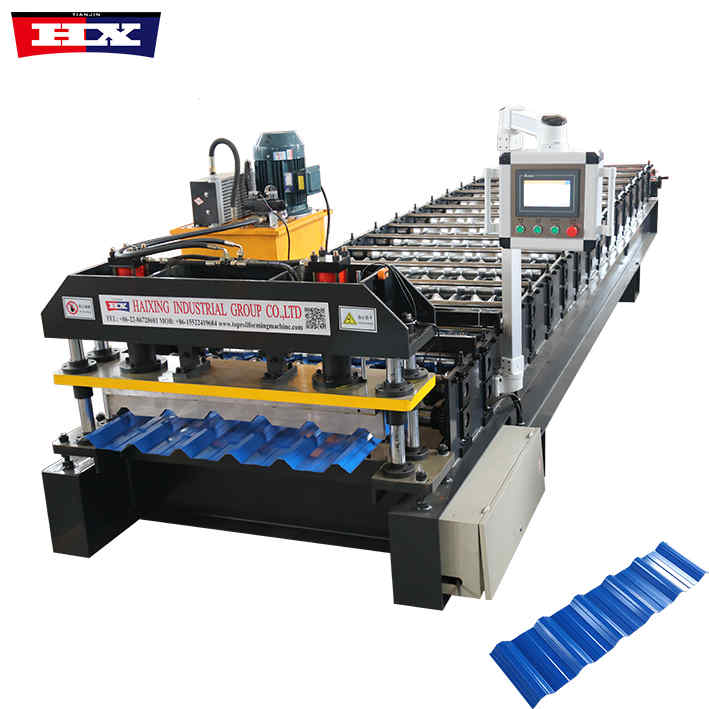

Trapezoidal Tile Roll Forming Machine
Trapezoidal Tile Roll Forming Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin

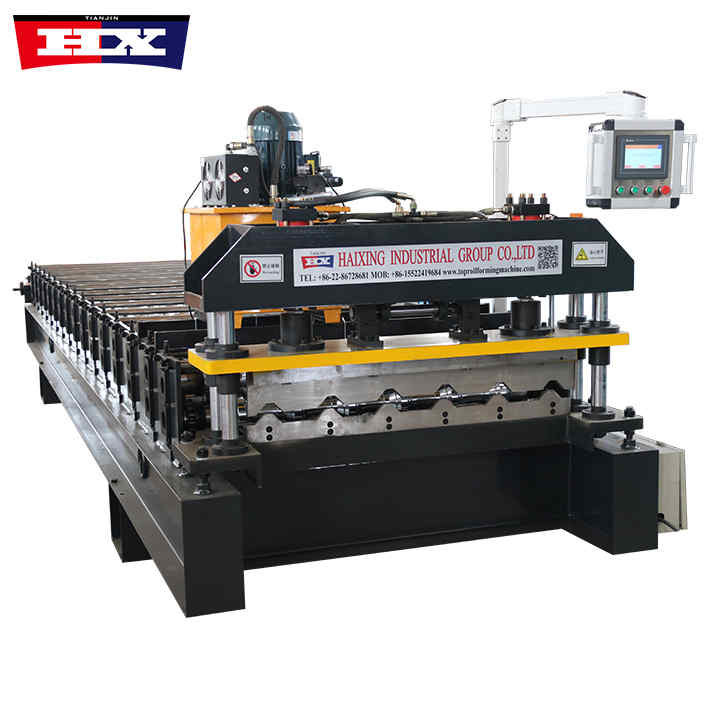

Trapezoidal Tile Roll Forming Machine

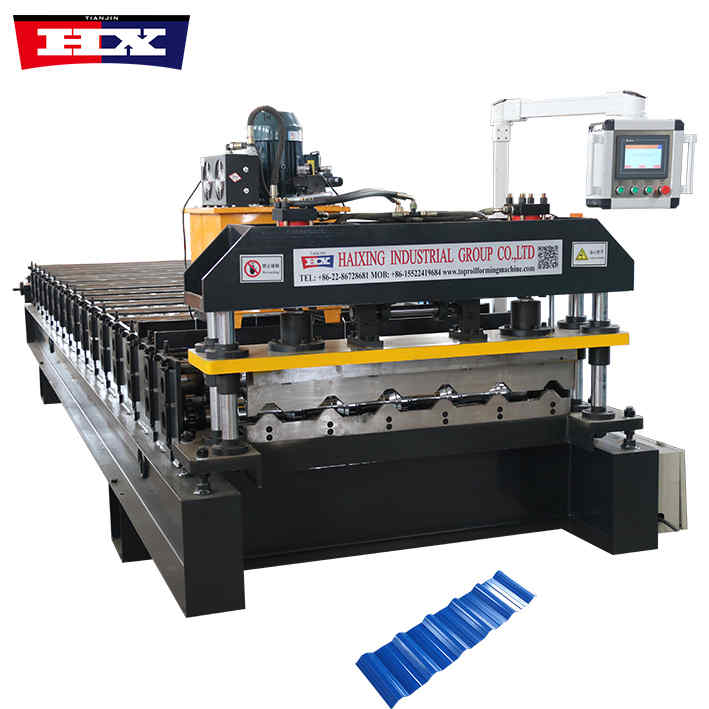

Trapezoidal Tile Roll Forming Machine

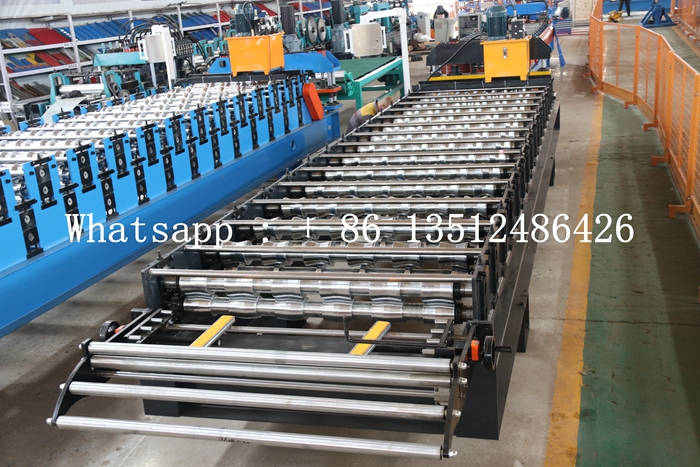

Machine composition
1. Body: including main shaft, transmission device and base, etc.

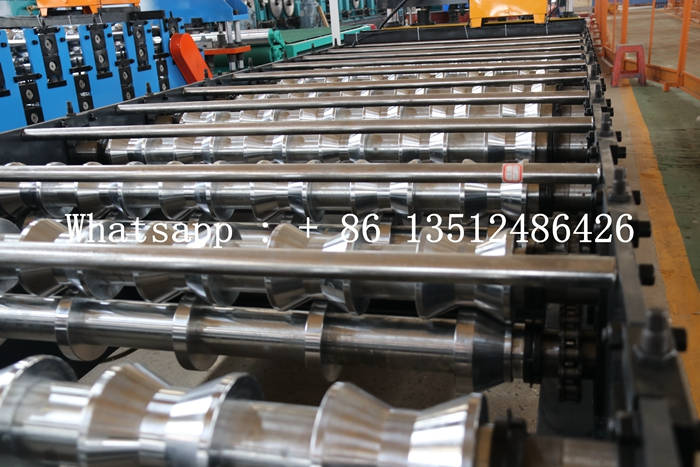

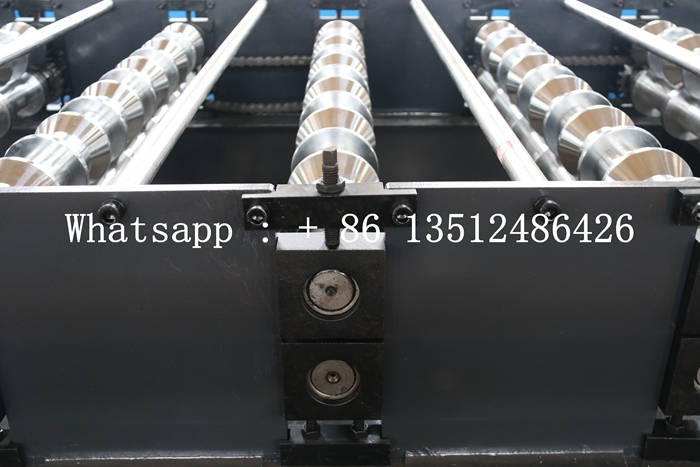

2. Pressure roller: It consists of two upper and lower rollers, and the width and height can be adjusted.
3. Pressing mold: Molds of different shapes can be replaced as needed.
4. Control system: including electrical control boxes, buttons, etc.
1. High efficiency: The trapezoidal tile roll forming machine adopts advanced pressing technology and can quickly complete the pressing work of metal tiles. Its efficient production capacity can greatly shorten the construction period and improve the progress of the project.
2. High accuracy: The trapezoidal tile roll forming machine is equipped with an advanced control system and precision molds to ensure that the pressed metal tiles have accurate dimensions and standardized shapes. This helps improve the overall quality of the building.
3. Easy to operate: The trapezoidal tile roll forming machine adopts a user-friendly design and is easy to operate. Even operators who are new to the equipment can quickly learn how to operate it.
4. Energy saving and environmental protection: The trapezoidal tile roll forming machine produces less noise and pollution during the pressing process and complies with national environmental protection standards. At the same time, it can effectively save energy and reduce production costs.
Trapezoidal Tile Roll Forming Machine
Specification
No. |
Number |
Trapezoidal Tile Roll Forming Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |

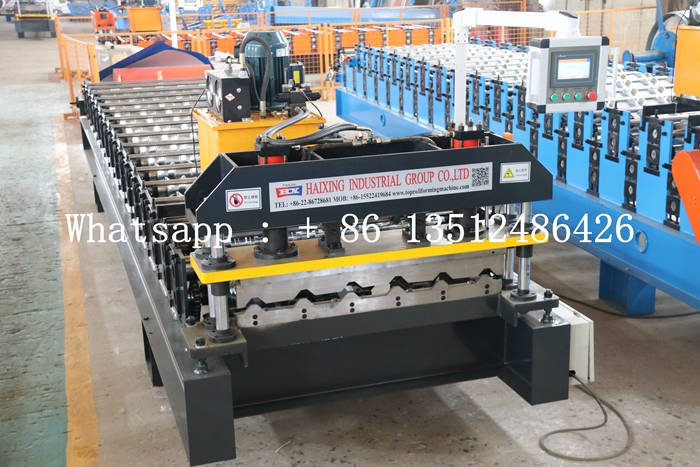

| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 16 |
| 19. | Size | 8000mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
Notice
1. Pay attention to safety during operation and avoid pinching of hands or other body parts.
2. Ensure that the size of the materials being processed meets the requirements and avoid danger caused by materials that are too long or too wide.
3. When replacing the mold, pay attention to selecting the appropriate mold and ensure that the installation is firm and reliable.
4. Do not exceed the maximum processing capacity specified by the equipment, otherwise the equipment may be damaged or a safety accident may occur.
5. Regularly check whether all parts of the equipment are operating normally and perform necessary maintenance.
